75-Multi-interface use case 15/Introduce unittest framework, view test report

Refer to the boss article: 75

Here we first get all the steps from the database, and then we use loops for these steps to automatically generate sub-functions of this test class. Then run the unittest test class.

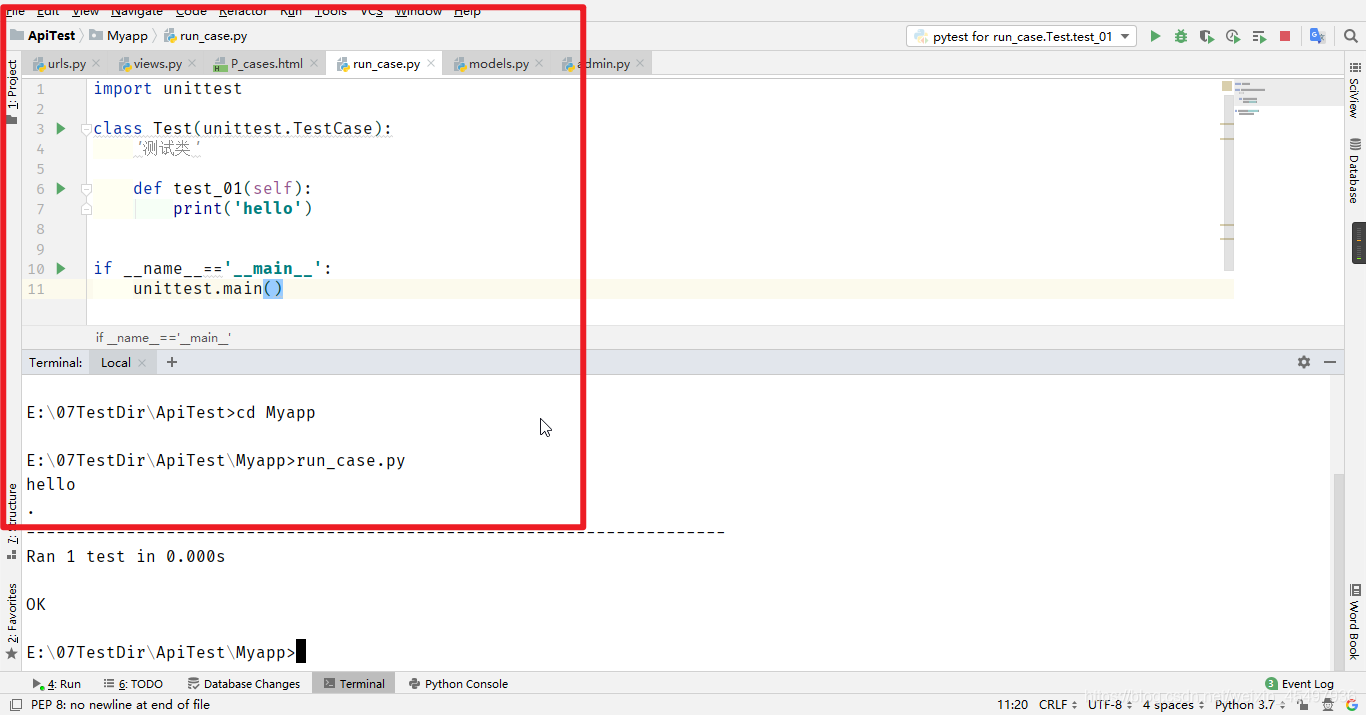

Pull-in unittest, demo

Insert picture description here

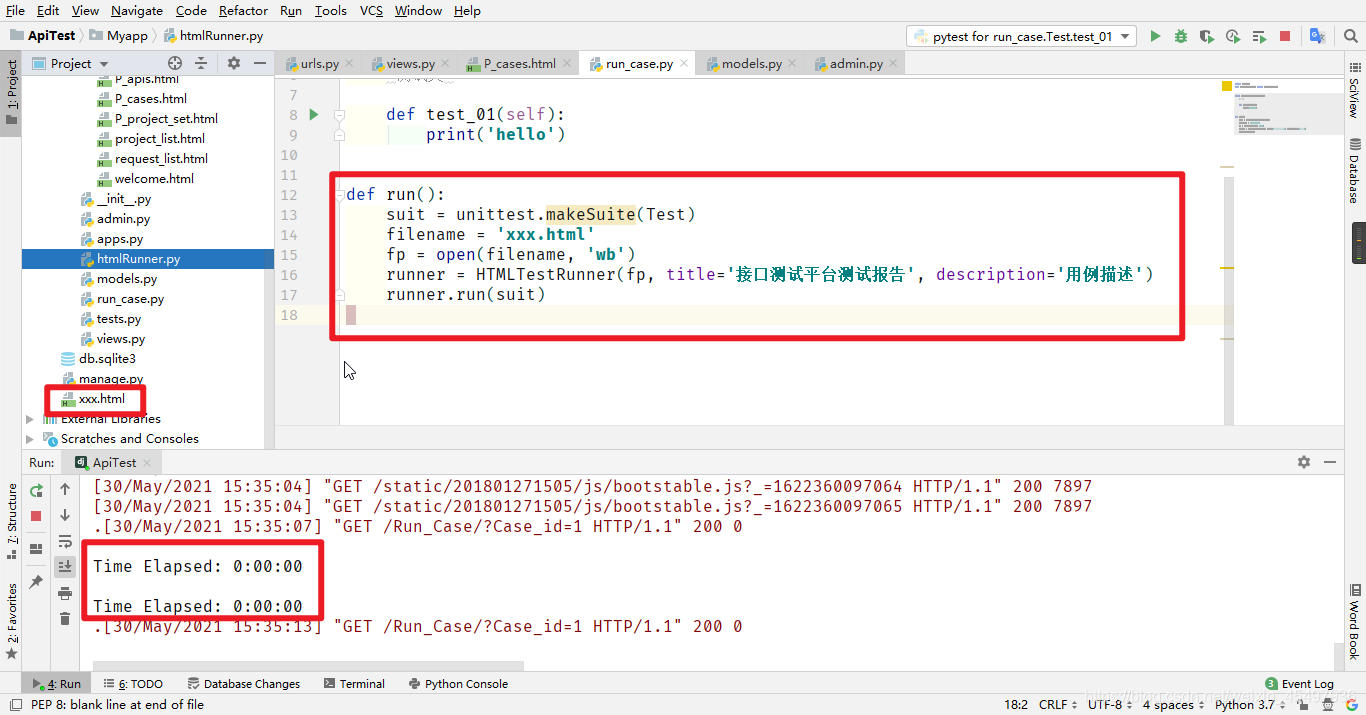

Call with parameters

Insert picture description here

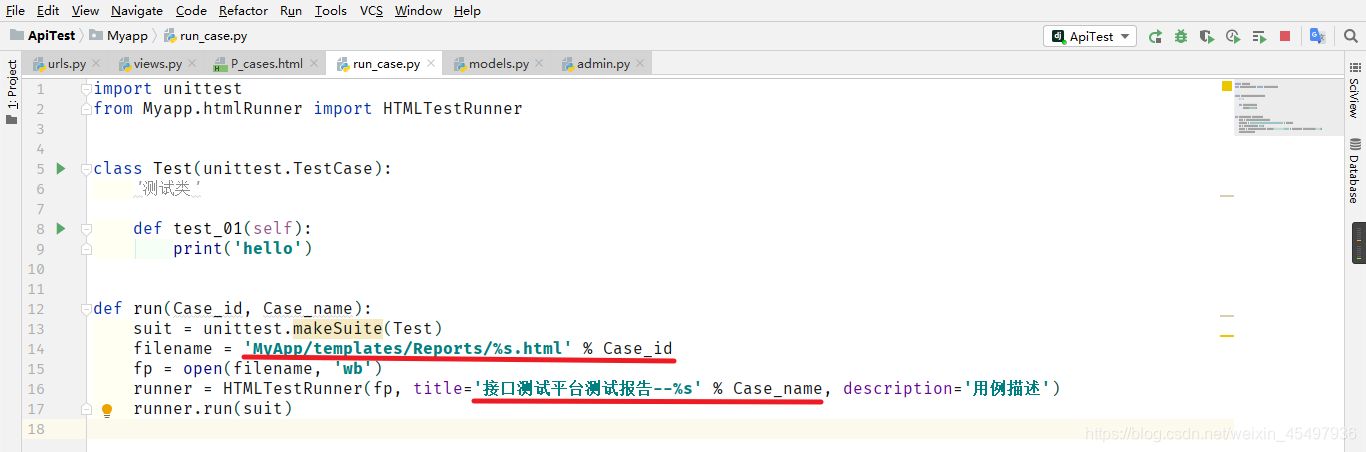

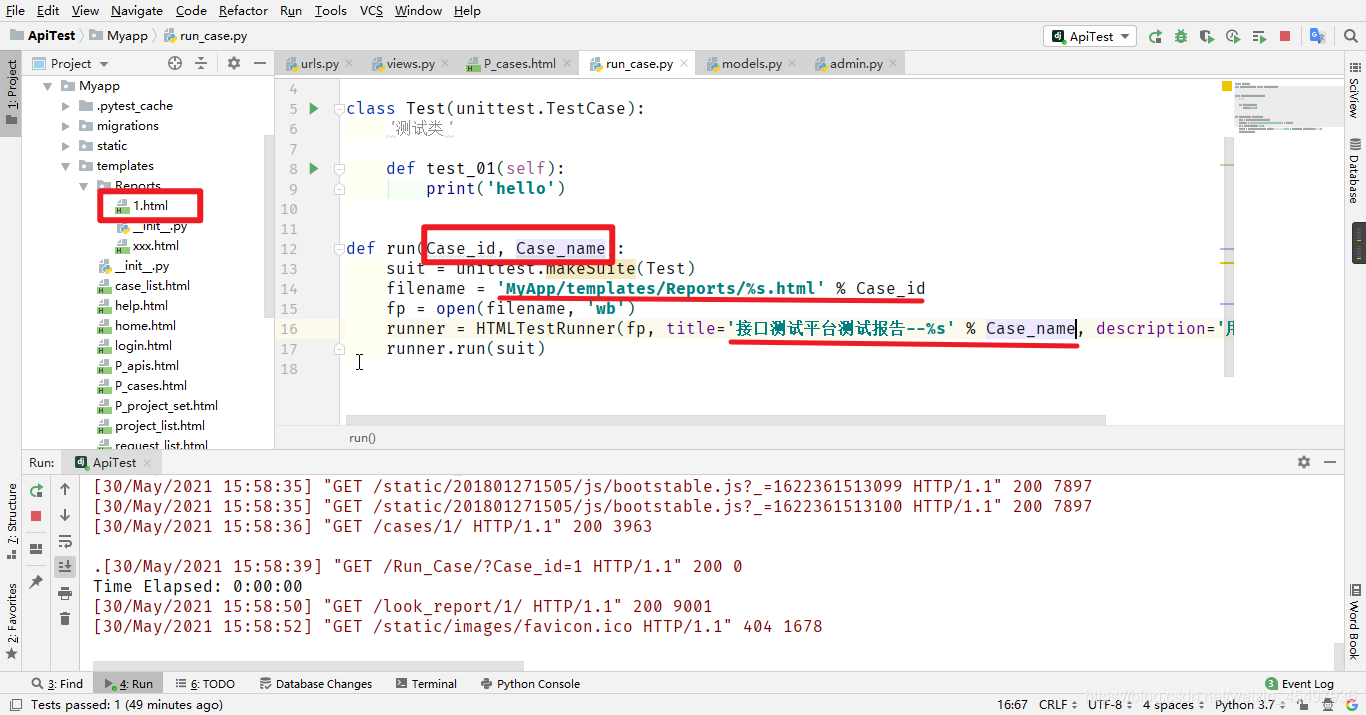

Test report, designated storage location

Insert picture description here

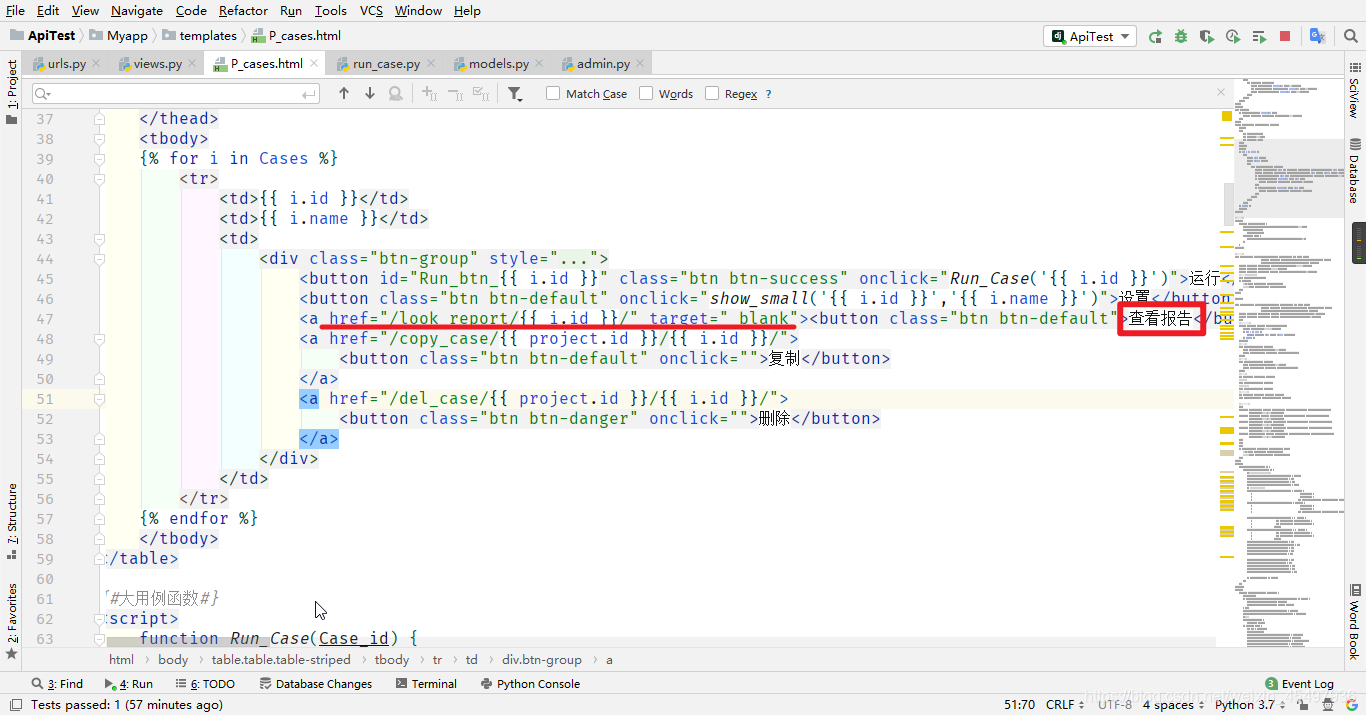

View report

Insert picture description here

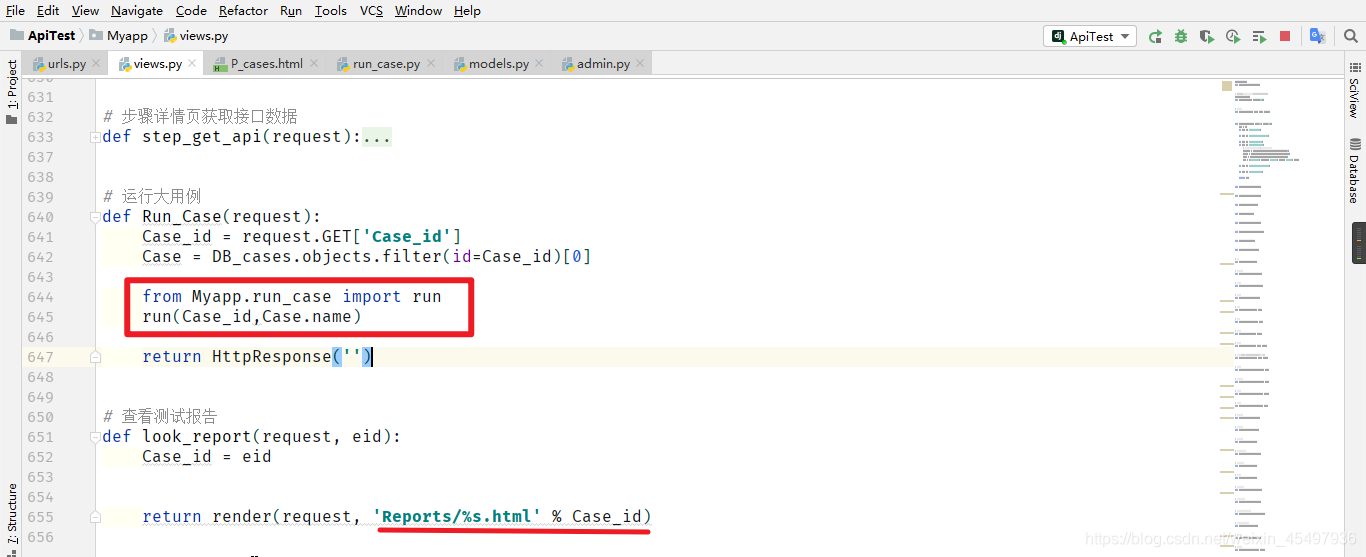

Backstage

Insert picture description here

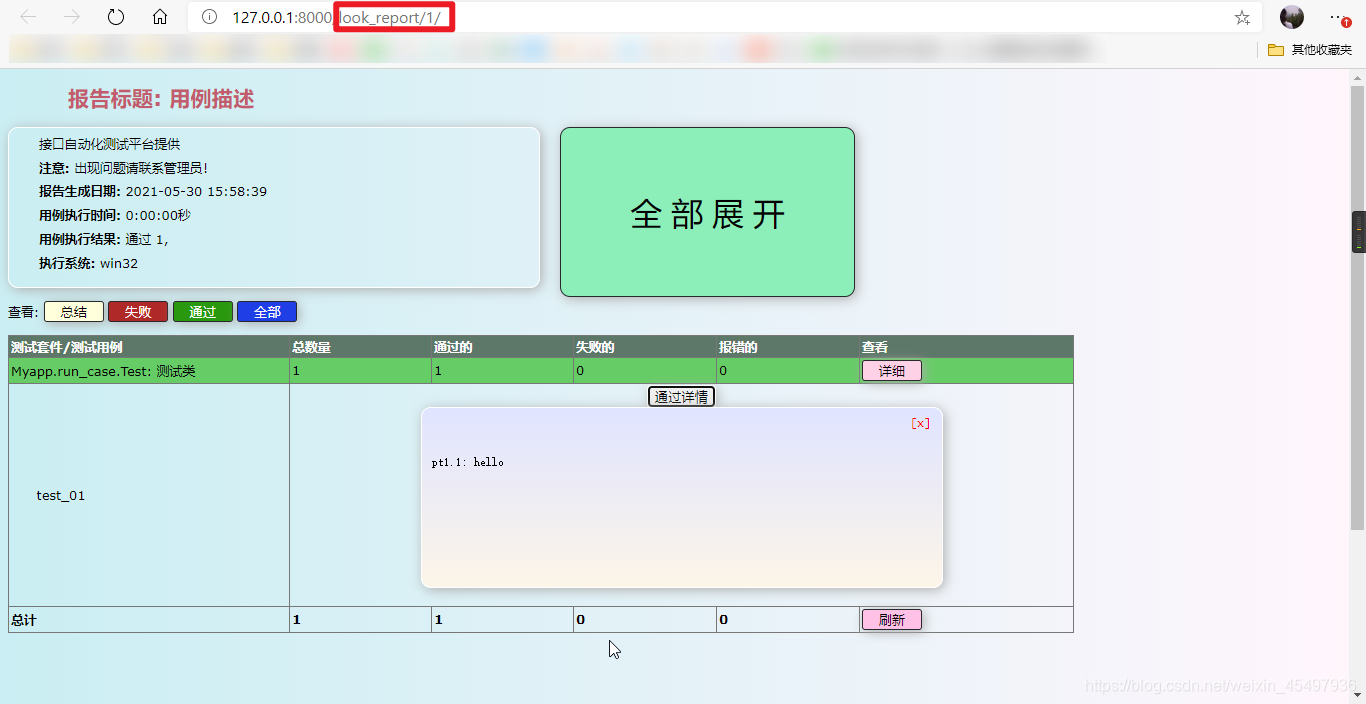

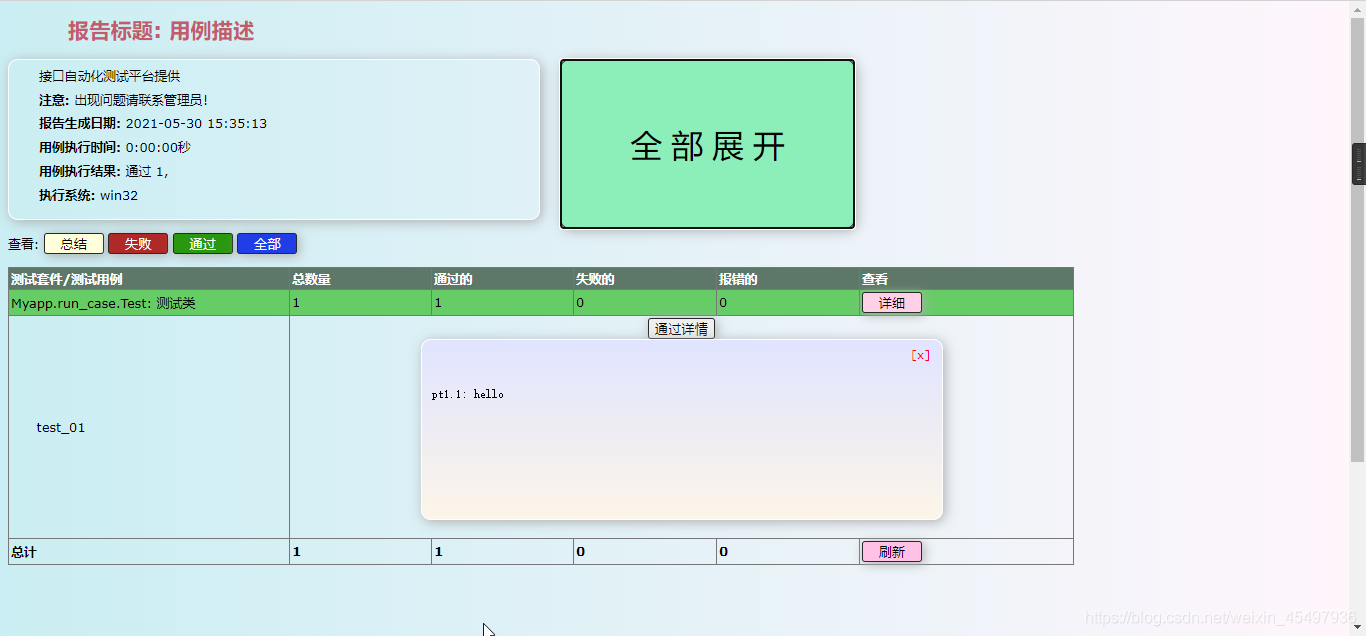

Finish effect

Insert picture description here


Insert picture description here


Insert picture description here

HTMLTestRunner file

Reference article: https://blog.csdn.net/weixin_48435804/article/details/109771521#comments_13893000

# -*- coding: utf-8 -*-
import getpass, sys
import platform, glob, os, traceback

__author__ = "Wai Yip Tung"
__version__ = "0.8.2"

# TODO: color stderr
# TODO: simplify javascript using ,ore than 1 class in the class attribute?

import datetime
from io import StringIO
import sys
import time
import unittest
from xml.sax import saxutils


# ------------------------------------------------------------------------
# The redirectors below are used to capture output during testing. Output
# sent to sys.stdout and sys.stderr are automatically captured. However
# in some cases sys.stdout is already cached before HTMLTestRunner is
# invoked (e.g. calling logging.basicConfig). In order to capture those
# output, use the redirectors for the cached stream.
#
# e.g.
#   >>> logging.basicConfig(stream=HTMLTestRunner.stdout_redirector)
#   >>>
#
class OutputRedirector(object):
    """ Wrapper to redirect stdout or stderr """

    def __init__(self, fp):
        self.fp = fp

    def write(self, s):
        self.fp.write(s)

    def writelines(self, lines):
        self.fp.writelines(lines)

    def flush(self):
        self.fp.flush()


stdout_redirector = OutputRedirector(sys.stdout)
stderr_redirector = OutputRedirector(sys.stderr)


class Template_mixin(object):
    STATUS = {
        0: '通过详情',
        1: '失败详情',
        2: '错误详情',
    }

    DEFAULT_TITLE = u'测试报告'
    DEFAULT_DESCRIPTION = ''

    HTML_TMPL = r"""<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
    <title>%(title)s</title>
    <meta name="generator" content="%(generator)s"/>
    <link rel="shortcut icon" href=" /static/images/favicon.ico" />
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"/>
    %(stylesheet)s
</head>
<body style="background: linear-gradient(to right, #caeef3, #fff6fc);">
<script language="javascript" type="text/javascript"><!--
output_list = Array();

/* level - 0:Summary; 1:Failed; 2:Passed 3:All*/
function showCase(level) {
    trs = document.getElementsByTagName("tr");
    for (var i = 0; i < trs.length; i++) {
        tr = trs[i];
        id = tr.id;
        if (id.substr(0,2) == 'ft') {
            if (level==0) {
                tr.className = 'hiddenRow';
            }
            else if (level==2)  {
                tr.className = 'hiddenRow';
            }
            else {
                tr.className = '';
            }
        }
        if (id.substr(0,2) == 'pt') {
            if (level == 0) {
                tr.className = 'hiddenRow';
            }
            else if (level == 1) {
                tr.className = 'hiddenRow';
            }
            else {
                tr.className = ''
            }
        }
    }
}


function showClassDetail(cid, count) {
    var id_list = Array(count);
    var toHide = 1;
    for (var i = 0; i < count; i++) {
        tid0 = 't' + cid.substr(1) + '.' + (i+1);
        tid = 'f' + tid0;
        tr = document.getElementById(tid);
        if (!tr) {
            tid = 'p' + tid0;
            tr = document.getElementById(tid);
        }
        id_list[i] = tid;
        if (tr.className) {
            toHide = 0;
        }
    }
    for (var i = 0; i < count; i++) {
        tid = id_list[i];
        if (toHide) {
            document.getElementById('div_'+tid).style.display = 'none'
            document.getElementById(tid).className = 'hiddenRow';
        }
        else {
            document.getElementById(tid).className = '';
        }
    }
}

function bbbb(vu)
{
    window.location=vu;
 }

function showTestDetail(div_id){
    var details_div = document.getElementById(div_id)
    var displayState = details_div.style.display
    // alert(displayState)
    if (displayState != 'block' ) {
        displayState = 'block'
        details_div.style.display = 'block'
    }
    else {
        details_div.style.display = 'none'
    }
}
function showAllTest(){
showCase(3);
showAllTest0();
}


function showAllTest0(){
    var x = document.getElementsByClassName("popup_window");
    var i;
    for (i=0;i<x.length;i++){
        var displayState = x[i].style.display
        if (displayState != 'block' ) {
            displayState = 'block'
            x[i].style.display = 'block'
        }
        else {
            x[i].style.display = 'none'
    }}
}


function html_escape(s) {
    s = s.replace(/&/g,'&amp;');
    s = s.replace(/</g,'&lt;');
    s = s.replace(/>/g,'&gt;');
    return s;
}

/* obsoleted by detail in <div>
function showOutput(id, name) {
    var w = window.open("", //url
                    name,
                    "resizable,scrollbars,status,width=800,height=450");
    d = w.document;
    d.write("<pre>");
    d.write(html_escape(output_list[id]));
    d.write("\n");
    d.write("<a href='javascript:window.close()'>close</a>\n");
    d.write("</pre>\n");
    d.close();
}
*/
--></script>

%(heading)s
%(report)s
%(ending)s

</body>
</html>
"""

    STYLESHEET_TMPL = """
<style type="text/css" media="screen">
body        { font-family: verdana, arial, helvetica, sans-serif; font-size: 80%; }
table       { font-size: 100%; }
pre         { }

/* -- heading ---------------------------------------------------------------------- */
h1 {
   font-size: 16pt;
   color: #c35b6e;
   padding-left: 60px;
}
.heading {
    margin-top: 0ex;
    margin-bottom: 1ex;
}

.heading .attribute {
    margin-top: 1ex;
    margin-bottom: 0;
}

.heading .description {
    margin-top: 4ex;
    margin-bottom: 6ex;
}
.wqrf_button {
    border: 1px solid #28292c;
    border-radius: 3px;
    box-shadow: 2px 2px 12px #aeaeae;
    width: 60px;
}
/* -- css div popup ------------------------------------------------------------------------ */
a.popup_link {
}

a.popup_link:hover {
    color: red;
}

.popup_window {
    display: none;
    position: relative;
    left: 0px;
    top: 0px;
    /*border: solid #627173 1px; */
    padding: 10px;
    background: linear-gradient(to top, #fcf5e8, #e0e4ff);
    border: 1px solid #ffffff;border-radius: 10px;box-shadow: 2px 2px 12px #aeaeae;
    font-family: "Lucida Console", "Courier New", Courier, monospace;
    text-align: left;
    font-size: 8pt;
    width: 500px;
}

}
/* -- report ------------------------------------------------------------------------ */
#show_detail_line {
    margin-top: 3ex;
    margin-bottom: 1ex;
}
#result_table {
    width: 80%;
    border-collapse: collapse;
    border: 1px solid #777;
}
#header_row {
    font-weight: bold;
    color: white;
    background-color: #5d7768;
}
#result_table td {
    border: 1px solid #777;
    padding: 2px;
}
#total_row  { font-weight: bold; }
.passClass  { background-color: #6c6; }
.failClass  { background-color: #c60; }
.errorClass { background-color: #c00; }
.passCase   { color: #6c6; }
.failCase   { color: #c60; font-weight: bold; }
.errorCase  { color: #c00; font-weight: bold; }
.hiddenRow  { display: none; }
.testcase   { margin-left: 2em; }

#div100 img{
      cursor: pointer;
      transition: all 0.2s;
    }
#div100 img:hover{
  transform: scale(7);
  }

/* -- ending ---------------------------------------------------------------------- */
#ending {
}

</style>
"""
    HEADING_TMPL = r"""<div class='heading'>
<h1>报告标题: %(description)s </h1>
    <div style="border: 1px solid #ffffff;border-radius: 10px;box-shadow: 2px 2px 12px #aeaeae;padding-left: 30px;width: 500px">
<p class='attribute'>接口自动化测试平台提供</p>
%(parameters)s
<br>
</div>
"""
    ########################################################################################################
    HEADING_ATTRIBUTE_TMPL = """<p class='attribute'><strong>%(name)s:</strong> %(value)s</p>
"""  # variables: (name, value)

    REPORT_TMPL = """
<p></p>
<div class="btn">
<p>查看:
<button style="background-color: #ffffdc" class="wqrf_button" οnclick='javascript:showCase(0)'>总结</button>
<button style="background-color: #af2928;color: white" class="wqrf_button" οnclick='javascript:showCase(1)'>失败</button>
<button style="background-color: #2a980f;color: white" class="wqrf_button" οnclick='javascript:showCase(2)'>通过</button>
<button style="background-color: #203ee6;color: white"  class="wqrf_button" οnclick='javascript:showCase(3)'>全部</button>
<button style="background-color: #8ceeb8;position: absolute;top: 58px;left:560px;width: 295px;height: 170px;border-radius: 10px" id='showAllTest' class="wqrf_button"  οnclick='javascript:showAllTest()'><span style="font-size: xx-large">全 部 展 开</span></button>


</p>
</div>
<p></p>
<table id='result_table'>
<colgroup>
<col align='left' />
<col align='right' />
<col align='right' />
<col align='right' />
<col align='right' />
<col align='right' />
</colgroup>
<tr id='header_row'>
    <td>测试套件/测试用例</td>
    <td>总数量</td>
    <td>通过的</td>
    <td>失败的</td>
    <td>报错的</td>
    <td>查看</td>

</tr>
%(test_list)s
<tr id='total_row'>
    <td>总计</td>
    <td>%(count)s</td>
    <td>%(Pass)s</td>
    <td>%(fail)s</td>
    <td>%(error)s</td>
    <td><button class="wqrf_button" style="background-color: #ffc2e6" οnclick='javascript:location.reload()'>刷新</button></td>

</tr>
</table>
"""

    REPORT_CLASS_TMPL = r"""
<tr class='%(style)s'>
    <td>%(desc)s</td>
    <td>%(count)s</td>
    <td>%(Pass)s</td>
    <td>%(fail)s</td>
    <td>%(error)s</td>
    <td><button class="wqrf_button" style="background-color: #ffd1e7"  οnclick="javascript:showClassDetail('%(cid)s',%(count)s)">详细</button></td>

</tr>
"""  # variables: (style, desc, count, Pass, fail, error, cid)

    REPORT_TEST_WITH_OUTPUT_TMPL = r"""
<tr id='%(tid)s' class='%(Class)s'>
    <td class='%(style)s'><div class='testcase'>%(desc)s</div></td>
    <td colspan='5' align='center'>

    <!--css div popup start-->
    <a class="popup_liznk" οnfοcus='this.blur();' href="javascript:showTestDetail('div_%(tid)s')" >
        <button class="wqrf_button" style="width: auto">%(status)s</button></a>
    <div id='div_%(tid)s' class="popup_window">
        <div style='text-align: right; color:red;cursor:pointer'>
        <a οnfοcus='this.blur();' οnclick="document.getElementById('div_%(tid)s').style.display = 'none' " >
           [x]</a>
        </div>
        <pre>
        %(script)s
         <div id="div100">
        </div>
        </pre>
    </div> <br>
    <!--css div popup end-->

    </td>
</tr>
"""

    # variables: (tid, Class, style, desc, status)

    REPORT_TEST_NO_OUTPUT_TMPL = r"""
<tr id='%(tid)s' class='%(Class)s'>
    <td class='%(style)s'><div class='testcase'>%(desc)s</div></td>
    <td colspan='5' align='center'>%(status)s</td>
</tr>
"""  # variables: (tid, Class, style, desc, status)

    REPORT_TEST_OUTPUT_TMPL = r"""
%(id)s: %(output)s
"""  # variables: (id, output)

    # ------------------------------------------------------------------------
    # ENDING
    #

    ENDING_TMPL = r"""<div id='ending'>
   <br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br>
    </div>
    """


# -------------------- The end of the Template class -------------------
TestResult = unittest.TestResult


class _TestResult(TestResult):
    # note: _TestResult is a pure representation of results.
    # It lacks the output and reporting ability compares to unittest._TextTestResult.

    def __init__(self, verbosity=1):
        TestResult.__init__(self)
        self.stdout0 = None
        self.stderr0 = None
        self.success_count = 0
        self.failure_count = 0
        self.error_count = 0
        self.verbosity = verbosity

        # result is a list of result in 4 tuple
        # (
        #   result code (0: success; 1: fail; 2: error),
        #   TestCase object,
        #   Test output (byte string),
        #   stack trace,
        # )
        self.result = []

    def startTest(self, test):
        TestResult.startTest(self, test)
        # just one buffer for both stdout and stderr
        self.outputBuffer = StringIO()
        stdout_redirector.fp = self.outputBuffer
        stderr_redirector.fp = self.outputBuffer
        self.stdout0 = sys.stdout
        self.stderr0 = sys.stderr
        sys.stdout = stdout_redirector
        sys.stderr = stderr_redirector

    def complete_output(self):
        """
        Disconnect output redirection and return buffer.
        Safe to call multiple times.
        """
        if self.stdout0:
            sys.stdout = self.stdout0
            sys.stderr = self.stderr0
            self.stdout0 = None
            self.stderr0 = None
        return self.outputBuffer.getvalue()

    def stopTest(self, test):
        # Usually one of addSuccess, addError or addFailure would have been called.
        # But there are some path in unittest that would bypass this.
        # We must disconnect stdout in stopTest(), which is guaranteed to be called.
        self.complete_output()

    def addSuccess(self, test):
        self.success_count += 1
        TestResult.addSuccess(self, test)
        output = self.complete_output()
        self.result.append((0, test, output, ''))
        if self.verbosity > 1:
            sys.stderr.write('ok ')
            sys.stderr.write(str(test))
            sys.stderr.write('\n')
        else:
            sys.stderr.write('.')

    def addError(self, test, err):
        self.error_count += 1
        TestResult.addError(self, test, err)
        _, _exc_str = self.errors[-1]
        output = self.complete_output()
        self.result.append((2, test, output, _exc_str))
        if self.verbosity > 1:
            sys.stderr.write('E  ')
            sys.stderr.write(str(test))
            sys.stderr.write('\n')
        else:
            sys.stderr.write('E')

    def addFailure(self, test, err):
        self.failure_count += 1
        TestResult.addFailure(self, test, err)
        _, _exc_str = self.failures[-1]
        output = self.complete_output()
        self.result.append((1, test, output, _exc_str))
        if self.verbosity > 1:
            sys.stderr.write('F  ')
            sys.stderr.write(str(test))
            sys.stderr.write('\n')
        else:
            sys.stderr.write('F')


class HTMLTestRunner(Template_mixin):
    def __init__(self, stream=sys.stdout, verbosity=1, title=None, description=None):
        self.stream = stream
        self.verbosity = verbosity
        if title is None:
            self.title = self.DEFAULT_TITLE
        else:
            self.title = title
        if description is None:
            self.description = self.DEFAULT_DESCRIPTION
        else:
            self.description = description
        self.startTime = datetime.datetime.now()

    def run(self, test):
        "Run the given test case or test suite."
        result = _TestResult(self.verbosity)
        test(result)
        self.stopTime = datetime.datetime.now()
        self.generateReport(test, result)
        # print >> sys.stderr, '\nTime Elapsed: %s' % (self.stopTime - self.startTime)
        print('\nTime Elapsed: %s' % (self.stopTime - self.startTime))
        return result

    def sortResult(self, result_list):
        # unittest does not seems to run in any particular order.
        # Here at least we want to group them together by class.
        rmap = {}
        classes = []
        for n, t, o, e in result_list:
            cls = t.__class__
            # if not rmap.has_key(cls):
            if cls not in rmap:
                rmap[cls] = []
                classes.append(cls)
            rmap[cls].append((n, t, o, e))
        r = [(cls, rmap[cls]) for cls in classes]
        return r

    def getReportAttributes(self, result):

        """
        Return report attributes as a list of (name, value).
        Override this to add custom attributes.
        """
        startTime = str(self.startTime)[:19]
        duration = str(self.stopTime - self.startTime) + '秒'
        status = []
        if result.success_count: status.append('通过 %s,' % result.success_count)
        if result.failure_count: status.append('失败 %s,' % result.failure_count)
        if result.error_count:   status.append('报错 %s' % result.error_count)
        if status:
            status = ' '.join(status)
        else:
            status = 'none'
        return [
            (u'注意', '出现问题请联系管理员!'),
            (u'报告生成日期', startTime),
            (u'用例执行时间', duration),
            (u'用例执行结果', status),
            (u'执行系统', sys.platform),
        ]

    def generateReport(self, test, result):
        report_attrs = self.getReportAttributes(result)
        generator = 'HTMLTestRunner %s' % __version__
        stylesheet = self._generate_stylesheet()
        heading = self._generate_heading(report_attrs)
        report = self._generate_report(result)
        ending = self._generate_ending()
        output = self.HTML_TMPL % dict(
            title=saxutils.escape(self.title),
            generator=generator,
            stylesheet=stylesheet,
            heading=heading,
            report=report,
            ending=ending,
        )
        self.stream.write(output.encode('utf8'))

    def _generate_stylesheet(self):
        return self.STYLESHEET_TMPL

    def _generate_heading(self, report_attrs):
        a_lines = []
        for name, value in report_attrs:
            line = self.HEADING_ATTRIBUTE_TMPL % dict(
                name=saxutils.escape(name),
                value=saxutils.escape(value),
            )
            a_lines.append(line)
        heading = self.HEADING_TMPL % dict(
            title=saxutils.escape(self.title),
            parameters=''.join(a_lines),
            description=saxutils.escape(self.description),

        )
        return heading

    ################################################################################################################
    def _generate_report(self, result):
        rows = []
        sortedResult = self.sortResult(result.result)
        for cid, (cls, cls_results) in enumerate(sortedResult):
            # subtotal for a class
            np = nf = ne = 0
            for n, t, o, e in cls_results:
                if n == 0:
                    np += 1
                elif n == 1:
                    nf += 1
                else:
                    ne += 1

            # format class description
            if cls.__module__ == "__main__":
                name = cls.__name__
            else:
                name = "%s.%s" % (cls.__module__, cls.__name__)
            doc = cls.__doc__ and cls.__doc__.split("\n")[0] or ""
            desc = doc and '%s: %s' % (name, doc) or name

            row = self.REPORT_CLASS_TMPL % dict(
                style=ne > 0 and 'errorClass' or nf > 0 and 'failClass' or 'passClass',
                desc=desc,
                count=np + nf + ne,
                Pass=np,
                fail=nf,
                error=ne,
                cid='c%s' % (cid + 1),
            )
            rows.append(row)

            for tid, (n, t, o, e) in enumerate(cls_results):
                self._generate_report_test(rows, cid, tid, n, t, o, e)

        report = self.REPORT_TMPL % dict(
            test_list=''.join(rows),
            count=str(result.success_count + result.failure_count + result.error_count),
            Pass=str(result.success_count),
            fail=str(result.failure_count),
            error=str(result.error_count),
        )
        return report

    def _generate_report_test(self, rows, cid, tid, n, t, o, e):
        # e.g. 'pt1.1', 'ft1.1', etc
        has_output = bool(o or e)
        tid = (n == 0 and 'p' or 'f') + 't%s.%s' % (cid + 1, tid + 1)
        name = t.id().split('.')[-1]
        doc = t.shortDescription() or ""
        desc = doc and ('%s: %s' % (name, doc)) or name
        tmpl = has_output and self.REPORT_TEST_WITH_OUTPUT_TMPL or self.REPORT_TEST_NO_OUTPUT_TMPL

        # o and e should be byte string because they are collected from stdout and stderr?
        if isinstance(o, str):
            # TODO: some problem with 'string_escape': it escape \n and mess up formating
            # uo = unicode(o.encode('string_escape'))
            # uo = o.decode('latin-1')
            uo = o
        else:
            uo = o
        if isinstance(e, str):
            # TODO: some problem with 'string_escape': it escape \n and mess up formating
            # ue = unicode(e.encode('string_escape'))
            # ue = e.decode('latin-1')
            ue = e
        else:
            ue = e

        script = self.REPORT_TEST_OUTPUT_TMPL % dict(
            id=tid,
            output=saxutils.escape(uo + ue),
        )

        row = tmpl % dict(
            tid=tid,
            Class=(n == 0 and 'hiddenRow' or 'none'),
            style=n == 2 and 'errorCase' or (n == 1 and 'failCase' or 'none'),
            desc=desc,
            case_name=desc.split(':')[0],
            script=script,
            status=self.STATUS[n],
        )
        rows.append(row)
        if not has_output:
            return

    def _generate_ending(self):
        return self.ENDING_TMPL


##############################################################################
# Facilities for running tests from the command line
##############################################################################

class TestProgram(unittest.TestProgram):

    def runTests(self):
        # Pick HTMLTestRunner as the default test runner.
        # base class's testRunner parameter is not useful because it means
        # we have to instantiate HTMLTestRunner before we know self.verbosity.
        if self.testRunner is None:
            self.testRunner = HTMLTestRunner(verbosity=self.verbosity)
        unittest.TestProgram.runTests(self)


main = TestProgram

##############################################################################
# Executing this module from the command line
##############################################################################

if __name__ == "__main__":
    main(module=None)
