Chat room application-jquery + node.js + websocket

1.index.js
var app = require('express')();
var express = require('express');
var Server = require('http').createServer(app);
var io = require('socket.io')(Server);
var path = require('path');
var Router = require('./Router');
//配置body-parser
var BodyParser = require('body-parser');
app.use(BodyParser.urlencoded({extend: false}));
app.use(BodyParser.json());
//配置默认可以访问的静态资源目录
app.use('/views/',express.static(path.join(__dirname , './views')));
/*
  配置使用 art-template  模板引擎,第一个参数表示,当渲染以  .art 结尾的文件的时候(也可以修改为其他后缀,如: .html ), 使用
  art-template  模板引擎, express-art-template  是专门用来在 Express 中把art-template 整合到Express 中,原因在于 express-art-template 依赖了 art-template
*/
app.engine('html',require('express-art-template'));

//服务器监听端口
Server.listen(5000,() => {
   console.log('Listening on *:5000');
});

//加载路由
app.use(Router);

//定义获取现在时间的函数
function Time(){
   var D = new Date();
   var Hours = D.getHours();
   var Minutes = D.getMinutes();
   var Seconds = D.getSeconds();
   if(Minutes <10 && Minutes >=0 && Seconds < 10 && Seconds >= 0) {
      return Hours + ':0' + Minutes  + ':0'+Seconds ;
   }
   if(Minutes <10 && Minutes >=0 && Seconds > 10 ){
      return Hours + ':0' + Minutes + ':' + Seconds ;
   }
   if(Minutes > 10 &&  Seconds < 10 && Seconds >= 0){
      return Hours +':' + Minutes + ':0' + Seconds ;
   }
   return Hours + ':' + Minutes + ':' + Seconds;
}

var User = new Map();    //定义一个数组,登记相应用户的socket.id,便于通信
var count = 0 ;    //定义一个变量用来维护当前在线人数

//socket信道内容处理
//处理登录信息
io.on('connection',(socket)=>{
   var SaveName = Router.SaveName;

    count++;
    //上线通知,获取服务的Save数组里的用户数据
    console.log(SaveName +' had connected!');

   //socket通道连接后,向客户端发送在线用户数量
   io.emit('online',{
      count: count
   })

   //接收聊天信息
   socket.on('chat',(msg)=>{
      console.log( msg.Name + ':   ——'+msg.Message);
      User.set(socket.id,msg.Name);  //存储用户与socket.id的关系
      //除了发送者以外,连接到客户端的用户都可以收到这个信息
      io.emit('Saying',{
         data: msg.Message,
         name: msg.Name  ,  //表示当前信息是由哪个用户发出
         time: Time(),    //信息发送时间
         src: msg.Anvarta
      });
   });

   //用于渲染用户列表接收base64格式的图片,再群发给连接当前服务器用户
   socket.on('ListAnvarta',(msg)=>{
       io.emit('listAnvarta',{
         Src: msg.Src,
         Name: SaveName
       })
   })

   //监听断开连接
   socket.on('disconnect',()=>{
      count--;
      //发送离线用户数量
      io.emit('offline',{
         count: count
      })
      io.emit('offList',{
         Name: User.get(socket.id)
      })
      //离线通知
      console.log(User.get(socket.id) + " had off-line! onlines: " + count);
      User.delete('socket.id');  //删除下线用户
   });

});



2.Router.js
    //导包
    const { response } = require('express');
    var express =  require('express');
    var Router = express.Router();

    //变量,函数区域
    Router.SaveName ='';  //保存当前登录用户的用户名

    //登录页面发送
    Router.get('/',(req,res) => {
    res.render('D:\\web\\commute\\views\\html\\login.html');
    });

    //主页面的发送
    Router.post('/index',(req,res) =>{
        var body = req.body;
        // console.log(body.UserName  +','+ body.Account);
        Router.SaveName = body.UserName;
        //发送渲染页面
        res.render('D:\\web\\commute\\views\\html\\index.html',{
            UserName: body.UserName,
            Account: body.Account
        })
    });

    //导出包含路由的容器
    module.exports = Router;





1.index.html
<!DOCTYPE html>
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Socket.IO chat</title>
    <link rel="stylesheet" href="views/css/index.css">
<head>
  <body>
  <div id="WeChat">

    <div id="Bar">

      <div id="Photo">
         <div id='Instead'>上传头像</div>
         <input type='file' id='File' value='获取图片' />
         <img src="" id="Anvarta" >
      </div>

      <div id=NA>
        <div id="Name">{{UserName}}</div>
        <div id="Account" >{{Account}}</div>
      </div>

      <div id="Onlines">
      </div>

    </div>

    <div id="UserList">
    </div>

    <div id="Right">
      <!-- 展示消息面板 -->
      <div id="DisplayMessage">
      </div>

      <!-- 发送消息面板 -->
      <div id="SentBoard">
          <textarea name="" id="message"></textarea>
          <button id="Send">Send</button>

      </div>


    </div>

  </div>


    <script src="/socket.io/socket.io.js"></script>
    <script src="https://code.jquery.com/jquery-1.11.1.js" rel="external nofollow" ></script>
    <script type="text/javascript">

    $(function(){
       //创建socket通道
      var Info = io.connect('127.0.0.1:5000');
      //获取添加头像有关的元素
      var GetImg = document.getElementById('File');
      var Anvarta = document.getElementById('Anvarta');
      var Instead = document.getElementById('Instead');
      var ChatAnvarta =document.getElementById('ChatAnvarta');
      var Onlines = document.getElementById('Onlines');
      var SId = '';     //暂存当前socket的专用ID

      //获取用户信息
      var Name = $('#Name').text();

      //用户上线后,接收服务端发来的在线用户数量
      Info.on('online',(msg)=>{
         $('#Onlines').html('Onlines users : ' + msg.count);
      })
       //用户离线后,接收服务端发来的在线用户数量
       Info.on('offline',(msg)=>{
         $('#Onlines').html('Onlines users : ' + msg.count);
      })
      //发送信息
       $('#Send').click(()=>{
         //发送聊天信息
           Info.emit('chat',{
              Message: $('#message').val(),
              Name: $('#Name').text(),
              Anvarta: $('#Anvarta').attr('src')        //发送当前用户的base64编码后的头像信息
           });
           $('#message').val('');  //消息发送后,清空聊天框
       });

      //渲染聊天信息到聊天界面
      Info.on('Saying',(msg)=>{
        console.log( msg.name + ': '+msg.data);
        /*
          <div id="RContent">
             <div class="TimeBar">
                 <div class="Time">23:05:43</div>
             </div>

             <img src="" id="RAnvarta">
             <div id="Rmessages"></div>
          </div>
          */
         //如果是本身发送的信息,就渲染在右侧
          if(msg.name == Name){
              $Time = '<div class="Time">'+ msg.time+'</div>';
              $TimeBar = '<div class="TimeBar">'+ $Time +'</div>' ;
              $RAnvarta = '<img src= "'+ msg.src +'" id="RAnvarta">';
              $Rmessages = '<div id="Rmessages">'+ msg.data +'</div>';
              $RContent = '<div id="RContent">'+$TimeBar+$Rmessages+$RAnvarta+'</div>';
              $('#DisplayMessage').append($RContent);
          }
          else{
              $Time = '<div class="Time">'+ msg.time+'</div>';
              $TimeBar = '<div class="TimeBar">'+ $Time +'</div>' ;
              $LAnvarta = '<img src= "'+ msg.src +'" id="LAnvarta">';
              $Lmessages = '<div id="Lmessages">'+ msg.data +'</div>';
              $LContent = '<div id="LContent">'+$TimeBar+$LAnvarta+$Lmessages+'</div>';
              $('#DisplayMessage').append($LContent);
          }
      });

      //添加头像
      GetImg.onchange = function(){
        var file = this.files[0];  //若选择多张图片时,用第一张
         if(window.FileReader){  //如果当前浏览器可以使用FileReader
            var fr = new FileReader();  //定义一个读取文件对象
            fr.readAsDataURL(file);  //输入要读取的文件,定义读取完毕后的文件格式
            fr.onloadend = (event)=>{ //读取完毕后
                Anvarta.src = event.target.result;
                Src = event.target.result;
                //将头像图片发送到服务器,再由服务器选择是否发送到其他对象
                Info.emit('ListAnvarta',{
                  //向服务端发送base64编码格式的照片
                  Src: event.target.result,

                });

            }
         }
         //隐形与显形切换
        Instead.style.opacity = 0;
        Anvarta.style.opacity = 1;

      }

      //渲染上线用户列表
      Info.on('listAnvarta',(msg)=>{
         //新增一个用户,jquery的字符串拼接
         var $Abord ="<div id='Abord'><img src= ' "+ msg.Src +" ' alt='' class='UserAnvarta'></div>" ;
         var $UserName = "<div class='UserName'>" +msg.Name+ "</div>";
         var $User = "<div class='User'>"+$Abord+$UserName+ "</div>";
         $('#UserList').append($User);
         var AnvartaList = document.getElementsByClassName('UserAnvarta');
         for ( index = 0 ; index < AnvartaList.length ; ++index){
              AnvartaList[index].style.opacity = 1;
         }
      });

      //渲染离线用户列表
      Info.on('offList',(msg)=>{
        //用jquery的find()方法找到相应的子元素,再对整个元素删除
        var index = 0 ;
        var UserLists = document.getElementsByClassName('UserName');
        //通过名字检测,找到相应元素的序号
        for(  ; index < UserLists.length; index++){
          if(UserLists[index].innerHTML == msg.Name){
            //在一个大的范围下,于相同的元素中选择删除第n个进行删除,冒号之间不能有空格,泪的教训
           break;
          }
        }
        //加一是因为nth-child是从一开始,而不是零
        index += 1;
        $('#UserList > .User:nth-child('+index+')').remove();
      });
    });
    </script>
  </body>
</html>

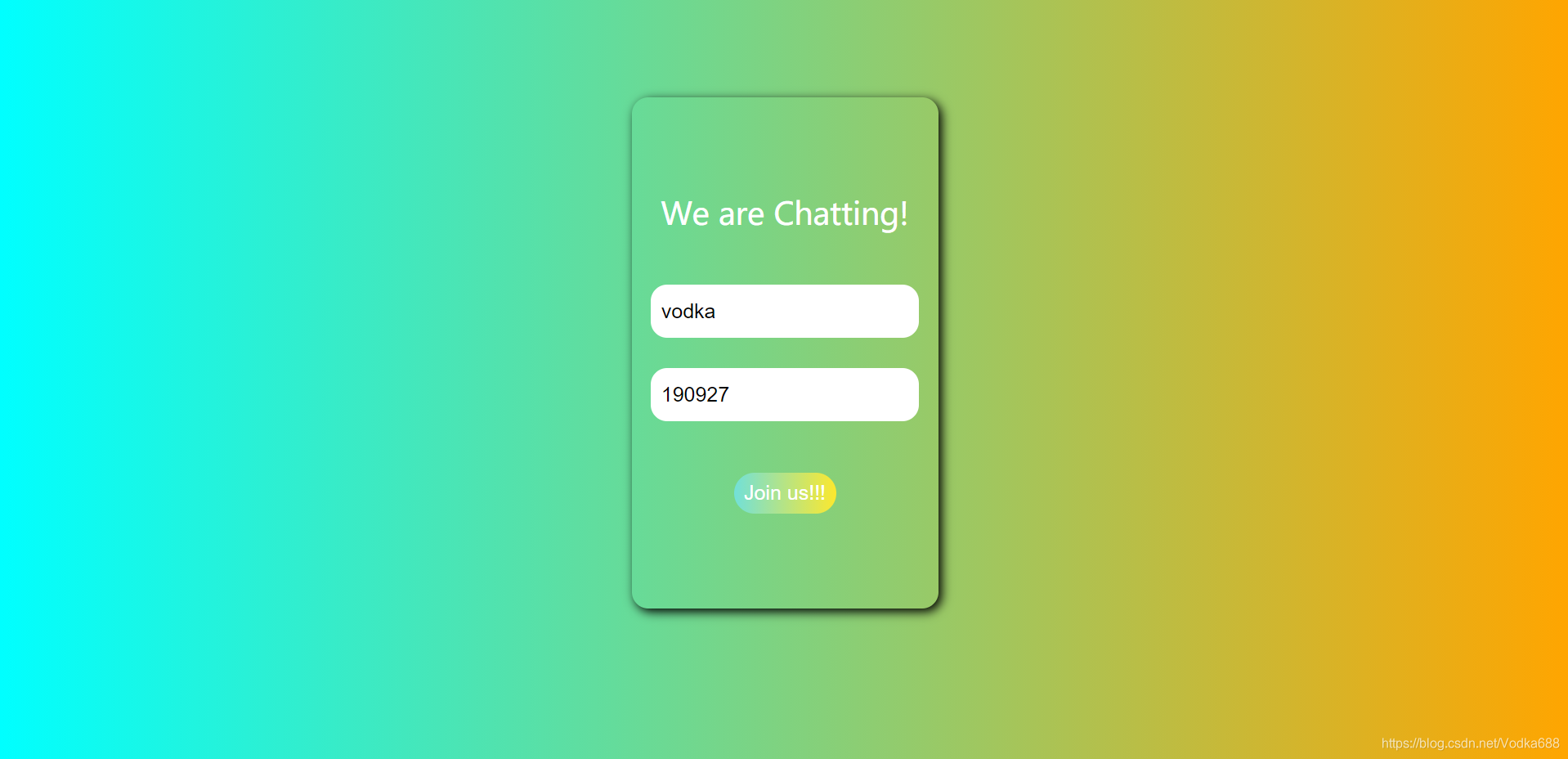

2.login.html
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>聊天室登录界面</title>
    <link rel="stylesheet" href="/views/css/login.css">
</head>
<body>
    <form action="/index" method="POST" id="LoginForm">
         <div id="Title">We are Chatting!</div>
         <input type="text" id="UserName" name="UserName" placeholder="UserName:">
         <input type="text" id="Account" name="Account" placeholder="Account:">
         <button id="Enter" type="submit">Join us!!!</button>
    </form>


    <script src="https://code.jquery.com/jquery-1.11.1.js" rel="external nofollow" ></script>
    <script>
    </script>
</body>
</html>


3.login.css
body{
    display:flex;
    flex-direction: column;
    align-items: center;
    padding: 0px;
    margin: 0px;
    background-image:linear-gradient(to right, aqua,orange);
}
#LoginForm {
    display:flex;
    width: 300px;
    height: 500px;
    margin-top: 100px;
    flex-direction: column;
    align-items: center;
    justify-content: center;
    border-radius:16px;
    box-shadow:3px 3px  10px black  ;
    transition: 0.3s;
    background-image: radial-gradient(to right ,orange,aqua);
}
#LoginForm:hover{
    box-shadow: 10px 10px  15px black  ;
    cursor:pointer;
}

#Title{
    display: flex;
    align-items: flex-start;
    justify-content: center;
    width: 250px;
    height: 60px;
    font-size: 30px;
    color:white;

}

#UserName , #Account{
    display:flex;
    flex-direction: flex-start;
    align-items: center;
    justify-content: flex-start;
    padding-left: 10px;
    width: 250px;
    height: 50px;
    margin-top: 30px;
    border-radius: 16px;
    font-size: 20px;
    border:none;
    outline-style:none;
}

#Enter{
    display:flex;
    flex-direction: flex-start;
    align-items: center;
    justify-content: center;
    width: 100px;
    height: 40px;
    margin-top: 50px;
    border-radius:20px;
    font-size: 20px;
    border: none;
    color:white;
    background-image: linear-gradient(to right , rgba(34, 214, 202, 0.612),rgba(255, 230, 0, 0.809));
}

#Enter:hover{
    cursor:pointer;
    color:black ;

}

4.index.css

* {
    margin: 0;
    padding: 0;
    box-sizing: border-box;
}

body {
    display:flex;
    flex-direction:column;
    justify-content: center;
    align-items: center;
    background-image: linear-gradient(to right , rgb(13, 243, 228),rgb(245, 233, 62));
}

#WeChat{
    display: flex;
    justify-content: center;
    align-items: flex-start;
    width: 800px;
    height: 600px;
    margin-top: 80px;
    border-radius: 15px;
    box-shadow: 5px 5px 10px black;
    flex-wrap: wrap;
    overflow: hidden;
    background-image: linear-gradient(to right ,  rgba(13, 243, 228, 0.34),rgba(245, 233, 62, 0.395)) ;
}

#Bar{
    display: flex;
    justify-content: center;
    align-items: flex-start;
    width: 800px;
    height: 80px;
    background-image: linear-gradient( to right  , rgba(13, 243, 228, 0.748),rgba(13, 243, 228, 0.639),rgba(245, 233, 62, 0.639));
}

#Photo{
    display: flex;
    justify-content: center;
    align-items: center;
    width: 100px;
    height: 80px;
    margin-left: 30px;
}

#Anvarta{
    position: absolute;
    width: 70px;
    height: 70px;
    border-radius: 50%;
    border:none;
    opacity: 0;
    background-color: aliceblue;
}

#File{
    position:absolute;
    width: 70px;
    height: 70px;
    border-radius: 50%;
    opacity: 0;
    z-index: 10;
    background-color: aliceblue;
}

#Instead{
    position: absolute;
    display: flex;
    justify-content: center;
    align-items: center;
    width: 70px;
    height: 70px;
    border-radius: 50%;
    font-size: 10px;
    background-color: white;
}

#NA{
    display:flex;
    flex-direction: column;
    justify-content: center;
    align-items: center;
    width: 220px;
    margin-left: 15px;
    height: inherit;
}
#Name {
    display: flex;
    justify-content:flex-start;
    align-items: flex-start;
    width: 200px;
    height: 30px;
    color:rgb(255, 255, 255);
    text-shadow: 2px 2px 3px black;
}

#Account{
    display: flex;
    justify-content:flex-start;
    align-items: flex-start;
    width: 200px;
    height: 30px;
    color:rgb(255, 255, 255);
    text-shadow: 2px 2px 3px black;
}

#Onlines{
    display: flex;
    justify-content: center;
    align-items: center;
    width: 300px;
    height: inherit;
    text-shadow: 2px 2px 2px black;
    margin-left: 240px;
    border-radius: 15px ;
    color: rgb(255, 255, 255);
}

#UserList{
    display: inline-block;
    width: 180px;
    height: 520px;
    background-image: linear-gradient(to left ,  rgba(13, 243, 228, 0.639),rgba(62, 245, 239, 0.673));
    overflow: auto;
}

.User{
    display:flex;
    justify-content: center;
    align-items: center;
    width: 150px;
    height: 60px;
    margin-top: 10px;
    margin-left: 8px;
    background-image: linear-gradient(to right ,  rgba(13, 243, 228, 0.639),rgba(245, 233, 62, 0.639)) ;
    border-radius: 16px;
    box-shadow:1px 1px 3px black;
}
#Abord{
    display: inline-block;
    width: 45px;
    height: 45px;
    margin-top: 3px;
    margin-left: 5px;
    border-radius: 50%;
    overflow: hidden;
    background-color: aliceblue;
}
.UserAnvarta{
    display: inline-block;
    width: 45px;
    height: 45px;
    border-radius: 50%;
    border:none;
    background-color: aliceblue;
    opacity: 0;  /*待服务端发送头像过来,再显示*/
}

.UserName{
    display: inline-block;
    width:100px;
    height: 20px;
    padding-left: 5px;
    color:aliceblue;
    overflow: hidden;
}
.UserName:hover{
    color:black;
    cursor:pointer;
}
/* 滚动条样式设置
   ::-webkit-scrollbar    //滚动条整体部分
::-webkit-scrollbar-button   //滚动条两端的按钮
::-webkit-scrollbar-track   // 外层轨道
::-webkit-scrollbar-track-piece    //内层轨道,滚动条中间部分(除去)
::-webkit-scrollbar-thumb //滚动条里面可以拖动的那个
::-webkit-scrollbar-corner   //边角
::-webkit-resizer   ///定义右下角拖动块的样式
*/
   ::-webkit-scrollbar {
    height: auto;
    width: 5px;
  }
  /* 定义滚动条轨道内阴影+圆角*/
  ::-webkit-scrollbar-track{
    border-radius: 10px;
    background-image: linear-gradient(to bottom ,  rgba(13, 243, 228, 0.639),rgba(245, 233, 62, 0.639));
  }
  /* 定义滑块内阴影+圆角 */
  ::-webkit-scrollbar-thumb{
    border-radius: 5px;
    background-color: rgb(240, 248, 255);
  }

#Right{
    display:flex;
    flex-direction: column;
    justify-content: flex-start;
    align-items: flex-start;
    width: 620px;
}

#DisplayMessage{
    display:inline-block;
    width: 620px;
    height: 300px;
    box-shadow: 2px 2px 5px black   inset;
    overflow:auto;
    background-image: linear-gradient(to right , rgba(0, 255, 255, 0.667),rgba(255, 255, 0, 0.177));
}


#LContent{
    display:flex;
    justify-content: flex-start;
    align-items: center;
    width: inherit;
    height: 100px;
    margin-top:10px;
}

#LAnvarta{
   display: inline-block;
   width:50px;
   height: 50px;
   border-radius: 50%;
   margin-left: -607px;
   box-shadow: 2px 2px 3px black;
   background-color: aliceblue;
}

#Lmessages{
    display: flex;
    justify-content: flex-start;
    align-items: center;
    overflow-wrap:normal ;
    padding-left: 10px;
    padding-right: 10px;
    width:400px;
    height:55px;
    box-shadow: 2px 2px 3px black;
    border-radius: 20px;
    margin-left: 10px;
    font-size: 10px;
    background-image: linear-gradient(to right,rgba(255, 255, 255, 0.531),rgba(137, 228, 238, 0.313));
}

.TimeBar{
    display:inline-block;
    width: inherit;
    height: 20px;
    margin-top:-78px;
}

.Time{
   display:flex;
   justify-content: center;
   align-items: center;
   width: 80px;
   height: inherit;
   color:aliceblue;
   margin-left:265px;
   border-radius: 20px;
   background-color: rgba(0, 0, 0, 0.544);
}

#RContent{
    display:flex;
    justify-content: flex-start;
    align-items: center;
    width: inherit;
    height: 100px;
    margin-top:10px;

}

#Rmessages{
    display: flex;
    justify-content: flex-end;
    align-items: center;
    overflow-wrap:normal ;
    padding-left: 10px;
    padding-right: 10px ;
    width:500px;
    height:55px;
    box-shadow: 2px 2px 3px black;
    border-radius: 20px;
    margin-left: -350px;
    font-size: 10px;
    background-image: linear-gradient(to right,rgba(255, 255, 255, 0.531),rgba(137, 228, 238, 0.313));
}

#RAnvarta{
    display: inline-block;
    width:50px;
    height: 50px;
    border-radius: 50%;
    margin-right: 10px;
    margin-left: 10px;
    box-shadow: 2px 2px 3px black;
    background-color: aliceblue;
}


#SentBoard{
    display: flex;
    justify-content: center;
    align-items: flex-start;
    width: 620px;
    height: 200px;
    margin-top: 22px;
    box-shadow: 2px 2px 5px black   inset;

}

#message{
    display: flex;
    justify-content: flex-start;
    align-items: flex-start;
    width: 620px;
    font-size: 20px;
    height: 200px;
    padding-top: 10px;
    padding-left: 10px;
    border:none;
    resize:none;
    outline: none;
    border-bottom-right-radius: 16px;
    box-shadow: 2px 2px 5px black  inset;
    background-image: linear-gradient(to right,rgba(0, 255, 255, 0.299),rgba(255, 255, 0, 0.265));
}

#Send{
    position:absolute;
    width:50px;
    height:50px;
    color: black;
    border-radius: 50%;
    border: none;
    outline-style: none;
    margin-top: 143px;
    margin-left: 550px;
    box-shadow: 2px 2px 3px black;
    background-image: linear-gradient(to right,rgba(0, 255, 255, 0.524),rgba(255, 255, 0, 0.401)) ;
}

#Send:hover{
    cursor:pointer;
    color:white;
}

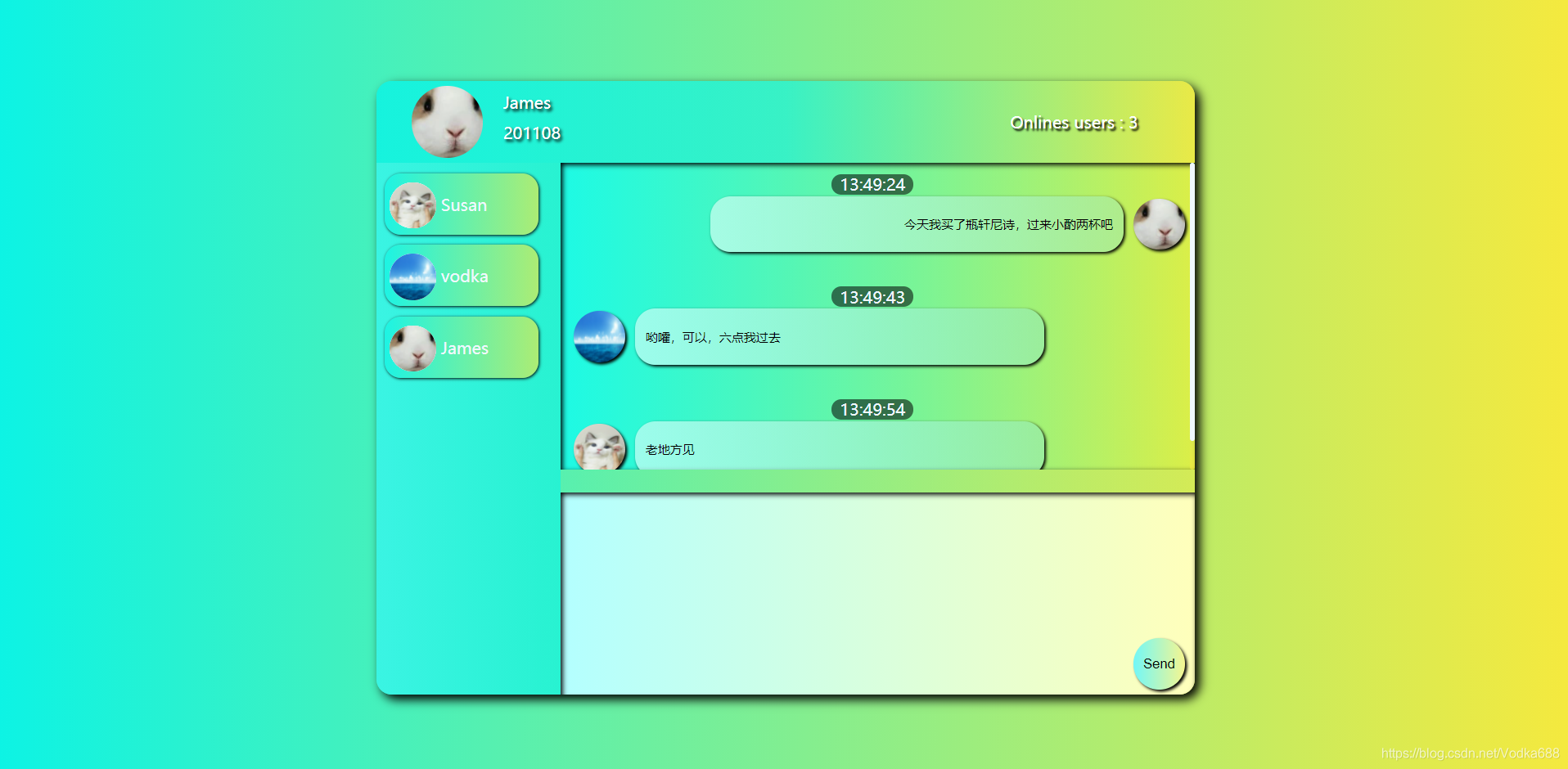

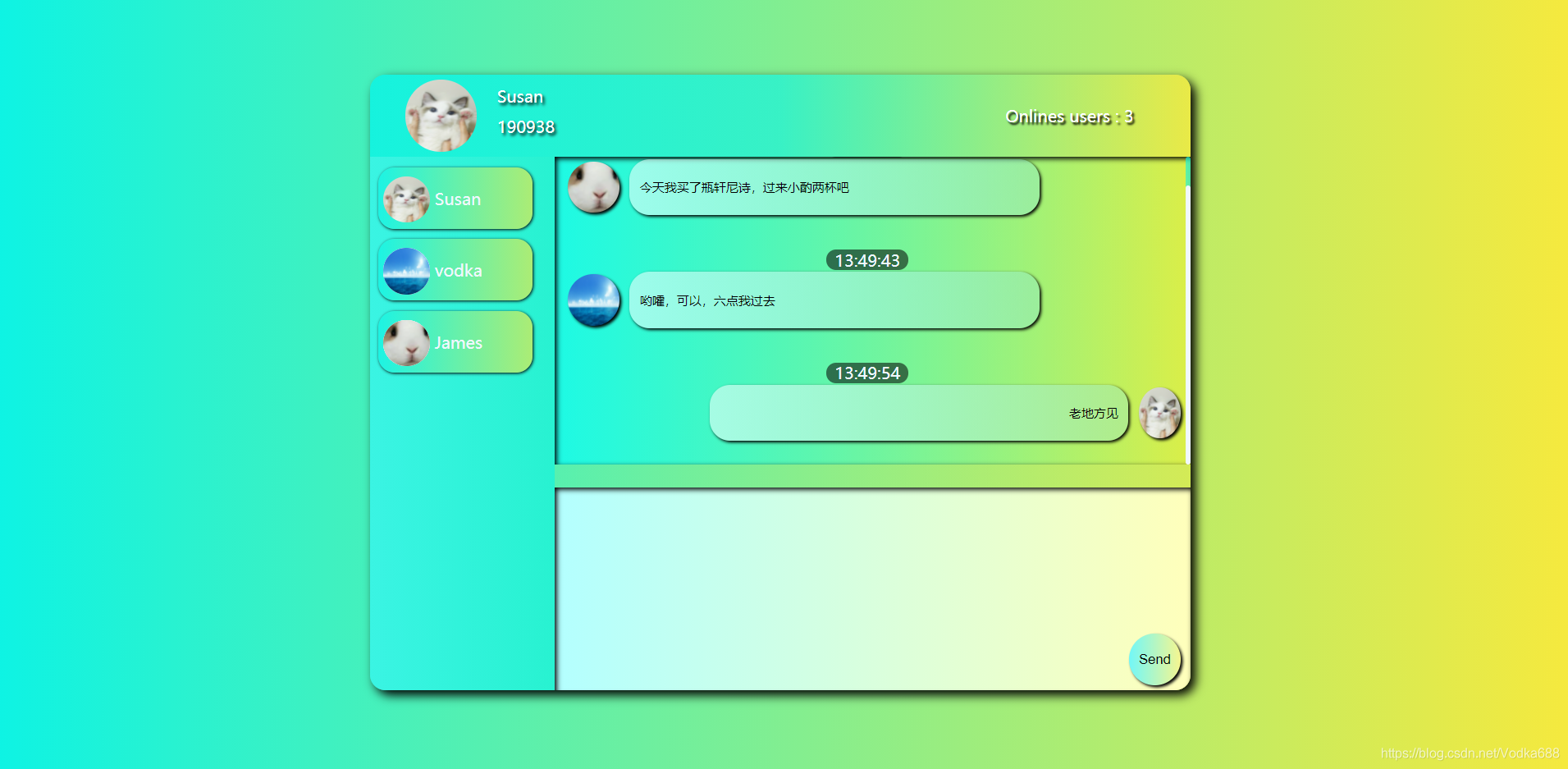

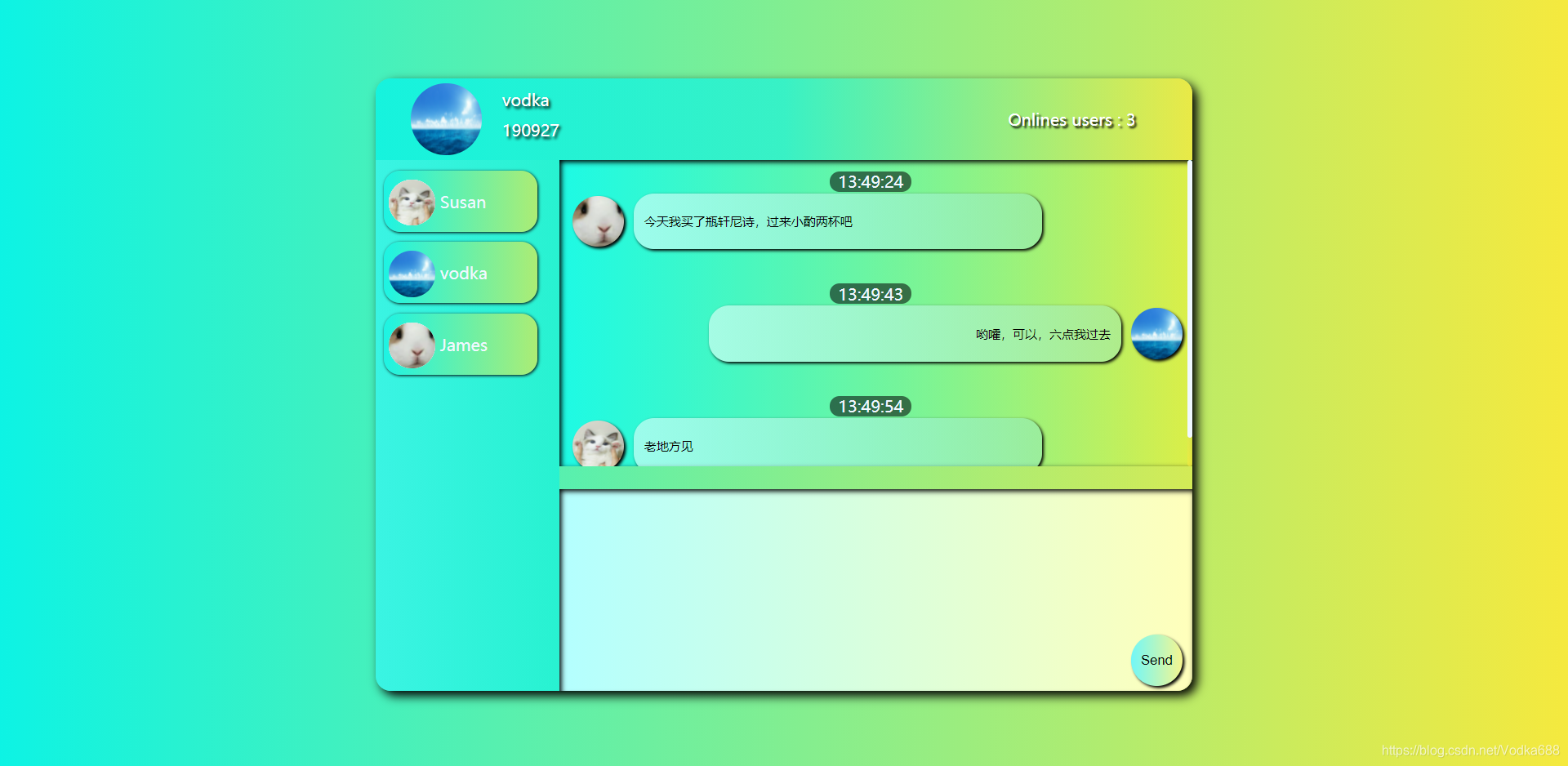

1. With chat, user online and offline functions, other specific functions can also be added using database and other technologies, application effect diagram:

Insert picture description here
Insert picture description here


Insert picture description here


Insert picture description here
