db19-rman detailed tutorial two

Tag RMAN

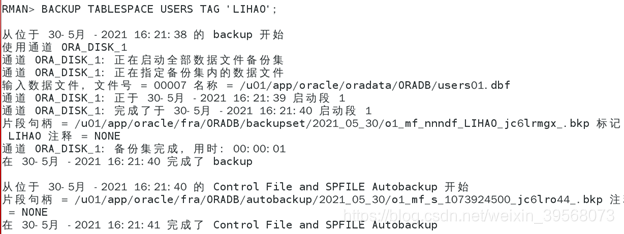

BACKUP TABLESPACE USERS TAG'LIHAO';

Insert picture description here

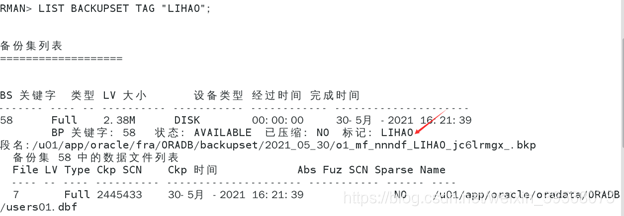

LIST BACKUPSET TAG "LIHAO";

Insert picture description here

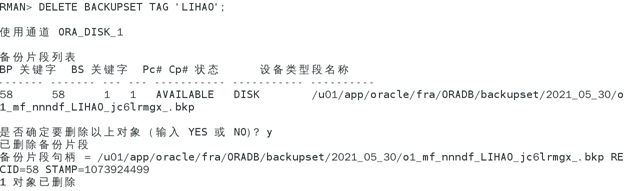

DELETE BACKUPSET TAG'LIHAO';

Insert picture description here


in the configuration retention policy

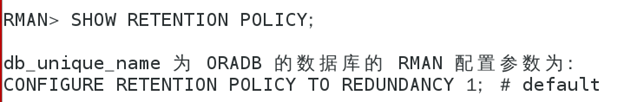

SHOW RETENTION POLICY;

Insert picture description here


redundancy-based retention policy

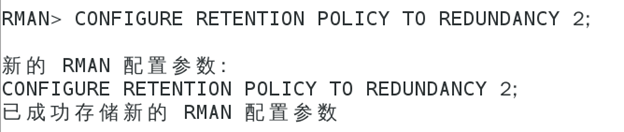

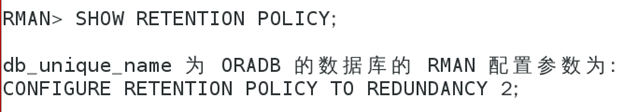

CONFIGURE RETENTION POLICY TO REDUNDANCY 2;

Insert picture description here


Insert picture description here

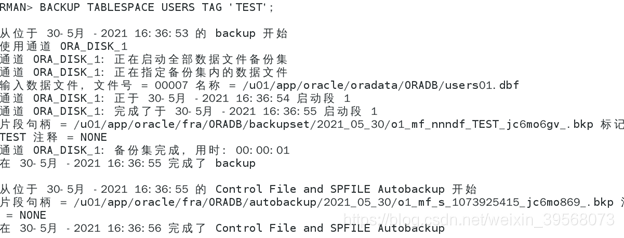

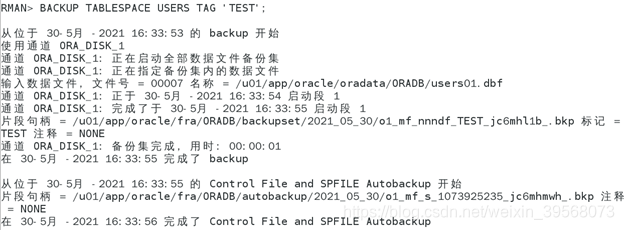

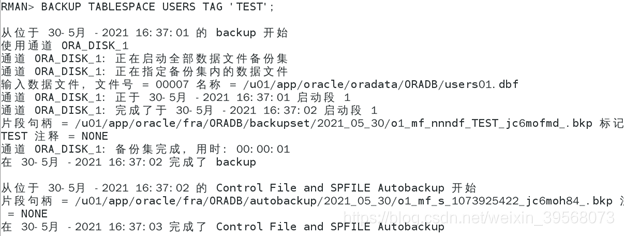

BACKUP TABLESPACE USERS TAG ' TEST';

Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here


view expired backup

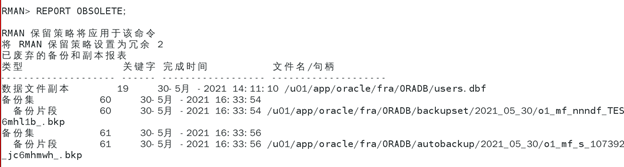

REPORT OBSOLETE;

Insert picture description here


delete expired backup

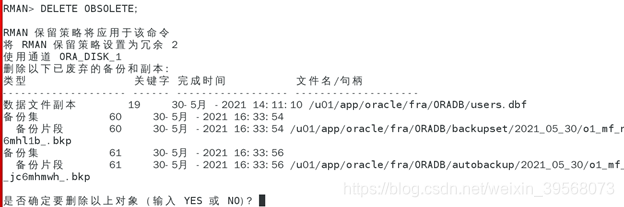

DELETE OBSOLETE;

Insert picture description here

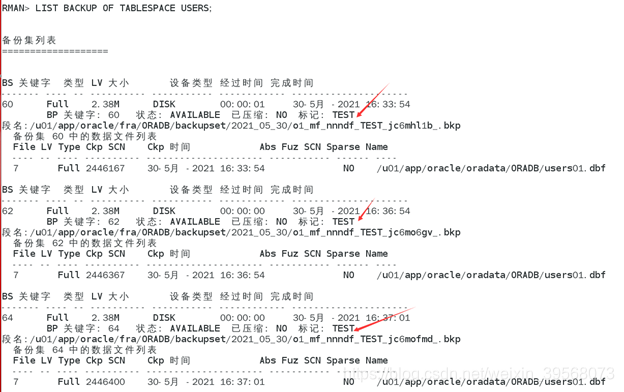

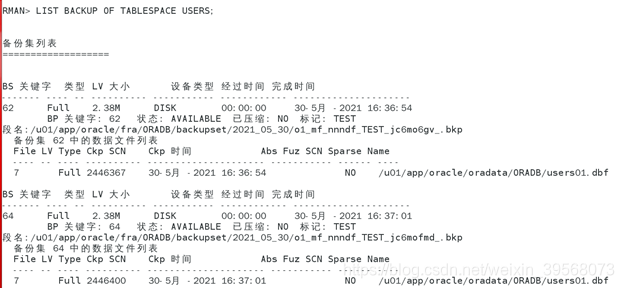

LIST BACKUP OF TABLESPACE USERS;

Insert picture description here


retention policy based on the recovery window

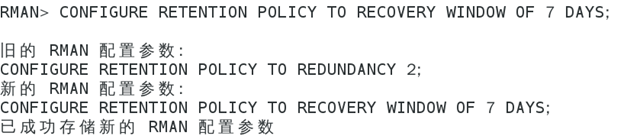

CONFIGURE RETENTION POLICY TO RECOVERY WINDOW OF 7 DAYS;

Insert picture description here

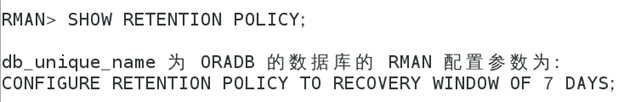

SHOW RETENTION POLICY;

Insert picture description here

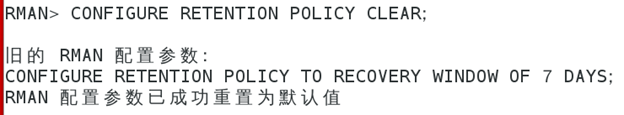

CONFIGURE RETENTION POLICY CLEAR;

Insert picture description here


configuration default Backup format

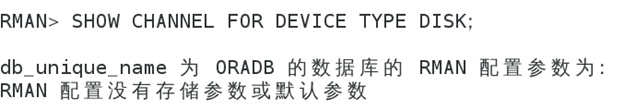

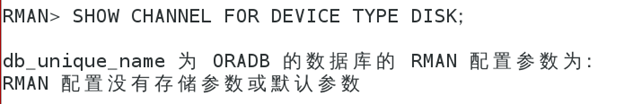

SHOW CHANNEL FOR DEVICE TYPE DISK;

Insert picture description here


Configure non-default backup location

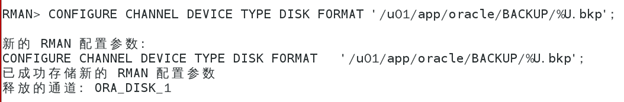

CONFIGURE CHANNEL DEVICE TYPE DISK FORMAT'/u01/app/oracle/ BACKUP/% U.bkp';

Insert picture description here


Insert picture description here


Insert picture description here

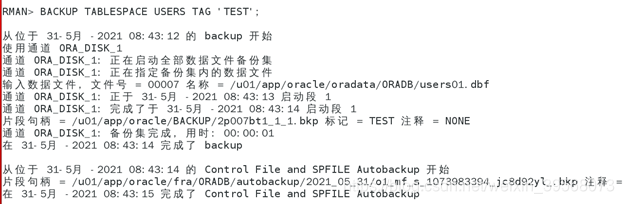

BACKUP TABLESPACE USERS TAG'TEST';

Insert picture description here

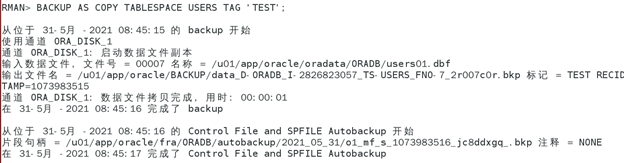

BACKUP AS COPY TABLESPACE USERS TAG'TEST';

Insert picture description here


Insert picture description here

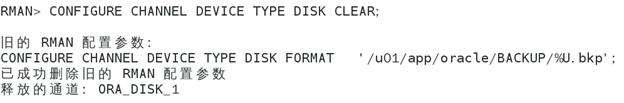

CONFIGURE CHANNEL DEVICE TYPE DISK CLEAR;

Insert picture description here


SHOW CHANNEL FOR DEVICE TYPE DISK;

Insert picture description here

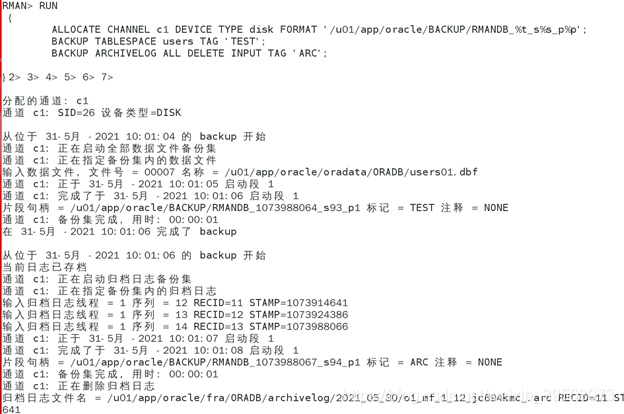

define the backup destination
RUN

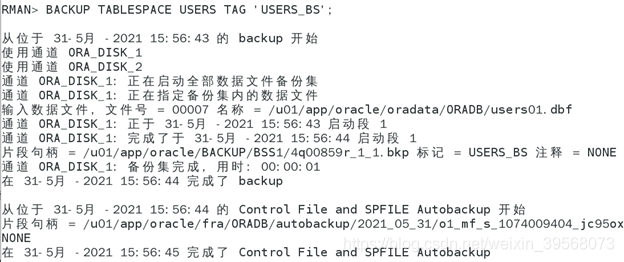

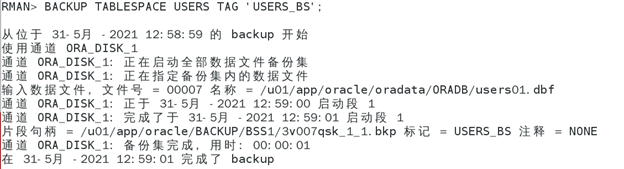

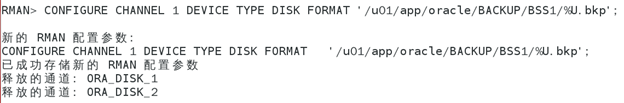

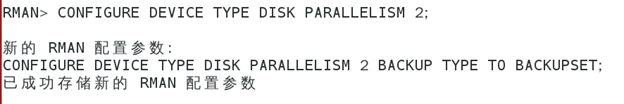

{ ALLOCATE CHANNEL c1 DEVICE TYPE disk FORMAT'/u01/app /oracle/BACKUP/RMANDB_%t_s%s_p%p'; BACKUP TABLESPACE users TAG'TEST '; BACKUP ARCHIVELOG ALL DELETE INPUT TAG'ARC '; } View the configuration of parallelism in the default channel SHOW DEVICE TYPE; CONFIGURE DEVICE TYPE DISK PARALLELISM 2; BACKUP TABLESPACE USERS TAG'USERS_BS' LIST BACKUP; Manually configure each channel CONFIGURE CHANNEL 1 DEVICE TYPE DISK FORMAT'/ u01/app/oracle/ BACKUP/ BSS1/%U.bkp ';




Insert picture description here



Insert picture description here




Insert picture description here



Insert picture description here


Insert picture description here



Insert picture description here



Insert picture description here




Insert picture description here

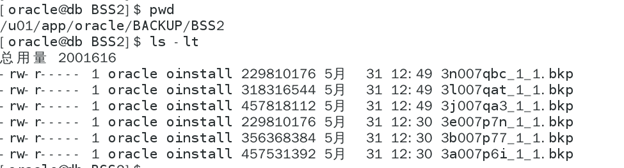

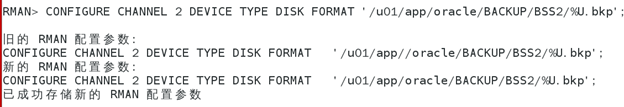

CONFIGURE CHANNEL 2 DEVICE TYPE DISK FORMAT'/u01/app/oracle/

Insert picture description here


Insert picture description here

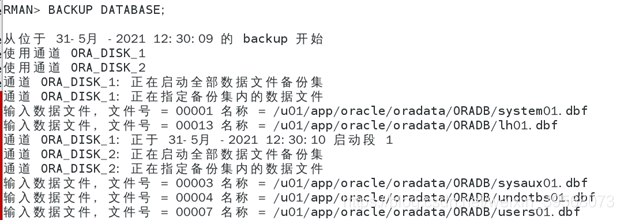

BACKUP /BSS2/% U.bkp'; backup complete

Insert picture description here


Insert picture description here

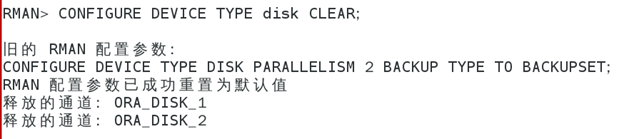

CONFIGURE DEVICE TYPE disk CLEAR;

Insert picture description here


Insert picture description here

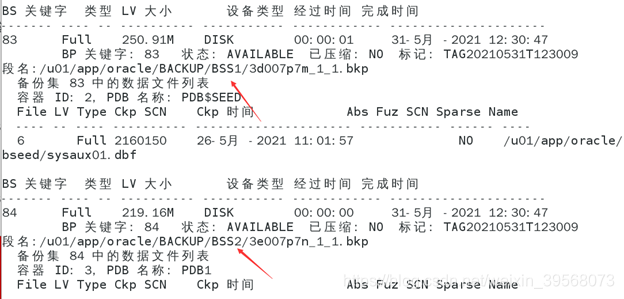

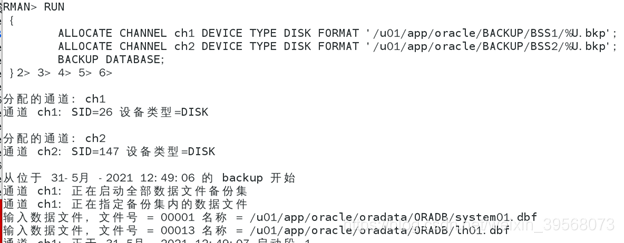

RUN

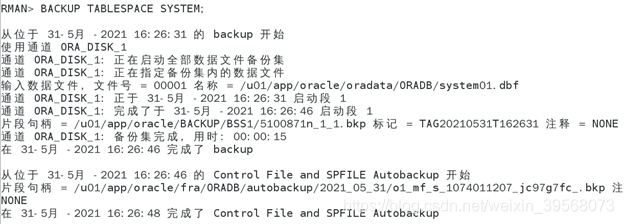

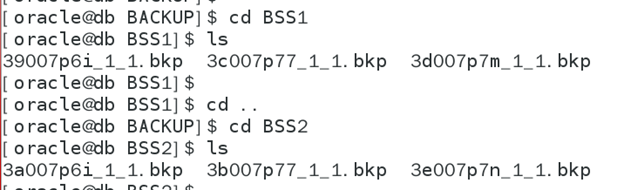

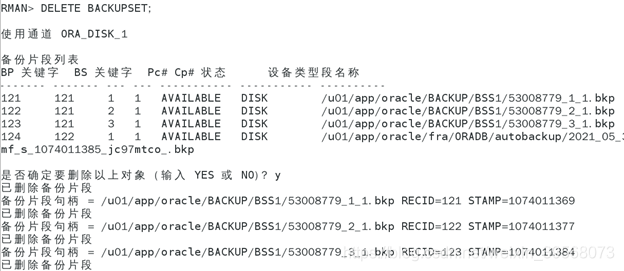

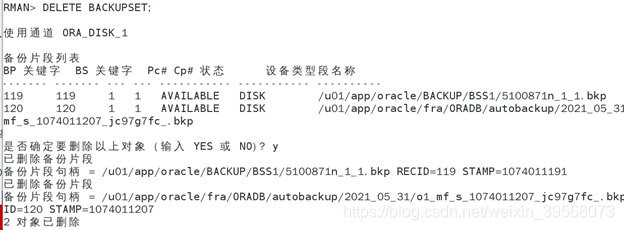

{ ALLOCATE CHANNEL ch1 DEVICE TYPE DISK FORMAT'/u01/app/oracle/ BACKUP/BSS1/%U.bkp'; ALLOCATE CHANNEL ch2 DEVICE TYPE DISK FORMAT' /u01/app/oracle/BACKUP/BSS2/%U.bkp'; BACKUP DATABASE; } RMAN multi-segment backup REPORT SCHEMA; BACKUP TABLESPACE SYSTEM; LIST BACKUP OF TABLESPACE SYSTEM; DELETE BACKUPSET; BACKUP TABLESPACE SYSTEM SECTION SIZE 400M; LIST BACKUP OF TABLESPACE SYSTEM; DELETE BACKUPSET; RUN { ALLOCATE CHANNEL c1 DEVICE TYPE DISK; ALLOCATE CHANNEL c2 DEVICE TYPE DISK;




Insert picture description here


Insert picture description here




Insert picture description here



Insert picture description here



Insert picture description here



Insert picture description here



Insert picture description here



Insert picture description here



Insert picture description here

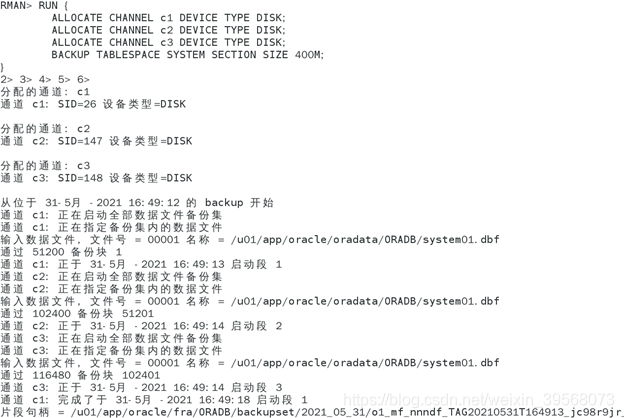

ALLOCATE CHANNEL c3 DEVICE TYPE DISK;
BACKUP TABLESPACE SYSTEM SECTION SIZE 400M;
}

Insert picture description here

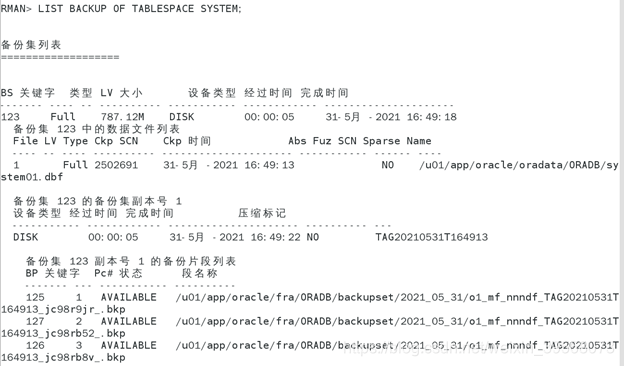

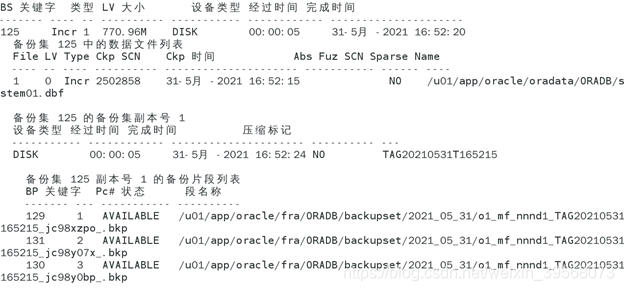

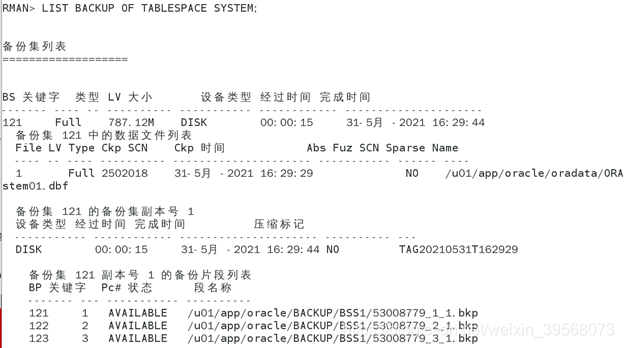

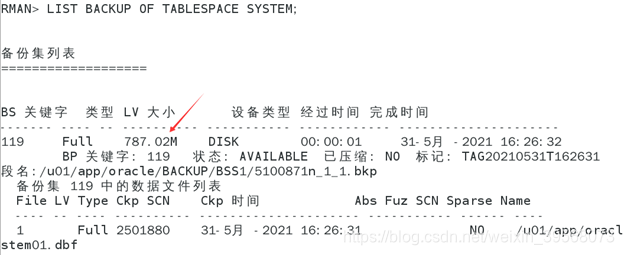

LIST BACKUP OF TABLESPACE SYSTEM;

Insert picture description here

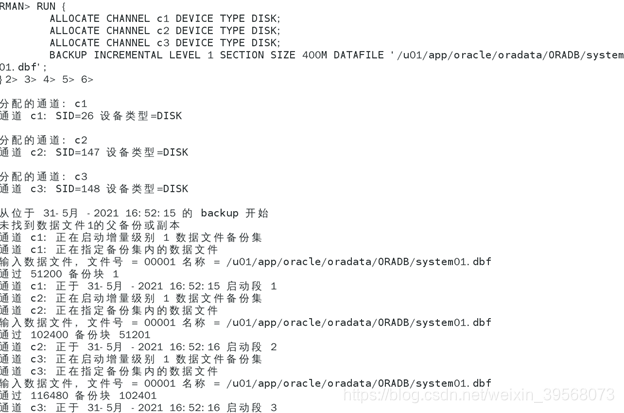

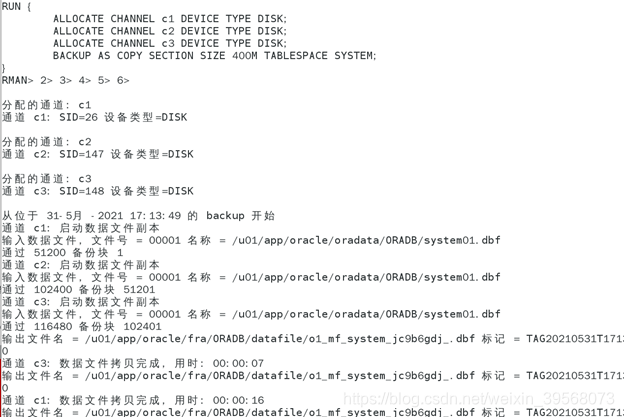

RUN { ALLOCATE CHANNEL c1 DEVICE TYPE DISK; ALLOCATE CHANNEL c2 DEVICE TYPE DISK; ALLOCATE CHANNEL INCAL LEVICE BACK TYPE DISK; SIZE 1 400M DATAFILE'/u01/app/oracle/oradata/ORADB/system01.dbf'; } RUN { ALLOCATE CHANNEL c1 DEVICE TYPE DISK; ALLOCATE CHANNEL c2 DEVICE TYPE DISK; ALLOCATE CHANNEL c3 DEVICE TYPE DISK; BACKUP AS COPY SECTION SIZE 400M TABLE SYSTEM; } LIST COPY OF TABLESPACE SYSTEM; Use the LIST command to get information about RMAN backup





Insert picture description here


Insert picture description here


Insert picture description here








Insert picture description here



Insert picture description here

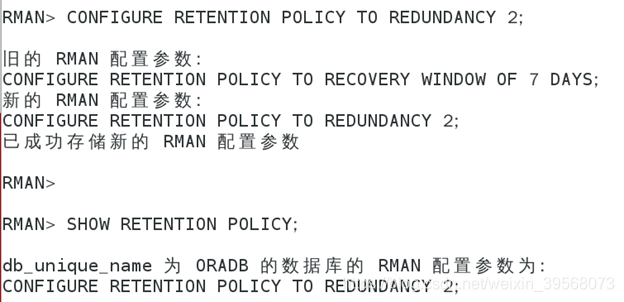

The CONFIGURE The RETENTION POLICY the TO the REDUNDANCY 2;

Insert picture description here

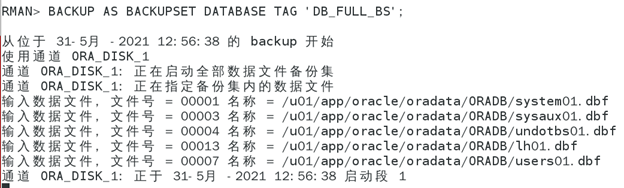

the BACKUP the AS BACKUPSET DATABASE the TAG 'DB_FULL_BS';

Insert picture description here

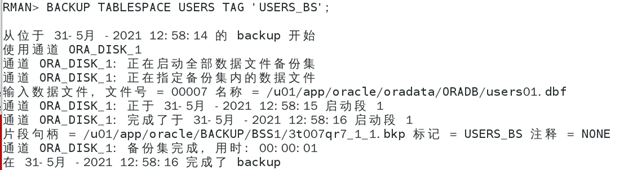

the BACKUP TABLESPACE the USERS the TAG 'USERS_BS';

Insert picture description here


the BACKUP TABLESPACE the USERS the TAG 'USERS_BS';

Insert picture description here

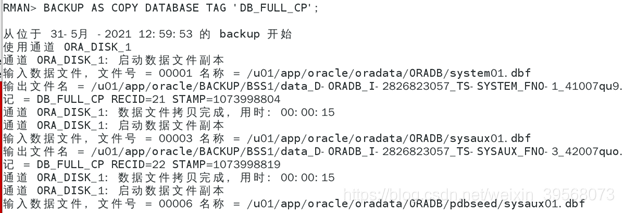

the BACKUP the AS COPY DATABASE the TAG 'DB_FULL_CP';

Insert picture description here

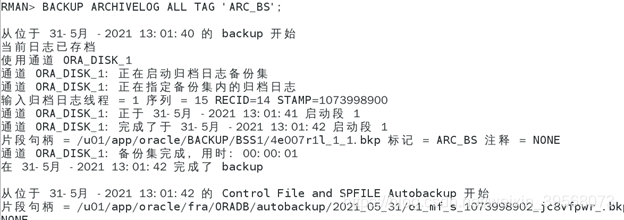

the BACKUP ARCHIVELOG ALL the TAG 'ARC_BS';

Insert picture description here

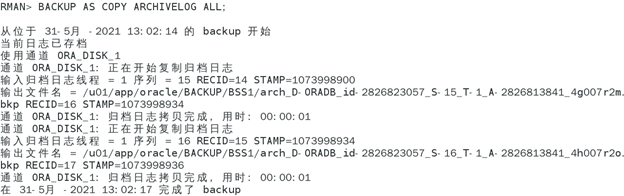

the BACKUP AS COPY ARCHIVELOG ALL;

Insert picture description here


view backup

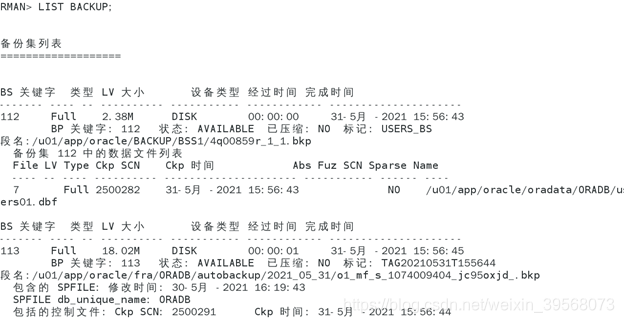

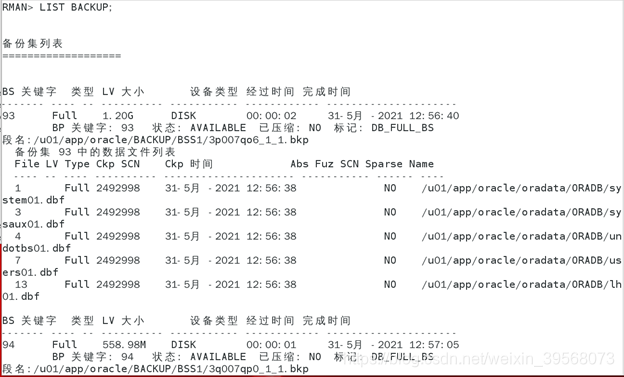

LIST BACKUP;

Insert picture description here

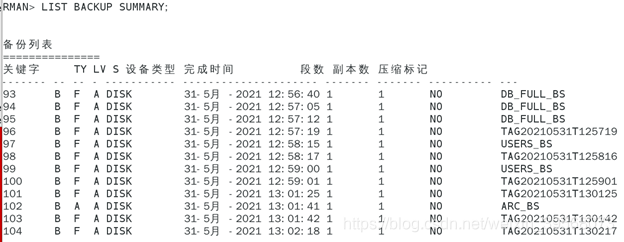

LIST BACKUP SUMMARY;

Insert picture description here

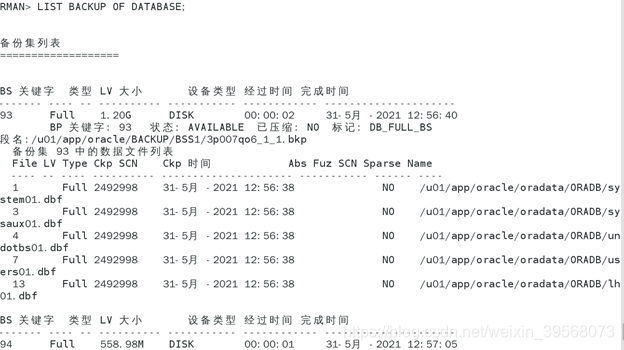

LIST BACKUP OF DATABASE;

Insert picture description here

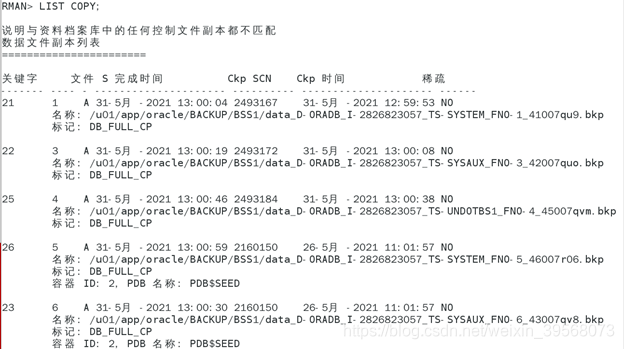

LIST COPY;

Insert picture description here

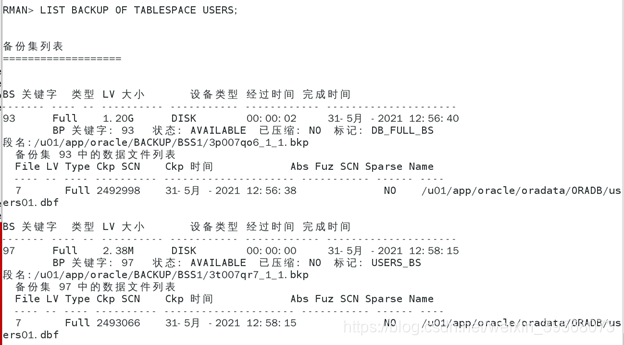

LIST BACKUP OF TABLESPACE USERS;

Insert picture description here

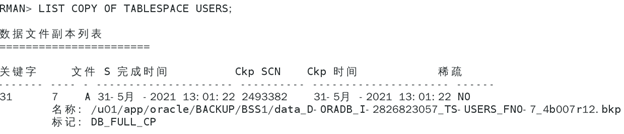

LIST COPY OF TABLESPACE USERS;

Insert picture description here

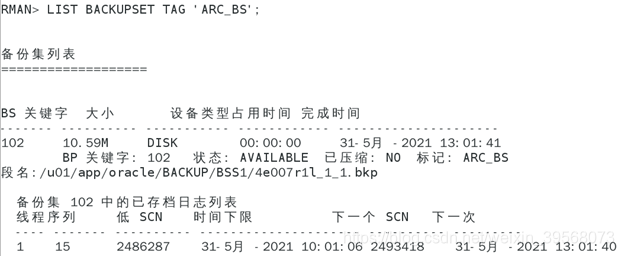

LIST BACKUPSET TAG'ARC_BS'

Insert picture description here

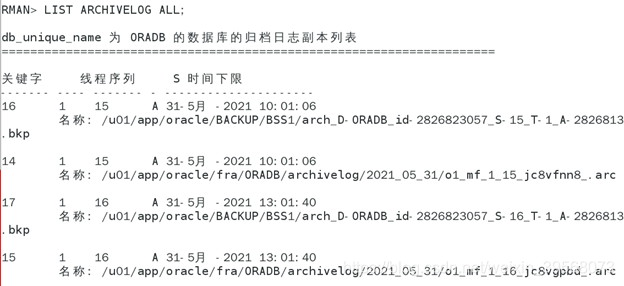

LIST ARCHIVELOG ALL;

Insert picture description here

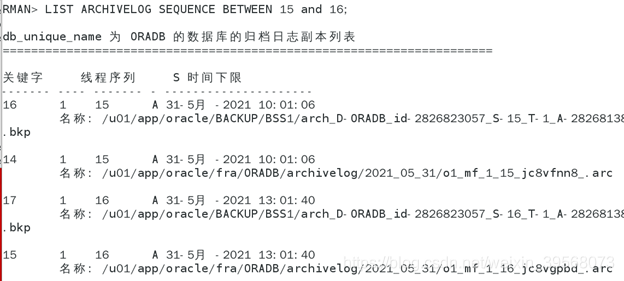

LIST ARCHIVELOG SEQ and BETWELOG ALL 16;

Insert picture description here

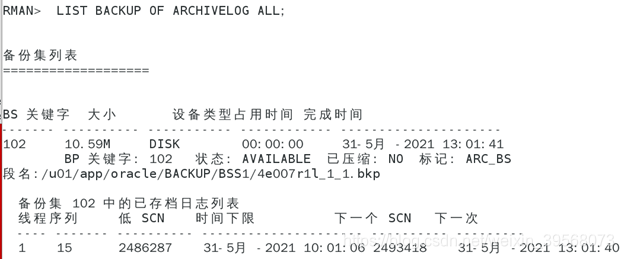

LIST BACKUP OF ARCHIVELOG ALL;

Insert picture description here

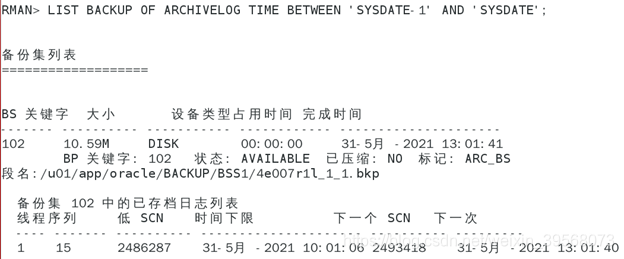

LIST BACKUP OF ARCHIVELOG TIME BETWEEN'SYSDATE-1' AND'SYSDATE';

Insert picture description here

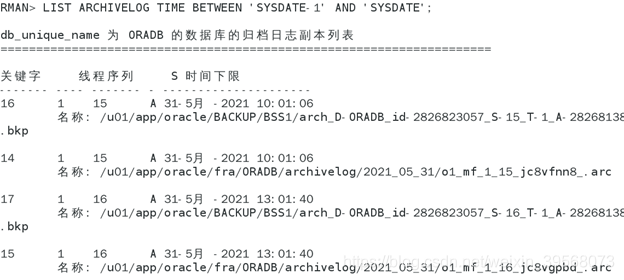

LIST ARCHIVELOG TIME BETWEEN'SYSDATE-1' AND'SYSDATE';

Insert picture description here
