One, install Nginx service

Preparations: turn off the firewall and security mechanisms

systemctl stop firewalld
systemctl disable firewalld
setenforce 0
Insert picture description here

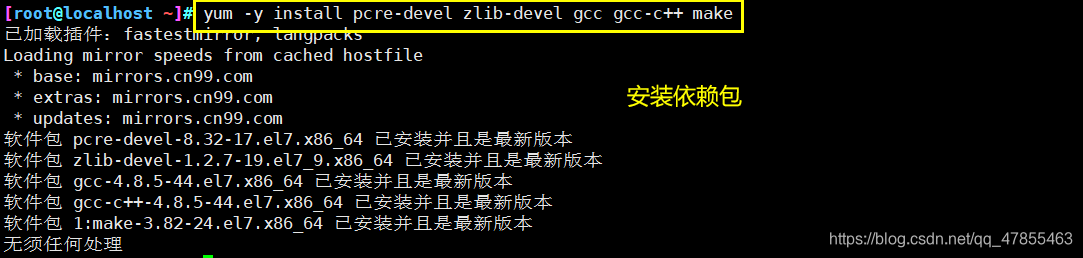

1. Install dependent packages

yum -y install pcre-devel zlib-devel gcc gcc-c++ make
Insert picture description here

2. Create a running user

  • (Nginx service program runs as nobody by default, it is recommended to create a special user account for it to control its access permissions more accurately)
useradd -M -s /sbin/nologin nginx
Insert picture description here

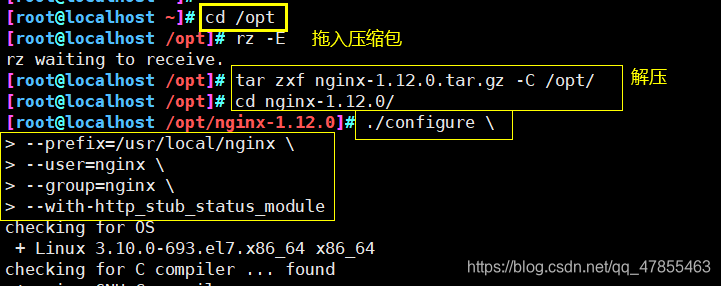

3. Compile and install

cd /opt
#拖入压缩包
tar zxvf nginx-1.12.0.tar.gz -C /opt/


cd nginx-1.12.0/
./configure \
--prefix=/usr/local/nginx \				#指定nginx的安装路径
--user=nginx \							#指定用户名
--group=nginx \							#指定组名
--with-http_stub_status_module			#启用 http_stub_status_module 模块以支持状态统计

make -j4 && make install
Insert picture description here


Insert picture description here
./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-http_stub_status_module

4. Optimize the path

ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/		#让系统识别nginx的操作命令
Insert picture description here

5. Add Nginx system service

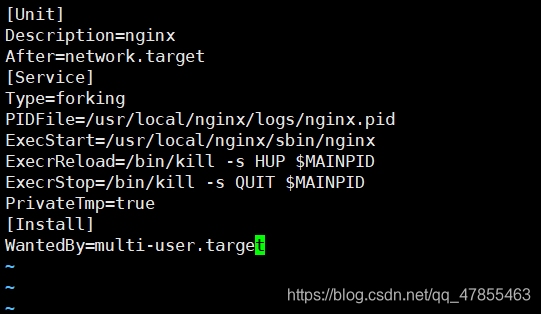

vim /lib/systemd/system/nginx.service
[Unit]
Description=nginx
After=network.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecrReload=/bin/kill -s HUP $MAINPID
ExecrStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target

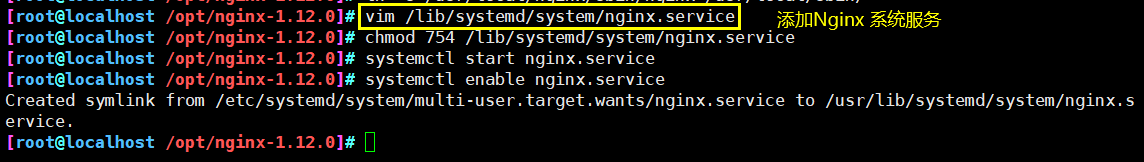

chmod 754 /lib/systemd/system/nginx.service
systemctl start nginx.service
systemctl enable nginx.service
Insert picture description here
:wq

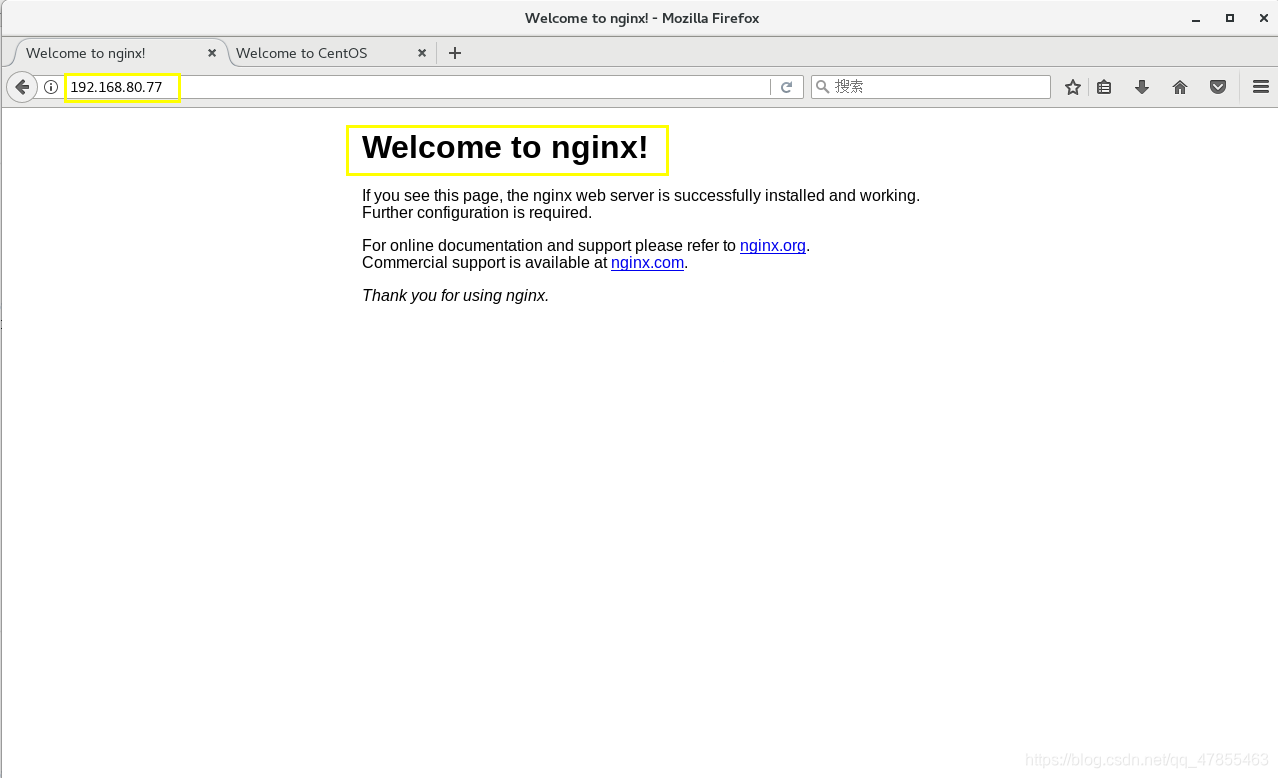

6. Test page: Firefox browser

  • Enter the local IP: 192.168.80.77
Insert picture description here

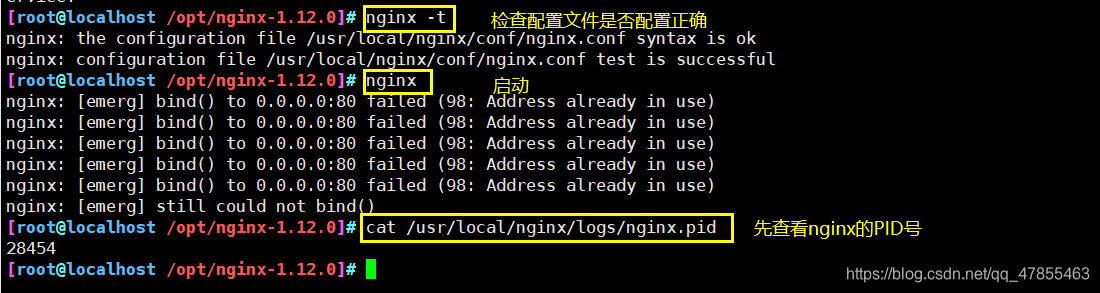

Supplement: start and stop nginx service

nginx -t								#检查配置文件是否配置正确
nginx						#启动
cat /usr/local/nginx/logs/nginx.pid		#先查看nginx的PID号
kill -3 <PID号>
kill -s QUIT <PID号>		#停止
killall -3 nginx
killall -s QUIT nginx
Insert picture description here

Two, install MySQL service

1. Install the Mysql environment dependency package

yum -y install \
gcc \
gcc-c++ \
ncurses \				#字符终端下图形互动功能的动态库
ncurses-devel \			#ncurses开发包
bison \					#语法分析器
cmake					#mysql需要用cmake编译安装

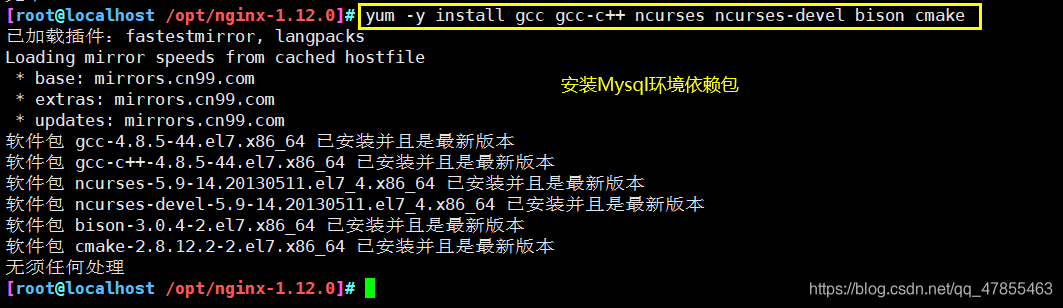

yum -y install gcc gcc-c++ ncurses ncurses-devel bison cmake
Insert picture description here

2. Create a running user

useradd -M -s /sbin/nologin  mysql
Insert picture description here

3. Compile and install

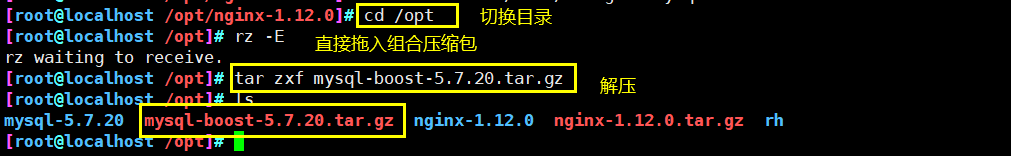

cd /opt
tar zxvf mysql-boost-5.7.20.tar.gz
cd /opt/mysql-5.7.20/

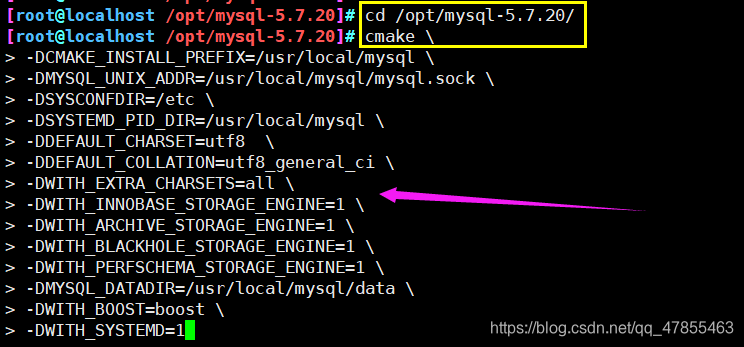

cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8  \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_EXTRA_CHARSETS=all \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \
-DWITH_SYSTEMD=1

make  -j 4 && make install
Insert picture description here


Insert picture description here


Insert picture description here

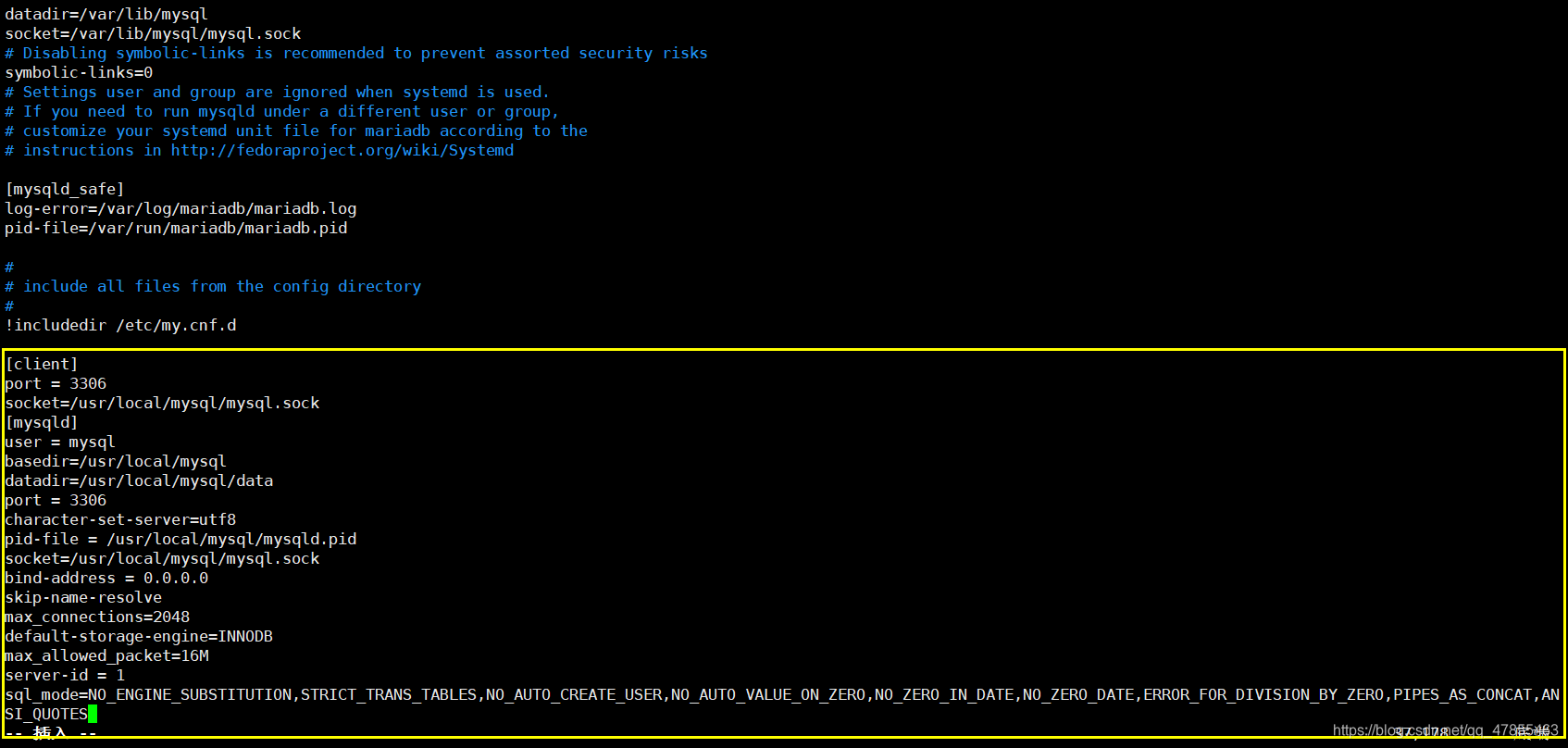

4. Modify the mysql configuration file

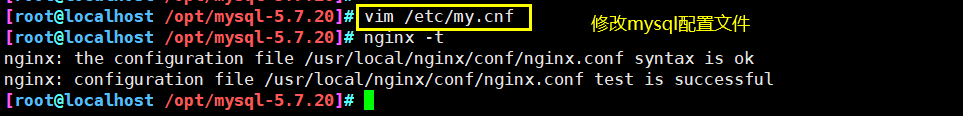

vim /etc/my.cnf

[client]
port = 3306
socket=/usr/local/mysql/mysql.sock
[mysqld]
user = mysql
basedir=/usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character-set-server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket=/usr/local/mysql/mysql.sock
bind-address = 0.0.0.0
skip-name-resolve
max_connections=2048
default-storage-engine=INNODB
max_allowed_packet=16M
server-id = 1
sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES
Insert picture description here


Insert picture description here

5. Change the owner group of the mysql installation directory and configuration file

chown -R mysql:mysql /usr/local/mysql/
chown mysql:mysql /etc/my.cnf
Insert picture description here

6. Set the path environment variable

echo 'export PATH=/usr/local/mysql/bin:/usr/local/mysql/lib:$PATH' >> /etc/profile
source /etc/profile
Insert picture description here

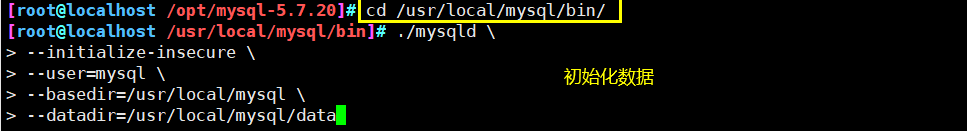

7. Initialize data

cd /usr/local/mysql/bin/
./mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data
Insert picture description here

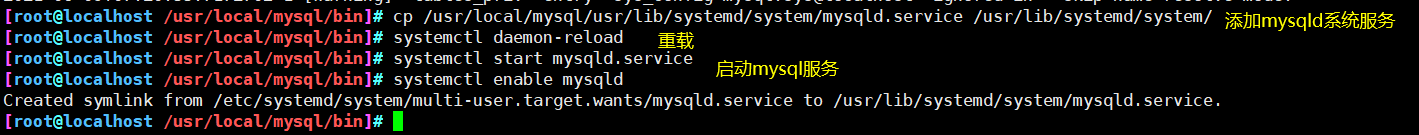

8. Add mysqld system service

cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/

systemctl daemon-reload

systemctl start mysqld.service
systemctl enable mysqld
Insert picture description here

9. Add mysql login password

mysqladmin -u root -p password "abc123" ##给root账号设置密码为abc123,提示输入的是原始密码(为空)
Insert picture description here

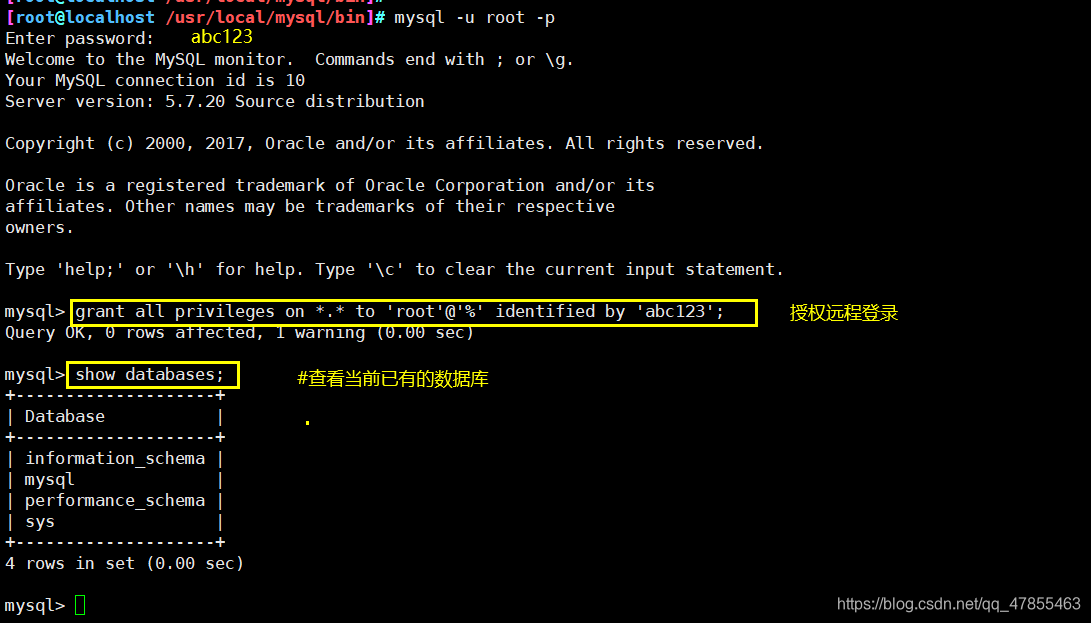

10. Authorize remote login

mysql -u root -p
grant all privileges on *.* to 'root'@'%' identified by 'abc123';
#授予root用户可以在所有终端远程登录,使用的密码是abc123,并对所有数据库和所有表有操作权限

show databases;    #查看当前已有的数据库
Insert picture description here


quit exit

Three, install and configure the PHP parsing environment

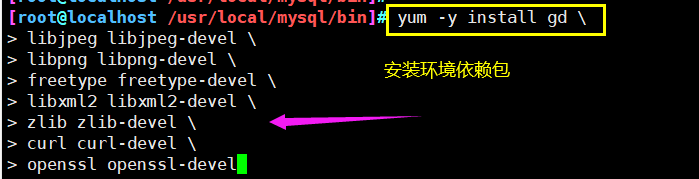

1. The installation environment depends on the package

yum -y install gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel
Insert picture description here

2. Compile and install

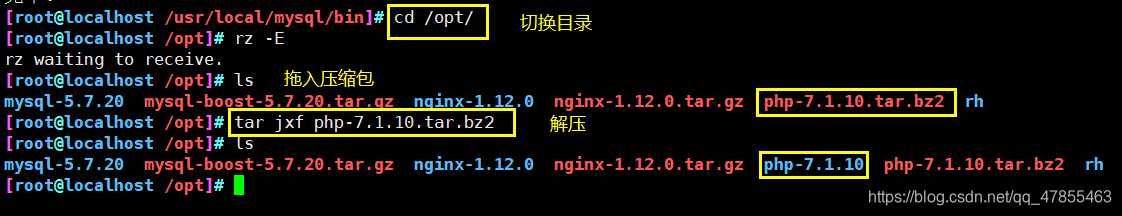

cd /opt
tar jxvf php-7.1.10.tar.bz2

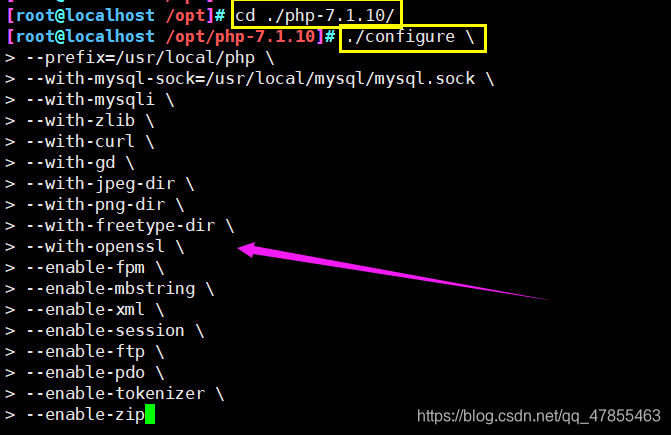

cd ./php-7.1.10/
./configure \
--prefix=/usr/local/php \
--with-mysql-sock=/usr/local/mysql/mysql.sock \
--with-mysqli \
--with-zlib \
--with-curl \
--with-gd \
--with-jpeg-dir \
--with-png-dir \
--with-freetype-dir \
--with-openssl \
--enable-fpm \
--enable-mbstring \
--enable-xml \
--enable-session \
--enable-ftp \
--enable-pdo \
--enable-tokenizer \
--enable-zip

make -j4 && make install
Insert picture description here
Insert picture description here


Insert picture description here

3. Path optimization

ln -s /usr/local/php/bin/* /usr/local/bin/
ln -s /usr/local/php/sbin/* /usr/local/sbin/
Insert picture description here

4. Adjust the PHP configuration file

  • PHP has three configuration files
  • php.ini (main configuration file)
  • php-fpm.conf (process service configuration file)
  • www.conf (extended configuration file)
    Adjust the main configuration file php.ini:
cp /opt/php-7.1.10/php.ini-development /usr/local/php/lib/php.ini
vim /usr/local/php/lib/php.ini

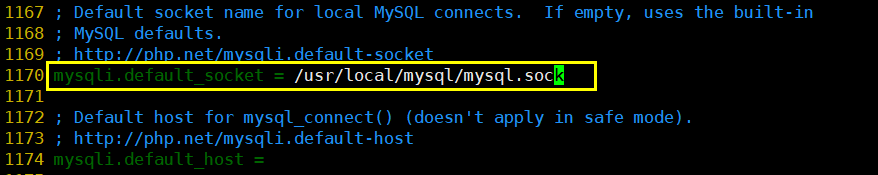

##修改1170行
mysqli.default_socket = /usr/local/mysql/mysql.sock

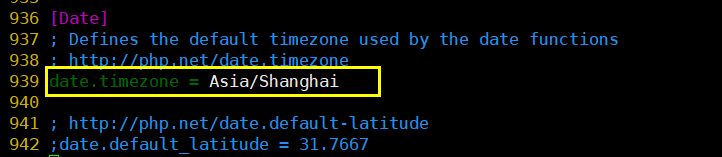

##939行取消注释,修改
date.timezone = Asia/Shanghai

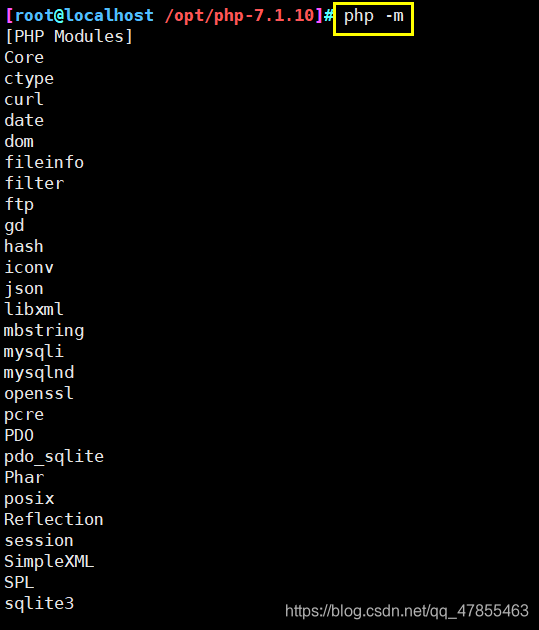

php -m
Insert picture description here


Insert picture description here
Insert picture description here


Insert picture description here

Adjust the process service configuration file php-fpm.conf:

cd /usr/local/php/etc
cp php-fpm.conf.default php-fpm.conf
vim php-fpm.conf

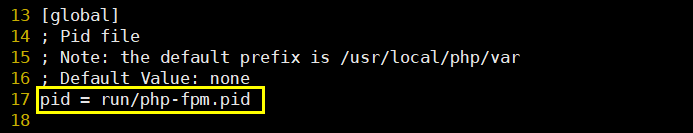

#17行取消注释“;”
pid = run/php-fpm.pid
Insert picture description here


Insert picture description here

Adjust the extended configuration file www.conf:

cd /usr/local/php/etc/php-fpm.d
cp www.conf.default www.conf
Insert picture description here

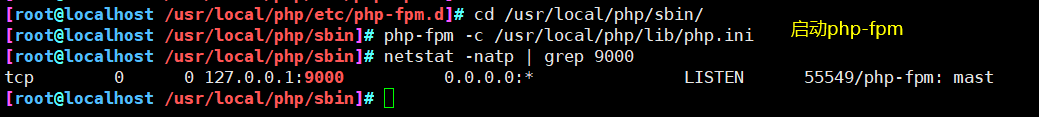

5. Start php-fpm

  • PHP-FPM (FastCGI Process Manager: FastCGI Process Manager) is a PHPFastCGI manager. Since the Nginx server cannot handle dynamic pages, the dynamic request needs to be handed over to the php-fpm process for analysis by Nginx.
cd /usr/local/php/sbin/
php-fpm -c /usr/local/php/lib/php.ini
netstat -natp | grep 9000
Insert picture description here

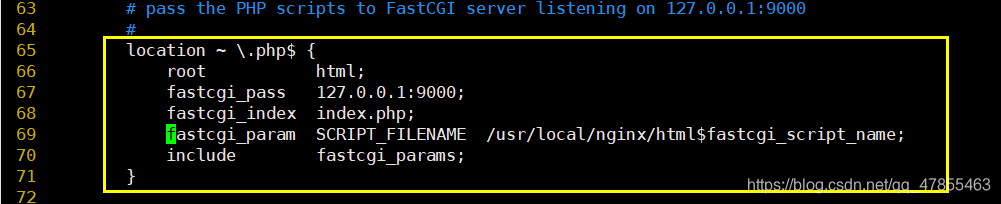

6. Configure Nginx to support PHP parsing

vim /usr/local/nginx/conf/nginx.conf
##65行取消注释修改
location ~ \.php$ {
	root			html;
	fastcgi_pass	127.0.0.1:9000;
	fastcgi_index	index.php;
	fastcgi_param	SCRIPT_FILENAME /usr/local/nginx/html$fastcgi_script_name;
	#将/scripts修改为nginx的工作目录修改为/usr/local/nginx/html
	include 		fastcgi_params;
}

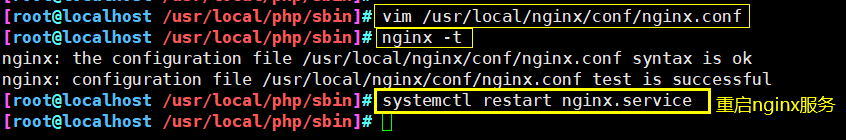

systemctl restart nginx.service
Insert picture description here


Insert picture description here

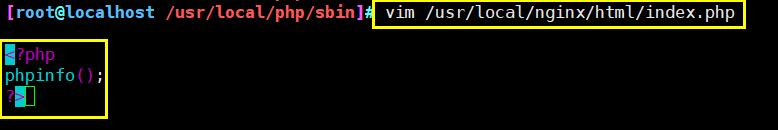

7. Verify the PHP test page

vim /usr/local/nginx/html/index.php
<?php
phpinfo();
?>

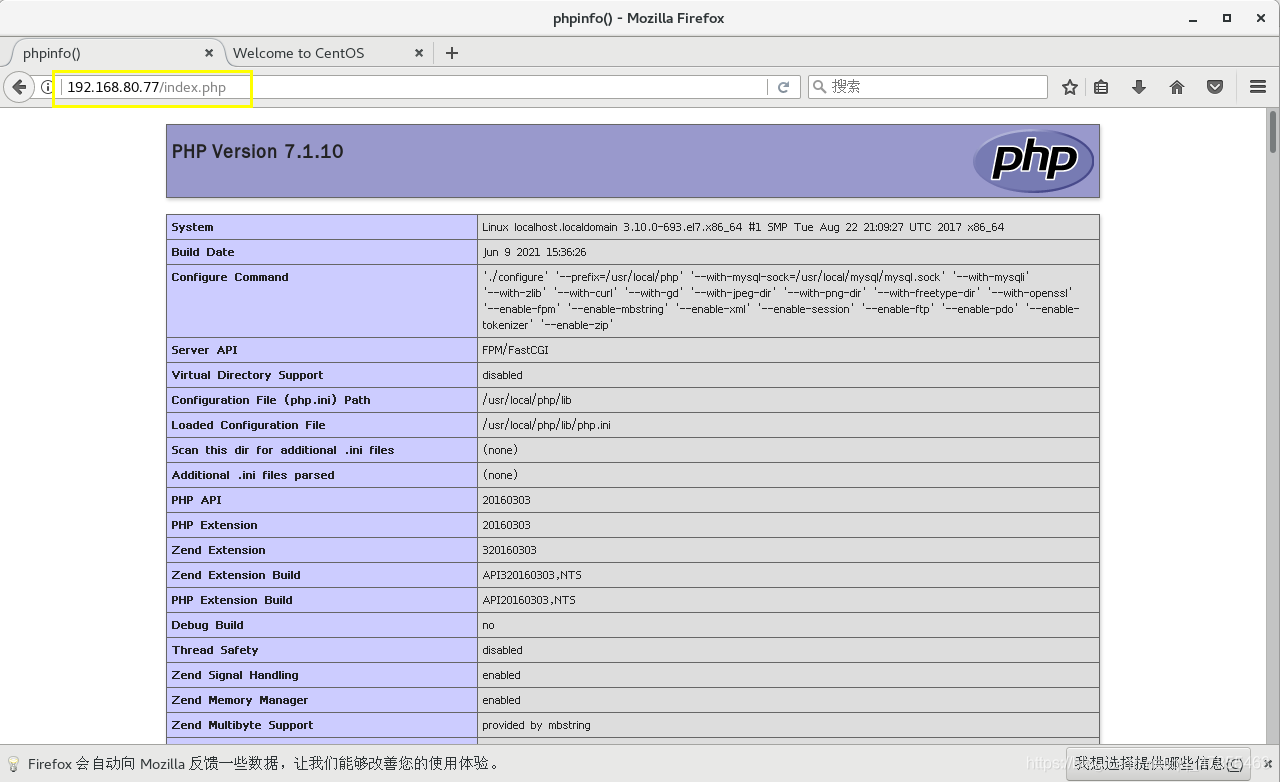

Browser access: http://192.168.80.77/index.php

Insert picture description here


Insert picture description here

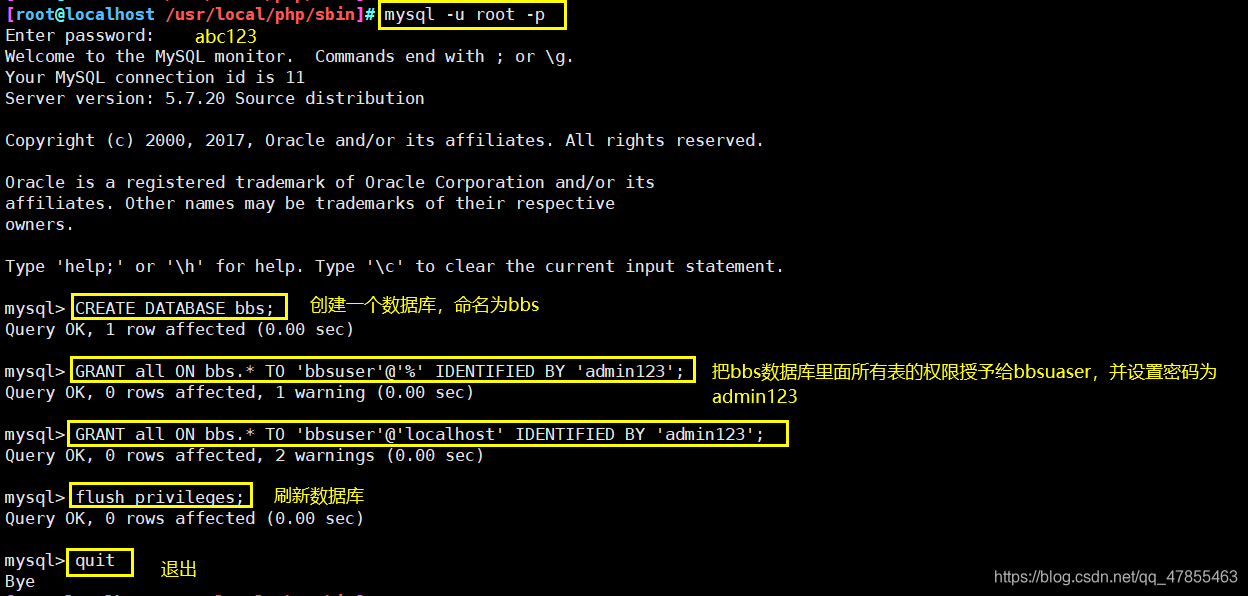

8. Verify that the database is working properly

mysql -u root -p
CREATE DATABASE bbs;
GRANT all ON bbs.* TO 'bbsuser'@'%' IDENTIFIED BY 'admin123';
flush privileges;
show databases;    #查看有哪些数据库

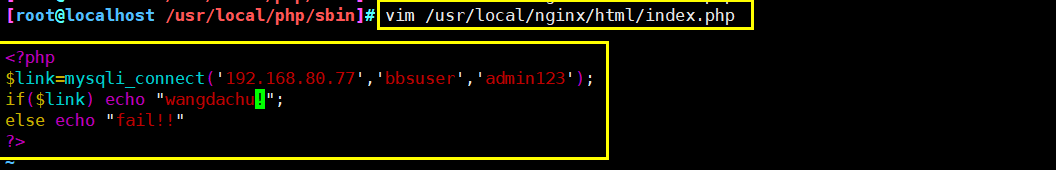

vim /usr/local/nginx/html/index.php
<?php
$link=mysqli_connect('192.168.80.77','bbsuser','admin123');
if($link) echo "wangdachu!";
else echo "fail!!"
?>
Insert picture description here


Insert picture description here

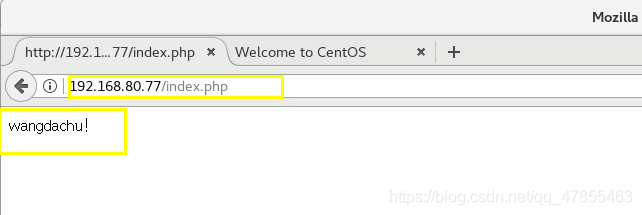

Browser access: http://192.168.80.77/index.php

Insert picture description here

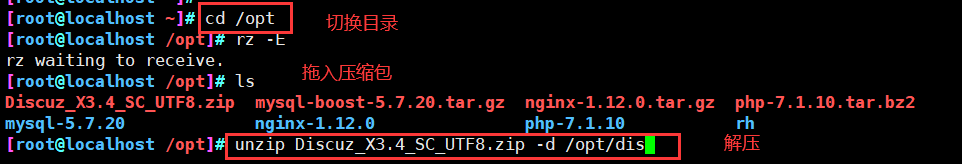

4. Deploy Discuz, community forum web application

cd /opt
#拖入压缩包
unzip Discuz_X3.4_SC_UTF8.zip -d /opt/dis
cd /opt/dis/dir_SC_UTF8
cp -r upload /usr/local/nginx/html/bbs
Insert picture description here


Insert picture description here

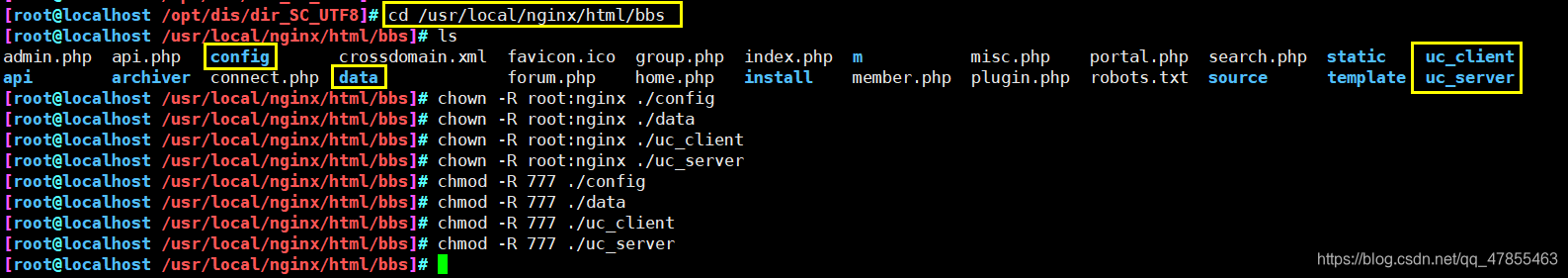

Adjust the permissions of the forum directory

cd /usr/local/nginx/html/bbs/
chown -R nginx ./config/
chown -R nginx ./data/
chown -R nginx ./uc_client/
chown -R nginx ./uc_server/
或
chmod -R 777 ./config/
chmod -R 777 ./data/
chmod -R 777 ./uc_client/
chmod -R 777 ./uc_server/
Insert picture description here

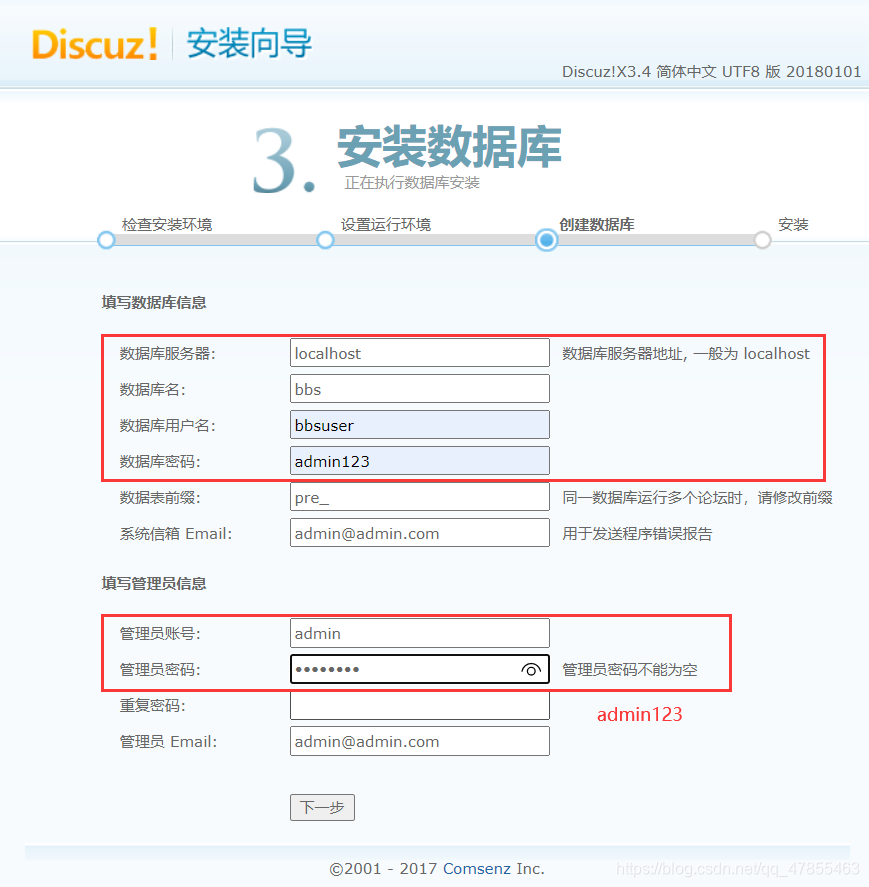

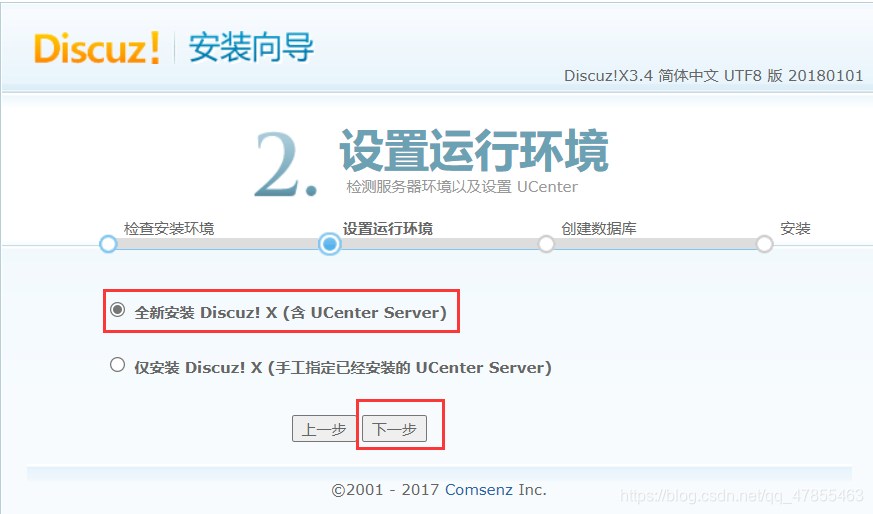

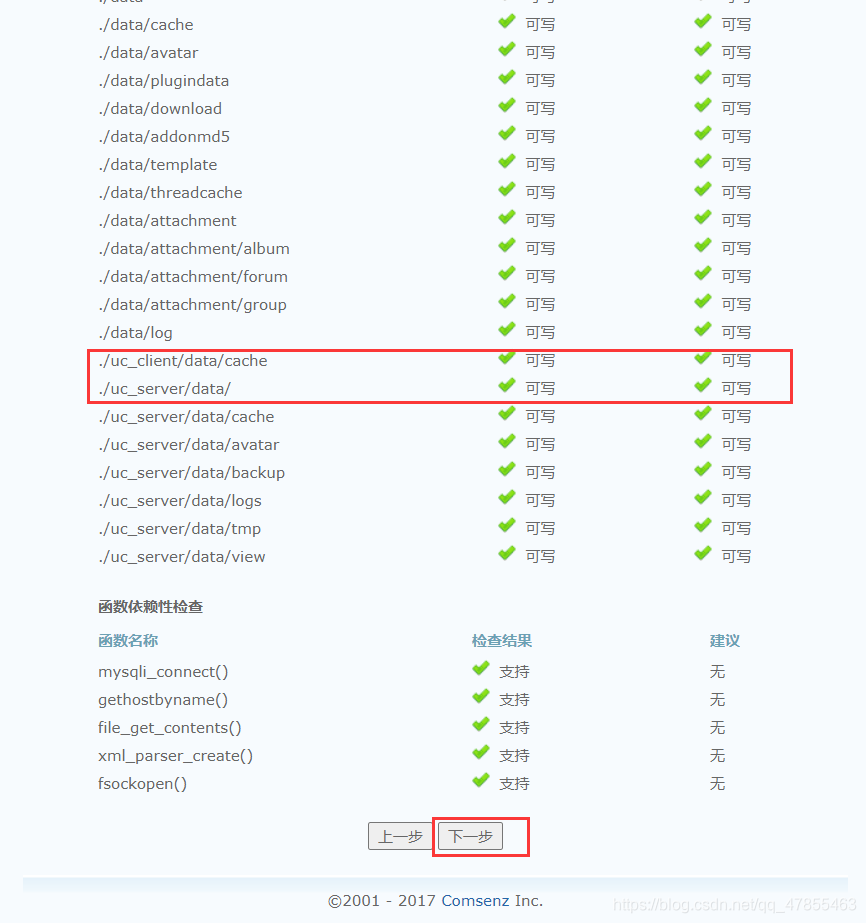

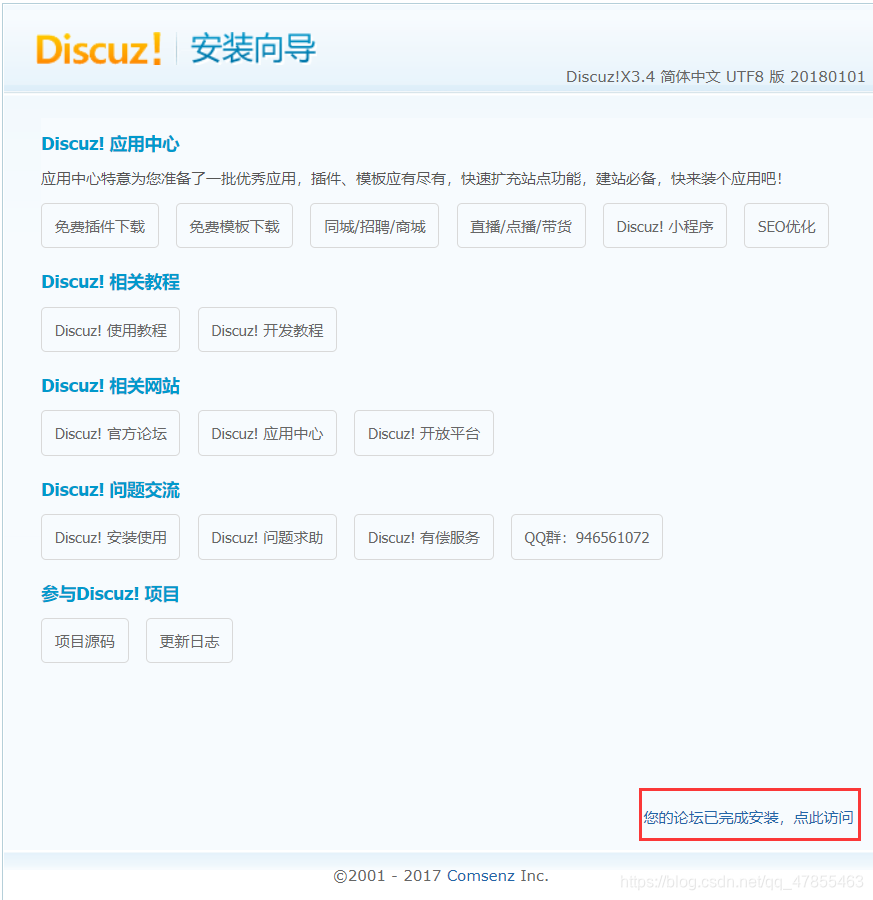

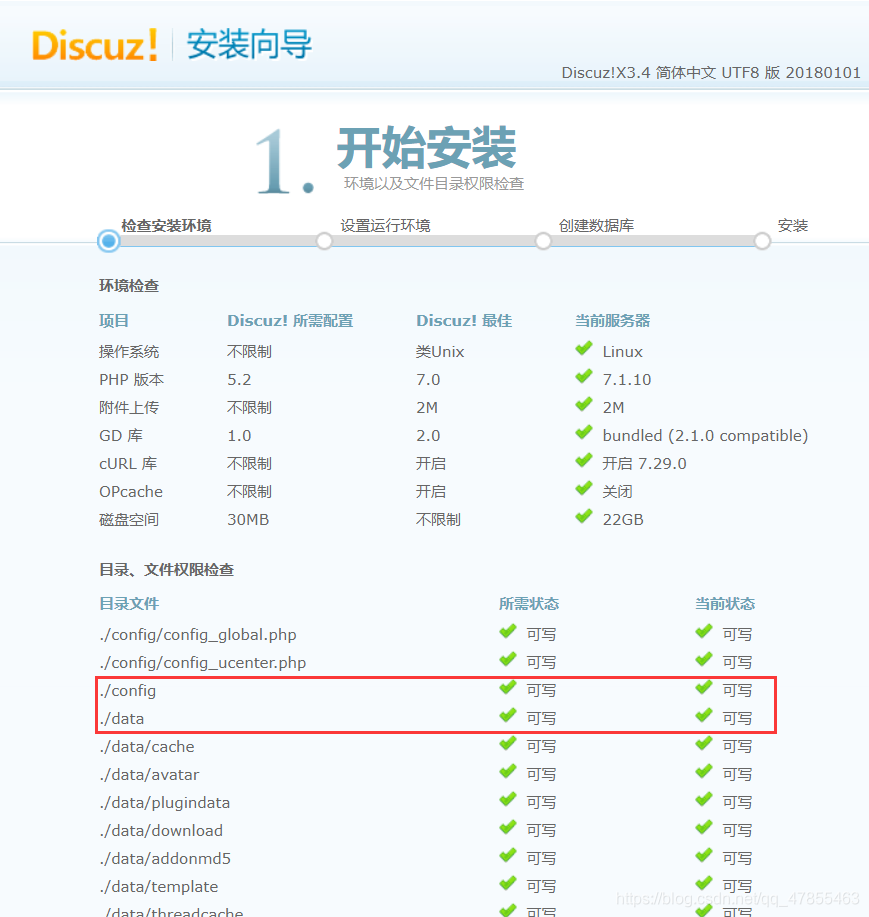

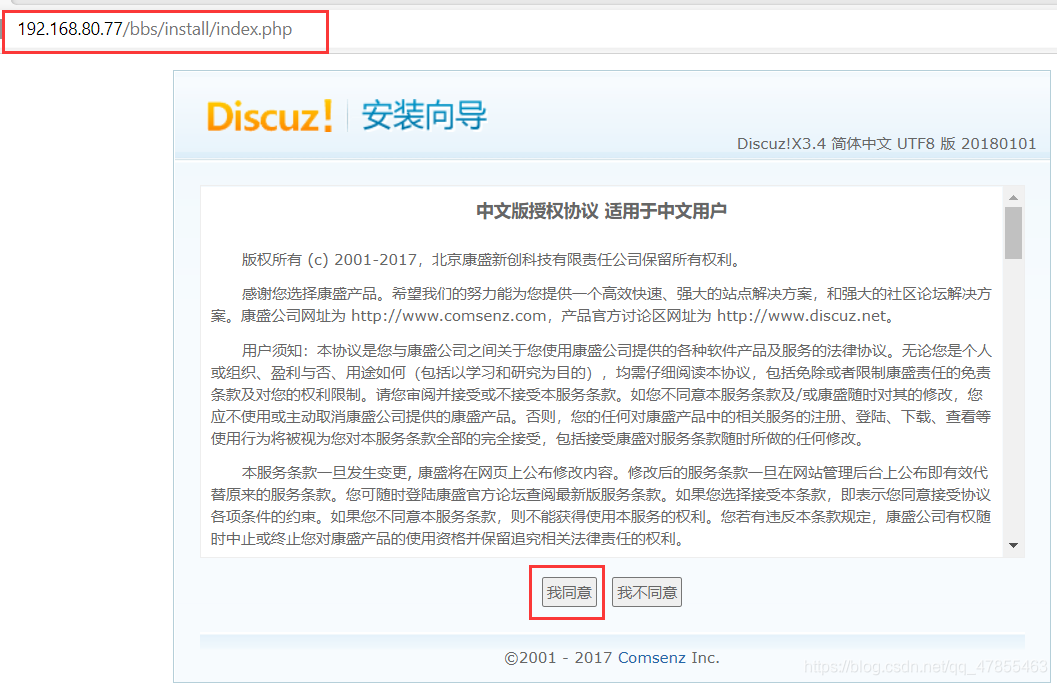

Forum page visit: http:192.168.80.77/bbs/install/index.php

数据库服务器:localhost
数据库名字:bbs
数据库用户名:bbsuser
数据库密码:admin123
管理员账号:admin
管理员密码:admin123
Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here
#论坛内部页面

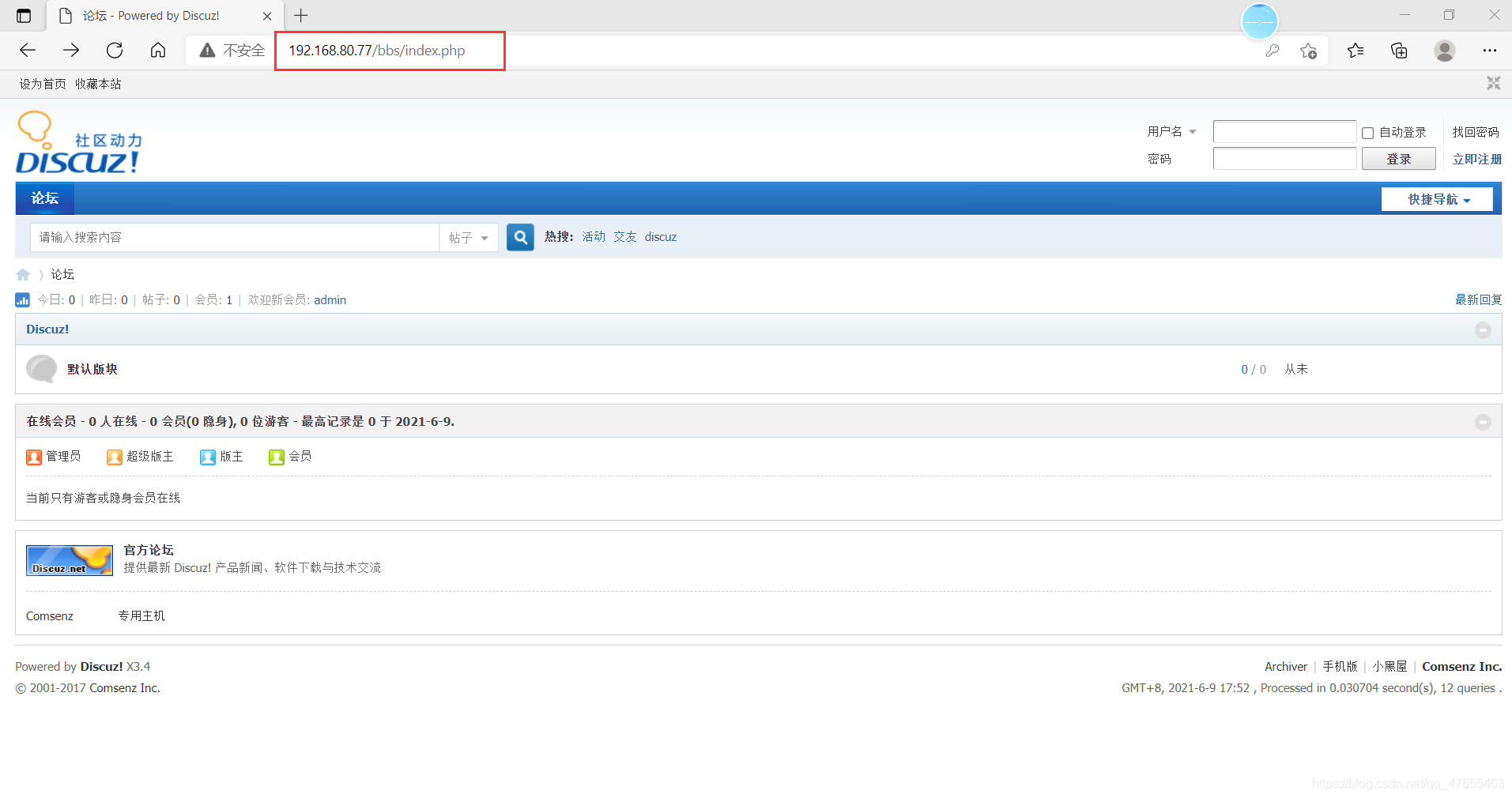

http://192.168.80.77/bbs/index.php

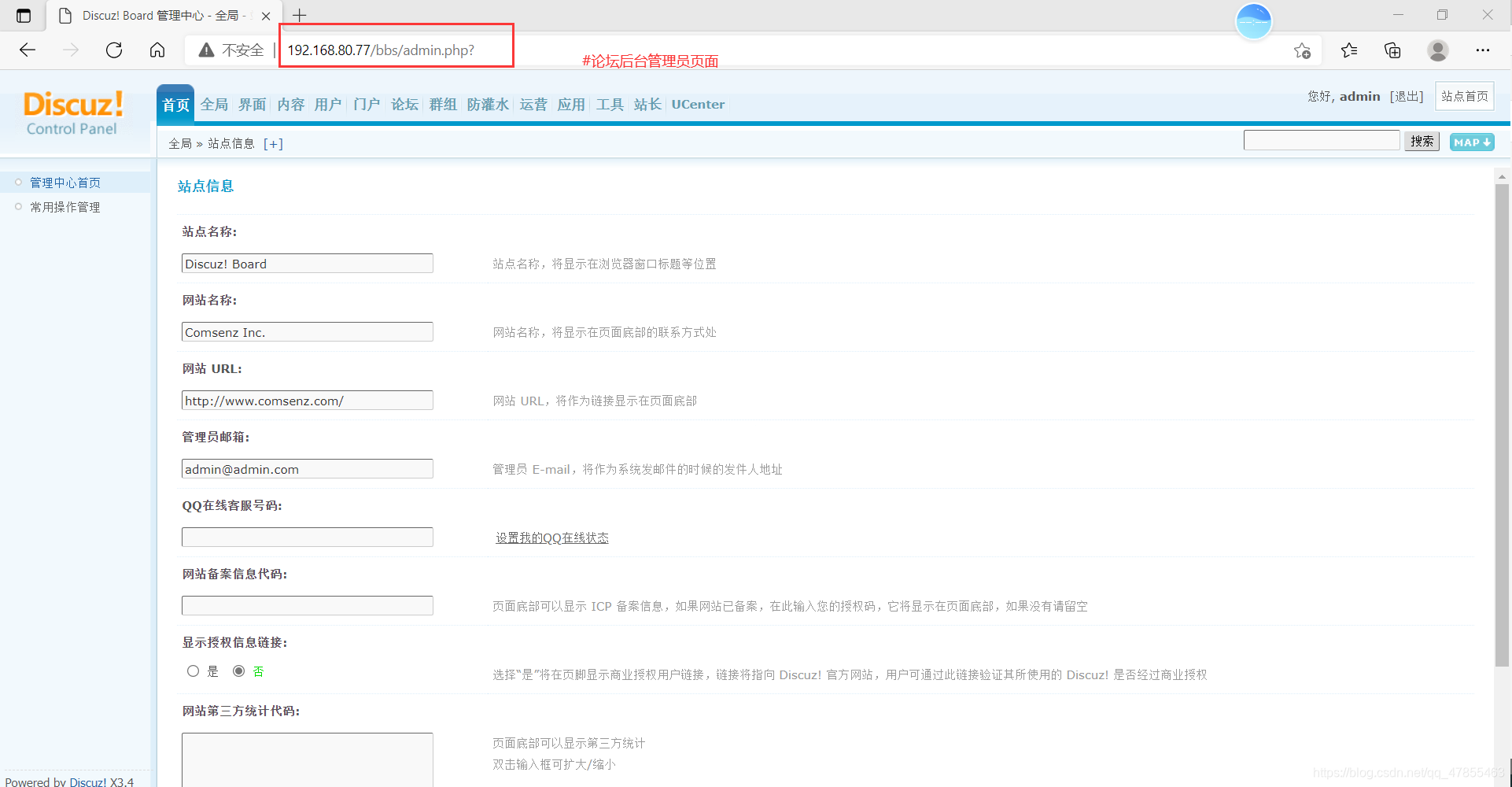

#论坛后台管理员页面
http://192.168.80.77/bbs/admin.php
Insert picture description here
Insert picture description here
