01. Overview of PolyWorks

PolyWorks Inspector is a powerful industrial 3D measurement software solution that uses non-contact point cloud scanning and single-point contact detection equipment to obtain and control the dimensions of tools and parts, diagnose and prevent manufacturing and assembly problems, and guide installation through real-time measurement. Monitor the quality of assembled products.

02. PCB character machine parallelism

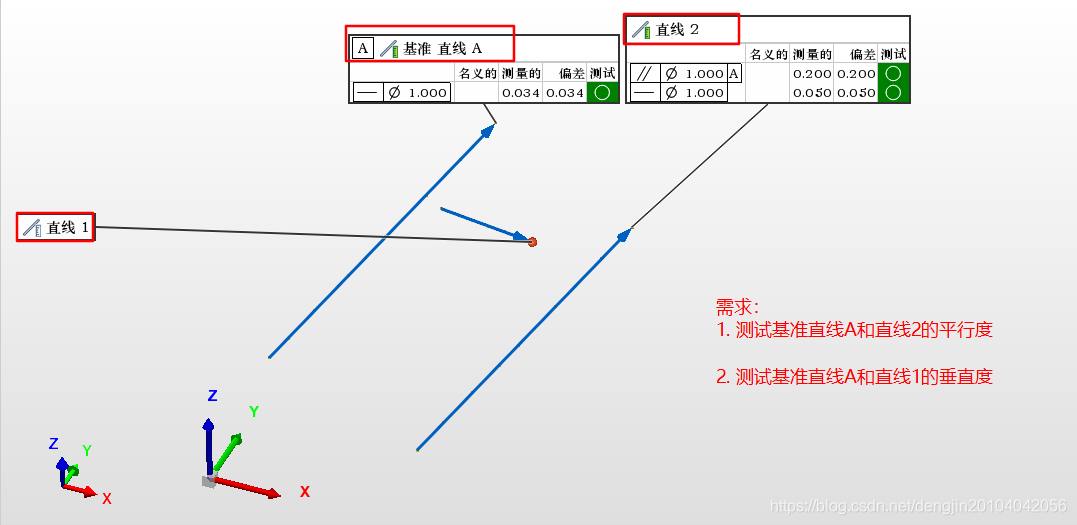

Prerequisite: Two straight lines to be tested have been collected

Insert picture description here

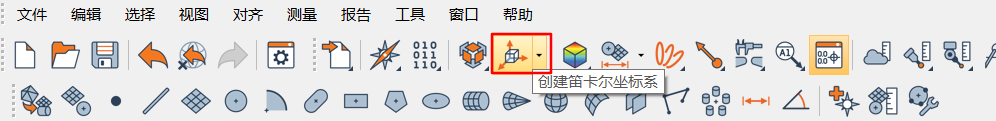

2.1 Create Cartesian coordinate system

Insert picture description here

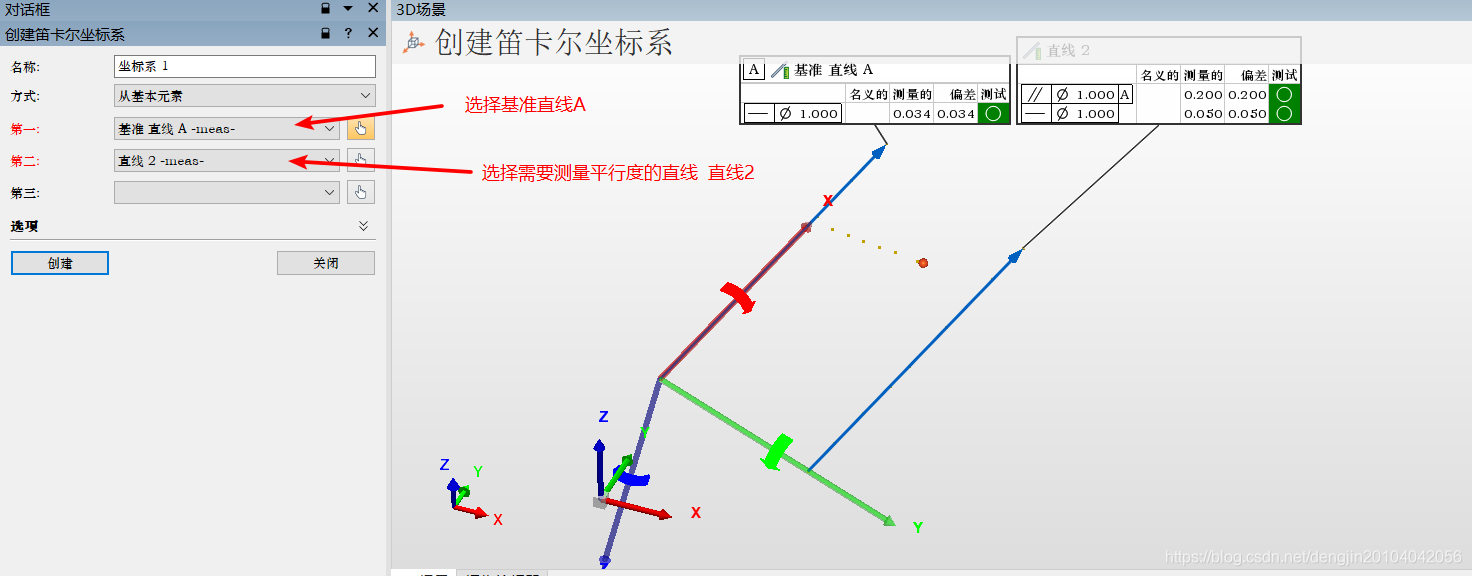

2.2 Choose the way to create a Cartesian product

Insert picture description here

2.3 After choosing the method, select the "Create" button

Insert picture description here

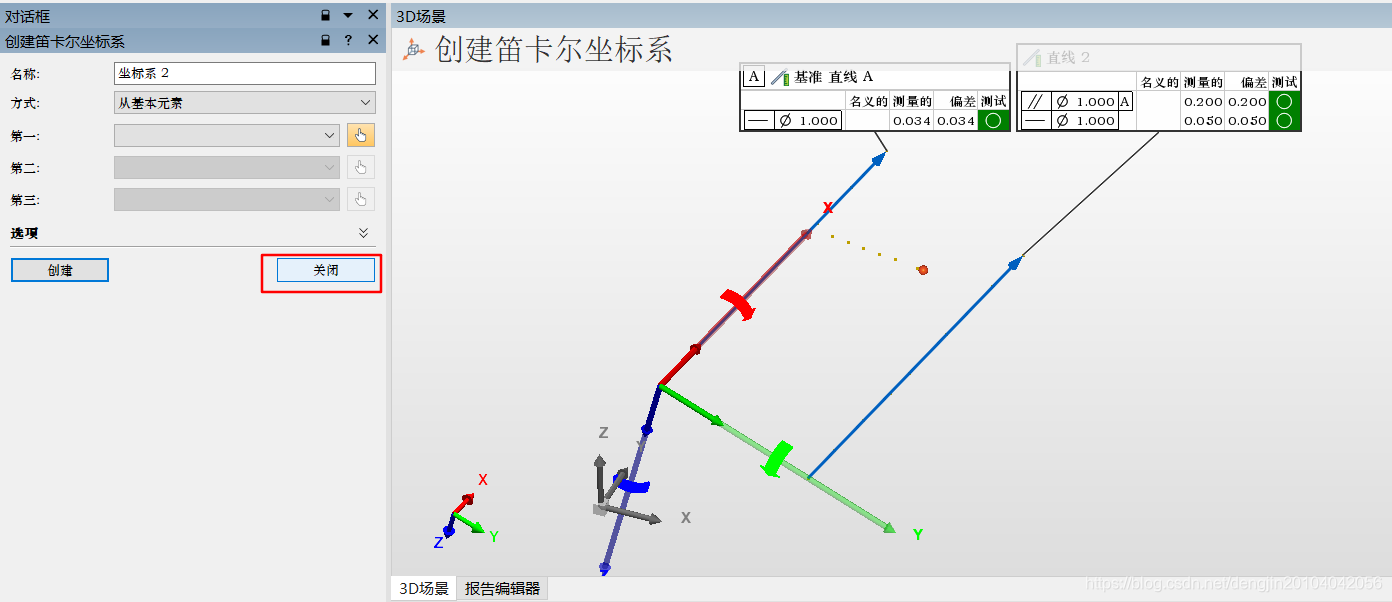

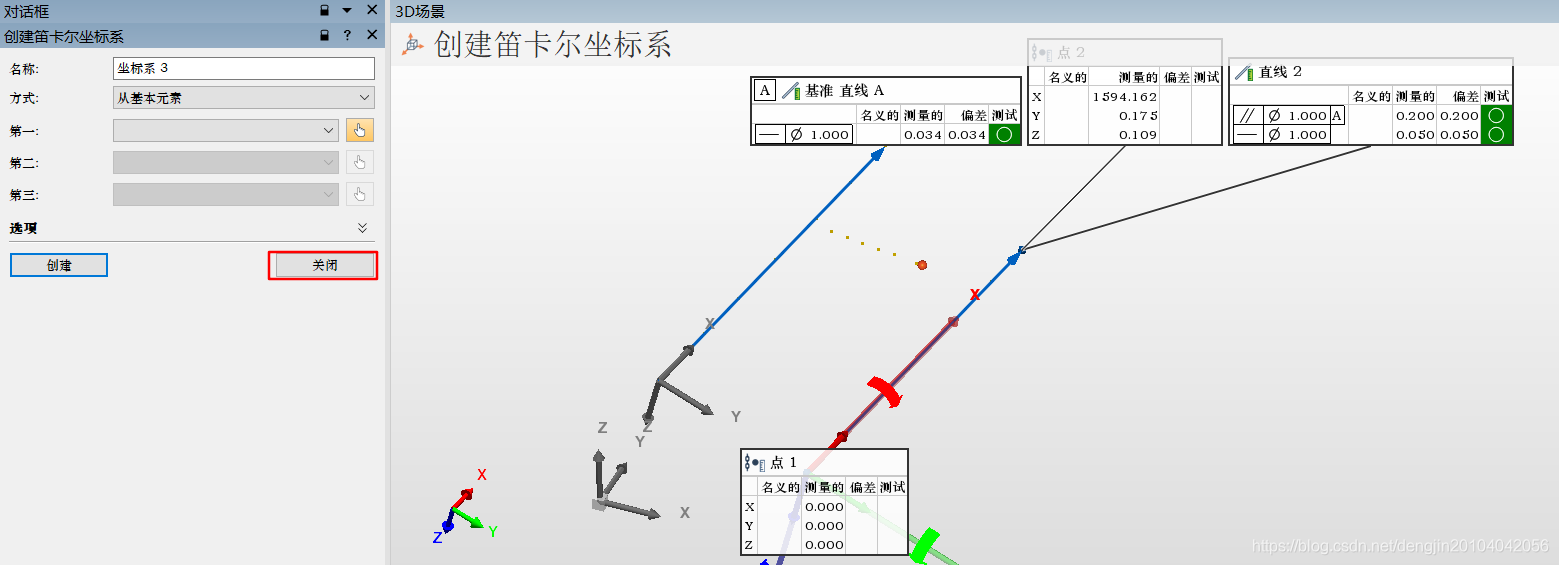

2.4 After creating the coordinate system, click "Close"

Insert picture description here

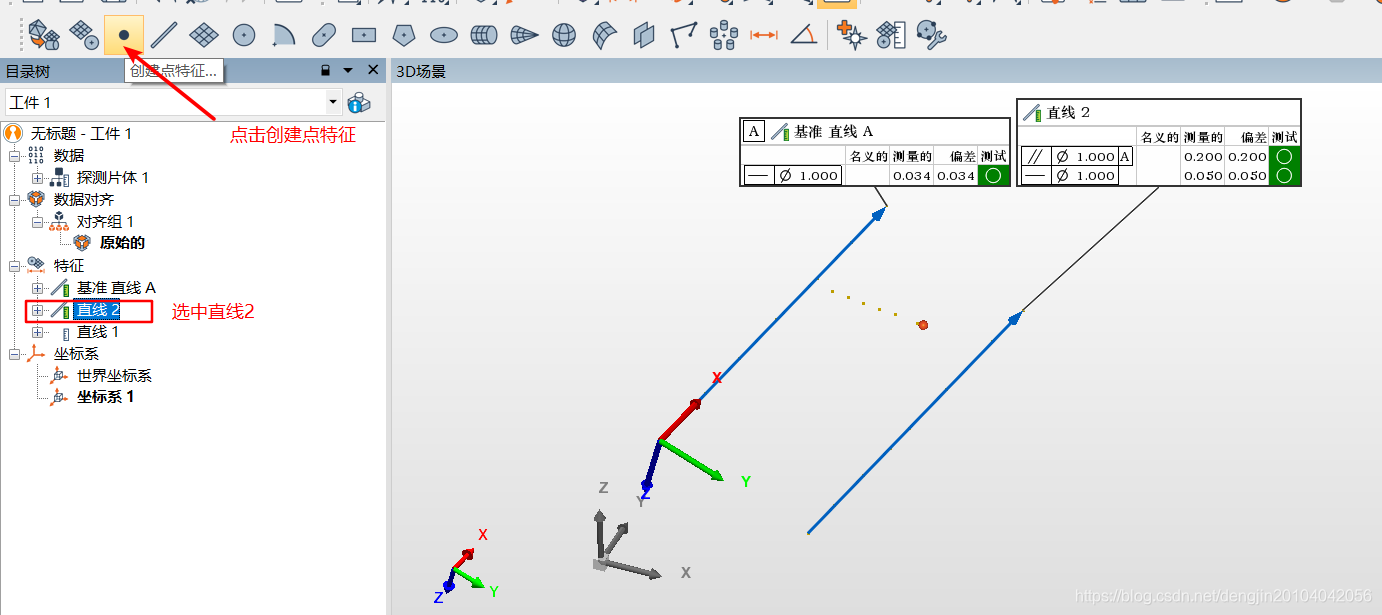

2.5 Create point features

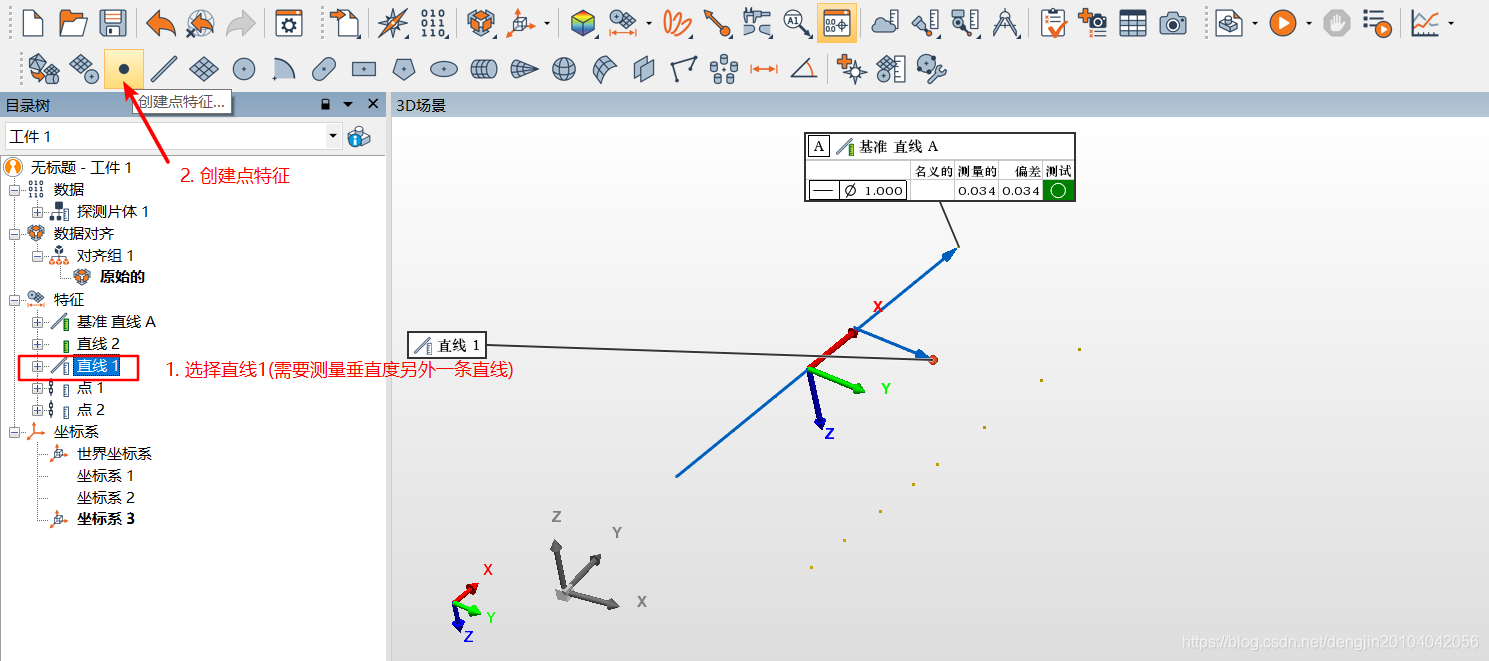

Select line 2 first, then click to create a point feature
Insert picture description here

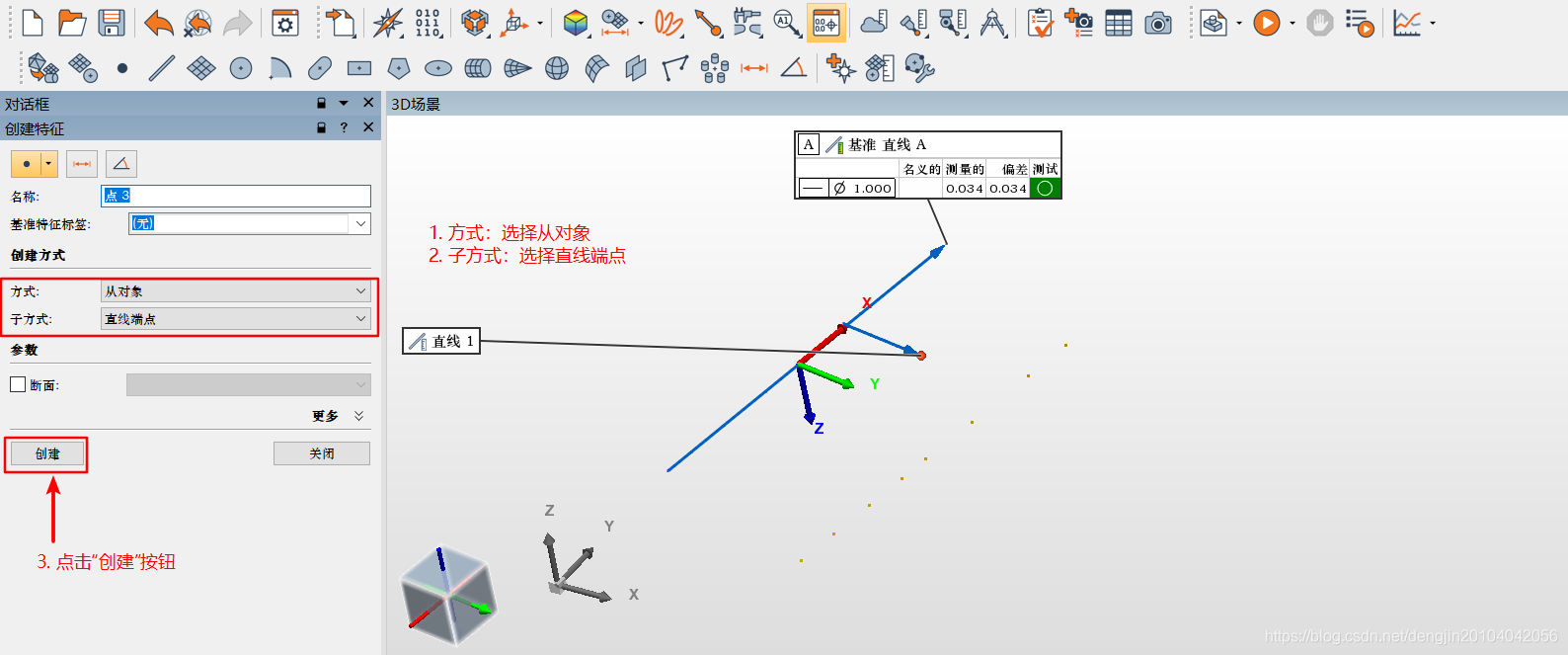

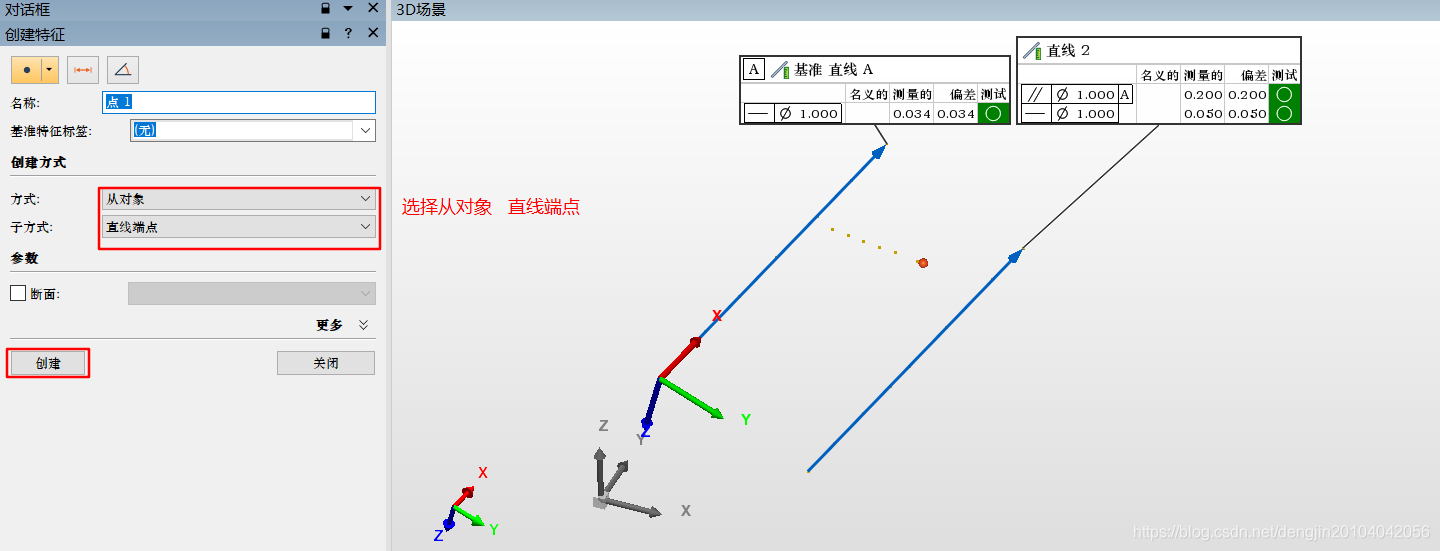

2.6 Select mode and sub mode, and finally select create

Insert picture description here

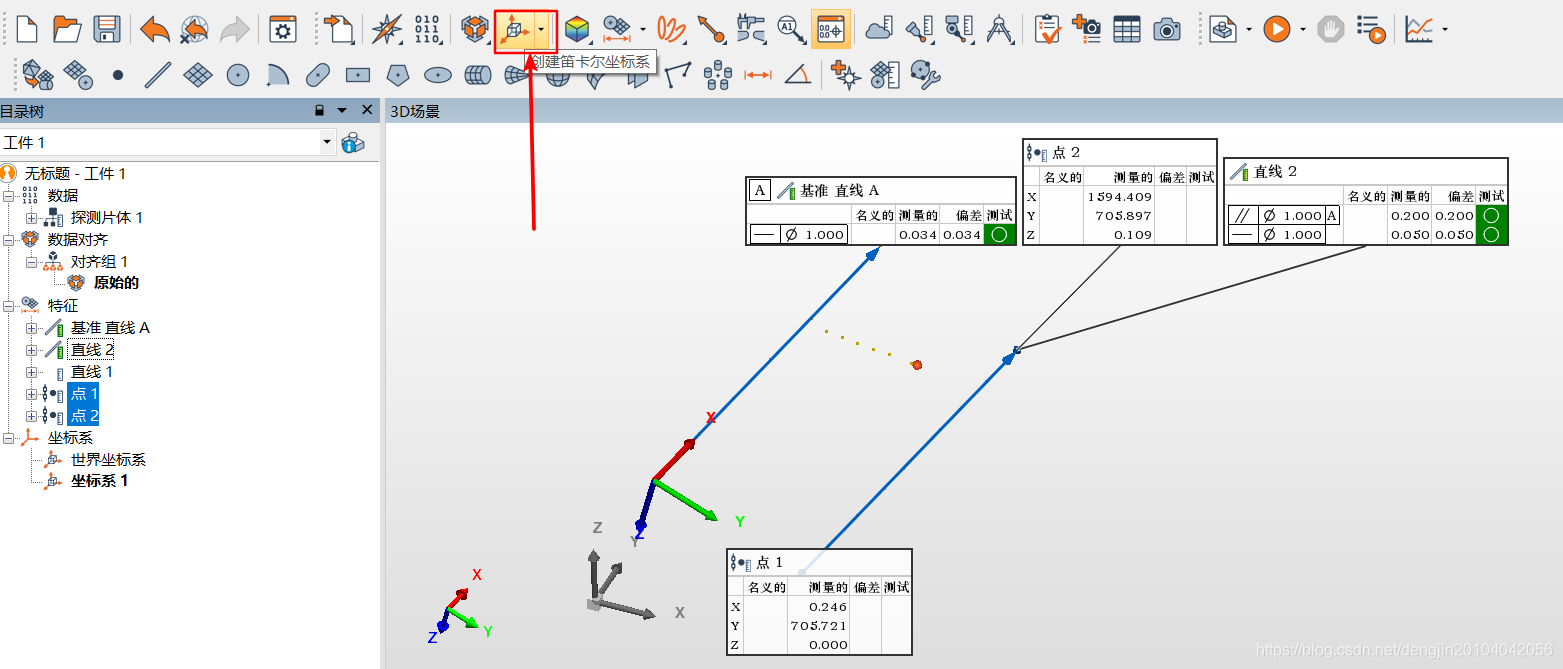

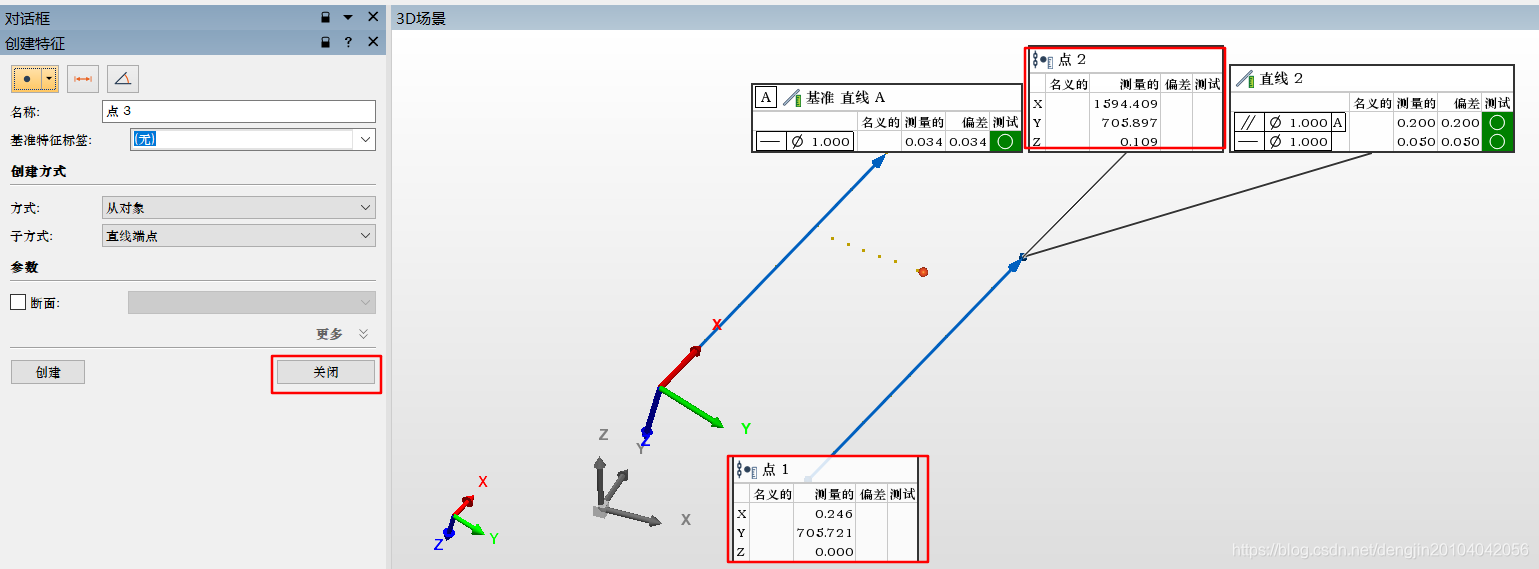

2.7 After creating the point feature, select Close, and two newly created points appear

Insert picture description here

2.8 Create Cartesian coordinate system again

Insert picture description here

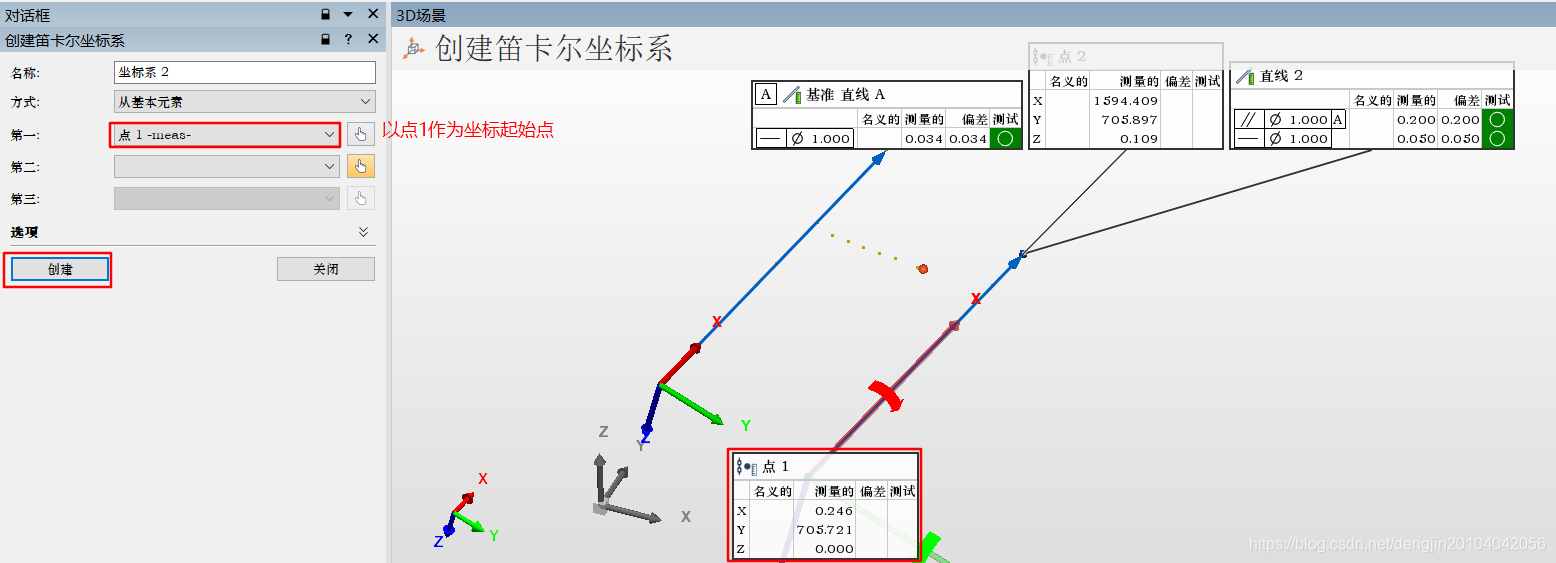

2.9 Select the starting point of the coordinates, and then click Create

Insert picture description here

2.10 Close coordinate system 3

Insert picture description here

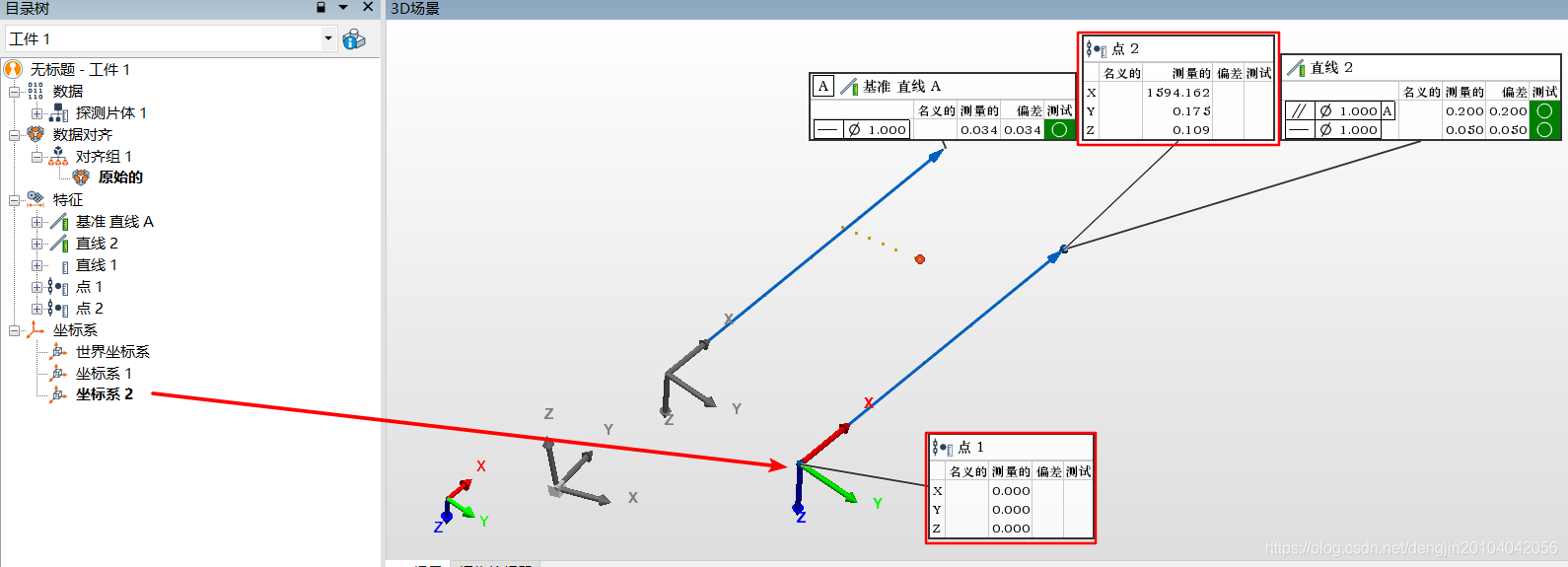

2.11 View results

Insert picture description here

Through point 2 of coordinate system 2, the accuracy of the end point of line 2 in the y and z directions can be obtained.

Y direction: deviation 0.175mm

Z direction: deviation 0.109mm

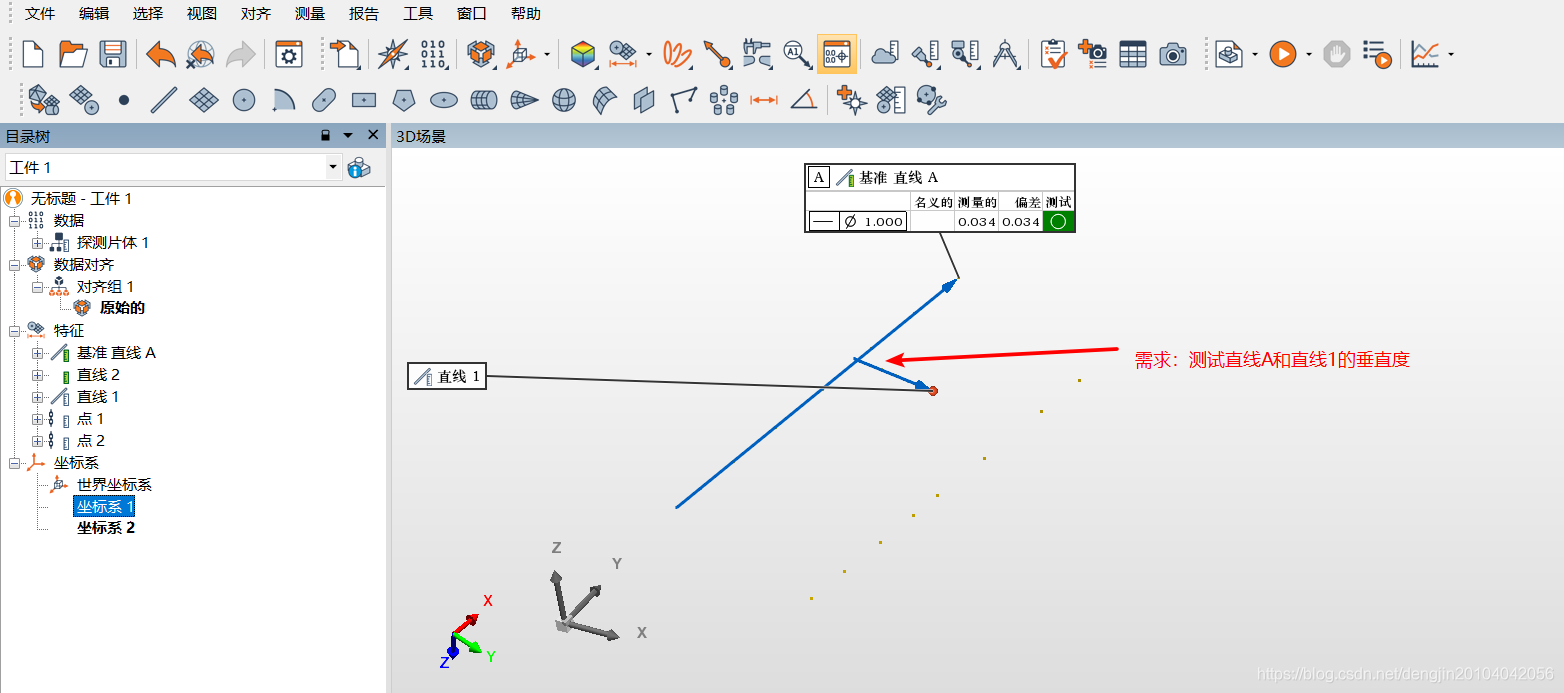

03. PCB character machine verticality

Prerequisite: Two straight lines to be tested have been collected

Insert picture description here

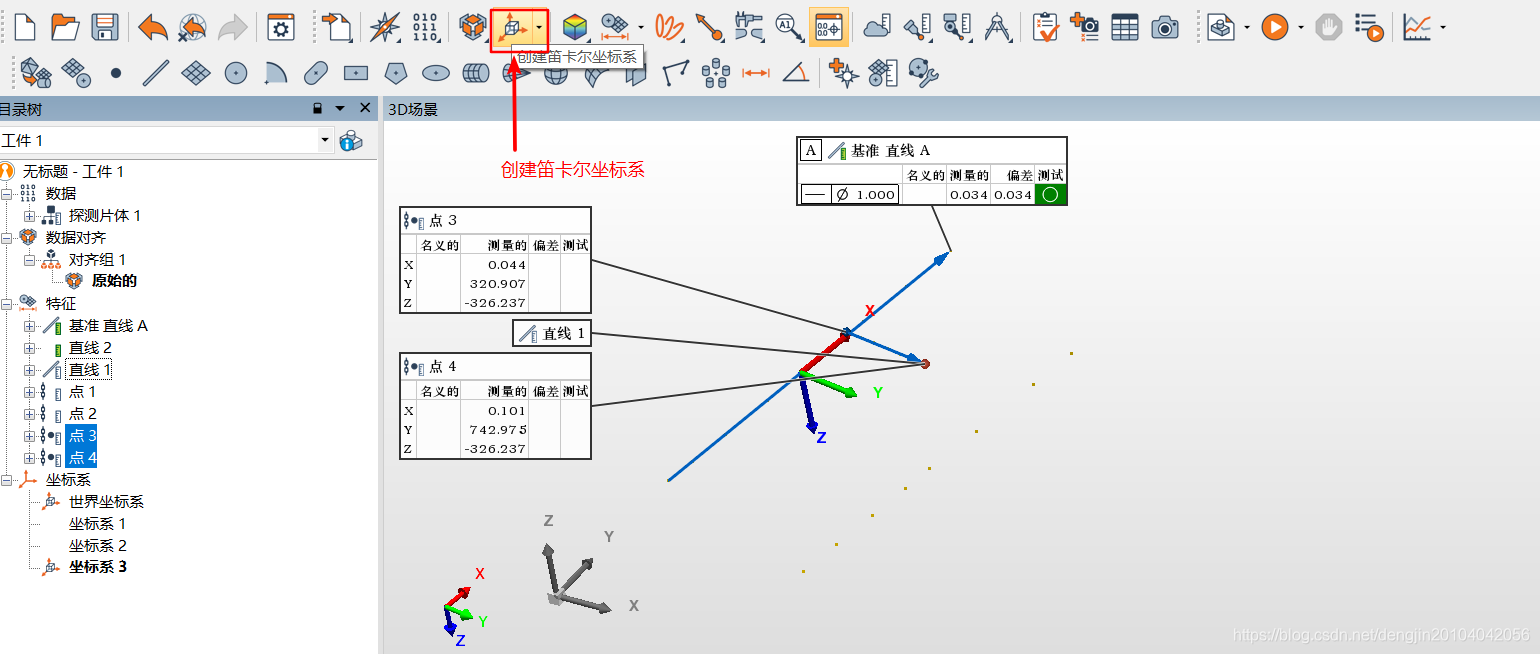

3.1 Create Cartesian coordinate system

Insert picture description here

3.2 Create Cartesian coordinate system

Insert picture description here

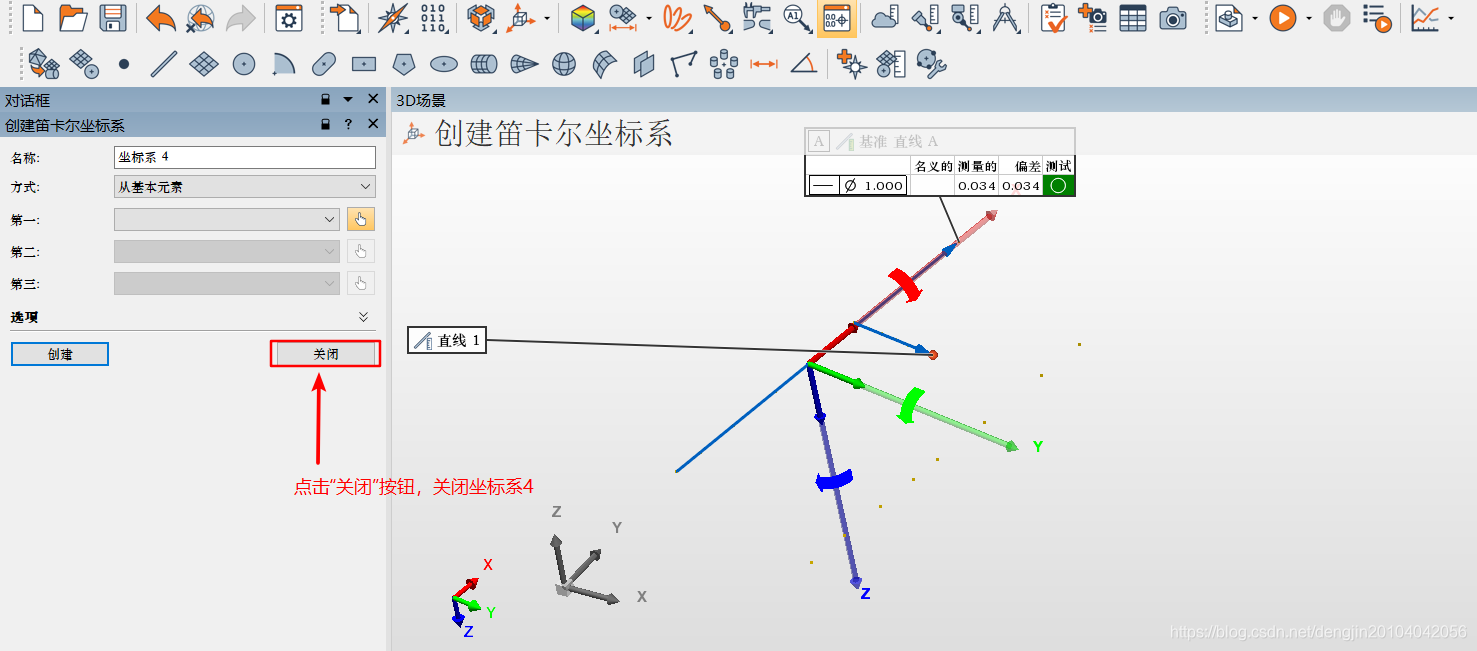

3.3 Click the close button to close the coordinate system 4

Insert picture description here

3.4 Create point features

Insert picture description here

3.5 How to create a point feature for the toilet, and then click "Create"

Insert picture description here

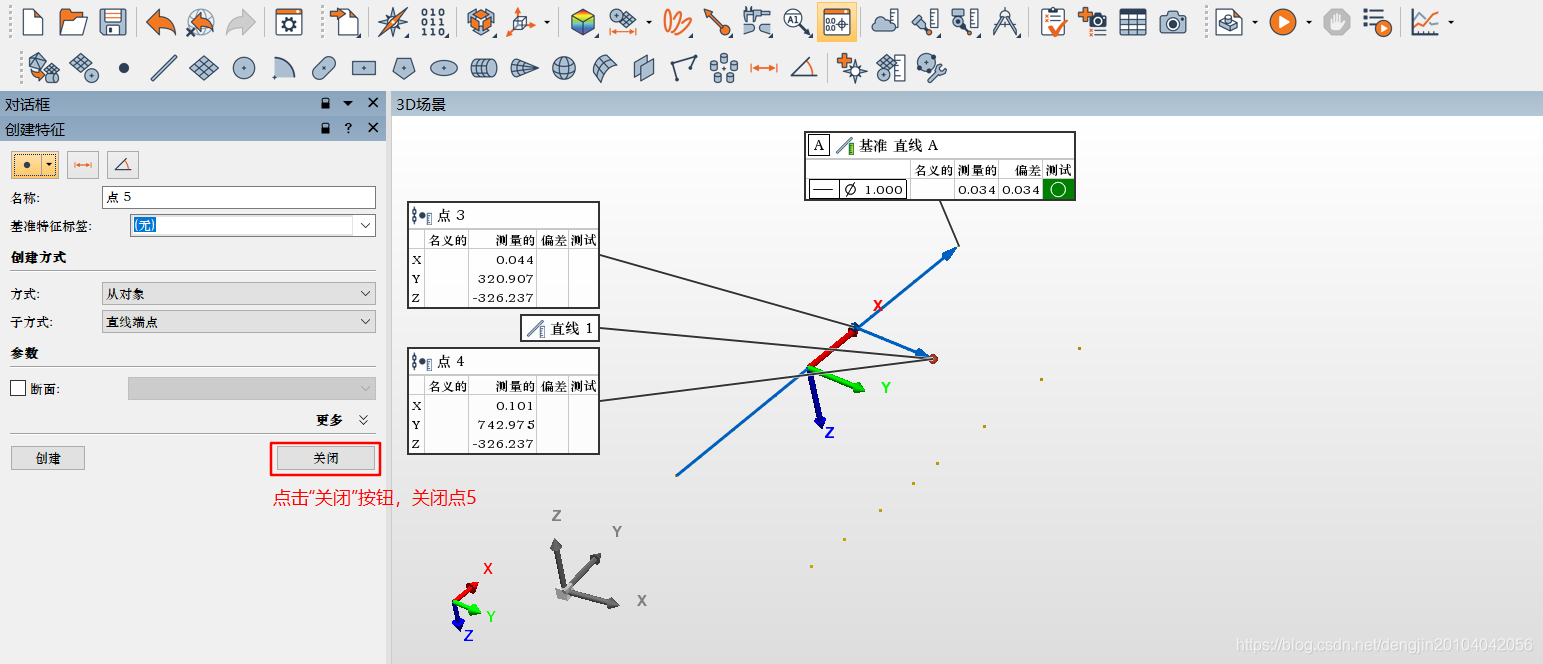

3.6 Close the creation feature and click the "Close" button

Insert picture description here

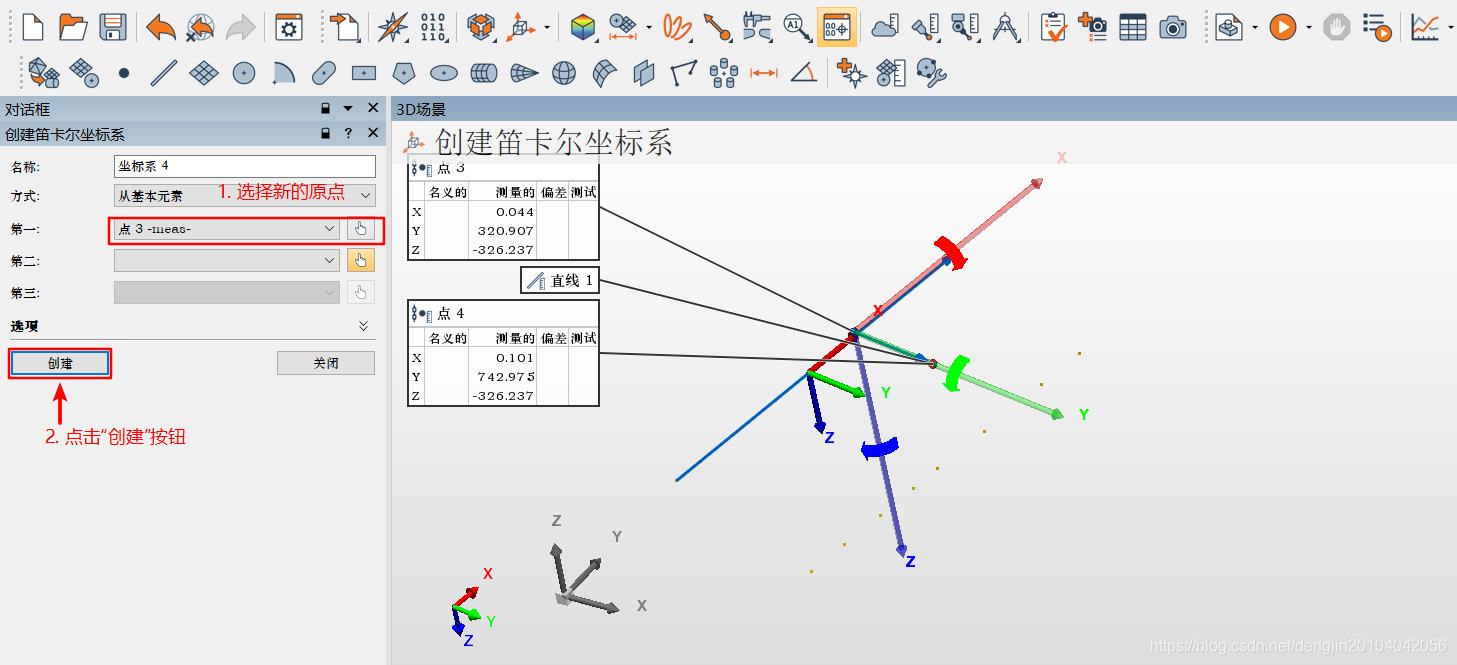

3.7 Create Cartesian Coordinate System

Insert picture description here

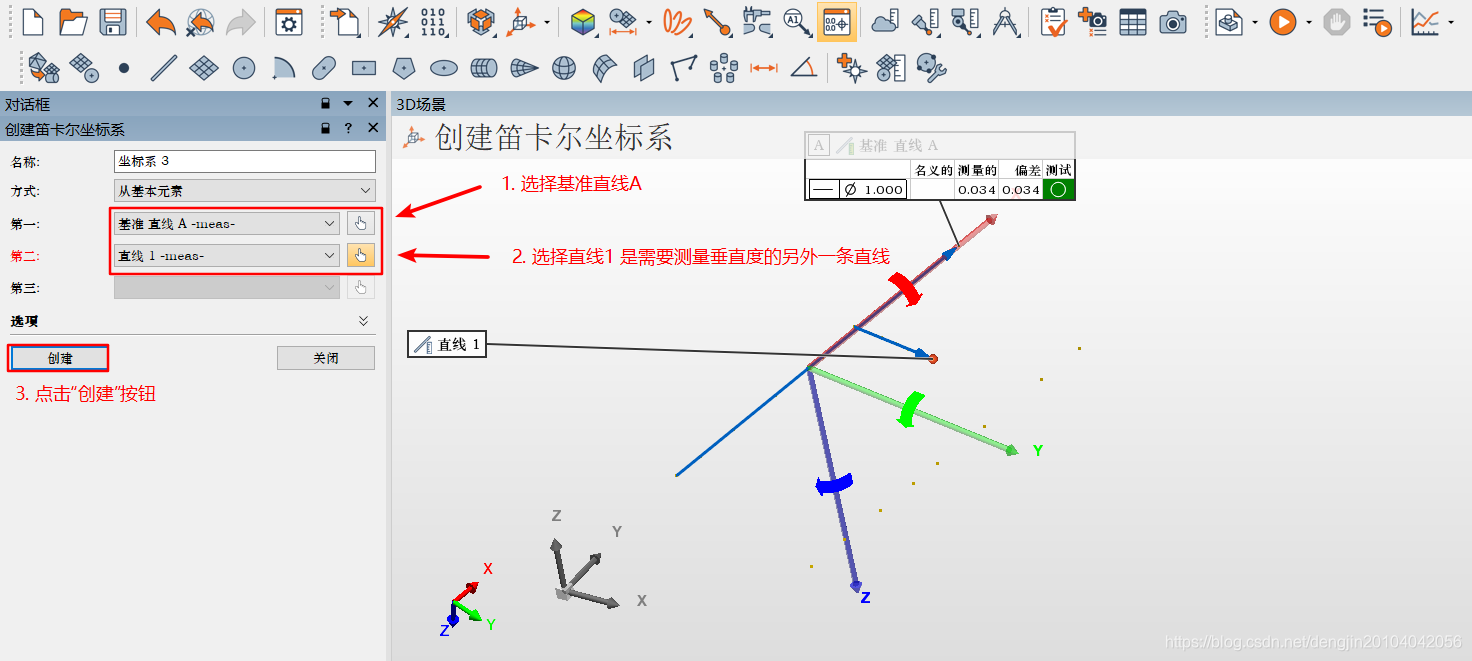

3.8 Create a Cartesian coordinate system and select the corresponding attributes

Insert picture description here

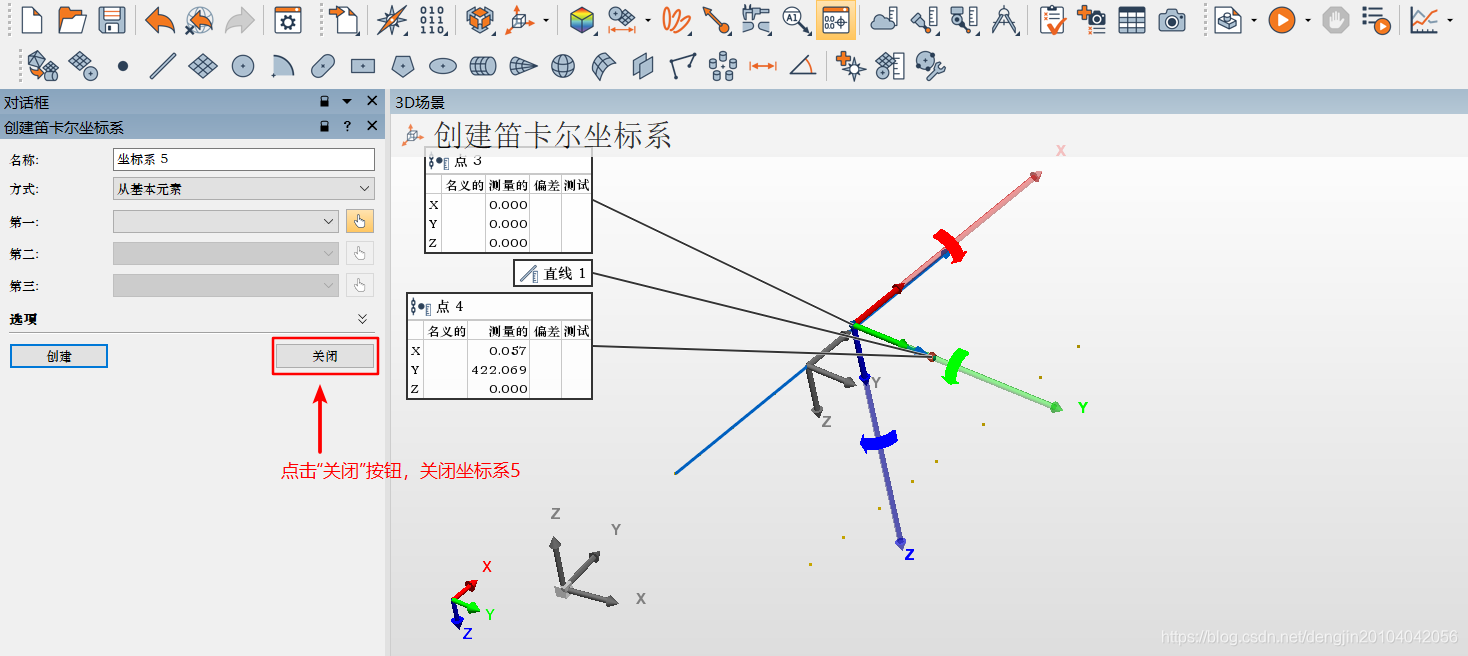

3.9 Click "Close" to close the coordinate system 5

Insert picture description here

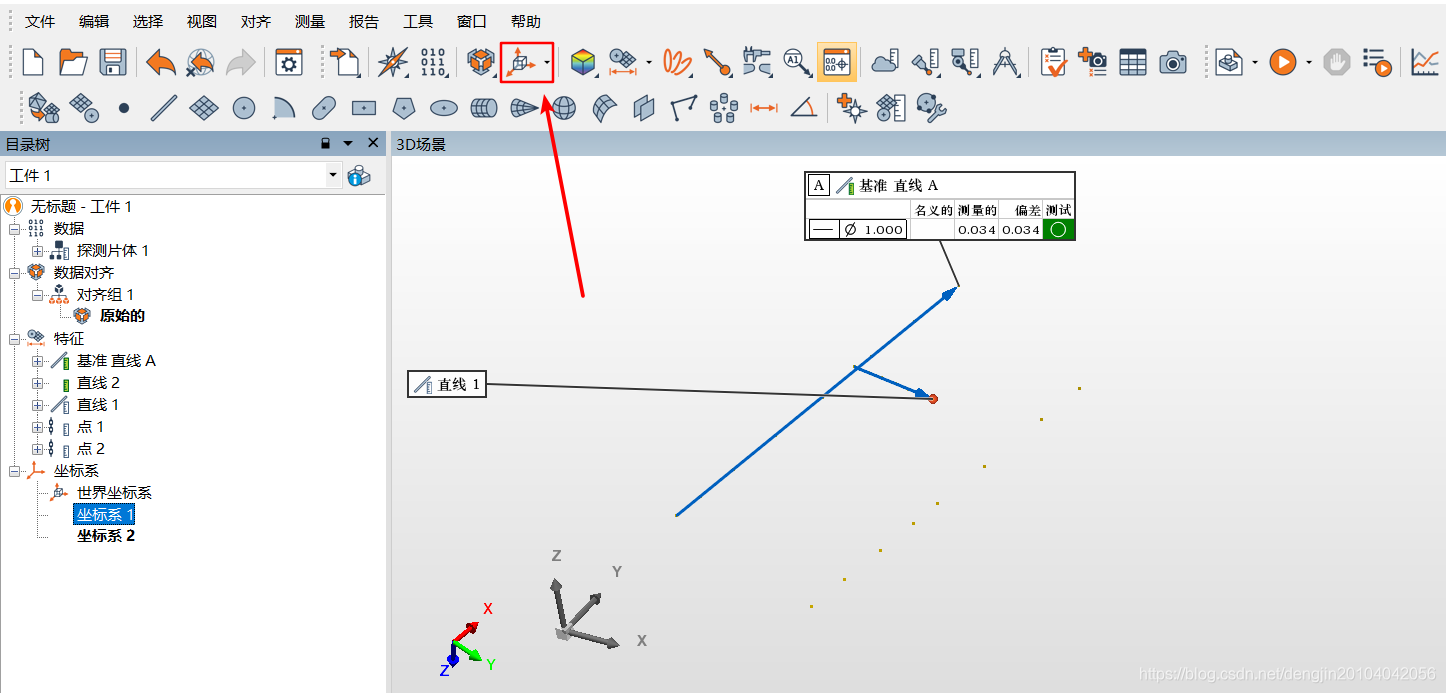

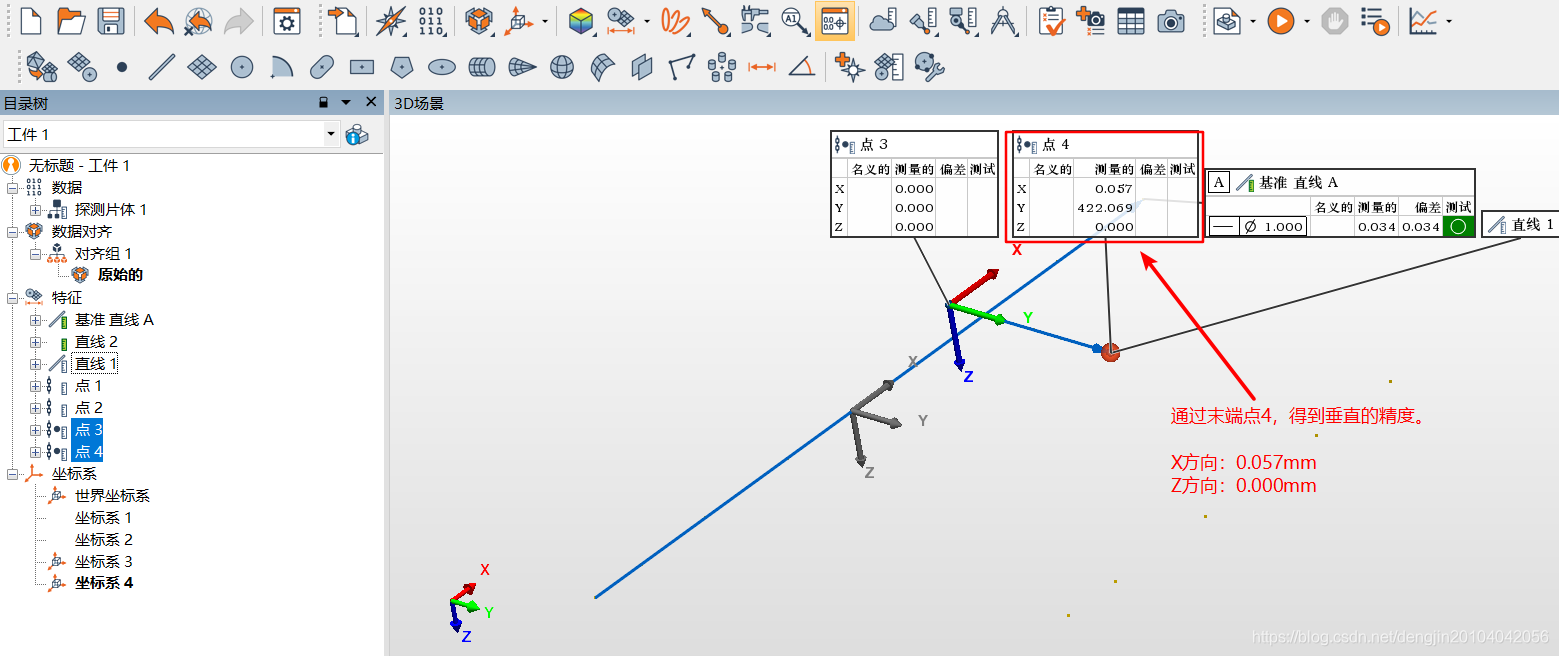

3.10 Get test results

Insert picture description here

04. Export test report

4.1 Prerequisites, the characteristics and coordinate system of the test need to be displayed.

Under normal circumstances, it is displayed by default, unless you press the "middle button" of the mouse to hide it.

Insert picture description here

4.2 Typesetting report notes

Insert picture description here

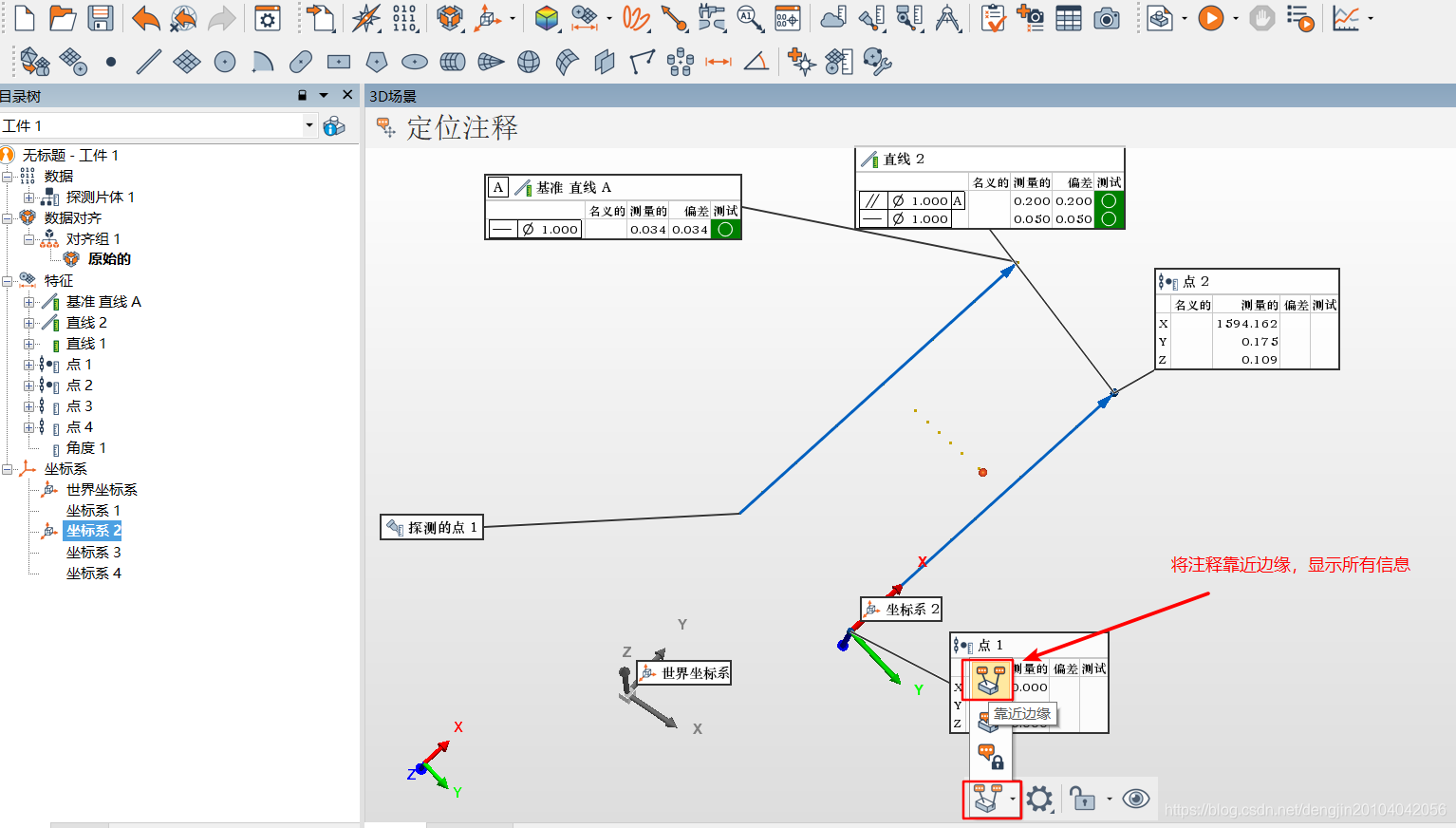

4.3 Show all notes, close to the edge.

Insert picture description here

4.4 Typesetting notes

Insert picture description here

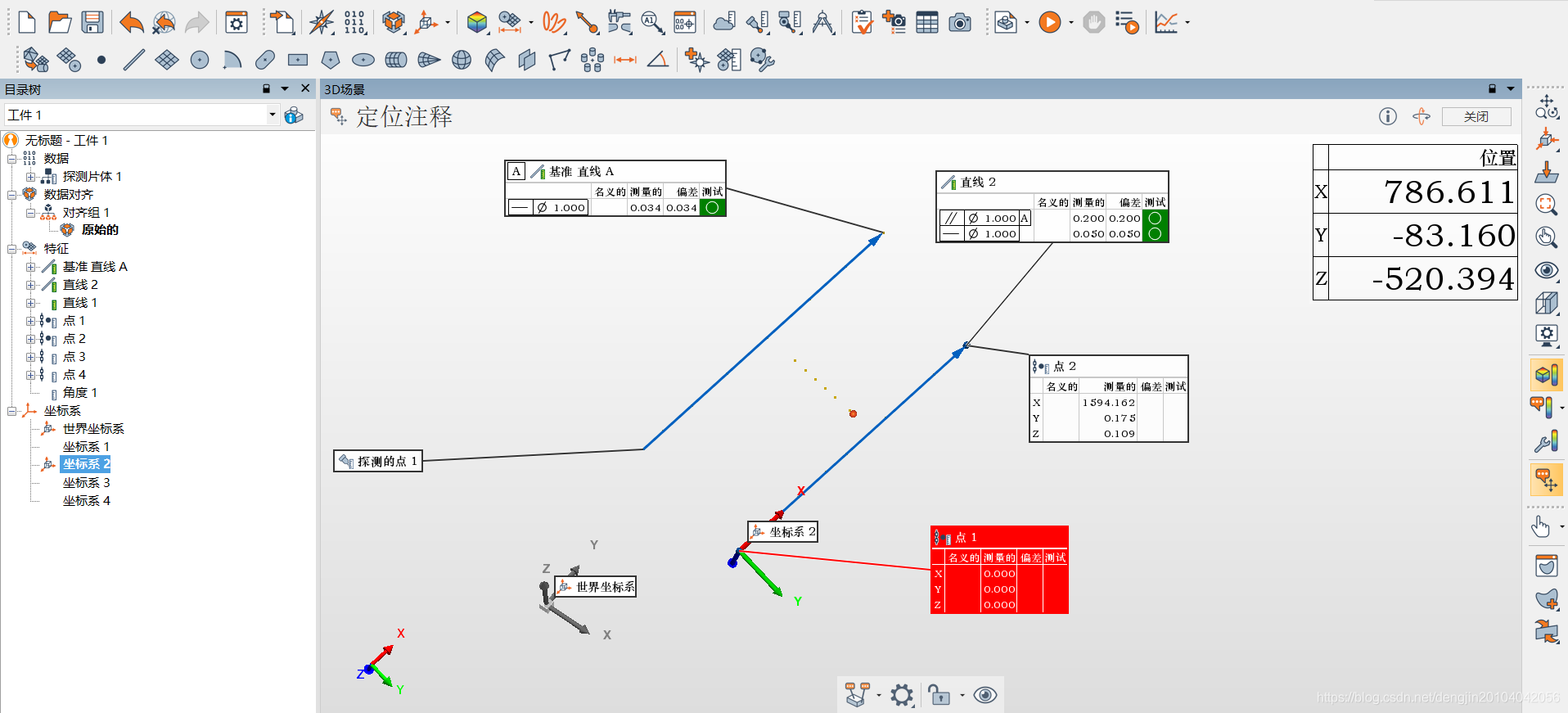

4.5 3D scene operation

Press the "Space" key to perform 3D scene operations

Press the "Space" key again to return to the positioning comment.

4.6 Exit positioning comment

Press the ESC key in the upper right corner of the computer keyboard

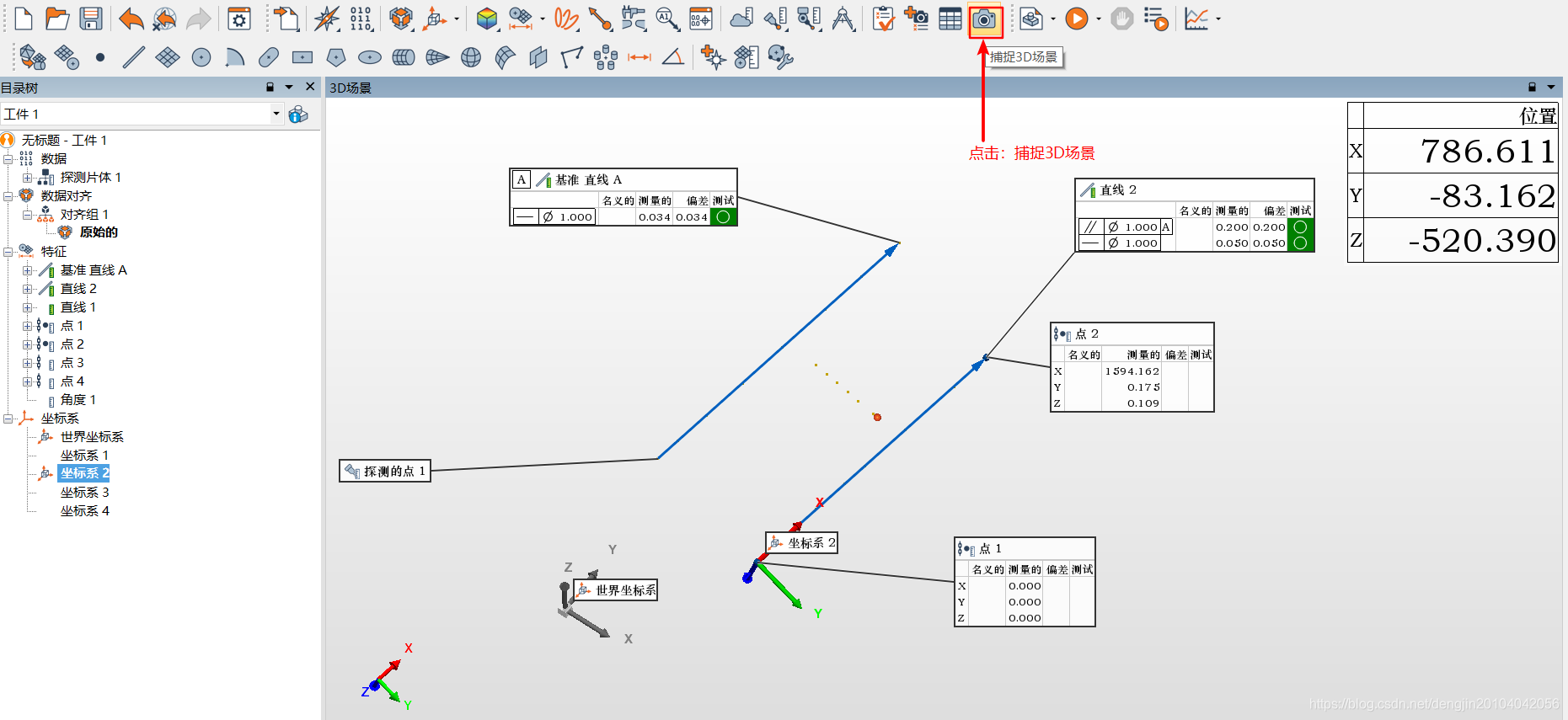

4.7 Capture 3D scene

Insert picture description here

4.8 Turn off report properties

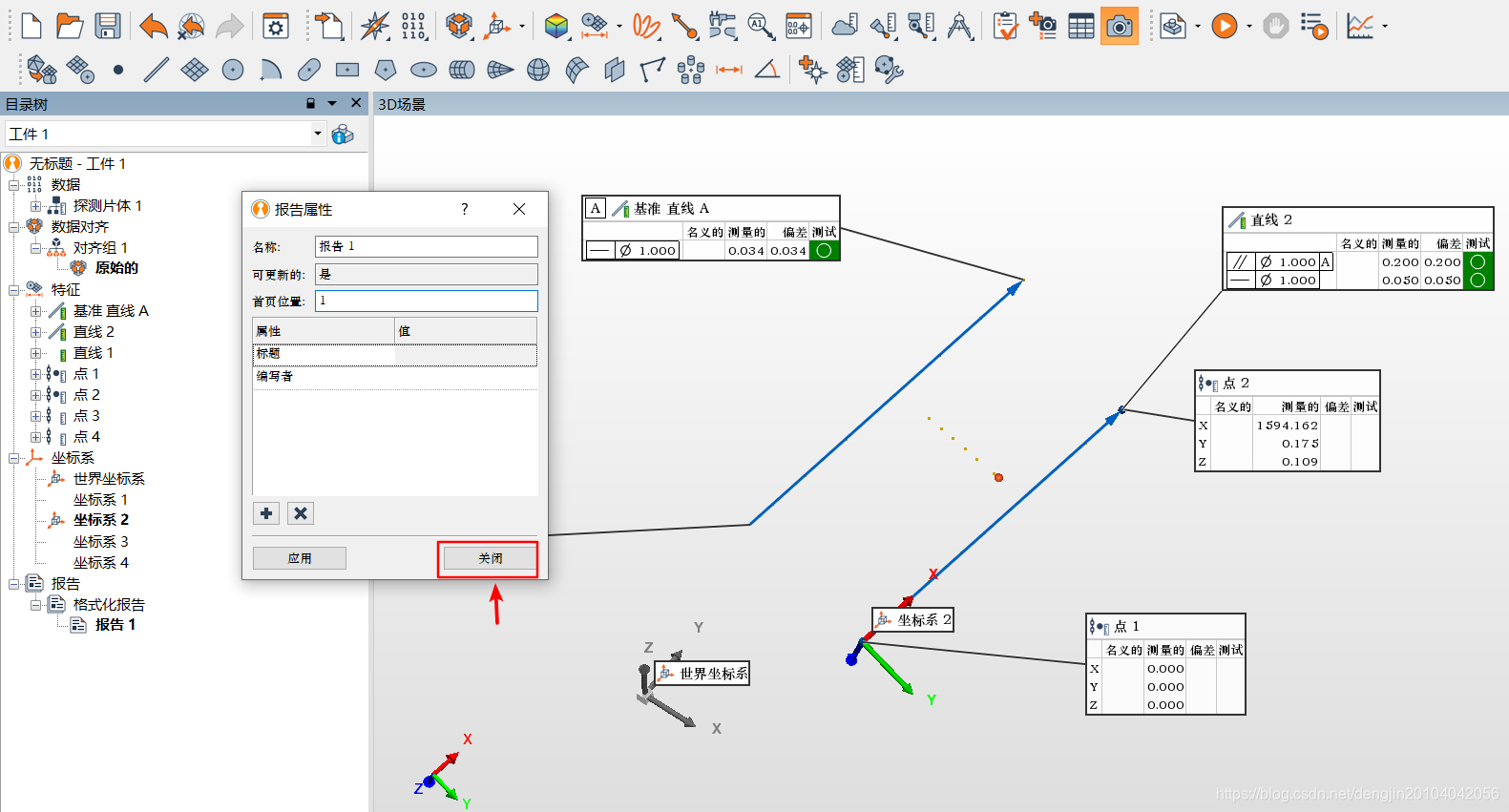

Insert picture description here

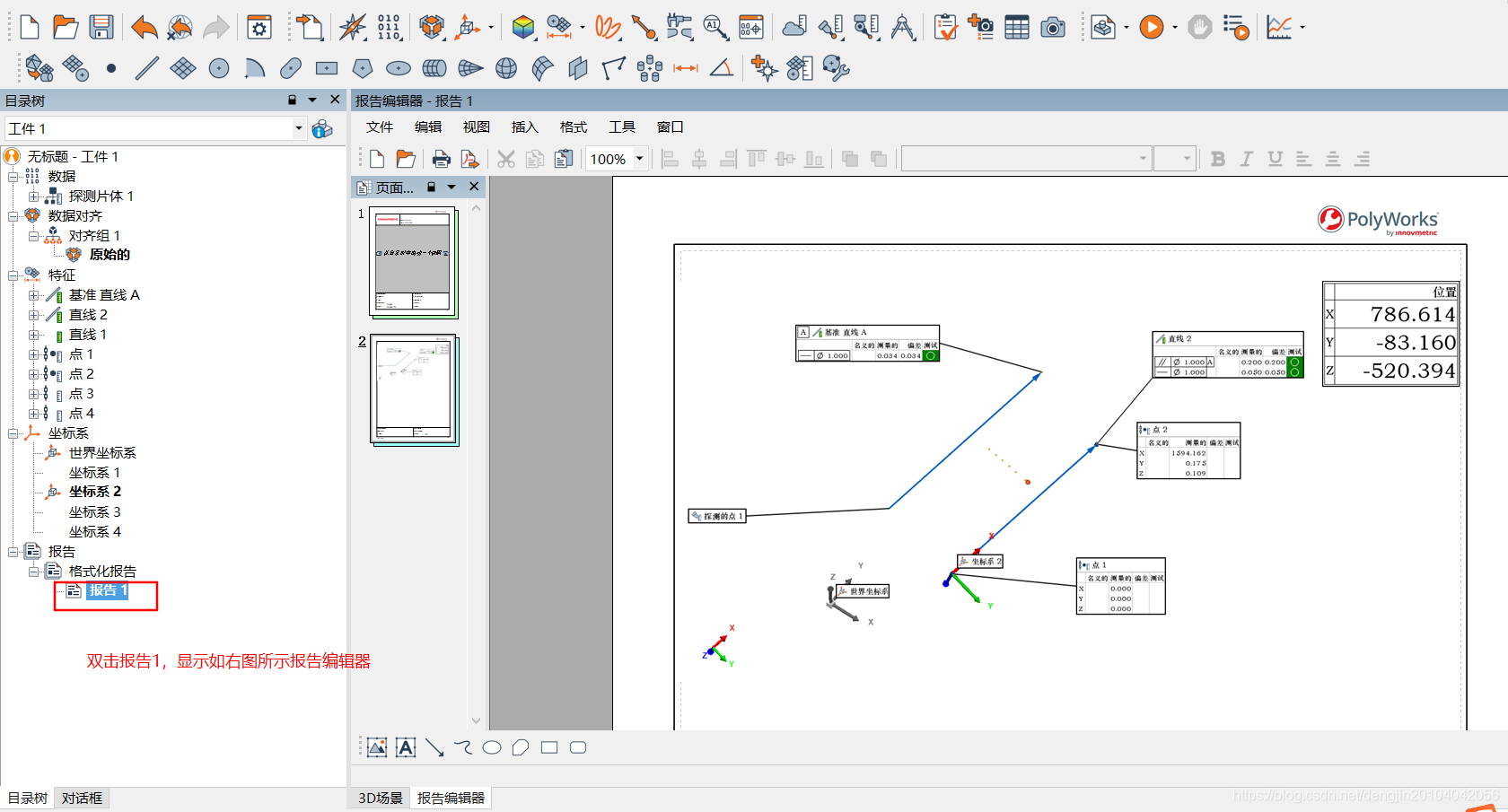

4.9 Double-click the report to display the report editor

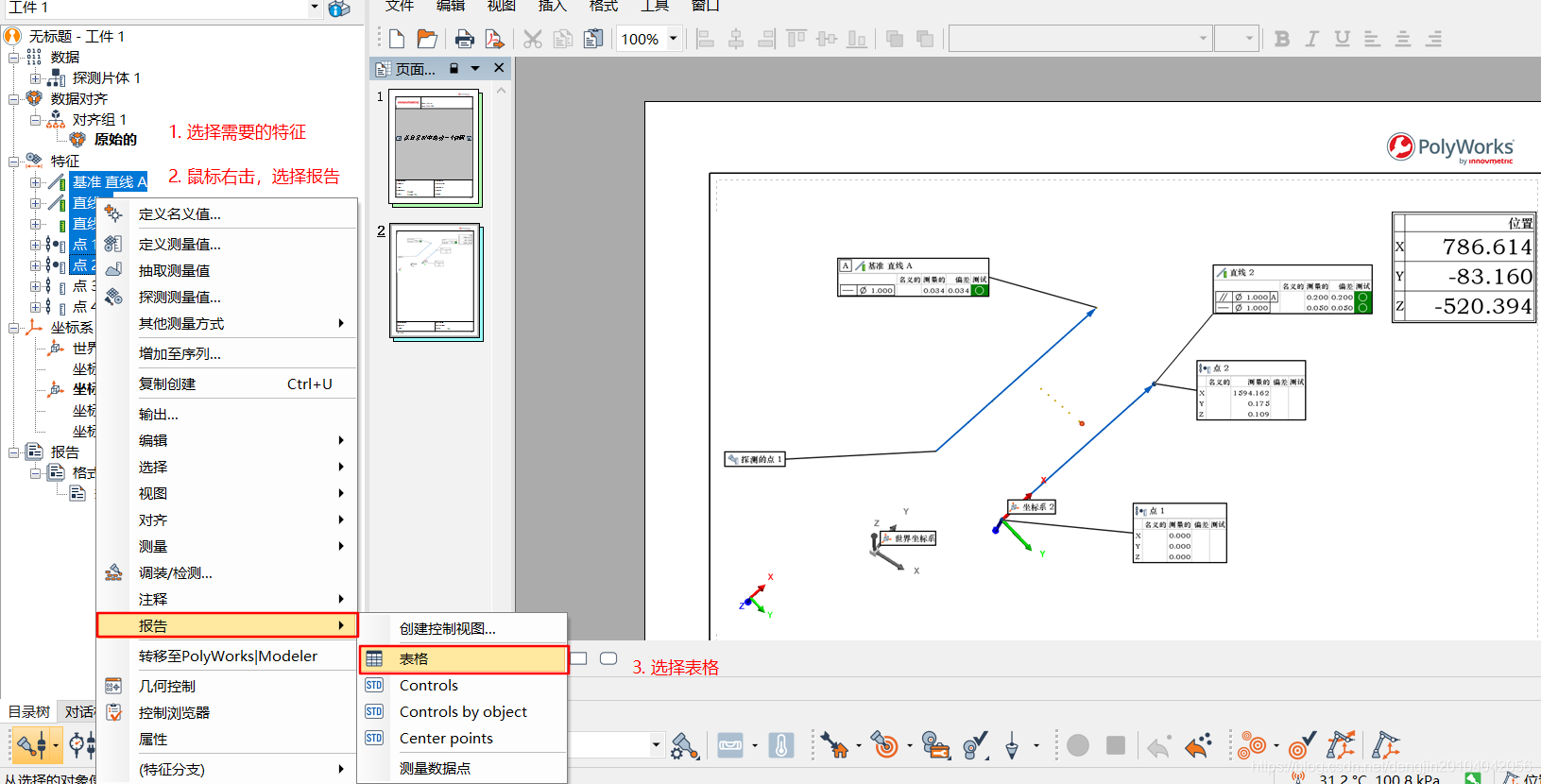

Insert picture description here

4.10 Import characteristic data into the report.

Insert picture description here

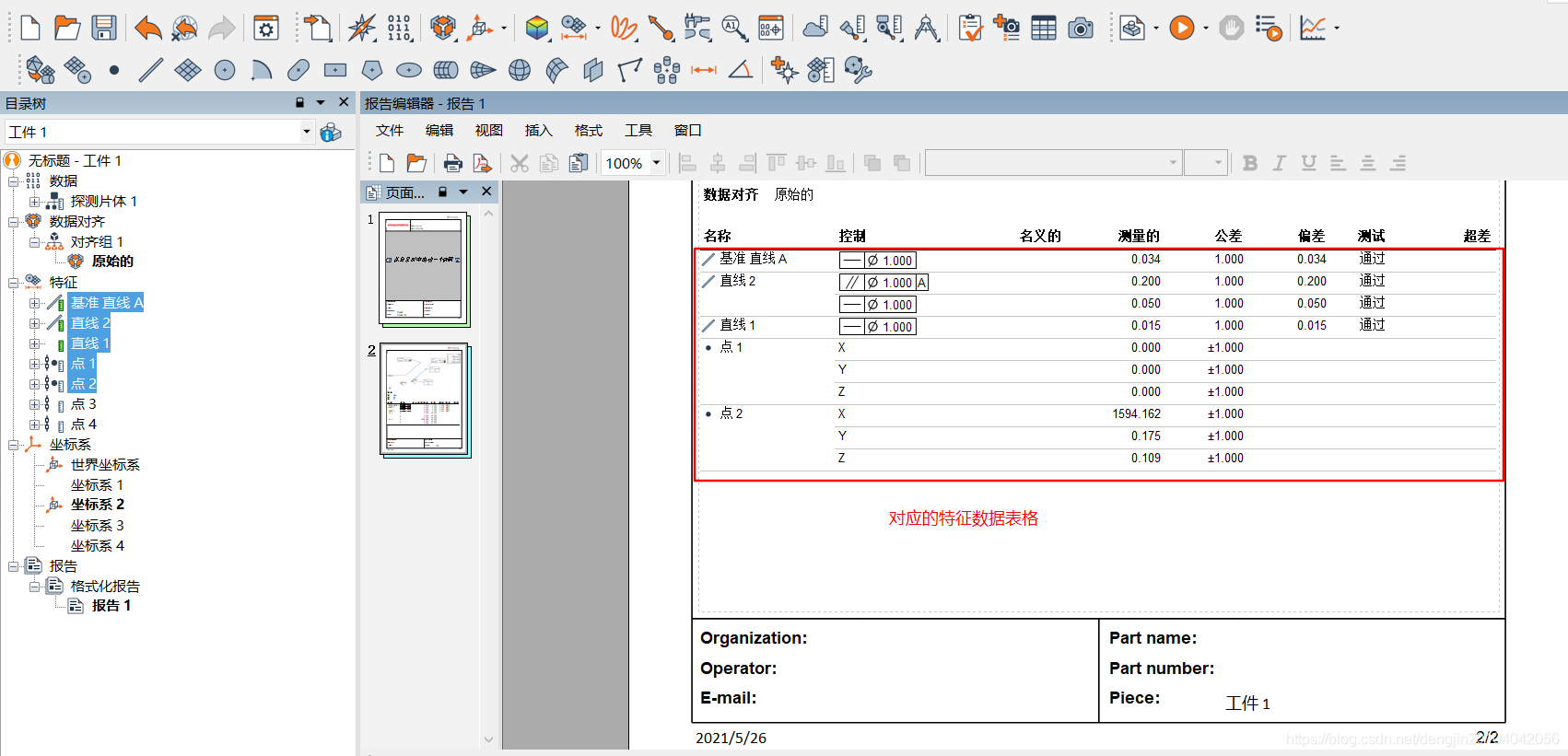

4.11 Finally import the feature data table

Insert picture description here

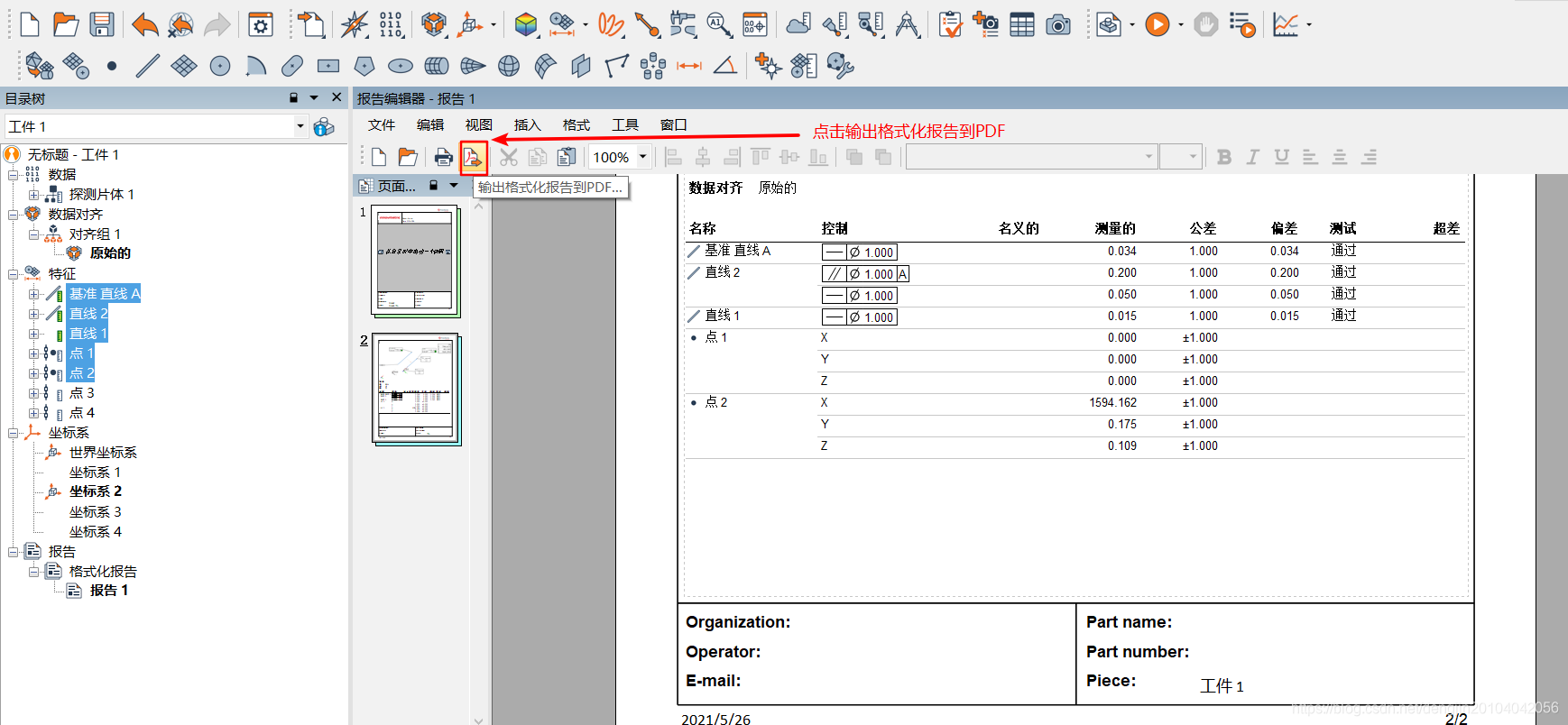

4.12 Export report as PDF file

Insert picture description here
