[Machine Vision] Halcon code export high-level language code

00. Table of Contents

Article Directory

01. Overview

Halcon is a very good visual aided design software, it is the latest version newly launched by the very professional MVtec company. In terms of function, it has very practical and convenient machine vision development capabilities. Its very unique internal structure can well assist the vision functions of various machines, so that it can be very useful whether it is on medical images or various image analysis. With the help of the software, and the software is built with very advanced and intelligent image algorithm capabilities, users can save a lot of time when making various products, which greatly improves work efficiency. In terms of use, it also has a very wide range of applications, which can be used in multiple industries, such as morphology, measurement images, blobs and other related image fields. As the latest version of the series, it not only optimizes a lot of content, but also adds some very convenient functions. Now it can read barcodes through more advanced and convenient algorithms, which greatly accelerates the reading speed. It also performs a very user-friendly upgrade and optimization of the software development and operating environment, etc.

02. Development environment

Windows system : Windows10

Halcon version : HDevelop 19.11

03. Halcon source code

* 读取图片文件
read_image (Image, 'fabrik')

* 获取图片大小信息
get_image_size (Image, Width, Height)

dev_open_window (0, 0, Width, Height, 'black', WindowHandle)

04. Halcon source code export method

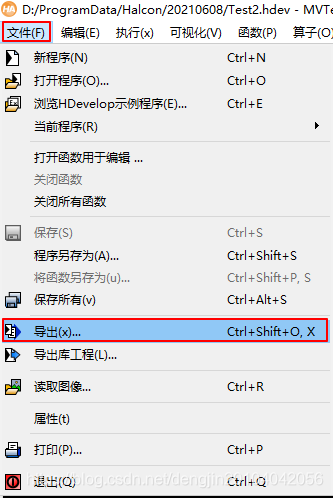

4.1 Select File -> Export

Insert picture description here

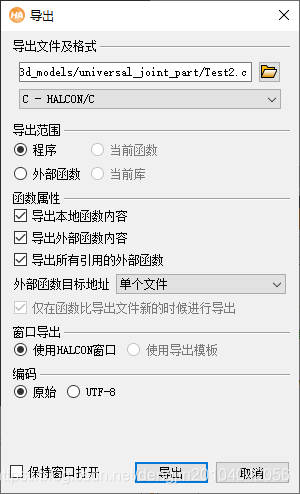

4.2 Select export related settings

Insert picture description here

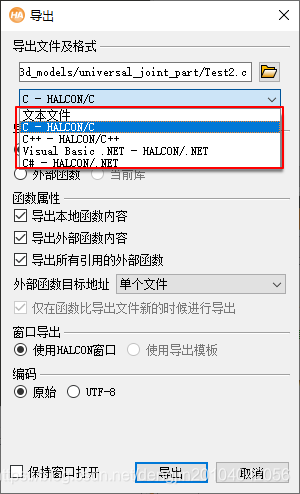

The ways to support export are: text file, C file, C++ file, VB file and C# file.

Insert picture description here

05. Export Halcon source code as C++ program

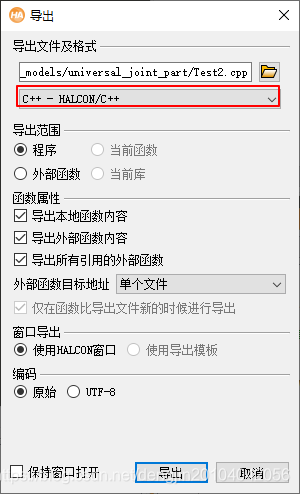

5.1 Choose C++ for export file

Insert picture description here

5.2 After exporting, view the exported C++ file

///
// File generated by HDevelop for HALCON/C++ Version 19.11.0.0
// Non-ASCII strings in this file are encoded in local-8-bit encoding (cp936).
// Ensure that the interface encoding is set to locale encoding by calling
// SetHcppInterfaceStringEncodingIsUtf8(false) at the beginning of the program.
//
// Please note that non-ASCII characters in string constants are exported
// as octal codes in order to guarantee that the strings are correctly
// created on all systems, independent on any compiler settings.
//
// Source files with different encoding should not be mixed in one project.
///



#ifndef __APPLE__
#  include "HalconCpp.h"
#  include "HDevThread.h"
#else
#  ifndef HC_LARGE_IMAGES
#    include <HALCONCpp/HalconCpp.h>
#    include <HALCONCpp/HDevThread.h>
#    include <HALCON/HpThread.h>
#  else
#    include <HALCONCppxl/HalconCpp.h>
#    include <HALCONCppxl/HDevThread.h>
#    include <HALCONxl/HpThread.h>
#  endif
#  include <stdio.h>
#  include <CoreFoundation/CFRunLoop.h>
#endif



using namespace HalconCpp;


#ifndef NO_EXPORT_MAIN
// Main procedure
void action()
{

  // Local iconic variables
  HObject  ho_Image;

  // Local control variables
  HTuple  hv_Width, hv_Height, hv_WindowHandle;


  //读取图片文件
  ReadImage(&ho_Image, "fabrik");

  //获取图片大小信息
  GetImageSize(ho_Image, &hv_Width, &hv_Height);

  SetWindowAttr("background_color","black");
  OpenWindow(0,0,hv_Width,hv_Height,0,"visible","",&hv_WindowHandle);
  HDevWindowStack::Push(hv_WindowHandle);



}

#ifndef NO_EXPORT_APP_MAIN
#ifdef __APPLE__
// On OS X systems, we must have a CFRunLoop running on the main thread in
// order for the HALCON graphics operators to work correctly, and run the
// action function in a separate thread. A CFRunLoopTimer is used to make sure
// the action function is not called before the CFRunLoop is running.
// Note that starting with macOS 10.12, the run loop may be stopped when a
// window is closed, so we need to put the call to CFRunLoopRun() into a loop
// of its own.
HTuple      gStartMutex;
H_pthread_t gActionThread;
HBOOL       gTerminate = FALSE;

static void timer_callback(CFRunLoopTimerRef timer, void *info)
{
  UnlockMutex(gStartMutex);
}

static Herror apple_action(void **parameters)
{
  // Wait until the timer has fired to start processing.
  LockMutex(gStartMutex);
  UnlockMutex(gStartMutex);

  try
  {
    action();
  }
  catch (HException &exception)
  {
    fprintf(stderr,"  Error #%u in %s: %s\n", exception.ErrorCode(),
            (const char *)exception.ProcName(),
            (const char *)exception.ErrorMessage());
  }

  // Tell the main thread to terminate itself.
  LockMutex(gStartMutex);
  gTerminate = TRUE;
  UnlockMutex(gStartMutex);
  CFRunLoopStop(CFRunLoopGetMain());
  return H_MSG_OK;
}

static int apple_main(int argc, char *argv[])
{
  Herror                error;
  CFRunLoopTimerRef     Timer;
  CFRunLoopTimerContext TimerContext = { 0, 0, 0, 0, 0 };

  CreateMutex("type","sleep",&gStartMutex);
  LockMutex(gStartMutex);

  error = HpThreadHandleAlloc(&gActionThread);
  if (H_MSG_OK != error)
  {
    fprintf(stderr,"HpThreadHandleAlloc failed: %d\n", error);
    exit(1);
  }

  error = HpThreadCreate(gActionThread,0,apple_action);
  if (H_MSG_OK != error)
  {
    fprintf(stderr,"HpThreadCreate failed: %d\n", error);
    exit(1);
  }

  Timer = CFRunLoopTimerCreate(kCFAllocatorDefault,
                               CFAbsoluteTimeGetCurrent(),0,0,0,
                               timer_callback,&TimerContext);
  if (!Timer)
  {
    fprintf(stderr,"CFRunLoopTimerCreate failed\n");
    exit(1);
  }
  CFRunLoopAddTimer(CFRunLoopGetCurrent(),Timer,kCFRunLoopCommonModes);

  for (;;)
  {
    HBOOL terminate;

    CFRunLoopRun();

    LockMutex(gStartMutex);
    terminate = gTerminate;
    UnlockMutex(gStartMutex);

    if (terminate)
      break;
  }

  CFRunLoopRemoveTimer(CFRunLoopGetCurrent(),Timer,kCFRunLoopCommonModes);
  CFRelease(Timer);

  error = HpThreadHandleFree(gActionThread);
  if (H_MSG_OK != error)
  {
    fprintf(stderr,"HpThreadHandleFree failed: %d\n", error);
    exit(1);
  }

  ClearMutex(gStartMutex);
  return 0;
}
#endif

int main(int argc, char *argv[])
{
  int ret = 0;

  try
  {
#if defined(_WIN32)
    SetSystem("use_window_thread", "true");
#endif

    // file was stored with local-8-bit encoding
    //   -> set the interface encoding accordingly
    SetHcppInterfaceStringEncodingIsUtf8(false);

    // Default settings used in HDevelop (can be omitted)
    SetSystem("width", 512);
    SetSystem("height", 512);

#ifndef __APPLE__
    action();
#else
    ret = apple_main(argc,argv);
#endif
  }
  catch (HException &exception)
  {
    fprintf(stderr,"  Error #%u in %s: %s\n", exception.ErrorCode(),
            (const char *)exception.ProcName(),
            (const char *)exception.ErrorMessage());
    ret = 1;
  }
  return ret;
}

#endif

#endif
