MyBatis-02- notes

MyBatis core configuration file

MyBatis core configuration file

1 Introduction to core configuration files

The core configuration file contains the most core settings and attribute information of MyBatis. Such as database connection, transaction, connection pool information, etc.

As shown below, MyBatisConfig.xml (the file name can be customized but try to be as clear as possible):

<?xml version="1.0" encoding="UTF-8" ?>
<!--MyBatis的DTD约束-->
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<!--configuration 核心根标签-->
<configuration>

    <!--environments配置数据库环境,环境可以有多个。default属性指定使用的是哪个-->
    <environments default="mysql">
        <!--environment配置数据库环境  id属性唯一标识-->
        <environment id="mysql">
            <!-- transactionManager事务管理。  type属性,采用JDBC默认的事务-->
            <transactionManager type="JDBC"></transactionManager>
            <!-- dataSource数据源信息   type属性 POOLED代表连接池-->
            <dataSource type="POOLED">
                <!-- property获取数据库连接的配置信息 -->
                <property name="driver" value="com.mysql.jdbc.Driver" />
                <property name="url" value="jdbc:mysql:///db1" />
                <property name="username" value="root" />
                <property name="password" value="root" />
            </dataSource>
        </environment>
    </environments>

    <!-- mappers引入映射配置文件 -->
    <mappers>
        <!-- mapper 引入指定的映射配置文件   resource属性指定映射配置文件的名称 -->
        <mapper resource="StudentMapper.xml"/>
    </mappers>
</configuration>

2 Introduction of database connection configuration file

In the above core configuration file, the connection information of the database is written "dead". According to the development specification, the connection configuration information of the database is required to be extracted into a file separately. After extracting the database configuration information, it can be imported and used in the core configuration file.

Database connection configuration information file jdbc.properties

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://192.168.59.143:3306/db1
username=root
password=123

Use the properties tag to import external files in the core configuration file

<properties>:引入数据库连接配置文件标签
  • Property
    resource: database connection configuration file path
  • Get database connection parameters
    ${key name}

Specific use, the following MyBatis core configuration file MyBatisConfig.xml configuration

<?xml version="1.0" encoding="UTF-8" ?>
<!--MyBatis的DTD约束-->
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<!--configuration 核心根标签-->
<configuration>

    <!--引入数据库连接的配置文件-->
    <properties resource="jdbc.properties"/>

    <!--environments配置数据库环境,环境可以有多个。default属性指定使用的是哪个-->
    <environments default="mysql">
        <!--environment配置数据库环境  id属性唯一标识-->
        <environment id="mysql">
            <!-- transactionManager事务管理。  type属性,采用JDBC默认的事务-->
            <transactionManager type="JDBC"></transactionManager>
            <!-- dataSource数据源信息   type属性 连接池-->
            <dataSource type="POOLED">
                <!-- property获取数据库连接的配置信息 -->
                <property name="driver" value="${driver}" />
                <property name="url" value="${url}" />
                <property name="username" value="${username}" />
                <property name="password" value="${password}" />
            </dataSource>
        </environment>
    </environments>

    <!-- mappers引入映射配置文件 -->
    <mappers>
        <!-- mapper 引入指定的映射配置文件   resource属性指定映射配置文件的名称 -->
        <mapper resource="StudentMapper.xml"/>
    </mappers>
</configuration>

3 aliases

Note that the alias is defined in the core configuration file, and the defined alias is actually used in the mapping configuration file

<typeAliases>:为全类名起别名的父标签。
<typeAlias>:为全类名起别名的子标签。

Attributes

type: Specify the full class name

alias: specify alias

<package>:为指定包下所有类起别名的子标签。(别名就是类名)

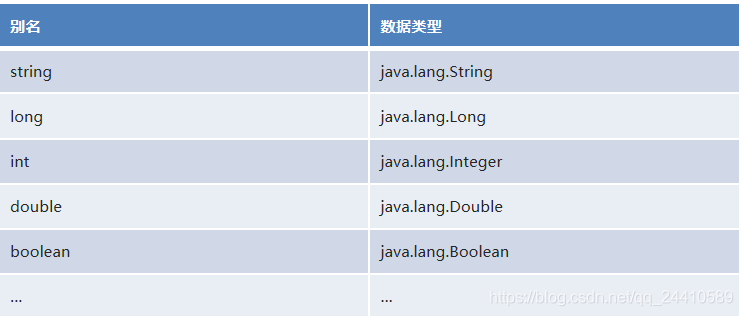

As shown in the figure below, the built-in alias can be used directly:

Insert picture description here

The specific configuration is as follows

    <!--起别名-->
    <typeAliases>
        <typeAlias type="com.itheima.bean.Student" alias="student"/>
        <!--<package name="com.itheima.bean"/>
        此处使用<package>标签就表明bean目录下定义的所有类 的别名都成了对应的类名
        com.itheima.bean.Student的别名是student
        com.itheima.bean.Teacher的别名是teacher
        ...
  	-->
    </typeAliase>

Case demo of alias

Core configuration file

<?xml version="1.0" encoding="UTF-8" ?>
<!--MyBatis的DTD约束-->
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<!--configuration 核心根标签-->
<configuration>

    <!--引入数据库连接的配置文件-->
    <properties resource="jdbc.properties"/>

    <!--起别名-->
    <typeAliases>
        <typeAlias type="com.itheima.bean.Student" alias="student"/>
        <!--<package name="com.itheima.bean"/>-->
    </typeAliases>

    <!--environments配置数据库环境,环境可以有多个。default属性指定使用的是哪个-->
    <environments default="mysql">
        <!--environment配置数据库环境  id属性唯一标识-->
        <environment id="mysql">
            <!-- transactionManager事务管理。  type属性,采用JDBC默认的事务-->
            <transactionManager type="JDBC"></transactionManager>
            <!-- dataSource数据源信息   type属性 连接池-->
            <dataSource type="POOLED">
                <!-- property获取数据库连接的配置信息 -->
                <property name="driver" value="${driver}" />
                <property name="url" value="${url}" />
                <property name="username" value="${username}" />
                <property name="password" value="${password}" />
            </dataSource>
        </environment>
    </environments>

    <!-- mappers引入映射配置文件 -->
    <mappers>
        <!-- mapper 引入指定的映射配置文件   resource属性指定映射配置文件的名称 -->
        <mapper resource="StudentMapper.xml"/>
    </mappers>
</configuration>

Mapping profile

<?xml version="1.0" encoding="UTF-8" ?>
<!--MyBatis的DTD约束-->
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!--
    mapper:核心根标签
    namespace属性:名称空间
-->
<mapper namespace="StudentMapper">
    <!--
        select:查询功能的标签
        id属性:唯一标识
        resultType属性:指定结果映射对象类型
        parameterType属性:指定参数映射对象类型
    -->
    <select id="selectAll" resultType="student">
        SELECT * FROM student
    </select>
    <select id="selectById" resultType="student" parameterType="int">
        SELECT * FROM student WHERE id = #{id}
    </select>
</mapper>

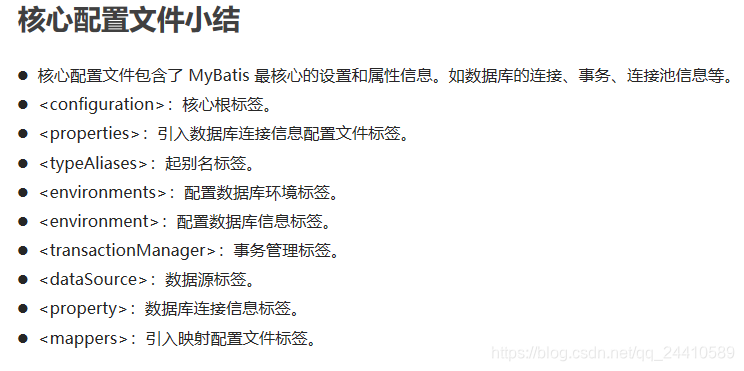

4 Summary of core configuration files

Insert picture description here
