Source code compilation and installation of web services LNMP and Discz community forum

Web service source code compile and install LNMP

1. LNMP related concepts

  • LNMP is: Nginx+MySQL+PHP this kind of website server architecture under Linux system.
  • Compared with LAMP, the difference is the web server program-Nginx (LNMP) and Apache (LAMP)
  • Nginx is a high-performance HTTP and reverse proxy server, as well as an IMAP/POP3/SMTP proxy server.
Comparison itemNginxApache
Configuration fileconcisecomplex
Use of resourcesNginx saves resources more than ApacheTake up more resources
Suitable for website statusStaticDynamic interaction

Generally speaking, for web services that require performance, use nginx.
If you don’t need performance and just want stability, consider apache

Two, install Nginx service

#关防火墙
systemctl stop firewalld
systemctl disable firewalld
setenforce 0

1. Install dependent packages

传安装包 tar zxvf nginx-1.12.0.tar.gz  到 opt 目录下
#nginx的配置及运行需要pcre、zlib等软件包的支持,因此需要安装这些安装的开发包,以便提供相应的库和头文件。
yum -y install pcre-devel zlib-devel gcc gcc-c++ make

2. Create a running user

  • The Nginx service program runs as nobody by default. It is recommended to create a special user account for it to control its access permissions more accurately
useradd -M -s /sbin/nologin nginx

3. Compile and install

cd /opt/
tar zxvf nginx-1.12.2.tar.gz

cd nginx-1.12.2/
./configure \
 --prefix=/usr/local/nginx \
 --user=nginx \
 --group=nginx \
 --with-http_stub_status_module

#-----配置命令解释
--prefix=/usr/local/nginx      #指定nginx的安装路径
--user=nginx                       #指定用户名
--group=nginx                     #指定组名
--with-http_stub_status_module #启用 http_stub_status_module 模块以支持状态统计
#-----

make && make install

4. Path optimization

#将应用程序nginx中可执行的命令做个软链接到环境路径变量中,让系统识别nginx的操作命令
ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/

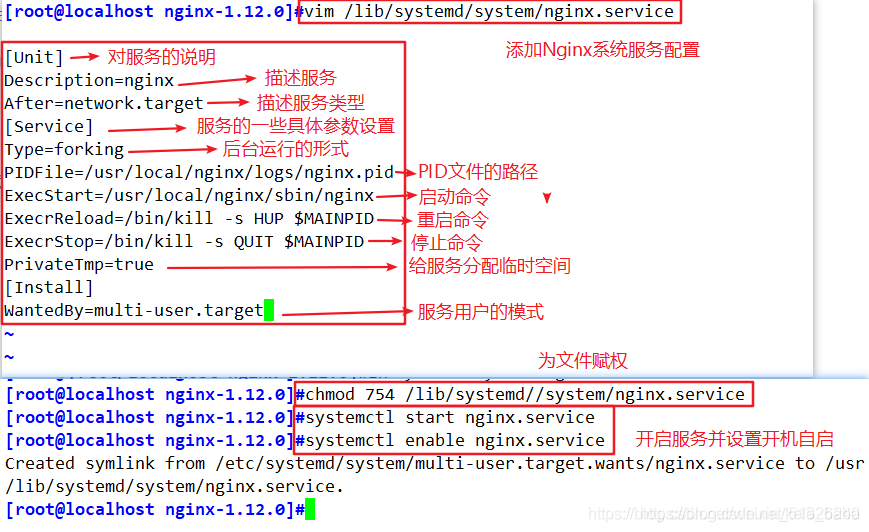

5. Add Nginx system service

vim /lib/systemd/system/nginx.service

[Unit]
Description=nginx
After=network.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecrReload=/bin/kill -s HUP $MAINPID
ExecrStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target
chmod 754 /lib/systemd//system/nginx.service
systemctl start nginx.service
systemctl enable nginx.service
Insert picture description here

Three, install MySQL service

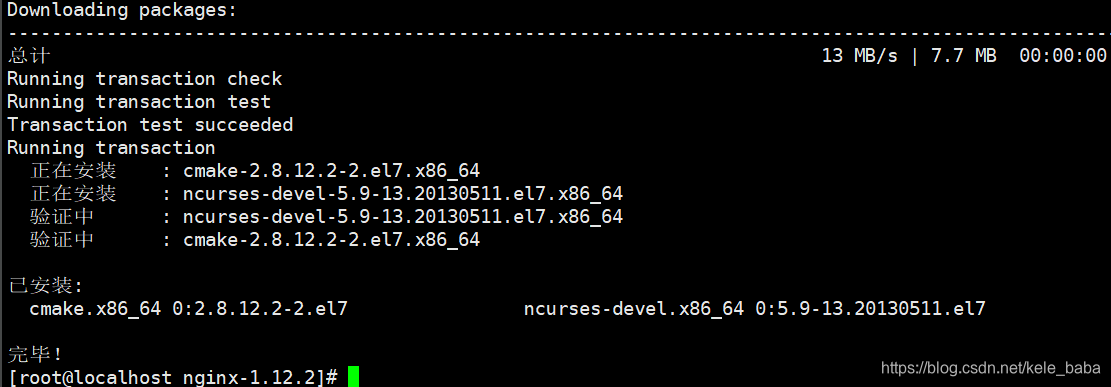

1. Install the Mysql environment dependency package

yum -y install  \
ncurses \
ncurses-devel \
bison \
cmake
#--------环境包解释------------
ncurses				#字符终端下图形互动功能的动态库
ncurses-devel 		#ncurses开发包
bison 				#语法分析器
cmake				#mysql需要用cmake编译安装
Insert picture description here

2. Create a running user

useradd -M -s /sbin/nologin  mysql

3. Compile and install

cd /opt
tar zxvf mysql-boost-5.7.20.tar.gz

cd /opt/mysql-5.7.20/
cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8  \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_EXTRA_CHARSETS=all \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \
-DWITH_SYSTEMD=1

make && make install

注意:如果在CMAKE的过程中有报错,当报错解决后,需要把源码目录中的CMakeCache.txt文件删除,然后再重新CMAKE,否则错误依旧

-DCMAKE_INSTALL_PREFIX=/usr/local/mysql     	#指定mysql的安装路径
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock   #指定mysql进程监听套接字文件(数据库连接文件)的存储路径
-DSYSCONFDIR=/etc                               #指定配置文件的存储路径
-DSYSTEMD_PID_DIR=/usr/local/mysql              #指定进程文件的存储路径
-DDEFAULT_CHARSET=utf8                          #指定默认使用的字符集编码,如 utf8
-DDEFAULT_COLLATION=utf8_general_ci  			#指定默认使用的字符集校对规则
-DWITH_EXTRA_CHARSETS=all 						#指定支持其他字符集编码
-DWITH_INNOBASE_STORAGE_ENGINE=1               #安装INNOBASE存储引擎
-DWITH_ARCHIVE_STORAGE_ENGINE=1                #安装ARCHIVE存储引擎
-DWITH_BLACKHOLE_STORAGE_ENGINE=1              #安装BLACKHOLE存储引擎
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1            #安装FEDERATED存储引擎
-DMYSQL_DATADIR=/usr/local/mysql/data         #指定数据库文件的存储路径
-DWITH_BOOST=boost           #指定boost的路径,若使用mysql和boost集成包安装则-DWITH_BOOST=/usr/local/boost
-DWITH_SYSTEMD=1								#生成便于systemctl管理的文件

存储引擎选项:
#MYISAM,MERGE,MEMORY,和CSV引擎是默认编译到服务器中,并不需要明确地安装。
#静态编译一个存储引擎到服务器,使用-DWITH_engine_STORAGE_ENGINE= 1
#可用的存储引擎值有:ARCHIVE, BLACKHOLE, EXAMPLE, FEDERATED, INNOBASE (InnoDB), PARTITION (partitioning support), 和PERFSCHEMA (Performance Schema)
#常用的两个存储引擎是:MYISAM和INNOBASE(InnoDB).

4. Modify the mysql configuration file

#删除原配置项,再重新添加下面内容
vim /etc/my.cnf
[client]
port = 3306
socket=/usr/local/mysql/mysql.sock

[mysqld]
user = mysql
basedir=/usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character-set-server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket=/usr/local/mysql/mysql.sock
bind-address = 0.0.0.0
skip-name-resolve
max_connections=2048
default-storage-engine=INNODB
max_allowed_packet=16M
server-id = 1

sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

--------------------------------------------解释说明------------------------------------------------------
#客户端设置
[client]
port = 3306
socket=/usr/local/mysql/mysql.sock

#服务全局设置
[mysqld]
#设置管理用户
user = mysql
#指定数据库的安装目录
basedir=/usr/local/mysql
#指定数据库文件的存储路径
datadir=/usr/local/mysql/data
#指定端口
port = 3306
#设置服务器字符集编码格式为utf8
character-set-server=utf8
#指定pid 进程文件路径
pid-file = /usr/local/mysql/mysqld.pid
#指定数据库连接文件
socket=/usr/local/mysql/mysql.sock
#设置监听地址,0.0.0.0代表允许所有,如允许多个IP需空格隔开
bind-address = 0.0.0.0
#禁用DNS解析
skip-name-resolve
#设置mysql的最大连接数
max_connections=2048
#指定默认存储引擎
default-storage-engine=INNODB
#设置数据库接收的数据包大小的最大值
max_allowed_packet=16M
#指定服务ID号
server-id = 1
sql_mode常用值如下:
NO_ENGINE_SUBSTITUTION
如果需要的存储引擎被禁用或未编译,那么抛出错误。不设置此值时,用默认的存储引擎替代,并抛出一个异常

STRICT_TRANS_TABLES
在该模式下,如果一个值不能插入到一个事务表中,则中断当前的操作,对非事务表不做限制

NO_AUTO_CREATE_USER
禁止GRANT创建密码为空的用户

NO_AUTO_VALUE_ON_ZERO
mysql中的自增长列可以从0开始。默认情况下自增长列是从1开始的,如果你插入值为0的数据会报错

NO_ZERO_IN_DATE
不允许日期和月份为零

NO_ZERO_DATE
mysql数据库不允许插入零日期,插入零日期会抛出错误而不是警告

ERROR_FOR_DIVISION_BY_ZERO
在INSERT或UPDATE过程中,如果数据被零除,则产生错误而非警告。默认情况下数据被零除时MySQL返回NULL

PIPES_AS_CONCAT
将"||"视为字符串的连接操作符而非或运算符,这和Oracle数据库是一样的,也和字符串的拼接函数Concat相类似

ANSI_QUOTES
启用ANSI_QUOTES后,不能用双引号来引用字符串,因为它被解释为识别符

5. Change the owner group of the mysql installation directory and configuration file

chown -R mysql:mysql /usr/local/mysql/
chown mysql:mysql /etc/my.cnf

6. Set the path environment variable

echo "export PATH=$PATH:/usr/local/mysql/bin:/usr/local/mysql/lib">> /etc/profile
source /etc/profile

7. Initialize the database

cd /usr/local/mysql/bin/
./mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data

8. Add mysqld system service

cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/
systemctl daemon-reload
systemctl start mysqld.service
systemctl enable mysqld
netstat -anpt | grep 3306

9. Modify the mysql login password

mysqladmin -u root -p password "123456"

Fourth, install and configure the PHP parsing environment

1. The installation environment depends on the package

yum -y install \
gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel

2. Compile and install

cd /opt
tar jxvf php-7.1.10.tar.bz2
cd /opt/php-7.1.10/

./configure \
--prefix=/usr/local/php \
--with-mysql-sock=/usr/local/mysql/mysql.sock \
--with-mysqli \
--with-zlib \
--with-curl \
--with-gd \
--with-jpeg-dir \
--with-png-dir \
--with-freetype-dir \
--with-openssl \
--enable-fpm \
--enable-mbstring \
--enable-xml \
--enable-session \
--enable-ftp \
--enable-pdo \
--enable-tokenizer \
--enable-zip

make && make install

相关解释:
--prefix=/usr/local/php 				#指定将 PHP 程序的安装路径
--with-mysql-sock=/usr/local/mysql/mysql.sock  #指定mysql 数据库连接文件的存储路径
--with-mysqli   #添加 MySQL 扩展支持 #mysqli扩展技术不仅可以调用MySQL的存储过程、处理MySQL事务,而且还可以使访问数据库工作变得更加稳定
--with-zlib     #支持zlib功能,提供数据压缩
--with-curl     #开启curl扩展功能,实现HTTP的Get下载和Post请求的方法
--with-gd       #激活gd 库的支持
--with-jpeg-dir #激活jpeg 的支持
--with-png-dir  #激活png 的支持
--with-freetype-dir
--with-openssl
--enable-fpm
--enable-mbstring  #启用多字节字符串功能,以便支持中文等代码
--enable-xml       #开启扩展性标记语言模块
--enable-session   #会话
--enable-ftp       #文本传输协议
--enable-pdo       #函数库
--enable-tokenizer #令牌解释器
--enable-zip       #ZIP压缩格式

3. Path optimization

ln -s /usr/local/php/bin/* /usr/local/bin/

4. Adjust the PHP configuration file

  • php has three configuration files
  • Main configuration file------php.ini
  • Process service configuration file------php-fpm.conf
  • Extended configuration file------www.conf

(1) Adjust the main configuration file

cp /opt/php-7.1.10/php.ini-development /usr/local/php/lib/php.ini
vim /usr/local/php/lib/php.ini
#939行;取消注释,修改
date.timezone = Asia/Shanghai
#1170行;修改
mysqli.default_socket = /usr/local/mysql/mysql.sock

php -m

(2) Adjust the process service configuration file

cd /usr/local/php/etc/
cp php-fpm.conf.default php-fpm.conf
vim php-fpm.conf
#17行;去掉注释符“;”
pid = run/php-fpm.pid

(3) Adjust the extended configuration file

cd /usr/local/php/etc/php-fpm.d/
cp www.conf.default www.conf

5. Start php-fpm

#PHP-FPM(FastCGI Process Manager:FastCGI进程管理器),是一个PHPFastCGI管理器,由于Nginx服务器不能处理动态页面,需要把Nginx把动态请求交给php-fpm进程继续解析。
/usr/local/php/sbin/php-fpm  -c /usr/local/php/lib/php.ini
netstat -anpt | grep 9000

6. Configure Nginx to support PHP parsing

vim /usr/local/nginx/conf/nginx.conf
        #65行;取消注释并修改
        location ~ \.php$ {
            root           html;
            fastcgi_pass   127.0.0.1:9000;
            fastcgi_index  index.php;
            #将/scripts修改成nginx的工作目录
            fastcgi_param  SCRIPT_FILENAME  /usr/local/nginx/html$fastcgi_script_name;
            include        fastcgi_params;
        }

systemctl restart nginx.service

7. Test access page

vim /usr/local/nginx/html/index.php
<?php
phpinfo();
?>

#使用浏览器访问
http://192.168.118.14/index.php

8. Verify the database

mysql -u root -p
#创建一个数据库
CREATE DATABASE bbs;
#把bbs数据库里面所有表的权限授予给bbsuser,并设置密码123456
GRANT all ON bbs.* TO 'bbsuser'@'%' IDENTIFIED BY '123456';
#刷新数据库
flush privileges;
#查看有哪些数据库
show databases;

vim /usr/local/nginx/html/index.php
<?php
$link=mysqli_connect('192.168.163.10','bbsuser','123456');
if($link)
echo "<h1>Success!!</h1>";
else
echo "Fail!";
?>

5. Deploy the Discz community forum web application

1. Unzip the forum compressed package

cd /opt
unzip /opt/Discuz_X3.4_SC_UTF8.zip -d /opt/dis
#上传站点更新包
cd /opt/dis/dir_SC_UTF8/
cp -r upload/ /usr/local/nginx/html/bbs

2. Change the owner of the forum directory

cd /usr/local/nginx/html/bbs
chown -R root:nginx ./config/
chown -R root:nginx ./data/
chown -R root:nginx ./uc_client/
chown -R root:nginx ./uc_server/

chmod -R 777 ./config/
chmod -R 777 ./data/
chmod -R 777 ./uc_client/
chmod -R 777 ./uc_server/

3. Browser access verification

Visit the forum page
http://192.168.118.14/bbs/install/index.php

#Fill in database information
Database server: localhost ###Use localhost for local setup. How to fill in the IP address and port number instead of on this machine
Database name: bbs
database username: bbsuser
database password: 123456
administrator account: admin
admin password: admin123
# end


#Forum internal page http://192.168.118.14/bbs/index.php #Forum
background administrator page
http://192.168.118.14/bbs/admin.php
