Teach you to use TensorFlow2 to identify verification codes

@Author:Runsen

The verification code is to generate a picture based on random characters, and then add interfering pixels to the picture. The user must fill in it manually to prevent people from using robots to automatically register in batches, irrigate, and send spam ads.

Data set source: https://www.kaggle.com/fournierp/captcha-version-2-images

The picture is a 5-letter word and can contain numbers. Noise (blur and a line) is applied to these images. They are 200 x 50 PNG. Our task is to try to model the optical character recognition algorithm.

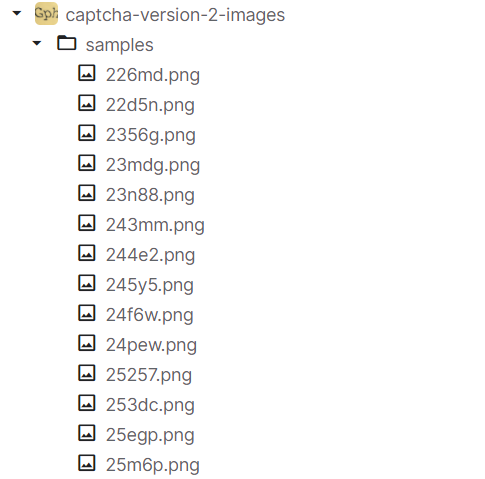

For the verification code png image that exists in the data set, the corresponding label is the name of the image.

import os
import numpy as np
import pandas as pd
import cv2
import matplotlib.pyplot as plt
import seaborn as sns
# imgaug 图片数据增强
import imgaug.augmenters as iaa
import tensorflow as tf
# Conv2D MaxPooling2D Dropout Flatten Dense BN  GAP
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Dropout, Flatten, Dense, Layer, BatchNormalization, GlobalAveragePooling2D
from tensorflow.keras.optimizers import Adam
from tensorflow.keras import Model, Input
from tensorflow.keras.callbacks import EarlyStopping, ReduceLROnPlateau
# 图片处理器
from tensorflow.keras.preprocessing.image import ImageDataGenerator
import plotly.express as px
import plotly.graph_objects as go
import plotly.offline as pyo
pyo.init_notebook_mode()

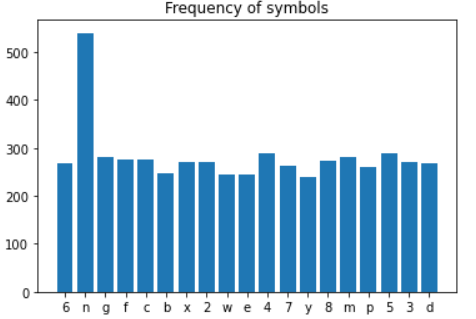

Perform a simple analysis on the data, and count the approximate symbols that appear in the image.

# 数据路径
DIR = '../input/captcha-version-2-images/samples/samples'
# 存储验证码的标签
captcha_list = []
characters = {}
for captcha in os.listdir(DIR):
    captcha_list.append(captcha)
    # 每张验证码的captcha_code
    captcha_code = captcha.split(".")[0]
    for i in captcha_code:
        # 遍历captcha_code
        characters[i] = characters.get(i, 0) +1
symbols = list(characters.keys())
len_symbols = len(symbols)
print(f'图像中只使用了{len_symbols}符号')

plt.bar(*zip(*characters.items()))
plt.title('Frequency of symbols')
plt.show()

How to extract the image data to establish X, y? ?

# 如何提取图像 建立 model  X 的shape  1070 * 50 * 200 * 1
# y的shape 5 * 1070 * 19

for i, captcha in enumerate(captcha_list):
    captcha_code = captcha.split('.')[0]
    # cv2.IMREAD_GRAYSCALE 灰度图
    captcha_cv2 = cv2.imread(os.path.join(DIR, captcha),cv2.IMREAD_GRAYSCALE)
    # 缩放
    captcha_cv2 = captcha_cv2 / 255.0
    # print(captcha_cv2.shape) (50, 200)
    # 将captcha_cv2的(50, 200) 切换成(50, 200, 1)
    captcha_cv2 = np.reshape(captcha_cv2, img_shape)
    # (5,19)
    targs = np.zeros((len_captcha, len_symbols))

    for a, b in enumerate(captcha_code):
        targs[a, symbols.index(b)] = 1
    X[i] = captcha_cv2
    y[:, i] = targs

print("shape of X:", X.shape)
print("shape of y:", y.shape)

The output is as follows

print("shape of X:", X.shape)
print("shape of y:", y.shape)

Randomly select data through random in Numpy, divide training set and test set

# 生成随机数
from numpy.random import default_rng

rng = default_rng(seed=1)
test_numbers = rng.choice(1070, size=int(1070*0.3), replace=False)
X_test = X[test_numbers]
X_full = np.delete(X, test_numbers,0)
y_test = y[:,test_numbers]
y_full = np.delete(y, test_numbers,1)

val_numbers = rng.choice(int(1070*0.7), size=int(1070*0.3), replace=False)

X_val = X_full[val_numbers]
X_train = np.delete(X_full, val_numbers,0)
y_val = y_full[:,val_numbers]
y_train = np.delete(y_full, val_numbers,1)

In this captcha data, the phenomenon of over-fitting is prone to occur. You may think of adding more new data, adding regular items, etc., but data enhancement methods are used here, especially for machine vision tasks, data enhancement techniques especially important.

Commonly used data enhancement operations: imgauglibraries. imgaug is a python library that provides various image enhancement operations https://github.com/aleju/imgaug.

imgaug contains almost all mainstream data enhancement image processing operations, and the enhancement methods are detailed in github

# Sequential(C, R)	 尺寸增加了5倍,
# 选取一系列子增强器C作用于每张图片的位置,第二个参数表示是否对每个batch的图片应用不同顺序的Augmenter list     # rotate=(-8, 8)  旋转
# iaa.CropAndPad  截取(crop)或者填充(pad),填充时,被填充区域为黑色。
# px: 想要crop(negative values)的或者pad(positive values)的像素点。
# (top, right, bottom, left)
# 当pad_mode=constant的时候选择填充的值
aug =iaa.Sequential([iaa.CropAndPad(
    px=((0, 10), (0, 35), (0, 10), (0, 35)),
    pad_mode=['edge'],
    pad_cval=1
),iaa.Rotate(rotate=(-8,8))])

X_aug_train = None
y_aug_train = y_train
for i in range(40):
    X_aug = aug(images = X_train)
    if X_aug_train is not None:
        X_aug_train = np.concatenate([X_aug_train, X_aug], axis = 0)
        y_aug_train = np.concatenate([y_aug_train, y_train], axis = 1)
    else:
        X_aug_train = X_aug

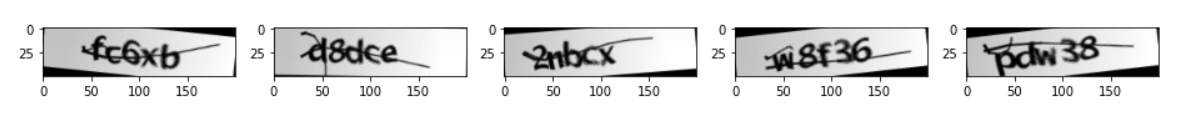

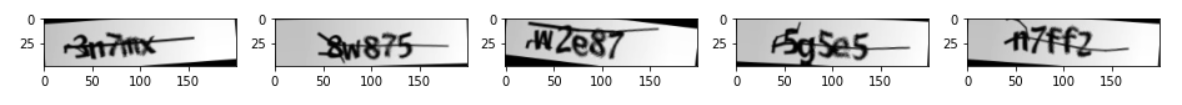

Let's take a look at some data-enhanced training images.

fig, ax = plt.subplots(nrows=2, ncols =5, figsize = (16,16))
for i in range(10):
    index = np.random.randint(X_aug_train.shape[0])
    ax[i//5][i%5].imshow(X_aug_train[index],cmap='gray')


This time we use functional API to create models. Functional API is another way to create models. It has more flexibility, including creating more complex models.

Need to define inputsandoutputs

#函数式API模型创建
captcha = Input(shape=(50,200,channels))
x = Conv2D(32, (5,5),padding='valid',activation='relu')(captcha)
x = MaxPooling2D((2,2),padding='same')(x)
x = Conv2D(64, (3,3),padding='same',activation='relu')(x)
x = MaxPooling2D((2,2),padding='same')(x)
x = Conv2D(128, (3,3),padding='same',activation='relu')(x)
maxpool = MaxPooling2D((2,2),padding='same')(x)
outputs = []
for i in range(5):
    x = Conv2D(256, (3,3),padding='same',activation='relu')(maxpool)
    x = MaxPooling2D((2,2),padding='same')(x)
    x = Flatten()(x)
    x = Dropout(0.5)(x)
    x = BatchNormalization()(x)
    x = Dense(64, activation='relu')(x)
    x = Dropout(0.5)(x)
    x = BatchNormalization()(x)
    x = Dense(len_symbols , activation='softmax' , name=f'char_{i+1}')(x)
    outputs.append(x)

model = Model(inputs = captcha , outputs=outputs)
# ReduceLROnPlateau更新学习率
reduce_lr = ReduceLROnPlateau(patience =3, factor = 0.5,verbose = 1)
model.compile(loss='categorical_crossentropy', optimizer=Adam(learning_rate=0.0005), metrics=["accuracy"])
# EarlyStopping用于提前停止训练的callbacks。具体地,可以达到当训练集上的loss不在减小
earlystopping = EarlyStopping(monitor ="val_loss",
                             mode ="min", patience = 10,
                              min_delta = 1e-4,
                             restore_best_weights = True)

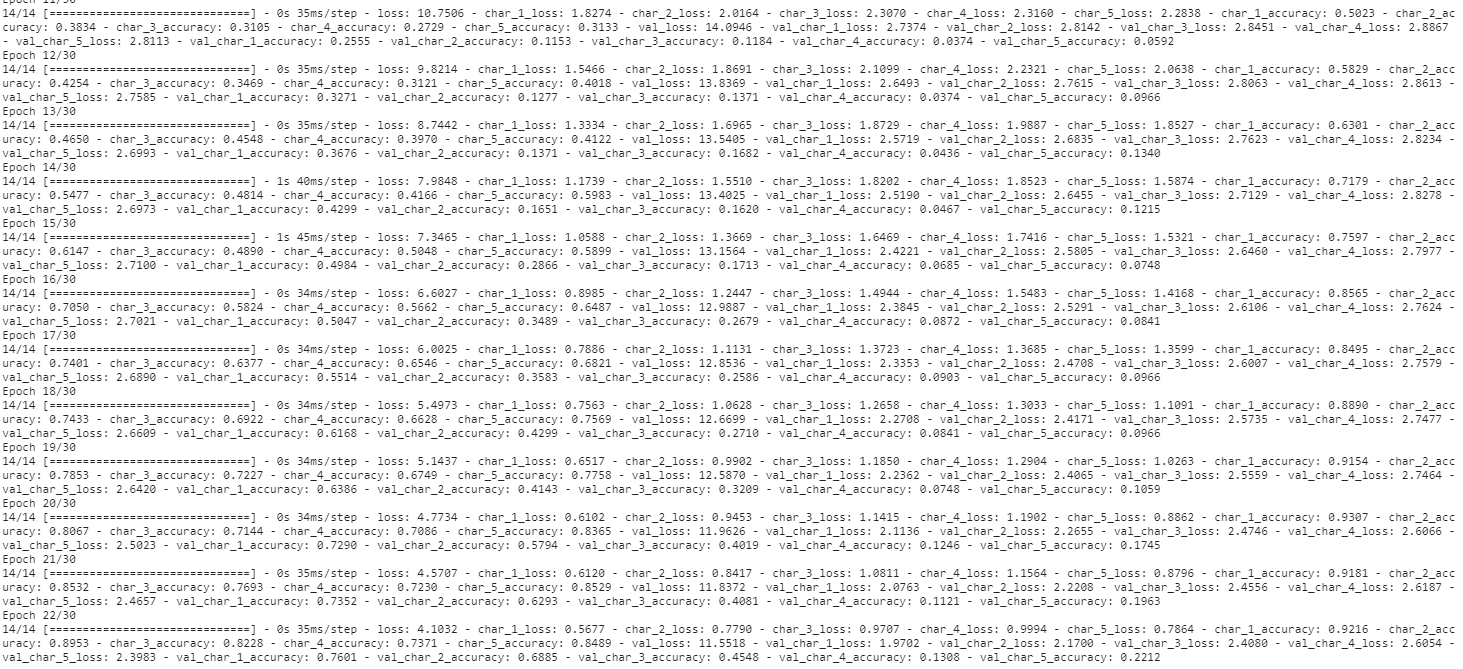

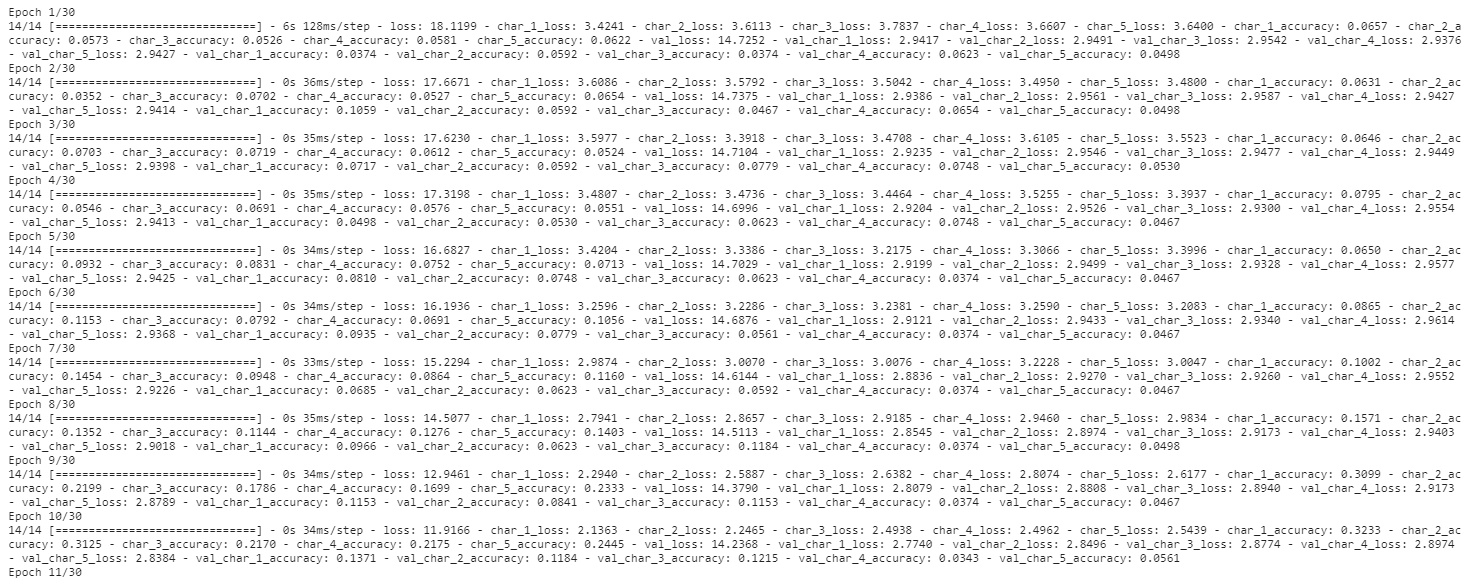

history = model.fit(X_train, [y_train[i] for i in range(5)], batch_size=32, epochs=30, verbose=1, validation_data = (X_val, [y_val[i] for i in range(5)]), callbacks =[earlystopping,reduce_lr])
Insert picture description here


Insert picture description here


Insert picture description here

Let's test and evaluate the model.

score = model.evaluate(X_test,[y_test[0], y_test[1], y_test[2], y_test[3], y_test[4]],verbose=1)
metrics = ['loss','char_1_loss', 'char_2_loss', 'char_3_loss', 'char_4_loss', 'char_5_loss', 'char_1_acc', 'char_2_acc', 'char_3_acc', 'char_4_acc', 'char_5_acc']

for i,j in zip(metrics, score):
    print(f'{i}: {j}')

The specific output is as follows:

11/11 [==============================] - 0s 11ms/step - loss: 0.7246 - char_1_loss: 0.0682 - char_2_loss: 0.1066 - char_3_loss: 0.2730 - char_4_loss: 0.2636 - char_5_loss: 0.0132 - char_1_accuracy: 0.9844 - char_2_accuracy: 0.9657 - char_3_accuracy: 0.9408 - char_4_accuracy: 0.9626 - char_5_accuracy: 0.9938
loss: 0.7246273756027222
char_1_loss: 0.06818050146102905
char_2_loss: 0.10664034634828568
char_3_loss: 0.27299806475639343
char_4_loss: 0.26359987258911133
char_5_loss: 0.013208594173192978
char_1_acc: 0.9844236969947815
char_2_acc: 0.9657320976257324
char_3_acc: 0.940809965133667
char_4_acc: 0.9626168012619019
char_5_acc: 0.9937694668769836

The exact value of letter 1 to letter 5 is greater than

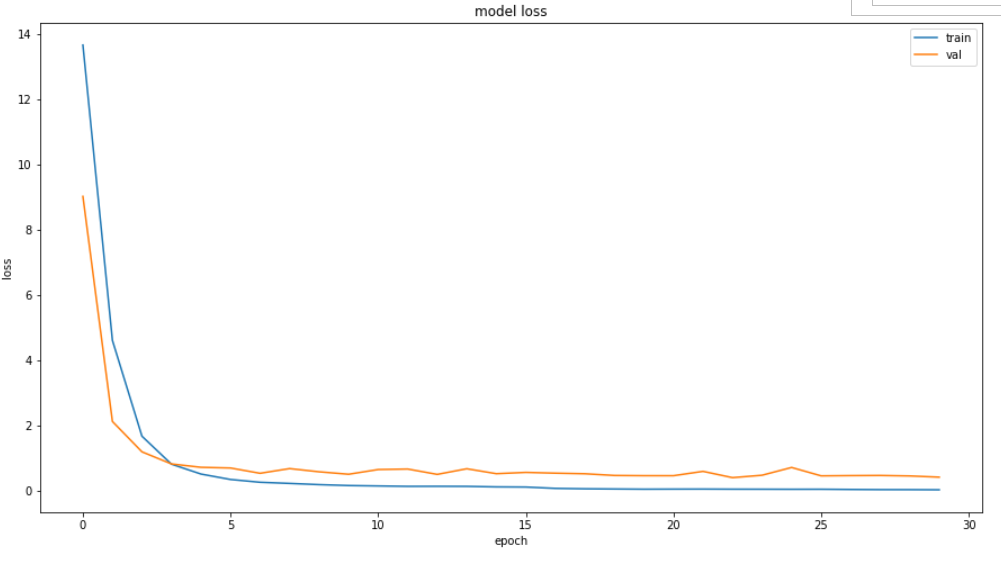

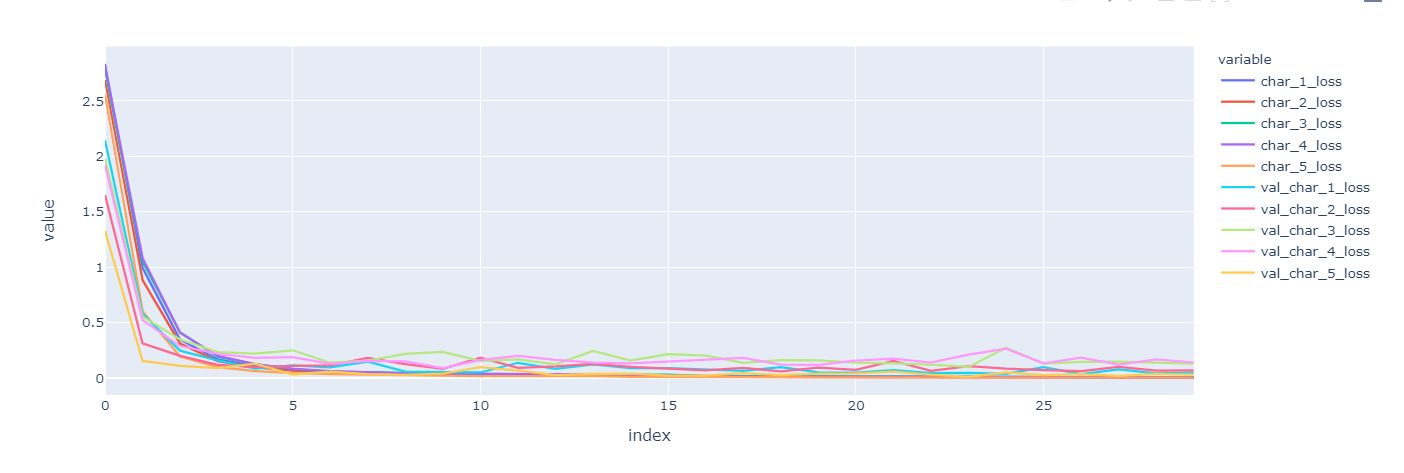

Draw loss and score

metrics_df = pd.DataFrame(history.history)

columns = [col for col in metrics_df.columns if 'loss' in col and len(col)>8]

fig = px.line(metrics_df, y = columns)
fig.show()
plt.figure(figsize=(15,8))
plt.plot(history.history['loss'])
plt.plot(history.history['val_loss'])
plt.title('model loss')
plt.ylabel('loss')
plt.xlabel('epoch')
plt.legend(['train', 'val'], loc='upper right',prop={'size': 10})
plt.show()
# 预测数据
def predict(captcha):
    captcha = np.reshape(captcha , (1, 50,200,channels))
    result = model.predict(captcha)
    result = np.reshape(result ,(5,len_symbols))
    # 取出最大预测中的输出
    label = ''.join([symbols[np.argmax(i)] for i in result])
    return label

predict(X_test[2])
# 25277

Forecast all the data below

actual_pred = []

for i in range(X_test.shape[0]):
    actual = ''.join([symbols[i] for i in (np.argmax(y_test[:, i],axis=1))])
    pred =  predict(X_test[i])
    actual_pred.append((actual, pred))
print(actal_pred[:10])

The output is as follows:

[('n4b4m', 'n4b4m'), ('42nxy', '42nxy'), ('25257', '25277'), ('cewnm', 'cewnm'), ('w46ep', 'w46ep'), ('cdcb3', 'edcb3'), ('8gf7n', '8gf7n'), ('nny5e', 'nny5e'), ('gm2c2', 'gm2c2'), ('g7fmc', 'g7fmc')]
sameCount = 0
diffCount = 0
letterDiff = {i:0 for i in range(5)}
incorrectness = {i:0 for i in range(1,6)}
for real, pred in actual_pred:
    # 预测和输出相同
    if real == pred:
        sameCount += 1
    else:
        # 失败
        diffCount += 1
        # 遍历
        incorrectnessPoint = 0
        for i in range(5):
            if real[i] != pred[i]:
                letterDiff[i] += 1
                incorrectnessPoint += 1
        incorrectness[incorrectnessPoint] += 1

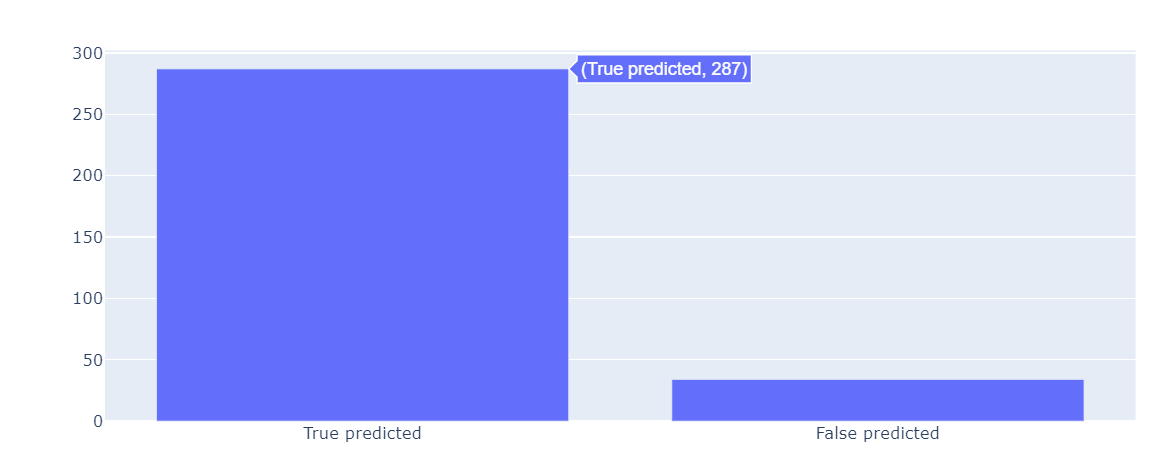

x = ['True predicted', 'False predicted']
y = [sameCount, diffCount]

fig = go.Figure(data=[go.Bar(x = x, y = y)])
fig.show()

In the predicted data, a total of 287 data predicted correct.

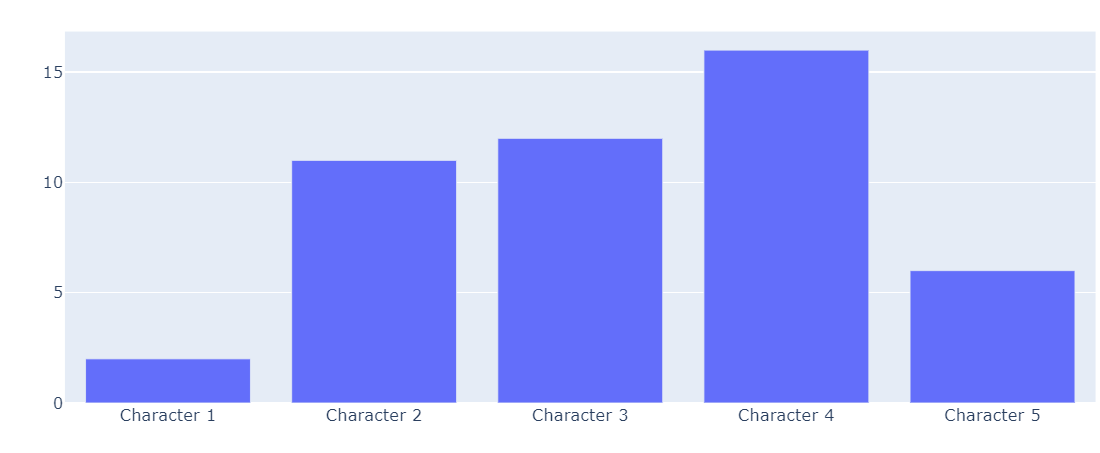

Here, we can see which index is the error.

x1 = ["Character " + str(x) for x in range(1, 6)]

fig = go.Figure(data=[go.Bar(x = x1, y = list(letterDiff.values()))])
fig.show()

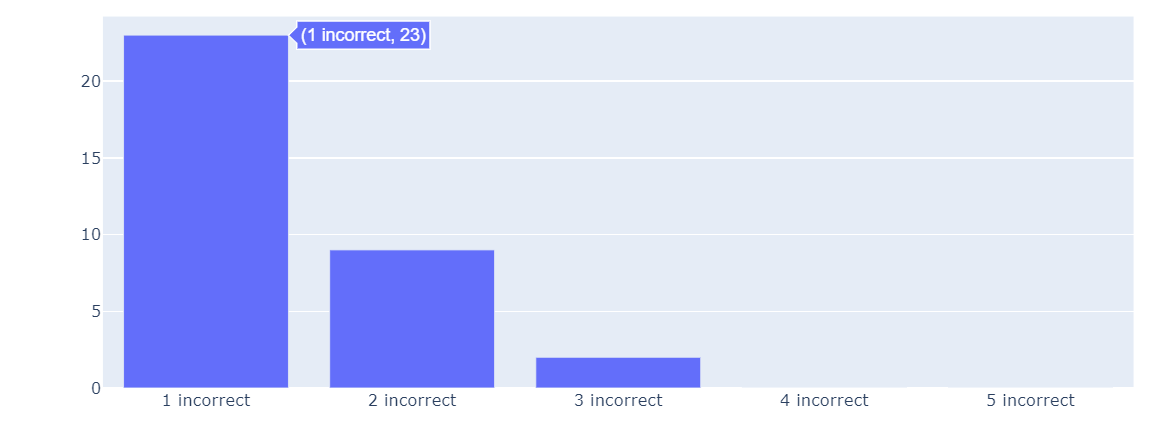

In order to count the number of errors for each word, draw the relevant bar graph.

x2 = [str(x) + " incorrect" for x in incorrectness.keys()]
y2 = list(incorrectness.values())

fig = go.Figure(data=[go.Bar(x = x2, y = y2)])
fig.show()

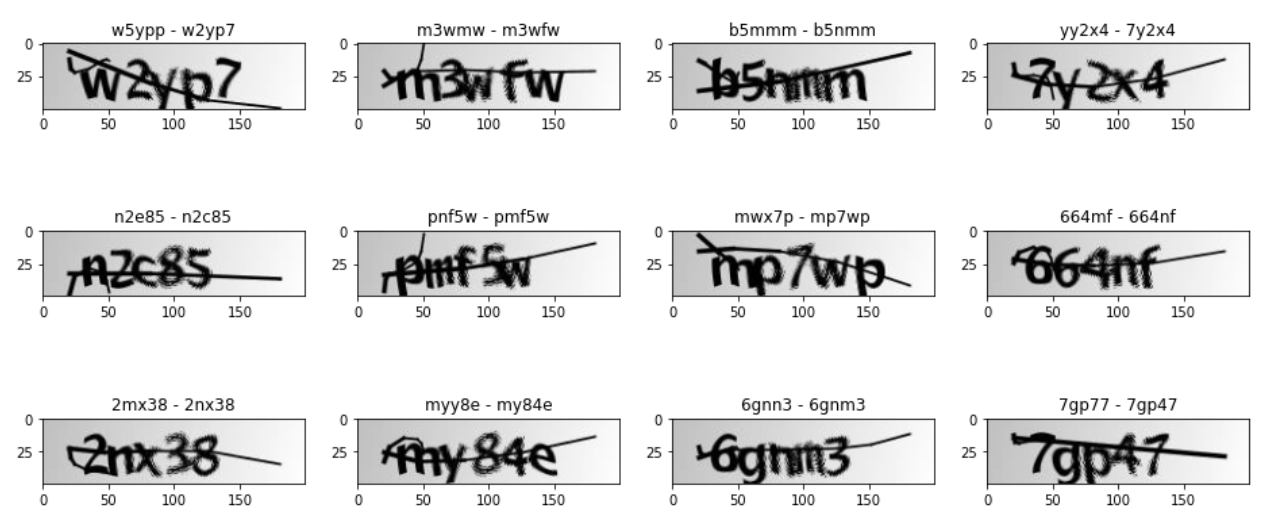

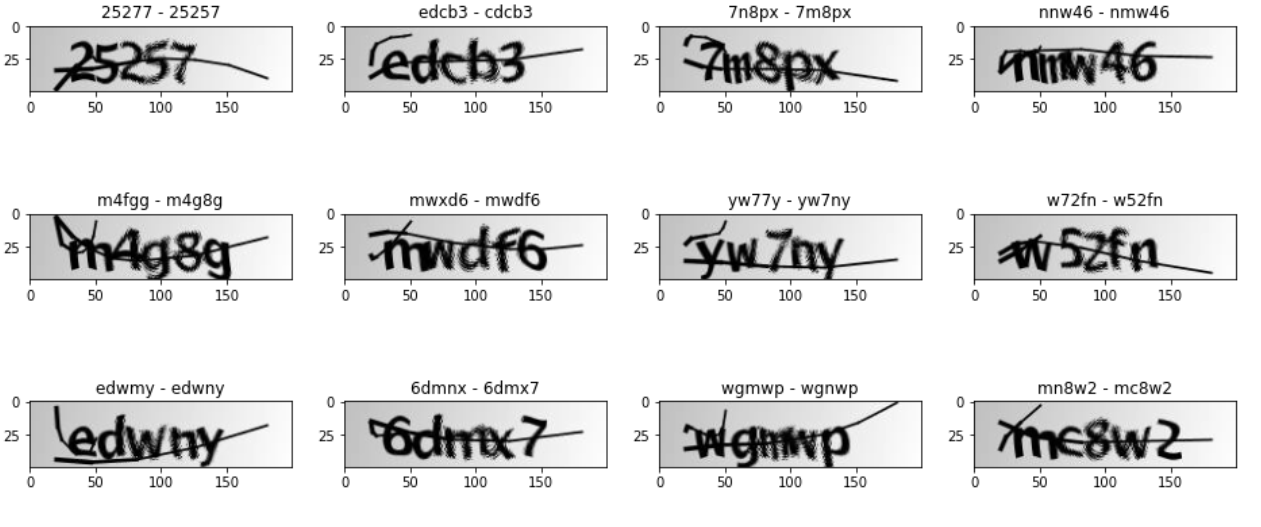

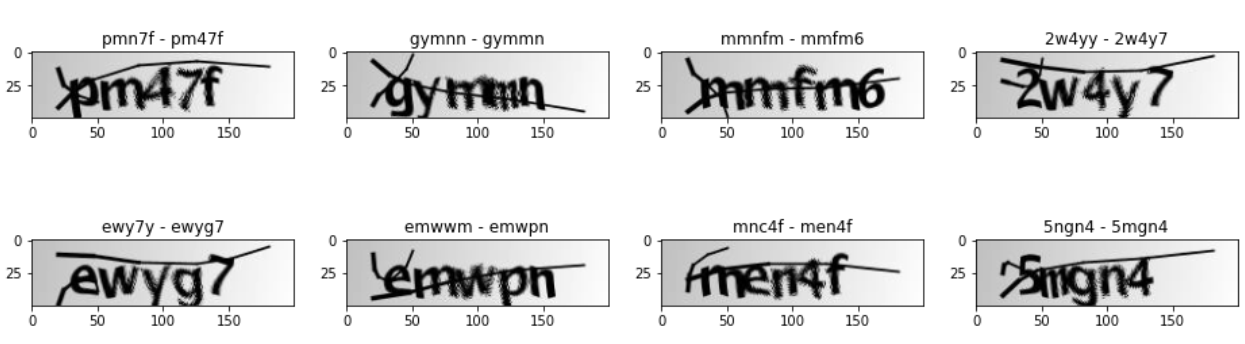

The following draws the wrong verification code image, and the standard difference between correct and wrong.

fig, ax = plt.subplots(nrows = 8, ncols=4,figsize = (16,20))
count = 0
for i, (actual , pred) in enumerate(actual_pred):
    if actual != pred:
        img = X_test[i]
        try:
            ax[count//4][count%4].imshow(img, cmap = 'gray')
            ax[count//4][count%4].title.set_text(pred + ' - ' + actual)
            count += 1
        except:
            pass
