Use nginx for lnmp deployment

lnmp deployment

Install Nginx service

systemctl stop firewalld
systemctl disable firewalld
setenforce 0
Insert picture description here

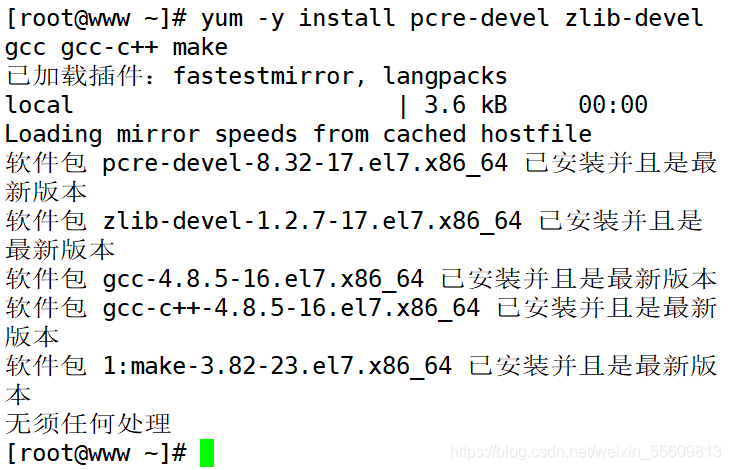

Install dependencies

yum -y install pcre-devel zlib-devel gcc gcc-c++ make
Insert picture description here

Create a running user

useradd -M -s /sbin/nologin nginx
Insert picture description here

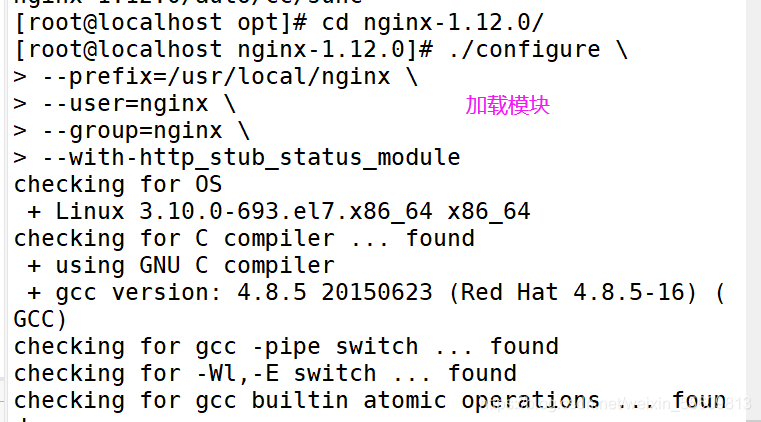

Compile and install

cd /opt
tar zxvf nginx-1.12.0.tar.gz -C /opt/
cd nginx-1.12.0/

./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-http_stub_status_module

make && make install
Insert picture description here


Insert picture description here

Optimal path

ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/
Insert picture description here

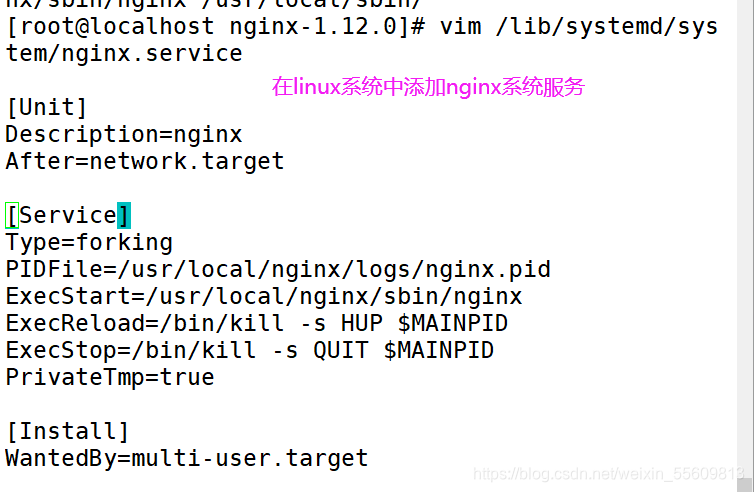

Add Nginx system service

vim /lib/systemd/system/nginx.service

[Unit]
Description=nginx
After=network.target

[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true

[Install]
WantedBy=multi-user.target

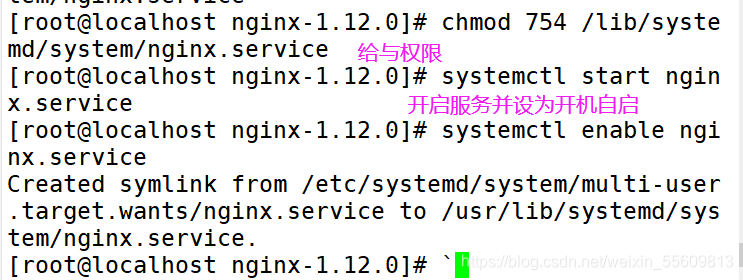

chmod 754 /lib/systemd/system/nginx.service
systemctl start nginx.service
systemctl enable nginx.service
Insert picture description here


Insert picture description here

Install MySQL service

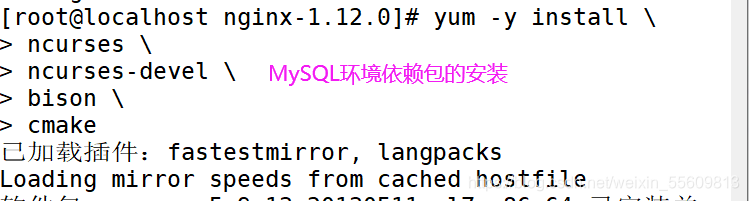

Install Mysql environment dependency package

yum -y install \
ncurses \
ncurses-devel \
bison \
cmake
Insert picture description here

Create a running user

useradd -M -s /sbin/nologin  mysql
Insert picture description here

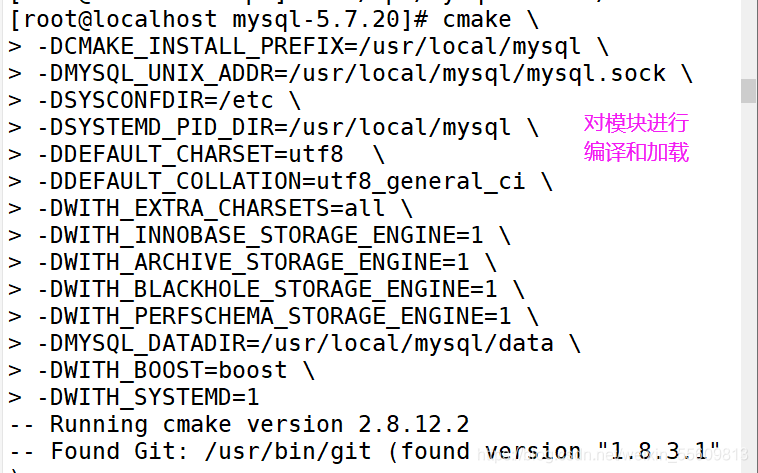

Compile and install

cd /opt
tar zxvf mysql-boost-5.7.20.tar.gz
cd /opt/mysql-5.7.20/

cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8  \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_EXTRA_CHARSETS=all \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \
-DWITH_SYSTEMD=1

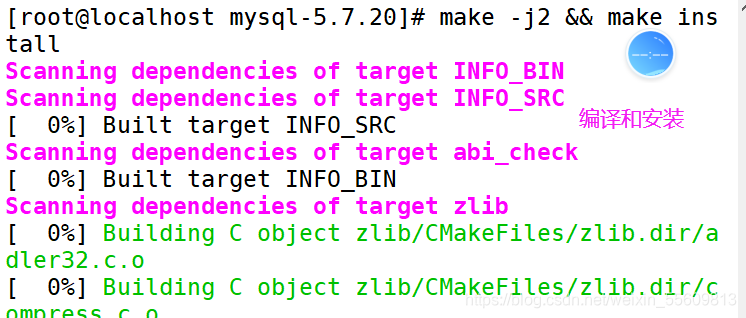

make  -j2 && make install
Insert picture description here


Insert picture description here

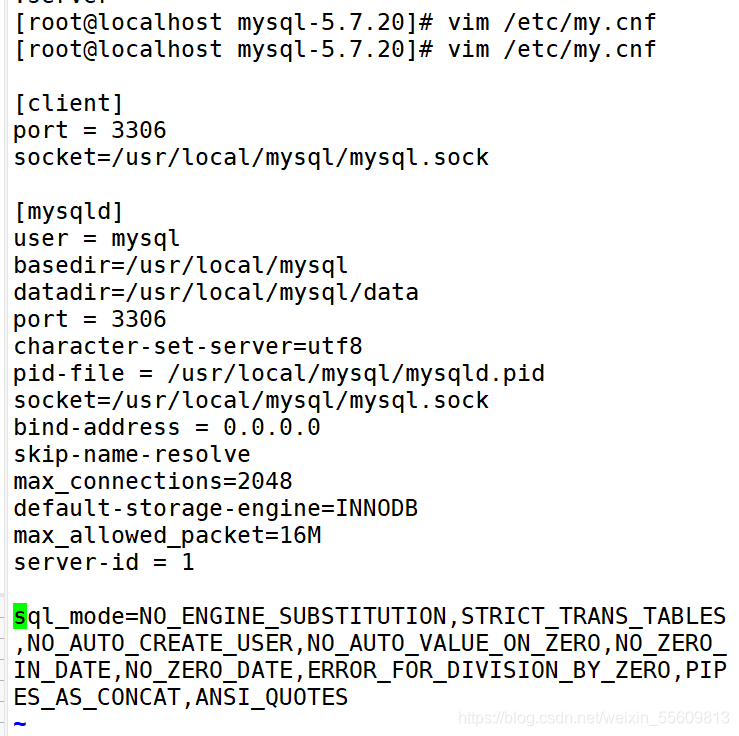

Modify the mysql configuration file

vim /etc/my.cnf
[client]
port = 3306
socket=/usr/local/mysql/mysql.sock

[mysqld]
user = mysql
basedir=/usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character-set-server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket=/usr/local/mysql/mysql.sock
bind-address = 0.0.0.0
skip-name-resolve
max_connections=2048
default-storage-engine=INNODB
max_allowed_packet=16M
server-id = 1

sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

Change the owner group of the mysql installation directory and configuration file

chown -R mysql:mysql /usr/local/mysql/
chown mysql:mysql /etc/my.cnf
Insert picture description here

Set the path environment variable

echo 'export PATH=/usr/local/mysql/bin:/usr/local/mysql/lib:$PATH' >> /etc/profile
source /etc/profile
Insert picture description here

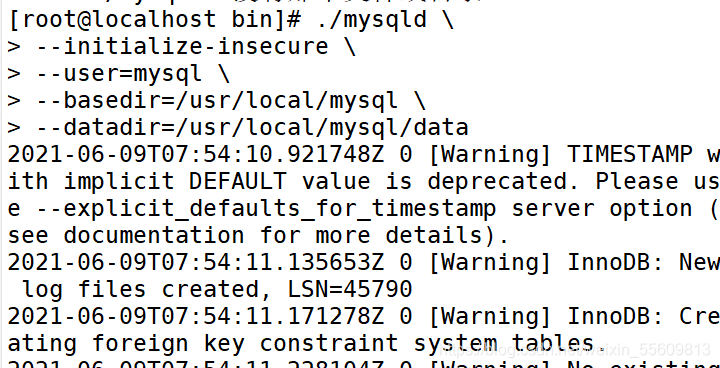

Initialize the database

cd /usr/local/mysql/bin/
./mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data
Insert picture description here

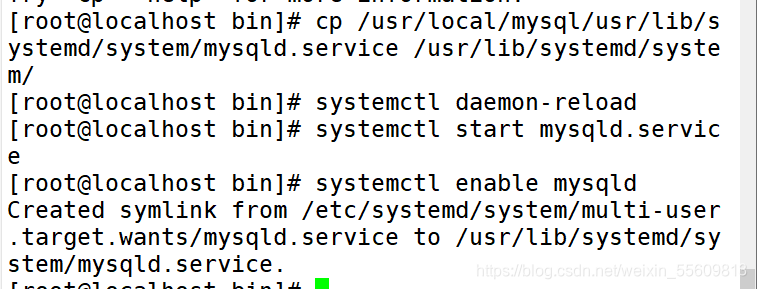

Add mysqld system service

cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/
systemctl daemon-reload
systemctl start mysqld.service
systemctl enable mysqld
Insert picture description here

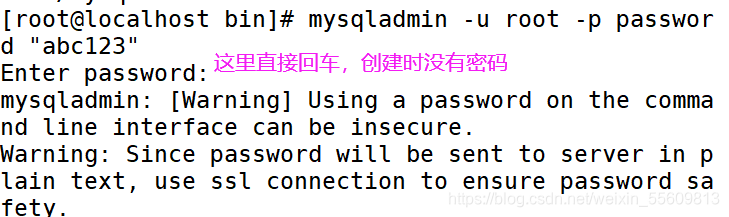

Modify the login password of mysql

mysqladmin -u root -p password "abc123"
Insert picture description here

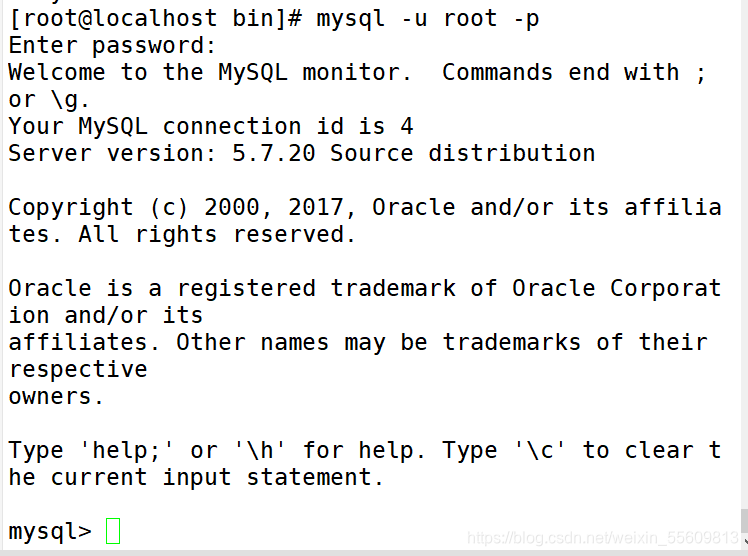

Authorize remote login

mysql -u root -p
Insert picture description here

Install and configure PHP parsing environment

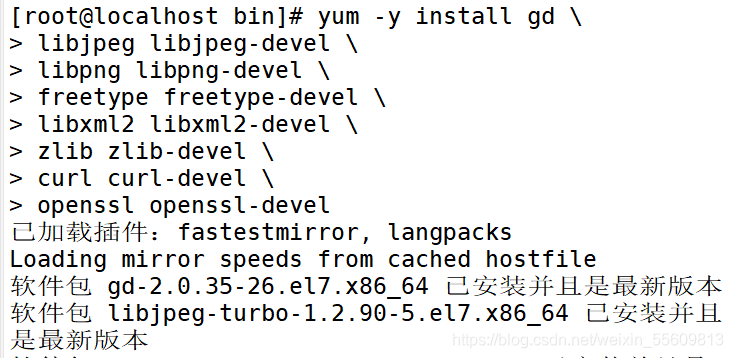

Installation environment dependent packages

yum -y install gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel
Insert picture description here

Compile and install

cd /opt
tar jxvf php-7.1.10.tar.bz2

cd php-7.1.10

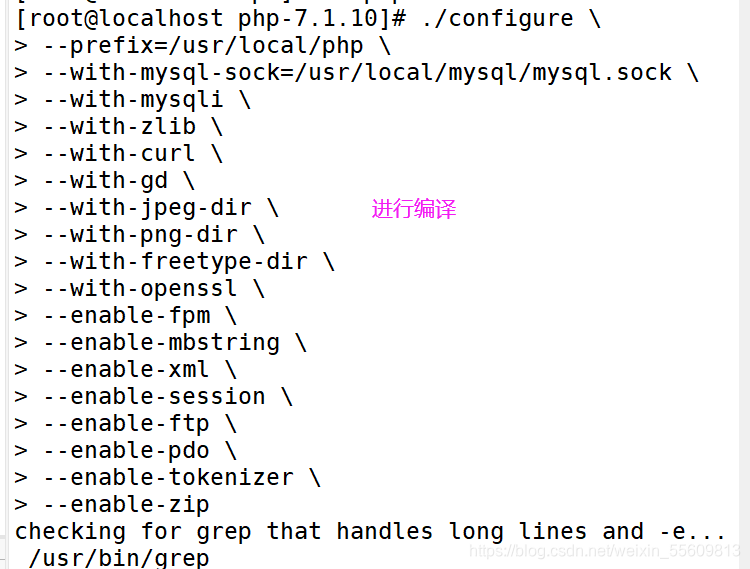

./configure \
--prefix=/usr/local/php \
--with-mysql-sock=/usr/local/mysql/mysql.sock \
--with-mysqli \
--with-zlib \
--with-curl \
--with-gd \
--with-jpeg-dir \
--with-png-dir \
--with-freetype-dir \
--with-openssl \
--enable-fpm \
--enable-mbstring \
--enable-xml \
--enable-session \
--enable-ftp \
--enable-pdo \
--enable-tokenizer \
--enable-zip

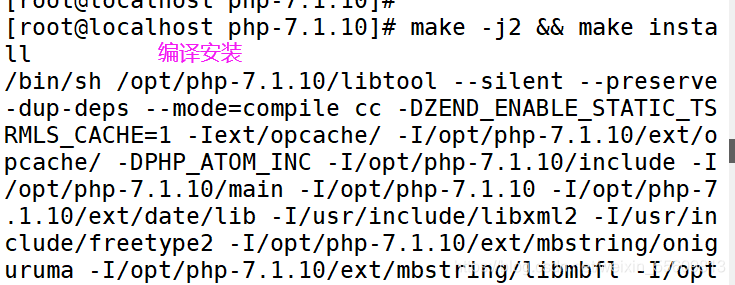

make -j2 && make install
Insert picture description here


Insert picture description here

Path optimization

ln -s /usr/local/php/bin/* /usr/local/bin/
ln -s /usr/local/php/sbin/* /usr/local/sbin/
Insert picture description here

Adjust the PHP configuration file

php configuration fileDescription
php.iniMain configuration file
php-fpm.confProcess Service Configuration File
www.confExtended configuration file

#Adjust the main configuration file:

cp /opt/php-7.1.10/php.ini-development /usr/local/php/lib/php.ini

vim /usr/local/php/lib/php.ini
--1170行--修改
mysqli.default_socket = /usr/local/mysql/mysql.sock
--939行--取消注释,修改
date.timezone = Asia/Shanghai
php -m      #验证安装的模块

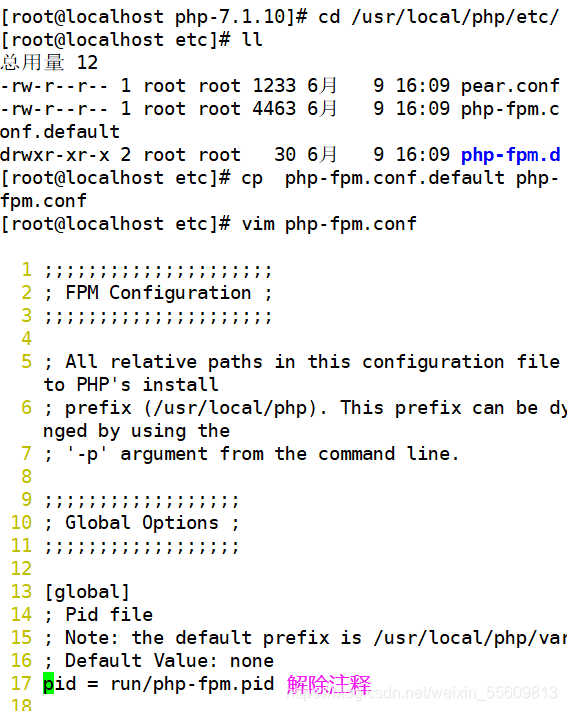

#调整进程服务配置文件:
cd /usr/local/php/etc/
cp  php-fpm.conf.default php-fpm.conf
vim php-fpm.conf
--17行--去掉";"注释
pid = run/php-fpm.pid

#调整扩展配置文件:
cd /usr/local/php/etc/php-fpm.d/
cp www.conf.default www.conf
Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here

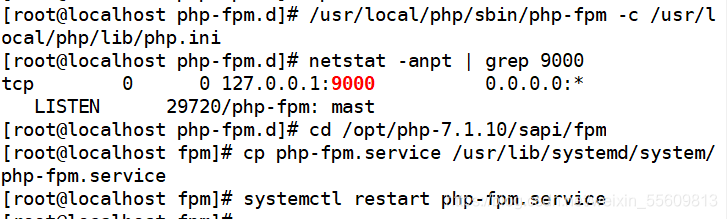

Start php-fpm

/usr/local/php/sbin/php-fpm -c /usr/local/php/lib/php.ini
netstat -anpt | grep 9000

#PHP-FPM(FastCGI Process Manager:FastCGI 进程管理器)是一个 PHPFastCGI 管理器, 由于Nginx服务器不能处理动态页面,需要由 Nginx 把动态请求交给 php-fpm 进程进行解析。

cd /opt/php-7.1.10/sapi/fpm
cp php-fpm.service /usr/lib/systemd/system/php-fpm.service
systemctl restart php-fpm.service
Insert picture description here

Configure Nginx to support PHP parsing

vim /usr/local/nginx/conf/nginx.conf
--65行--取消注释,修改
location ~ \.php$ {
 root           html;
 fastcgi_pass   127.0.0.1:9000;
 fastcgi_index  index.php;
 fastcgi_param  SCRIPT_FILENAME /usr/local/nginx/html$fastcgi_script_name; #将 /scripts 修改为nginx的工作目录
 include        fastcgi_params;
}

systemctl restart nginx.service
Insert picture description here

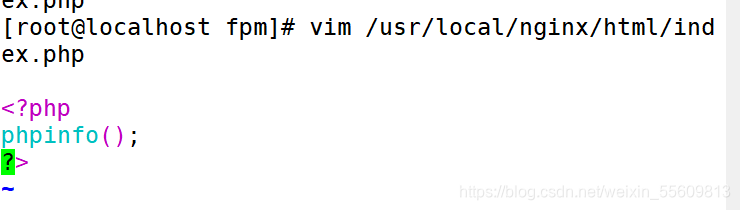

Verify PHP test page

vim /usr/local/nginx/html/index.php
<?php
phpinfo();
?>
浏览器访问
http://192.168.154.17/index.php
Insert picture description here


Insert picture description here

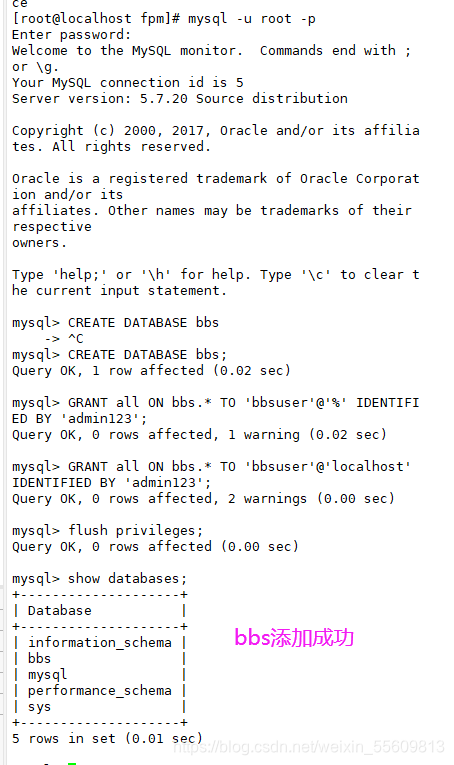

Verify that the database is working properly

mysql -u root -p
CREATE DATABASE bbs;

GRANT all ON bbs.* TO 'bbsuser'@'%' IDENTIFIED BY 'admin123';
GRANT all ON bbs.* TO 'bbsuser'@'localhost' IDENTIFIED BY 'admin123';

flush privileges;
show databases;

vim /usr/local/nginx/html/index.php        #替换原来的测试页内容
<?php
$link=mysqli_connect('192.168.154.17','bbsuser','admin123');
if($link) echo "<h1>Success!!</h1>";
else echo "Fail!!";
?>

Browser visit
http://192.168.154.17/index.php

Insert picture description here


Insert picture description here


Insert picture description here

Deploy Discuz! Community Forum Web Application

cd /opt
unzip Discuz_X3.4_SC_UTF8.zip  -d /opt/dis
cd /opt/dis/dir_SC_UTF8/
cp -r upload/ /usr/local/nginx/html/bbs/

Adjust the permissions of the forum directory

cd /usr/local/nginx/html/bbs/
chown -R nginx ./config/
chown -R nginx ./data/
chown -R nginx ./uc_client/
chown -R nginx ./uc_server/
或
chmod -R 777 ./config/
chmod -R 777 ./data/
chmod -R 777 ./uc_client/
chmod -R 777 ./uc_server/

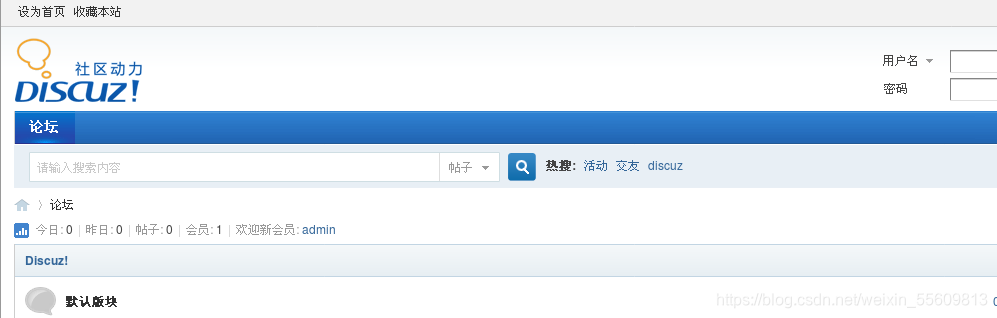

Visit the forum page
http://192.168.154.17/bbs/install/index.php

Insert picture description here
Insert picture description here
