Web service------Installation of LAMP architecture (Apache, Mysql, PHP, forum installation details)

table of Contents

Preface

The installation package is attached at the end of the installation package required in the article, see the end for details

1. LAMP overview

1.LAMP architecture

LAMP architecture is one of the current mature enterprise website application modes." It refers to a set of systems and related software that work together to provide dynamic website services and application development environments.
LAMP is an acronym that specifically includes Linux operating system , Apache web server, MySQL database server, PHP (or Perl, Python) web programming language.

2. The main function of LAMP components

(Platform)Linux: As the basis of the LAMP architecture, it provides an operating system to support the Web site, which can provide better stability and compatibility with the other three components (AMP components also support Windows, UNIX and other platforms).
(Foreground) Apache: As the front end of the LAMP architecture, it is a powerful and stable web server program. The server directly provides users with website access, sending web pages, pictures and other file content.
(Background) MySQL: As the back end of the LAMP architecture, it is a popular open source relational database system. In applications such as corporate websites and business systems, various account information, product information, customer information, business data, etc. can be stored in the MySQL database, and other programs can query and change this information through SQL statements.
(Intermediate connection) PHP/Perl/Python: As three programming languages ​​for developing dynamic webpages, it is responsible for interpreting dynamic webpage files, communicating with web servers and database systems to work together, and providing a development and operating environment for web applications. Among them, PHP is a widely used open source multi-purpose scripting language, which can be embedded in HTML, and is especially suitable for Web application development.
When building the LAMP platform, the order of installation of each component is Linux, Apache, MySQL, PHP. Among them, there is no strict order for the installation of Apache and MySQL. The installation of the PHP environment is generally placed at the end, responsible for communicating with the Web server and database system to work together.

2. Apache httpd service compilation and installation

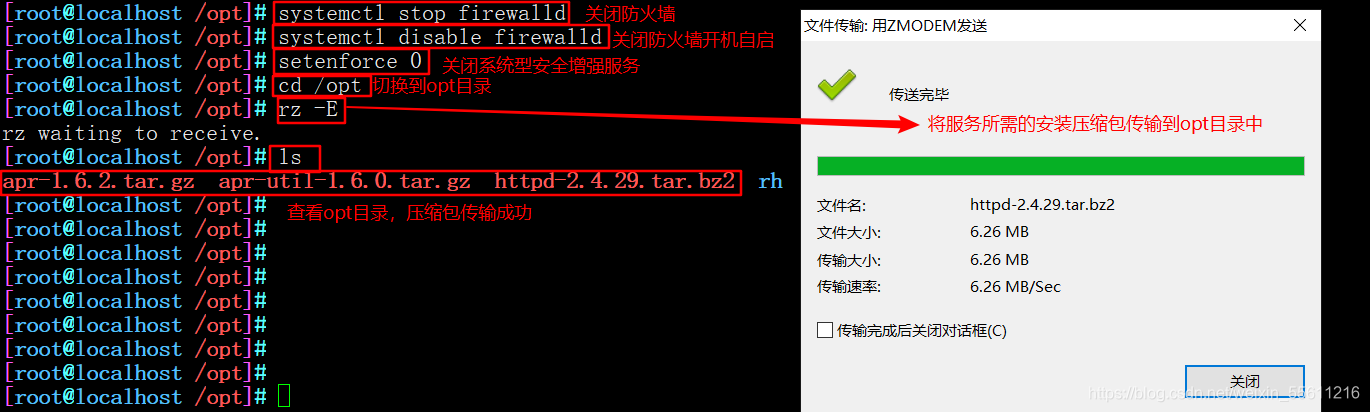

1. Turn off the firewall

systemctl stop firewalld
systemctl disable firewalld
setenforce 0

将安装Apache所需软件包传到/opt目录下
httpd-2.4.29.tar.gz
apr-1.6.2.tar.gz
apr-util-1.6.0.tar.gz
#apr组件包用于支持Apache上层应用跨平台,提供底层接口库,能有效的降低并发连接数、降低进程和减少访问堵塞。
Insert picture description here

2. Installation environment dependent packages

yum -y install \
gcc									#C语言的编译器
gcc-c++ \							#C++的编译器
make \								#源代码编译器( 源代码转换成二进制文件)
pcre \								#pcre是一-个Perl函数库,包括perl兼容的正则表达式库
pcre-devel \						#per1的接口开发包.
expat-devel \						#用于支持网站解析HTML、XML文 件
perl								#perl语言编译器

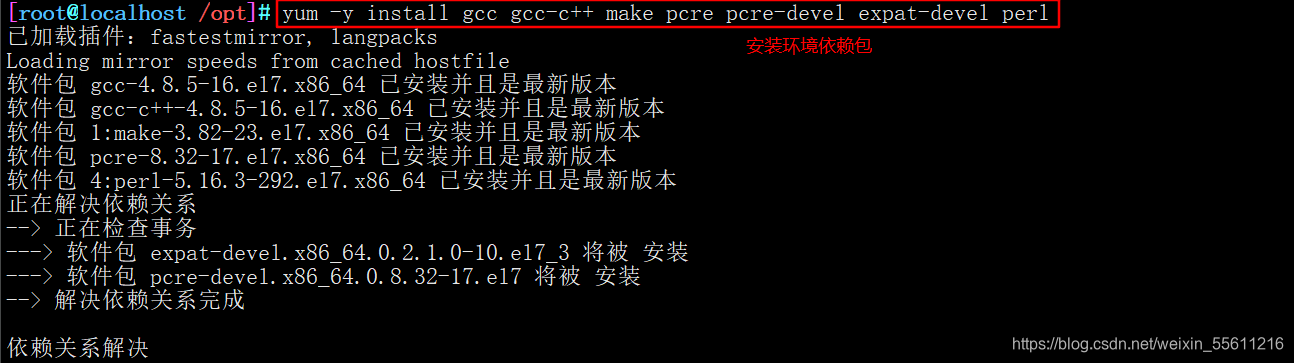

yum -y install gcc gcc-c++ make pcre pcre-devel expat-devel perl
Insert picture description here

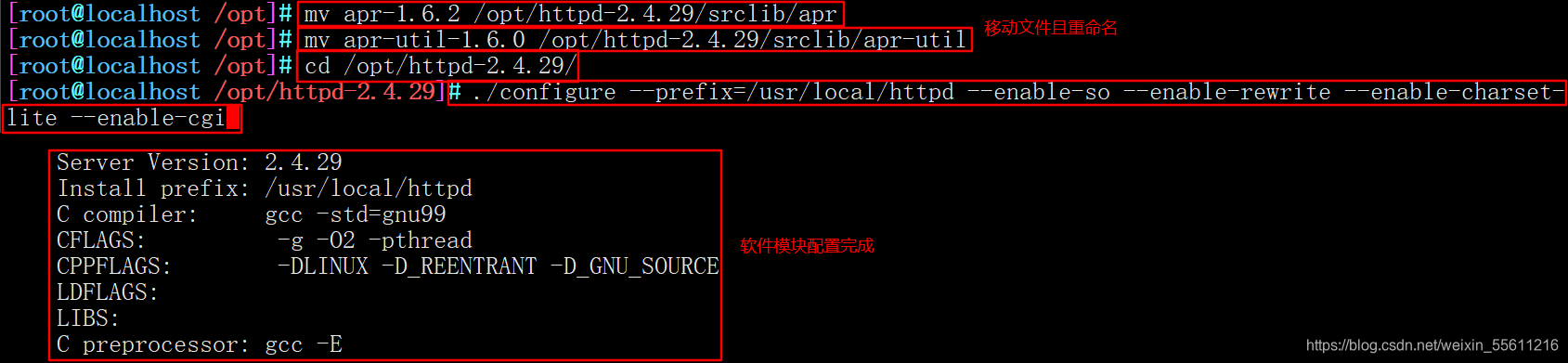

3. Configure the software module

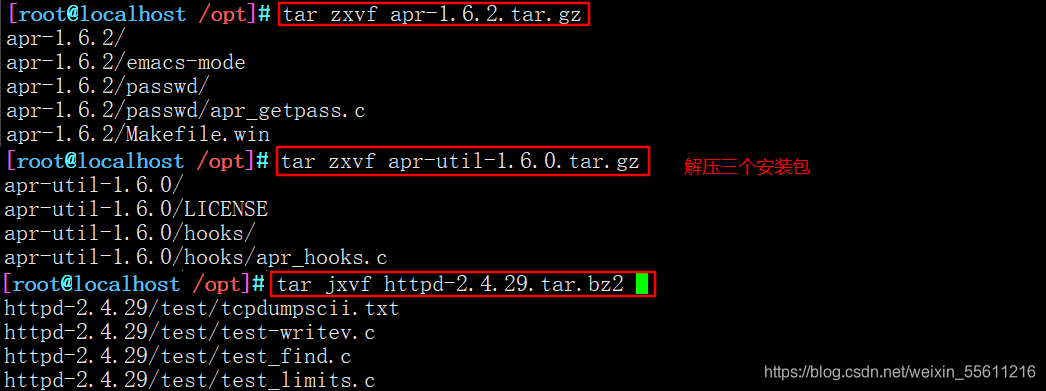

cd /opt/
tar zxvf apr-1.6.2.tar.gz
tar zxvf apr-util-1.6.0.tar.gz
tar jxvf httpd-2.4.29.tar.bz2

mv apr-1.6.2 /opt/httpd-2.4.29/srclib/apr
mv apr-util-1.6.0 /opt/httpd-2.4.29/srclib/apr-util

cd /opt/httpd-2.4.29/
./configure \
--prefix=/usr/local/httpd \		#指定将 httpd 服务程序的安装路径
--enable-so \					#启用动态加载模块支持,使 httpd 具备进一步扩展功能的能力
--enable-rewrite \				#启用网页地址重写功能,用于网站优化、防盗链及目录迁移维护
--enable-charset-lite \			#启动字符集支持,以便支持使用各种字符集编码的页面
--enable-cgi					#启用CGI(通用网关接口)脚本程序支持,便于网站的外部扩展应用访问能力

./configure --prefix=/usr/local/httpd --enable-so --enable-rewrite --enable-charset-lite --enable-cgi
Insert picture description here


Insert picture description here

4. Compile and install

make							#make -j 2  表示开2核同时进行编译
make install
Insert picture description here

5. Optimize the configuration file path

把httpd服务的可执行程序文件放入路径环境变量的目录中便于系统识别
ln -s /usr/local/httpd/conf/httpd.conf /etc/
ln -s /usr/local/httpd/bin/* /usr/local/bin/
Insert picture description here

6. Add httpd system service

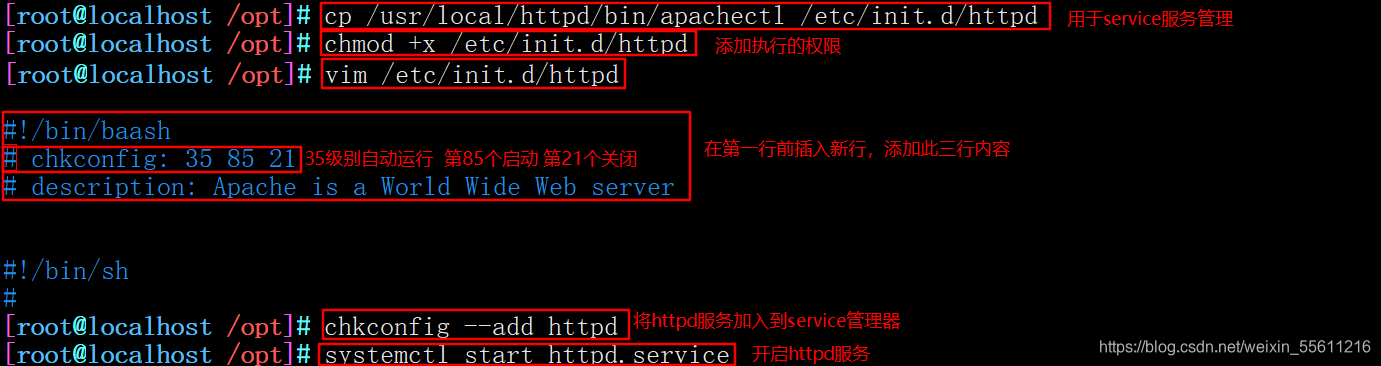

方法一:
cp /usr/local/httpd/bin/apachectl /etc/init.d/httpd		#用于service服务管理
chmod +x /etc/init.d/httpd
vi /etc/init.d/httpd
#!/bin/bash												#在第一行前插入新行,添加此三行内容
# chkconfig: 35 85 21									#35级别自动运行  第85个启动 第21个关闭
# description: Apache is a World Wide Web server

chkconfig --add httpd     		#将httpd服务加入到service管理器

systemctl start httpd.service
或
service httpd start
Insert picture description here

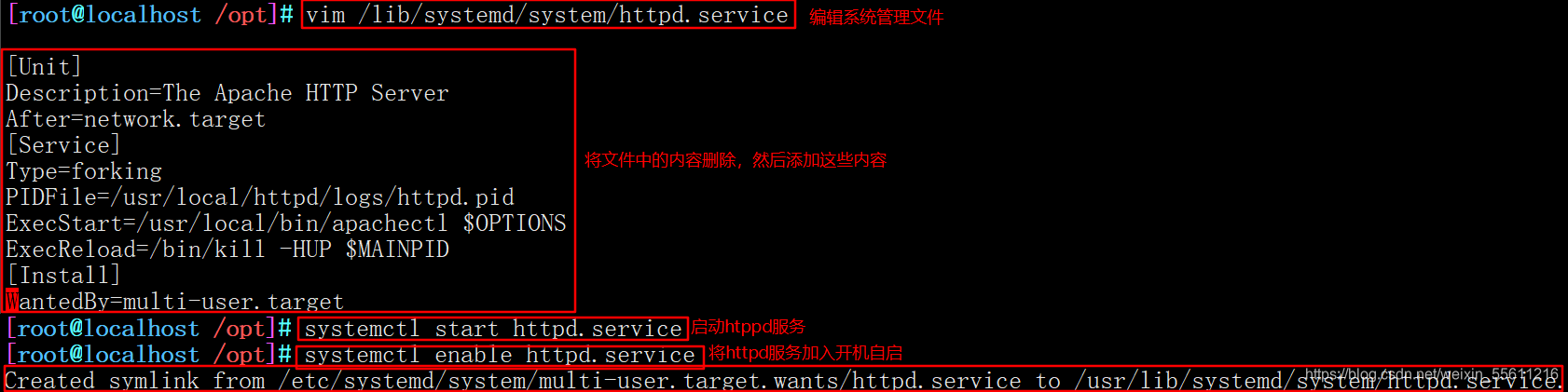

方法二:
vim /lib/systemd/system/httpd.service
[Unit]
Description=The Apache HTTP Server						#描述
After=network.target									#描述服务类别
[Service]
Type=forking											#后台运行方式
PIDFile=/usr/local/httpd/logs/httpd.pid					#PID文件位置
ExecStart=/usr/local/bin/apachectl $OPTIONS				#启动服务
ExecReload=/bin/kill -HUP $MAINPID						#根据PID重载配置
[Install]
WantedBy=multi-user.target

systemctl start httpd.service
systemctl enable httpd.service
Insert picture description here

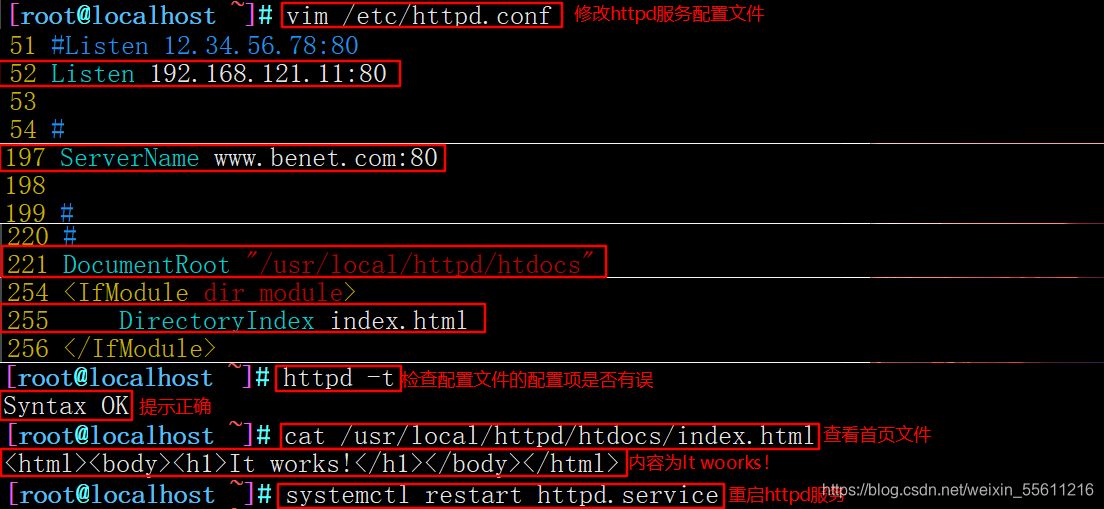

7. Modify the httpd service configuration file

vim /etc/httpd.conf
--52行--修改
Listen 192.198.80.10:80
--197行--取消注释,修改
ServerName www.kgc.com:80

--221行--默认首页存放路径
DocumentRoot "/usr/local/httpd/htdocs"
--255行--默认首页文件名设置
DirectoryIndex index.html

httpd -t  或 apachectl -t			#检查配置文件的配置项是否有误
cat /usr/local/httpd/htdocs/index.html
systemctl restart httpd.service
Bold style

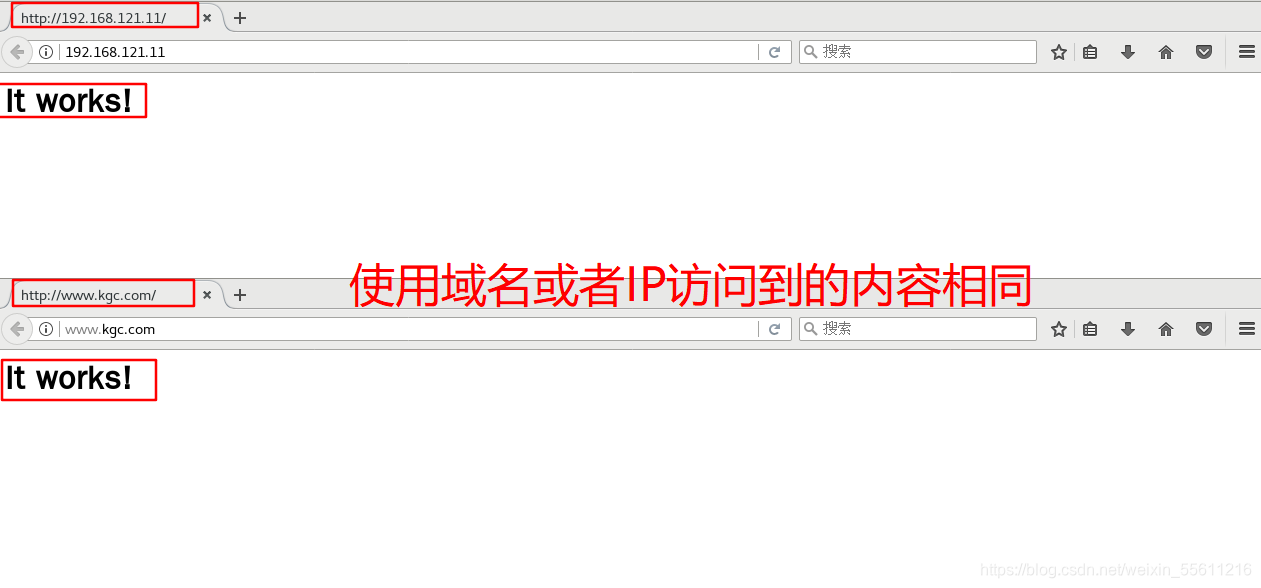

8. Browser access verification

netstat -anpt | grep 80
echo "192.168.80.10 www.kgc.com" >> /etc/hosts

http://192.168.121.11
http://www.kgc.com
Insert picture description here


Insert picture description here

3. Compilation and installation of mysqld service

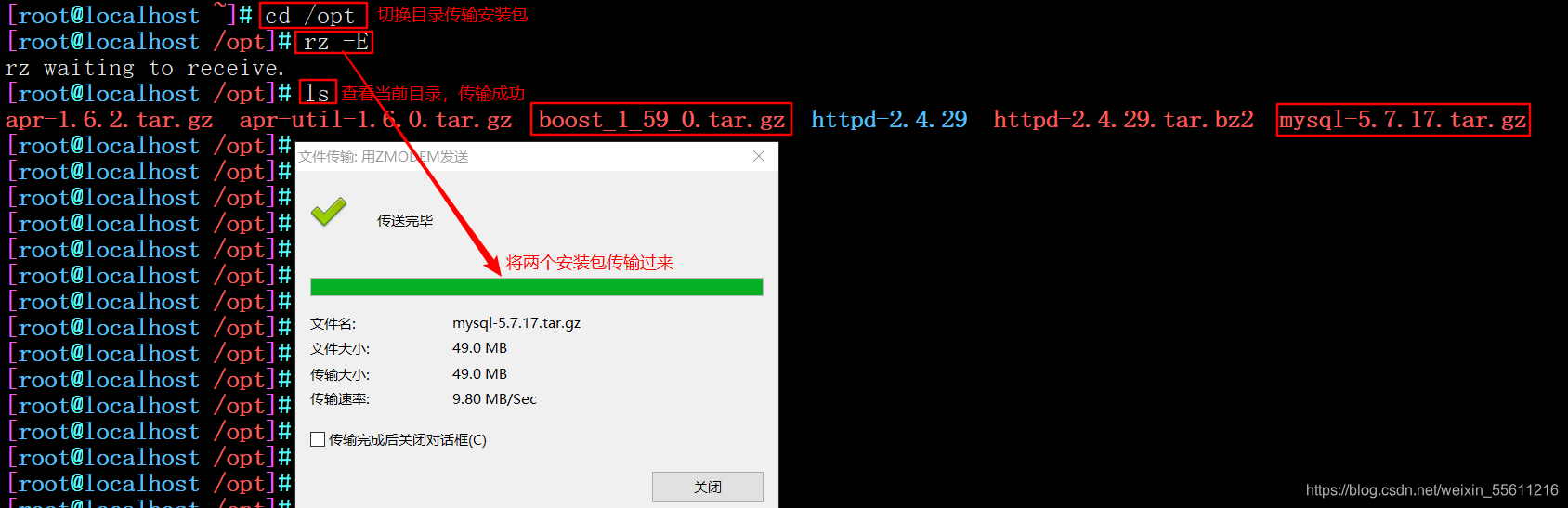

1. Install mysql

将安装mysql 所需软件包传到/opt目录下
mysql-5.7.17.tar.gz
boost_1_59_0.tar.gz		#支持c++的运行库
Insert picture description here

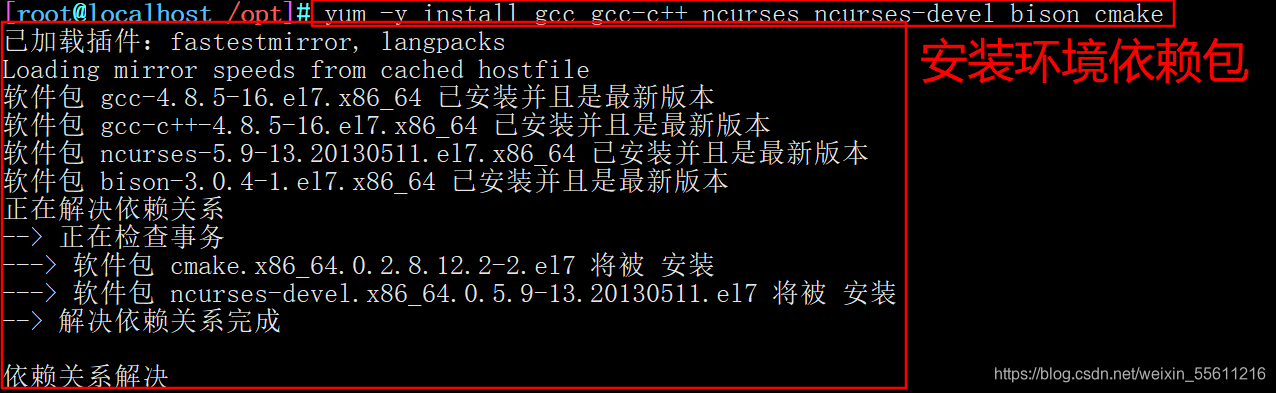

2. Installation environment dependent packages

yum -y install \
gcc \
gcc-c++ \
ncurses \				#字符终端下图形互动功能的动态库
ncurses-devel \			#ncurses开发包
bison \					#语法分析器
cmake					#mysql需要用cmake编译安装

yum -y install gcc gcc-c++ ncurses ncurses-devel bison cmake
Insert picture description here

3. Configure the software module

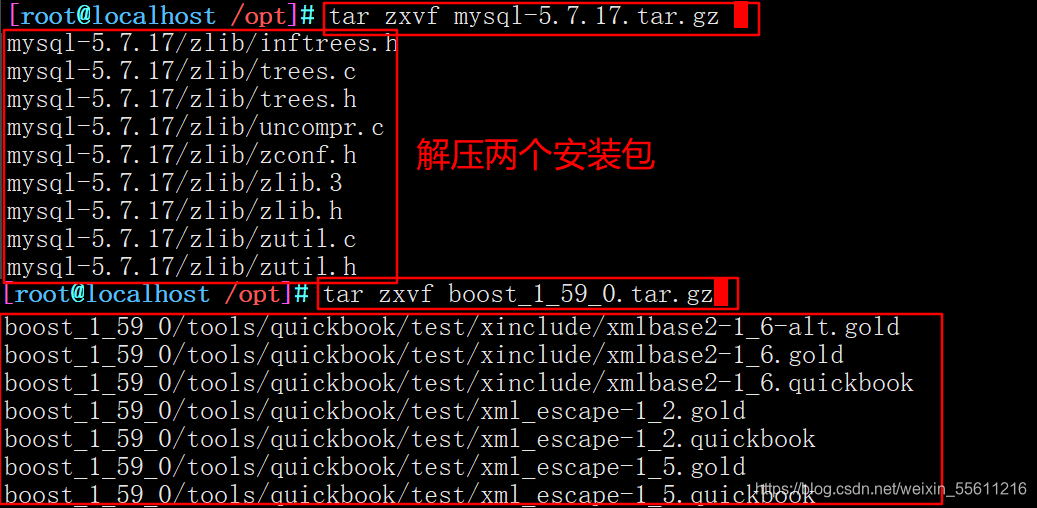

tar zxvf mysql-5.7.17.tar.gz
tar zxvf boost_1_59_0.tar.gz

cd /opt
mv boost_1_59_0 /usr/local/boost		#重命名
Insert picture description here

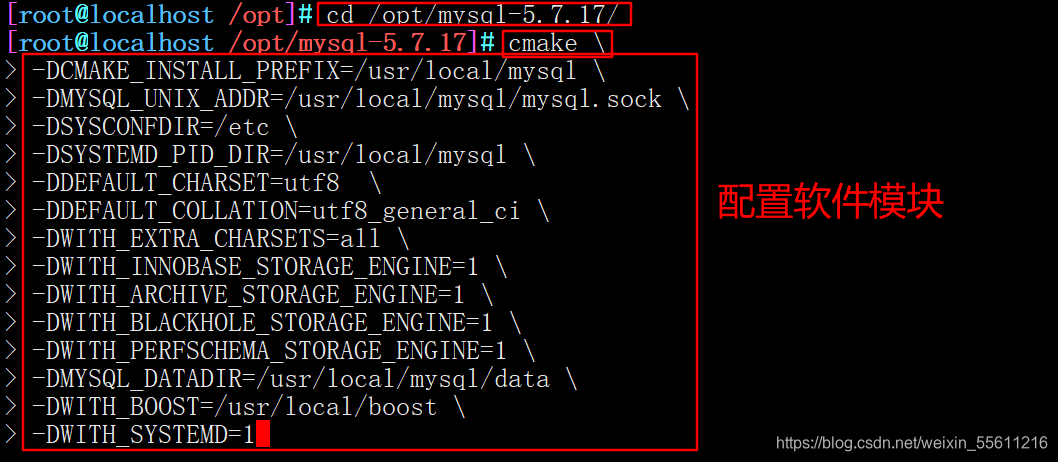

cd /opt/mysql-5.7.17/
cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \		#指定mysql的安装路径
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \ #指定mysql进程监听套接字文件(数据库连接文件)的存储路径
-DSYSCONFDIR=/etc \                             #指定配置文件的存储路径
-DSYSTEMD_PID_DIR=/usr/local/mysql \            #指定进程文件的存储路径
-DDEFAULT_CHARSET=utf8  \                       #指定默认使用的字符集编码,如 utf8
-DDEFAULT_COLLATION=utf8_general_ci \			#指定默认使用的字符集校对规则
-DWITH_EXTRA_CHARSETS=all \						#指定支持其他字符集编码
-DWITH_INNOBASE_STORAGE_ENGINE=1 \              #安装INNOBASE存储引擎
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \               #安装ARCHIVE存储引擎
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \             #安装BLACKHOLE存储引擎
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \            #安装FEDERATED存储引擎
-DMYSQL_DATADIR=/usr/local/mysql/data \         #指定数据库文件的存储路径
-DWITH_BOOST=/usr/local/boost \          #指定boost的路径,若使用mysql-boost集成包安装则-DWITH_BOOST=boost
-DWITH_SYSTEMD=1								#生成便于systemctl管理的文件
Insert picture description here
Storage engine options:
MYISAM, MERGE, MEMORY, and CSV engines are compiled to the server by default and do not need to be explicitly installed. To statically compile a storage engine to the server, use -DWITH_engine_STORAGE_ENGINE=1. The available storage engine values ​​are: ARCHIVE, BLACKHOLE, EXAMPLE, FEDERATED, INNOBASE (InnoDB), PARTITION (partitioning support), and PERFSCHEMA (Performance Schema)

Note: If there is an error in the process of CMAKE, after the error is resolved, you need to delete the CMakeCache.txt file in the source directory, and then re-CMAKE, otherwise the error will remain

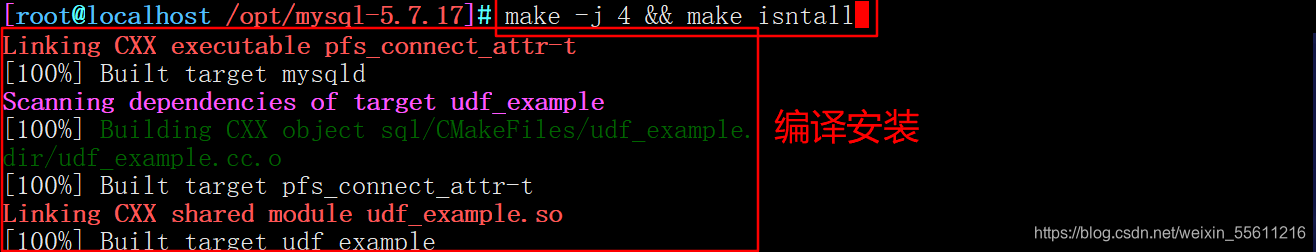

4. Compile and install

make -j  4  && make install
Insert picture description here

5. Create a mysql user

useradd -M -s /sbin/nologin  mysql
Insert picture description here

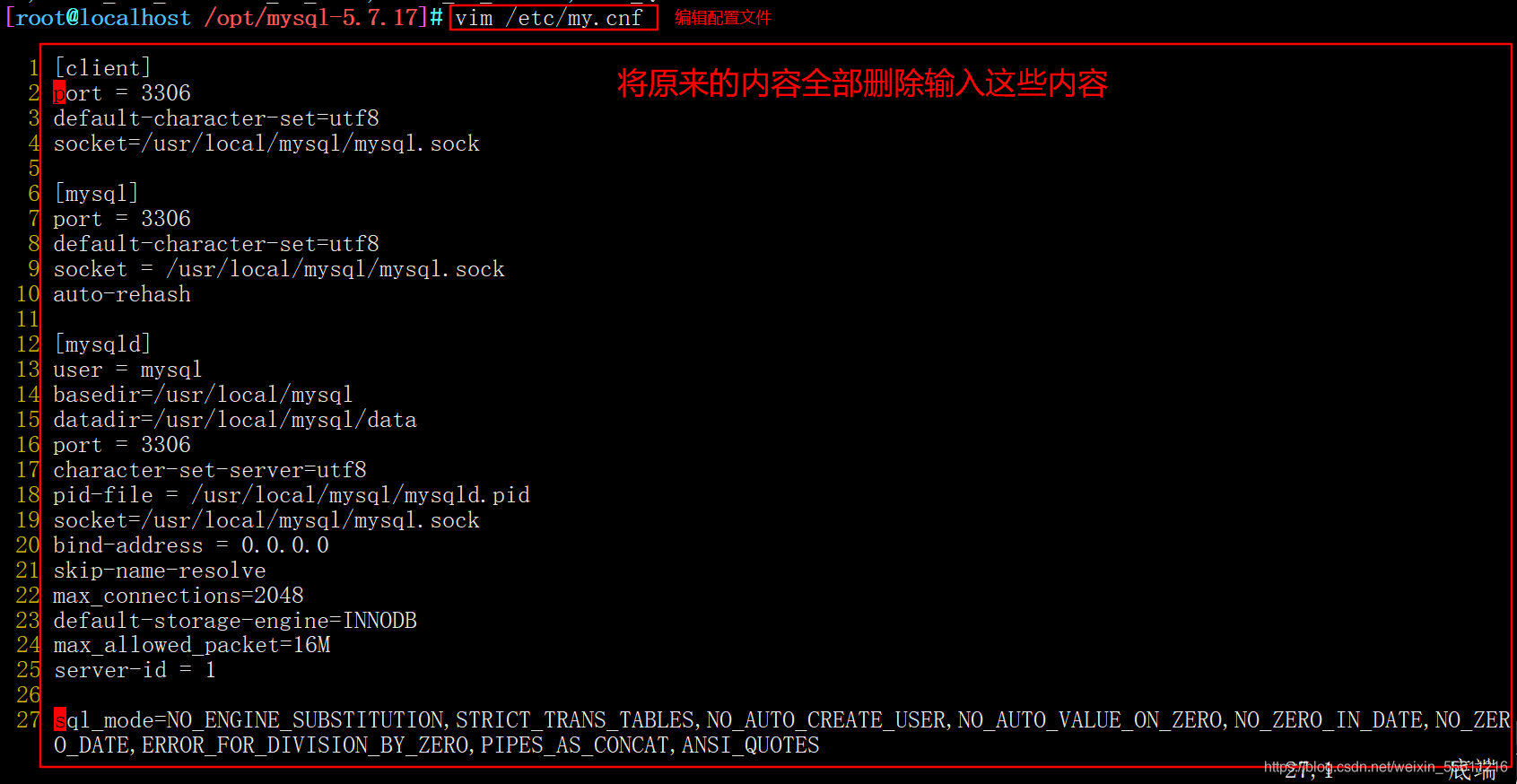

6. Modify the mysql configuration file

vim /etc/my.cnf								#删除原配置项,再重新添加下面内容
[client]									#客户端设置
port = 3306
socket = /usr/local/mysql/mysql.sock

[mysql]										#服务端设置
port = 3306
socket = /usr/local/mysql/mysql.sock
auto-rehash									#开启自动补全功能

[mysqld]									#服务全局设置
user = mysql       							#设置管理用户
basedir=/usr/local/mysql					#指定数据库的安装目录
datadir=/usr/local/mysql/data				#指定数据库文件的存储路径
port = 3306									#指定端口
character-set-server=utf8					#设置服务器字符集编码格式为utf8
pid-file = /usr/local/mysql/mysqld.pid		#指定pid 进程文件路径
socket=/usr/local/mysql/mysql.sock			#指定数据库连接文件
bind-address = 0.0.0.0						#设置监听地址,0.0.0.0代表允许所有,如允许多个IP需空格隔开
skip-name-resolve							#禁用DNS解析
max_connections=2048						#设置mysql的最大连接数
default-storage-engine=INNODB				#指定默认存储引擎
max_allowed_packet=16M						#设置数据库接收的数据包大小的最大值
server-id = 1
sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,
NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES
Common values ​​of sql_mode are as follows:
NO_ENGINE_SUBSTITUTION
If the required storage engine is disabled or not compiled, then an error is thrown. When this value is not set, replace with the default storage engine and throw an exception
STRICT_TRANS_TABLES
In this mode, if a value cannot be inserted into a transaction table, the current operation is interrupted, and there is no restriction on non-transactional tables
NO_AUTO_CREATE_USER
Prohibit GRANT from creating users with empty passwords
NO_AUTO_VALUE_ON_ZERO
The self-increasing column in mysql can start from 0. By default, the self-increasing column starts from 1, if you insert data with a value of 0, an error will be reported
NO_ZERO_IN_DATE
Zero days and months are not allowed
NO_ZERO_DATE
mysql database does not allow inserting zero dates, inserting zero dates will throw an error instead of a warning
ERROR_FOR_DIVISION_BY_ZERO
During INSERT or UPDATE, if the data is divided by zero, an error is generated instead of a warning. By default, MySQL returns NULL when data is divided by zero
PIPES_AS_CONCAT
Treat "||" as a string concatenation operator instead of an OR operator, which is the same as the Oracle database and similar to the string concatenation function Concat
ANSI_QUOTES
When ANSI_QUOTES is enabled, double quotes cannot be used to quote a string because it is interpreted as an identifier
Insert picture description here

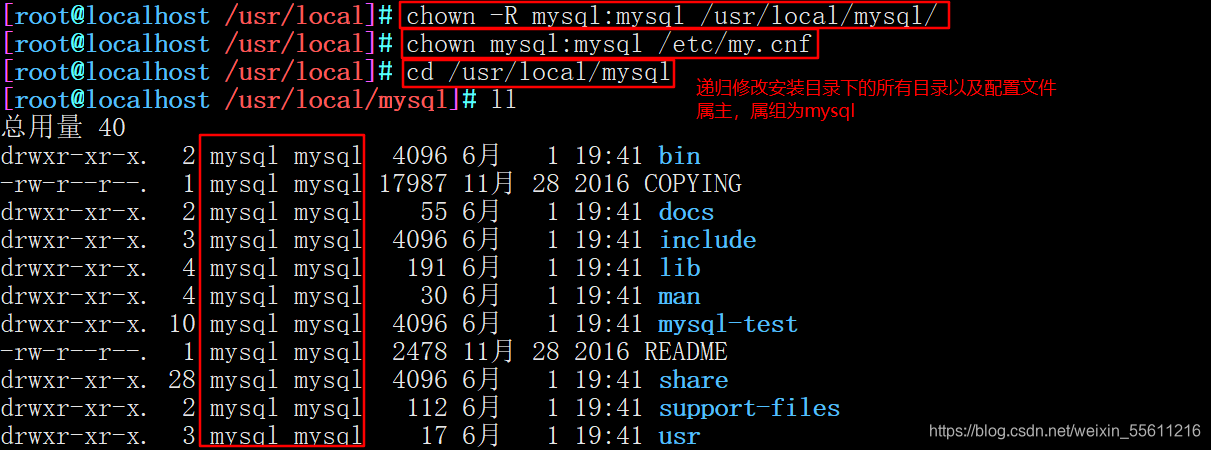

7. Change the owner group of the mysql installation directory and configuration file

chown -R mysql:mysql /usr/local/mysql/
chown mysql:mysql /etc/my.cnf
Insert picture description here

8. Set the path environment variable

echo 'export PATH=/usr/local/mysql/bin:/usr/local/mysql/lib:$PATH' >> /etc/profile
source /etc/profile
Insert picture description here

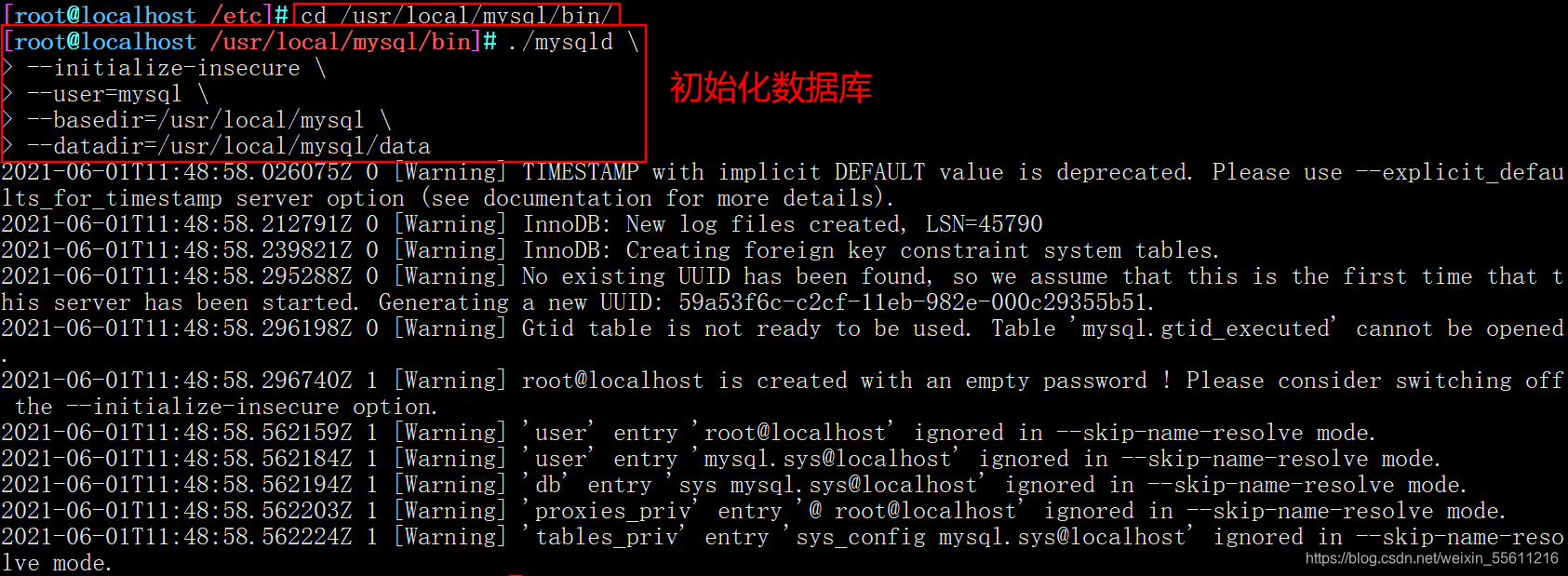

9. Initialize the database

cd /usr/local/mysql/bin/
./mysqld \
--initialize-insecure \				#生成初始化密码为空
--user=mysql \                      #指定管理用户
--basedir=/usr/local/mysql \        #指定数据库的安装目录
--datadir=/usr/local/mysql/data		#指定数据库文件的存储路径
Insert picture description here

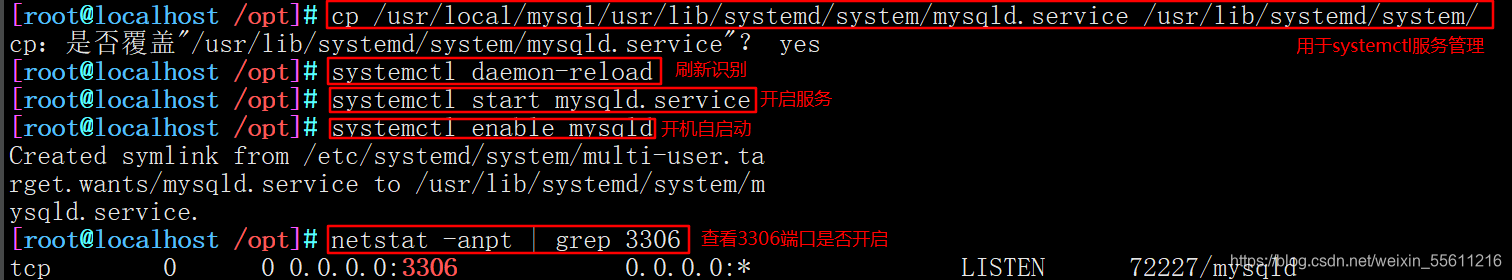

10. Add mysqld system service

cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/		#用于systemctl服务管理
systemctl daemon-reload         #刷新识别
systemctl start mysqld.service  #开启服务
systemctl enable mysqld         #开机自启动
netstat -anpt | grep 3306       #查看端口
Insert picture description here

11. Modify the mysql login password

mysqladmin -u root -p password "666" 	#给root账号设置密码为666,提示输入的是原始密码(为空)
Insert picture description here

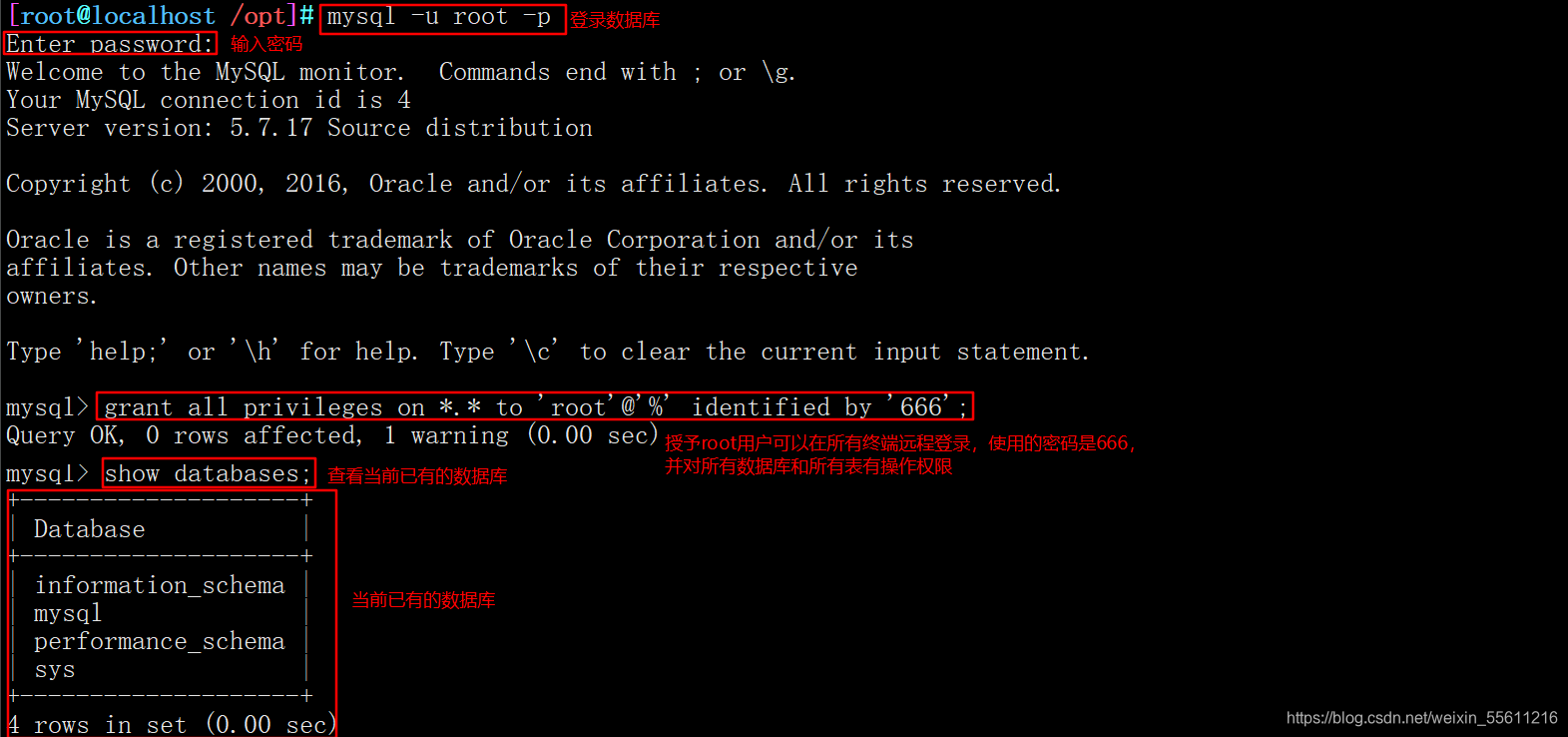

12. Authorize remote login

mysql -u root -p
grant all privileges on *.* to 'root'@'%' identified by '666';
#授予root用户可以在所有终端远程登录,使用的密码是666,并对所有数据库和所有表有操作权限


show databases;			#查看当前已有的数据库
Insert picture description here

Four. Compile and install the PHP parsing environment

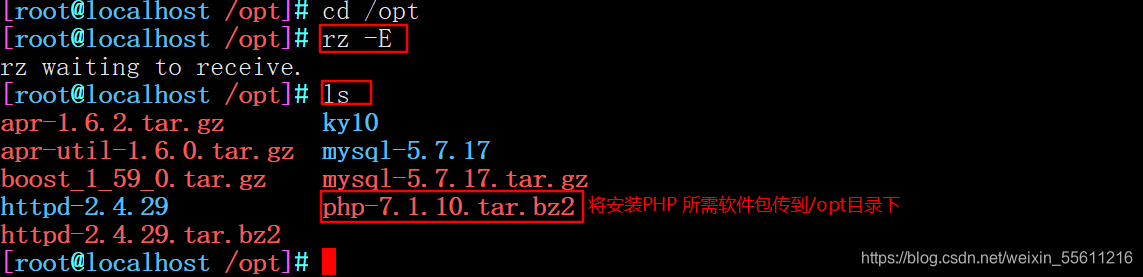

1. Install PHP

将安装PHP 所需软件包传到/opt目录下
php-7.1.10.tar.bz2
Insert picture description here

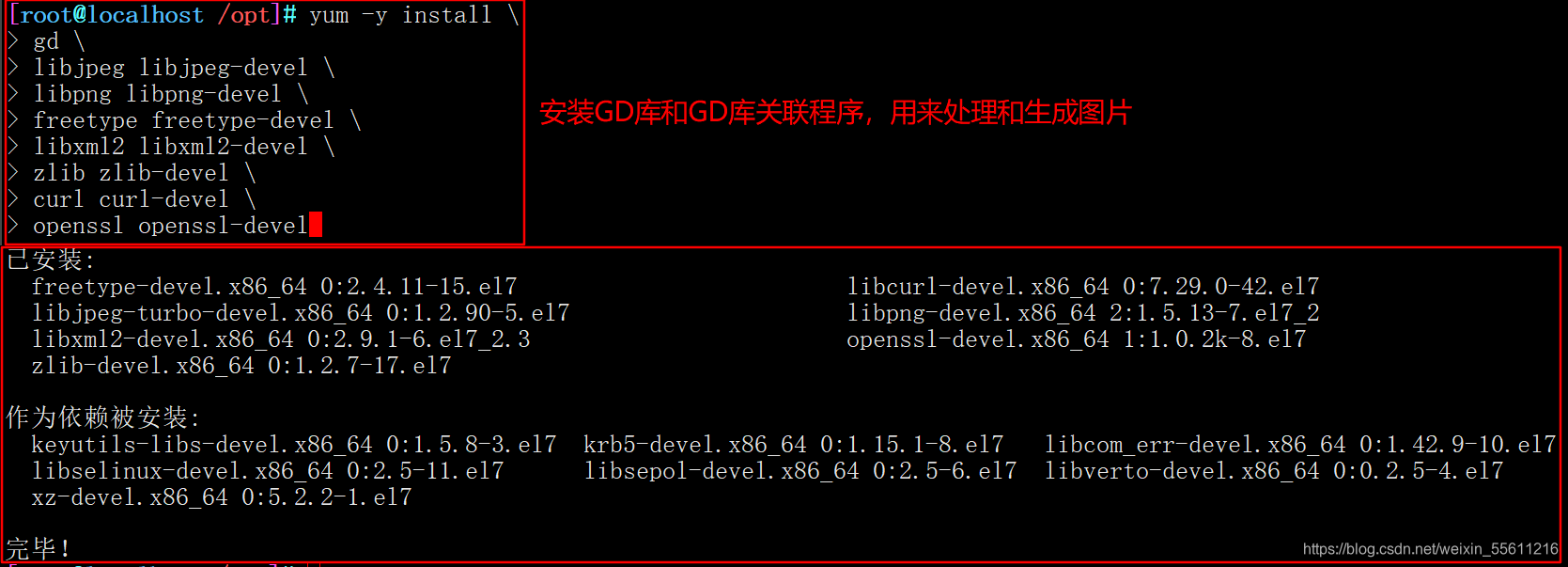

安装GD库和GD库关联程序,用来处理和生成图片
yum -y install \
gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel
Insert picture description here

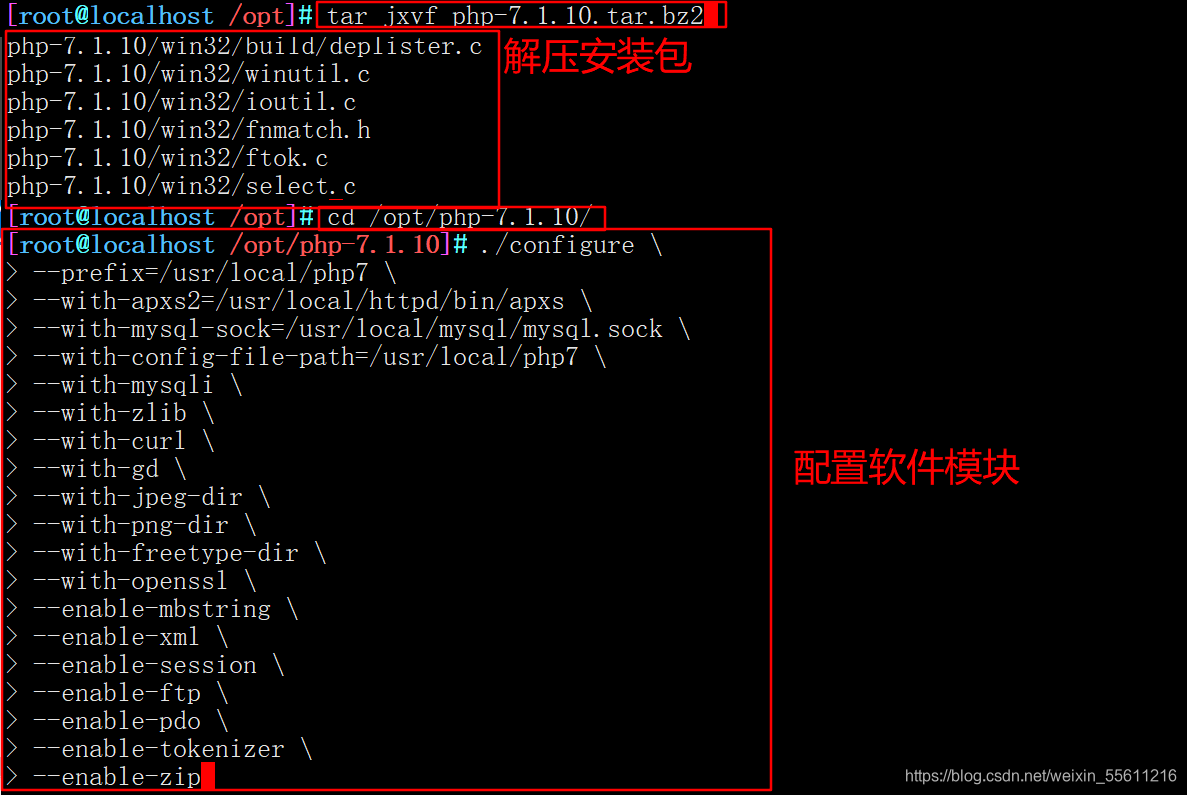

3. Configure the software module

cd /opt
tar jxvf php-7.1.10.tar.bz2
cd /opt/php-7.1.10/
./configure \
--prefix=/usr/local/php7 \							#指定将 PHP 程序的安装路径
--with-apxs2=/usr/local/httpd/bin/apxs \			#指定Apache httpd服务提供的apxs 模块支持程序的文件位置
--with-mysql-sock=/usr/local/mysql/mysql.sock \		#指定mysql 数据库连接文件的存储路径
--with-config-file-path=/usr/local/php7				#设置 PHP 的配置文件 php.ini 将要存放的位置
--with-mysqli \										#添加 MySQL 扩展支持 #mysqli扩展技术不仅可以调用MySQL的存储过程、处理MySQL事务,而且还可以使访问数据库工作变得更加稳定
--with-zlib \										#支持zlib功能,提供数据压缩
--with-curl \										#开启curl扩展功能,实现HTTP的Get下载和Post请求的方法
--with-gd \											#激活gd 库的支持
--with-jpeg-dir \									#激活jpeg 的支持
--with-png-dir \									#激活png 的支持
--with-freetype-dir \
--with-openssl \
--enable-mbstring \									#启用多字节字符串功能,以便支持中文等代码
--enable-xml \										#开启扩展性标记语言模块
--enable-session \									#会话
--enable-ftp \										#文本传输协议
--enable-pdo \										#函数库
--enable-tokenizer \								#令牌解释器
--enable-zip										#ZIP压缩格式
Insert picture description here

4. Compile and install

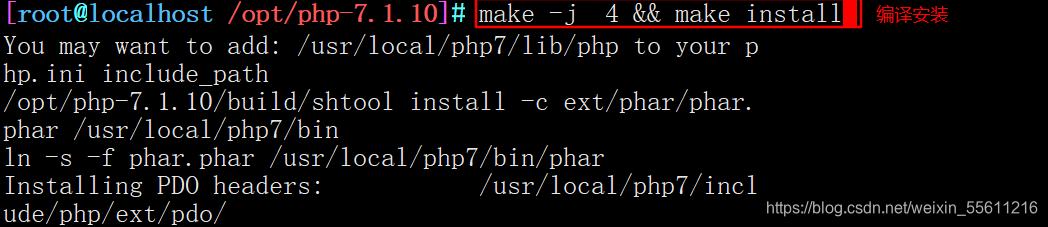

make -j  4 && make install
Insert picture description here

5. Modify the main configuration file of PHP

复制模版文件作为PHP 的主配置文件,并进行修改
cp /opt/php-7.1.10/php.ini-development /usr/local/php7/php.ini
#在测试环境时使用php.ini-development文件,而在生产环境时使用php.ini-production文件
vim /usr/local/php7/php.ini
--1170行--修改
mysqli.default_socket = /usr/local/mysql/mysql.sock
--939行--取消注释,修改
date.timezone = Asia/Shanghai
Insert picture description here

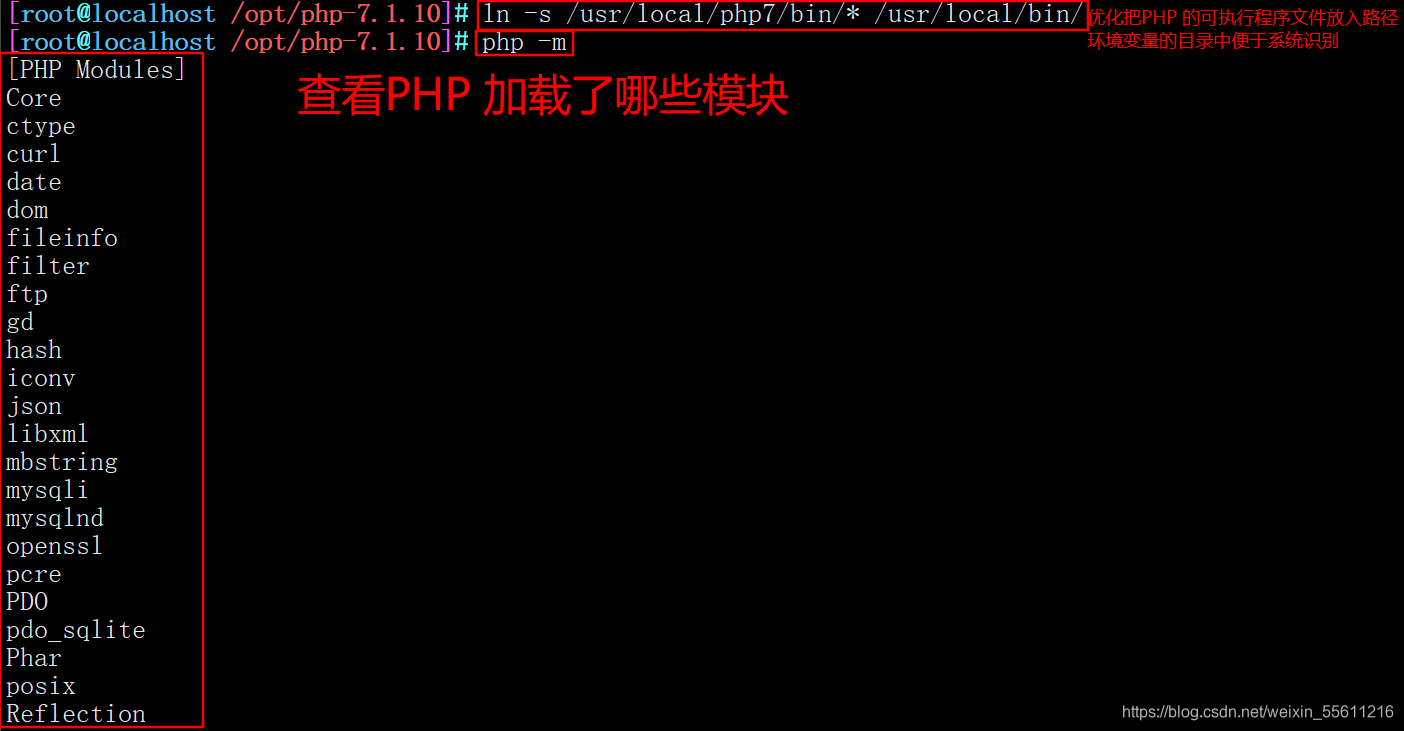

6. Optimize PHP executable program files

优化把PHP 的可执行程序文件放入路径环境变量的目录中便于系统识别
ln -s /usr/local/php7/bin/* /usr/local/bin/
php -m 			#查看PHP 加载了哪些模块
Insert picture description here

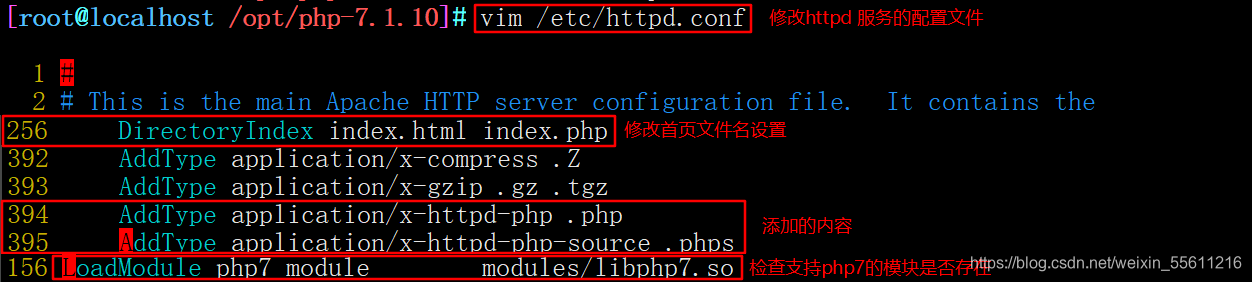

7. Modify the configuration file of the httpd service

修改httpd 服务的配置文件,让apache支持PHP
vim /etc/httpd.conf
--393行--插入以下内容
AddType application/x-httpd-php .php
AddType application/x-httpd-php-source .phps
--256行--修改首页文件名设置
DirectoryIndex index.html index.php

---检查支持php7的模块是否存在------
LoadModule php7_module        modules/libphp7.so
Insert picture description here

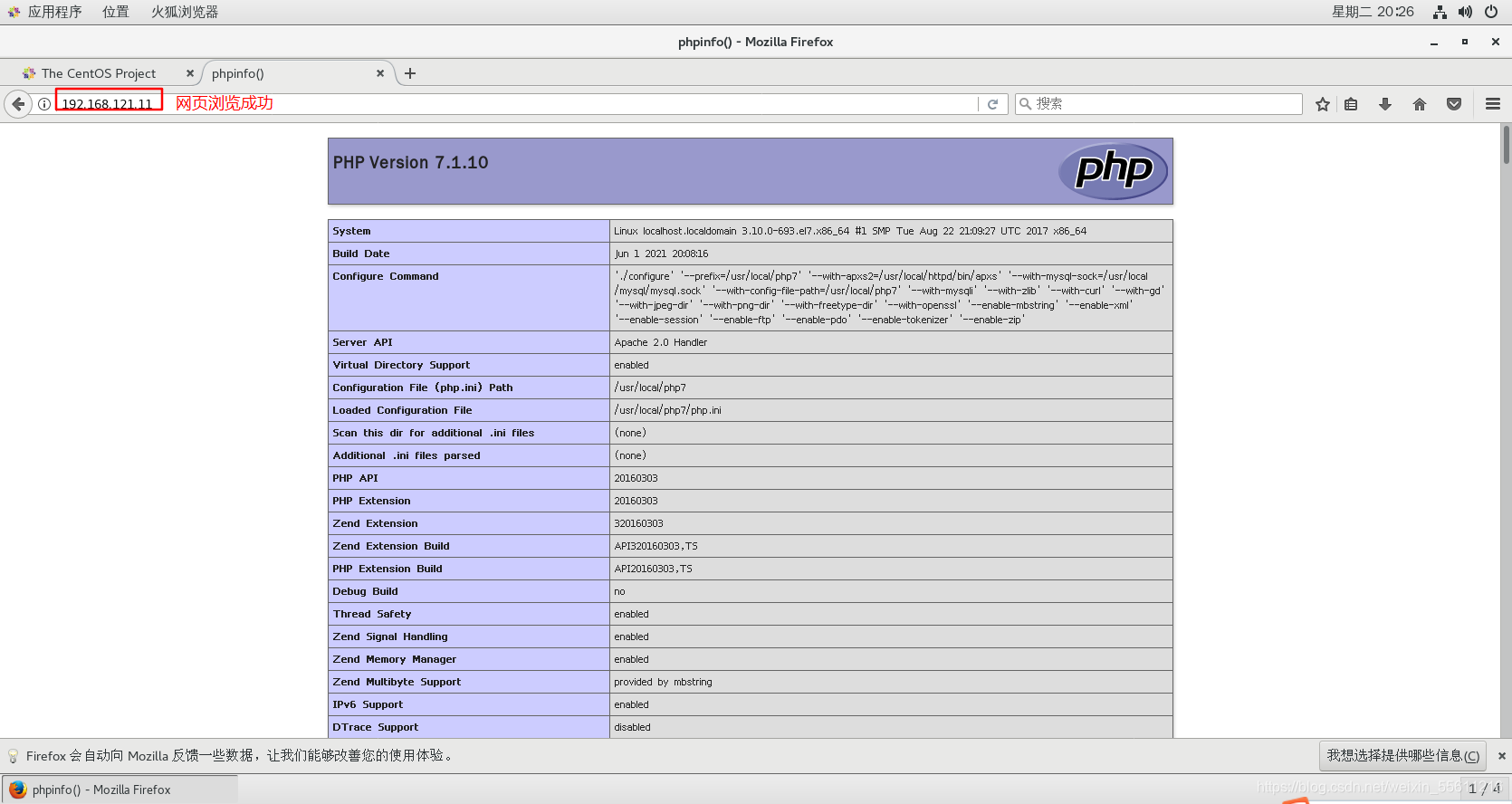

8. Verify the PHP test page

rm -rf /usr/local/httpd/htdocs/index.html
vim /usr/local/httpd/htdocs/index.php
<?php
phpinfo();
?>

systemctl restart httpd.service

浏览器访问
http://192.168.80.10
Insert picture description here


Insert picture description here

Five. Install the forum

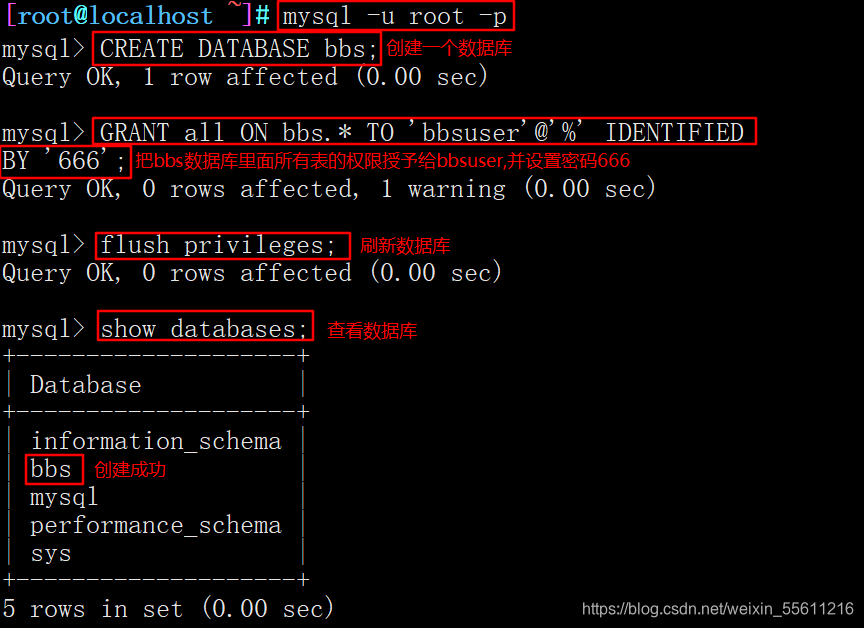

1. Create a database and authorize

mysql -u root -p

CREATE DATABASE bbs;
#创建一个数据库

GRANT all ON bbs.* TO 'bbsuser'@'%' IDENTIFIED BY '666';
#把bbs数据库里面所有表的权限授予给bbsuser,并设置密码666

flush privileges;
#刷新数据库

show databases;
Insert picture description here

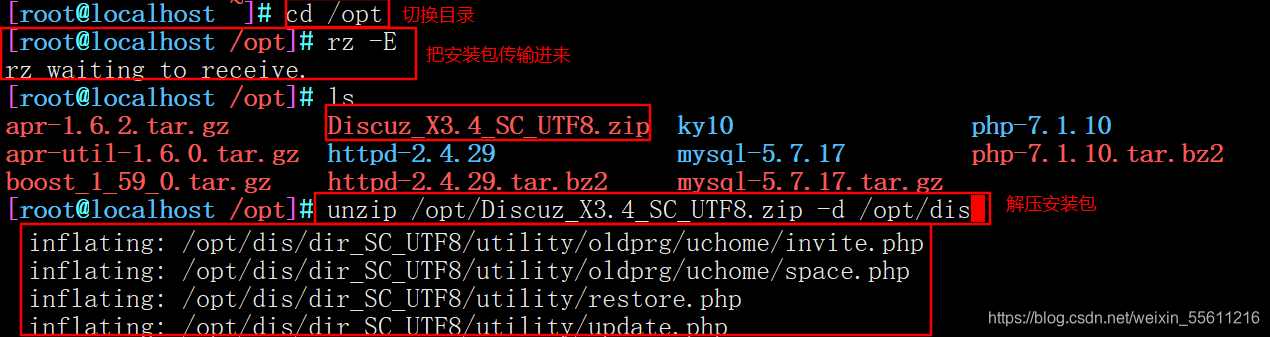

2. Unzip the forum compressed package

unzip /opt/Discuz_X3.4_SC_UTF8.zip -d /opt/dis
cd /opt/dis/dir_SC_UTF8/
cp -r upload/ /usr/local/httpd/htdocs/bbs		#上传站点更新包
Insert picture description here


Insert picture description here

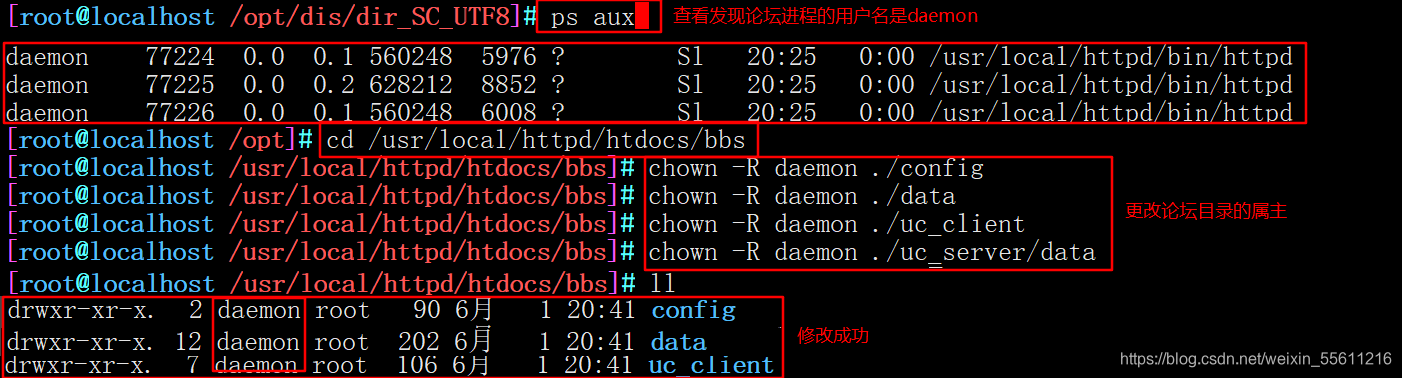

3. Change the owner of the forum directory

ps aux							#查看发现论坛进程的用户名是daemon
cd /usr/local/httpd/htdocs/bbs
chown -R daemon ./config
chown -R daemon ./data
chown -R daemon ./uc_client
chown -R daemon ./uc_server/data
Insert picture description here

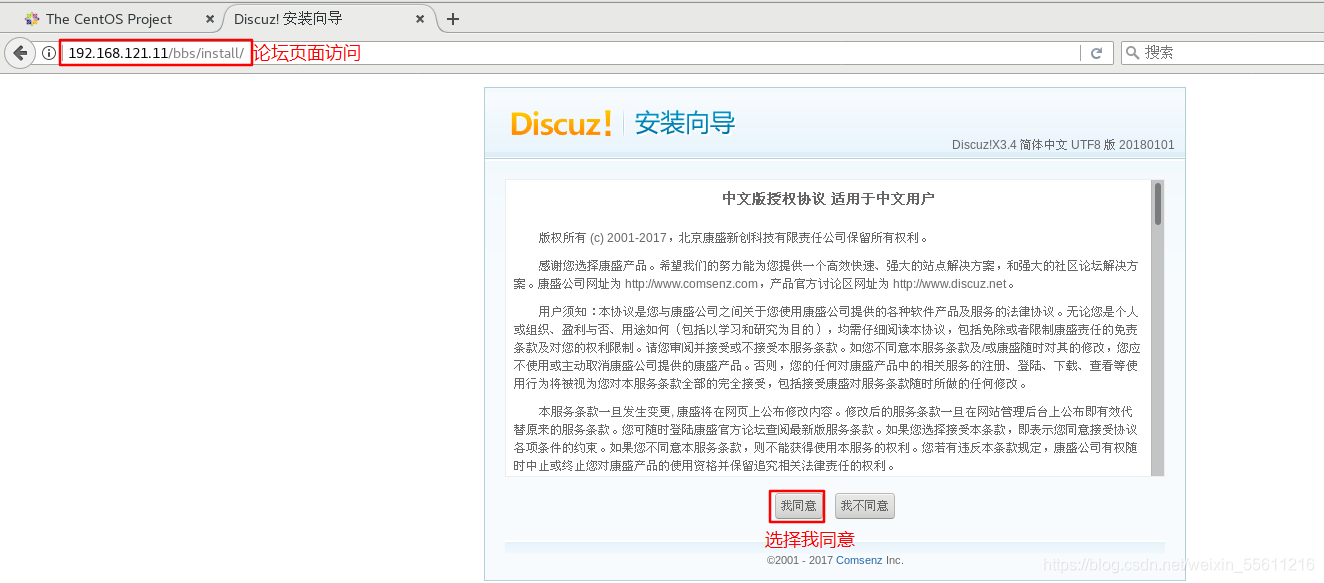

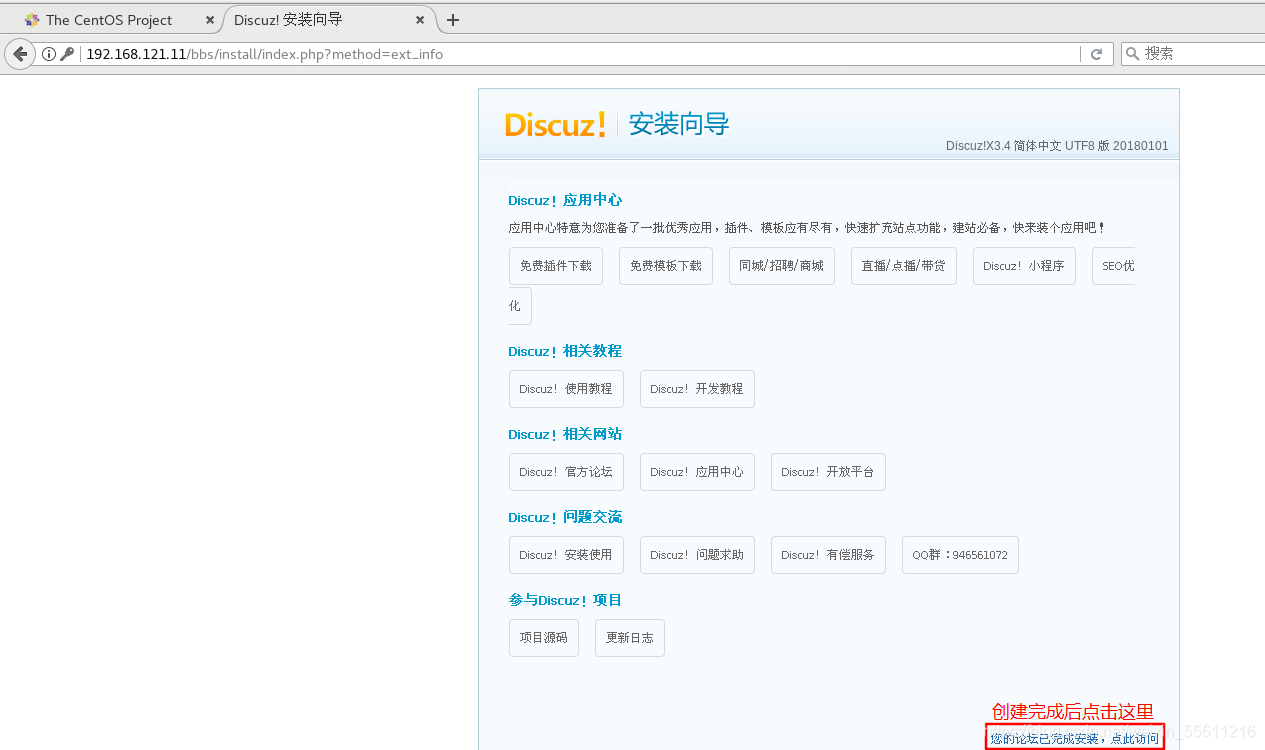

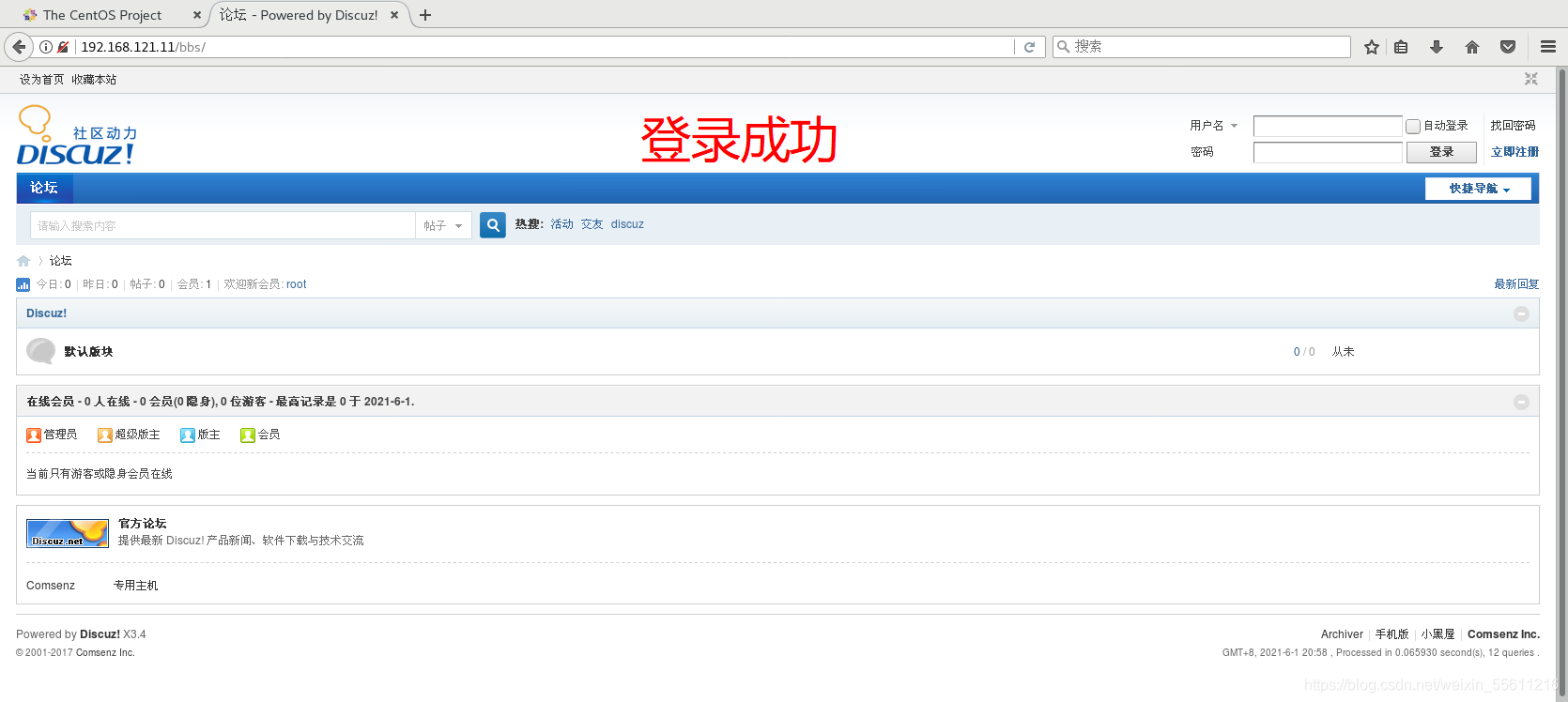

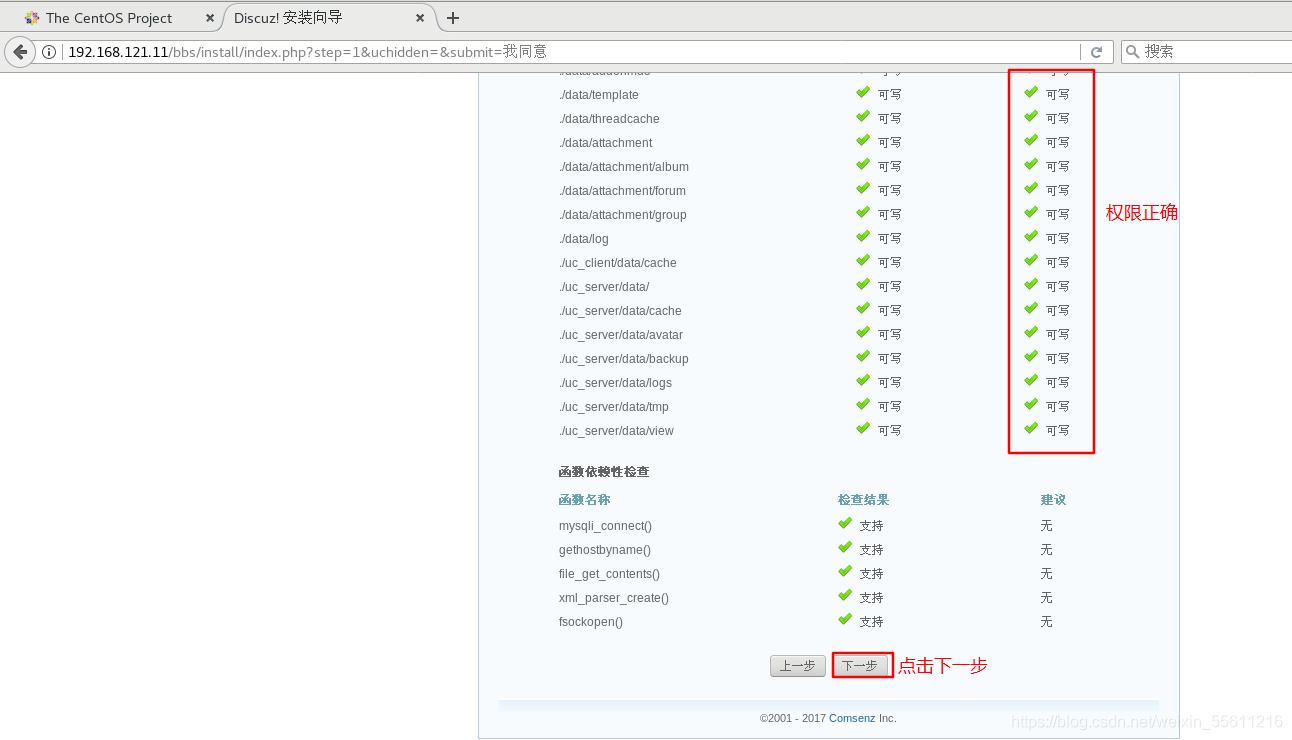

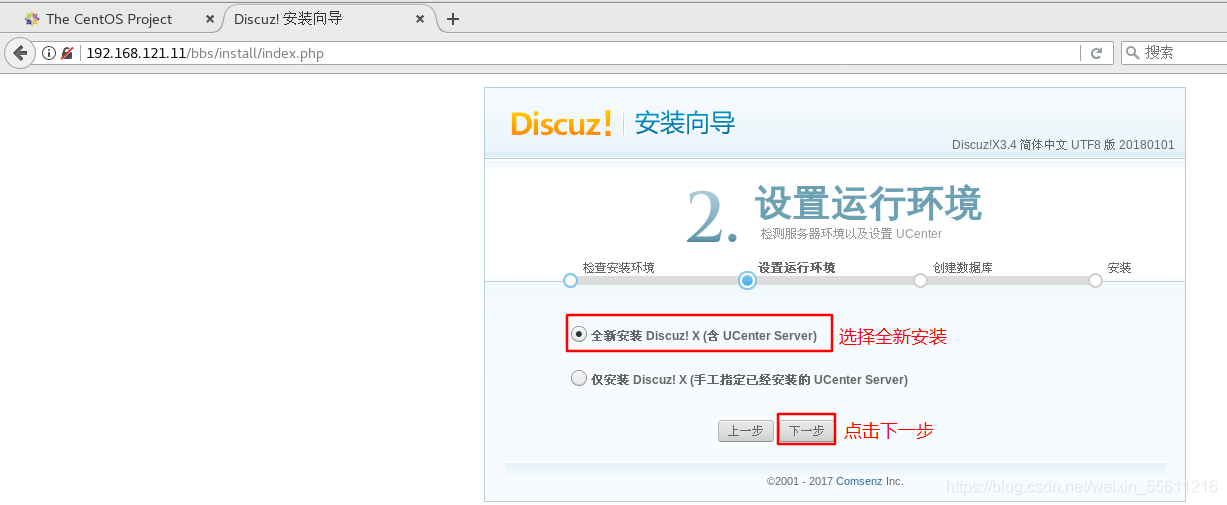

4. Browser access verification

论坛页面访问
http://192.168.121.11/bbs
----------------------------------------------------------------------------------------------------------

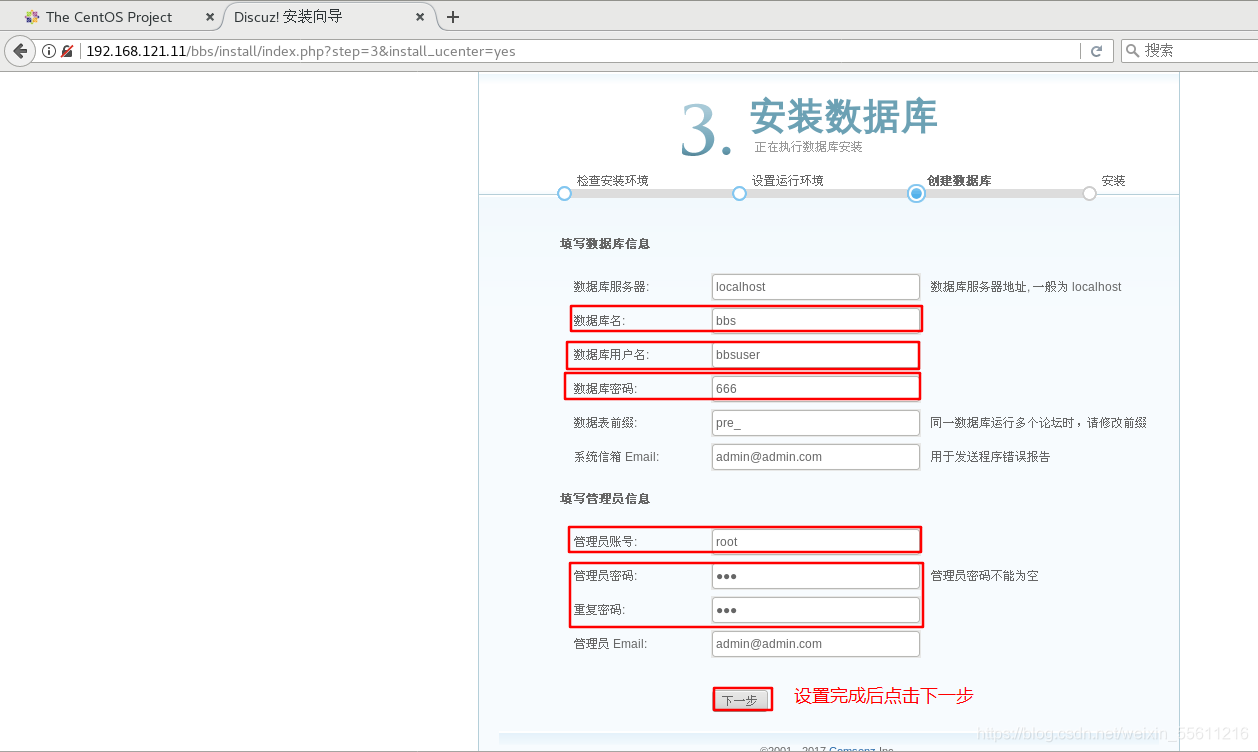

数据库服务器:localhost     ###本地架设就用localhost,如何不是在在本机上就要填写IP地址和端口号
数据库名字:bbs
数据库用户名:bbsuser
数据库密码:666
管理员账号:root
管理员密码:666
----------------------------------------------------------------------------------------------------------

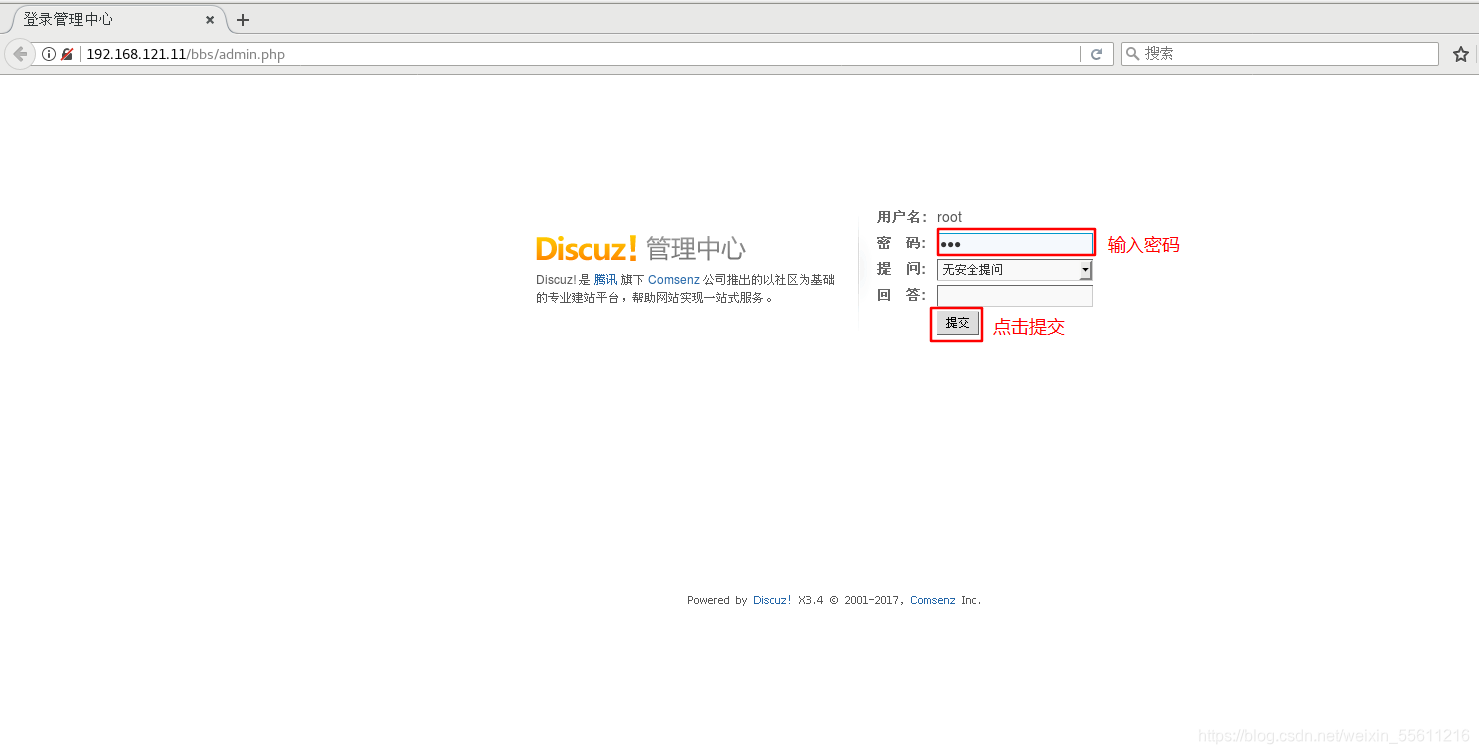

论坛后台管理员页面
http://192.168.80.10/bbs/admin.php
Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here


Insert picture description here
Insert picture description here


Insert picture description here


Insert picture description here

Installation package

Link: Installation package address
Extraction code: 1122
